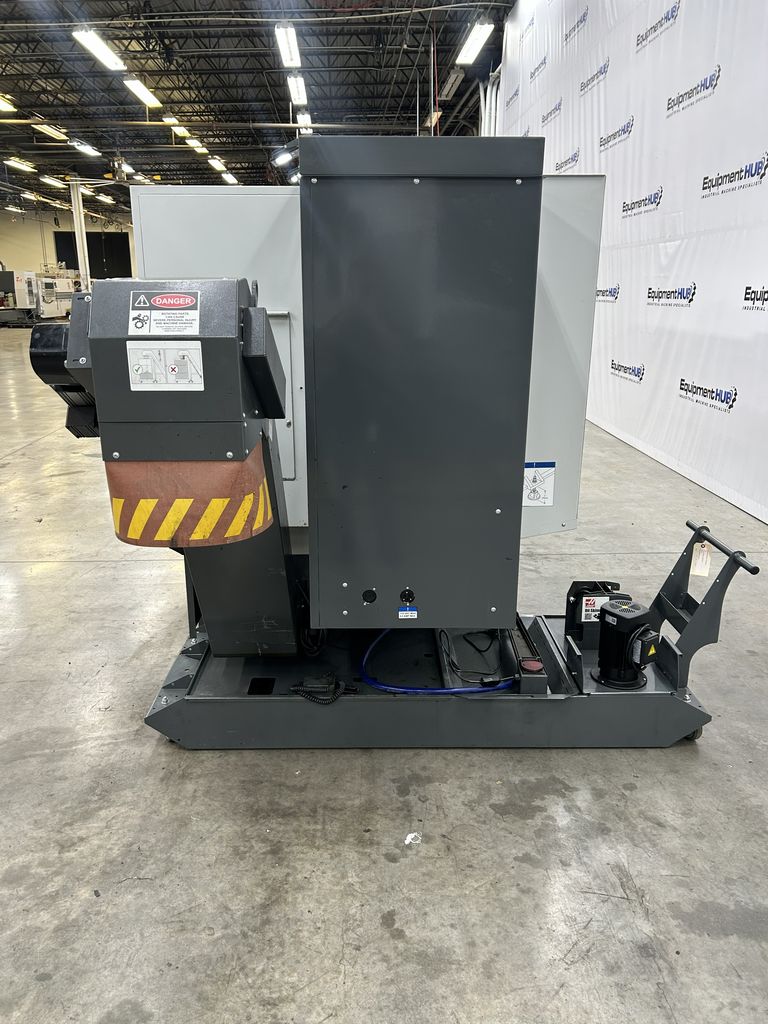

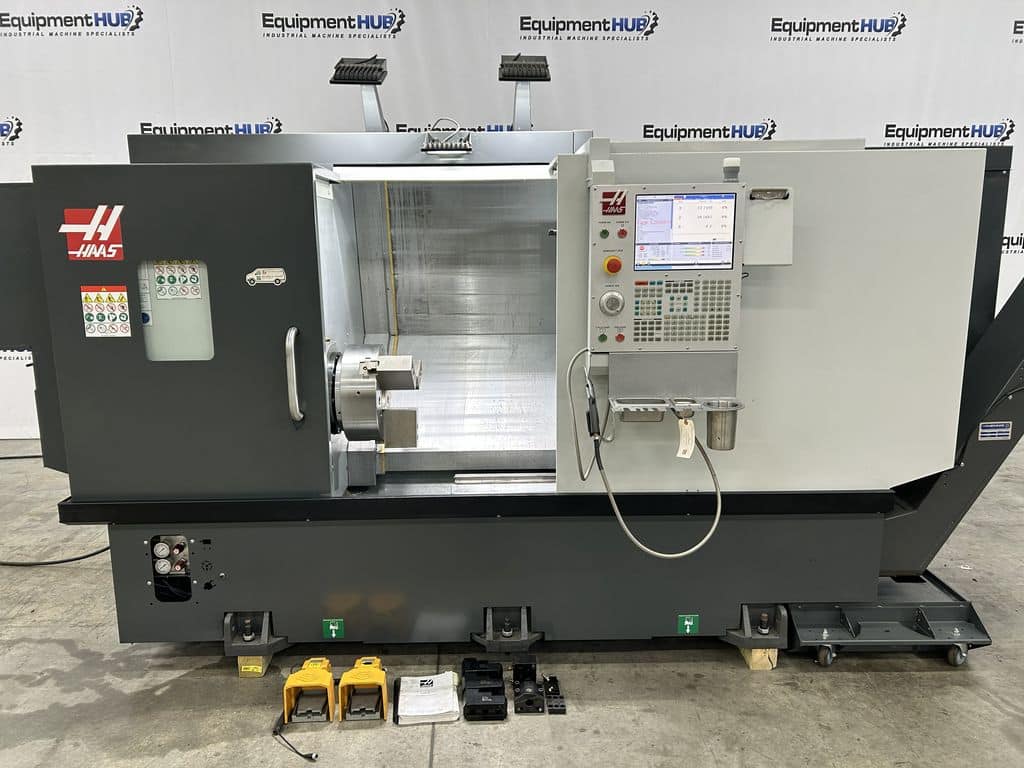

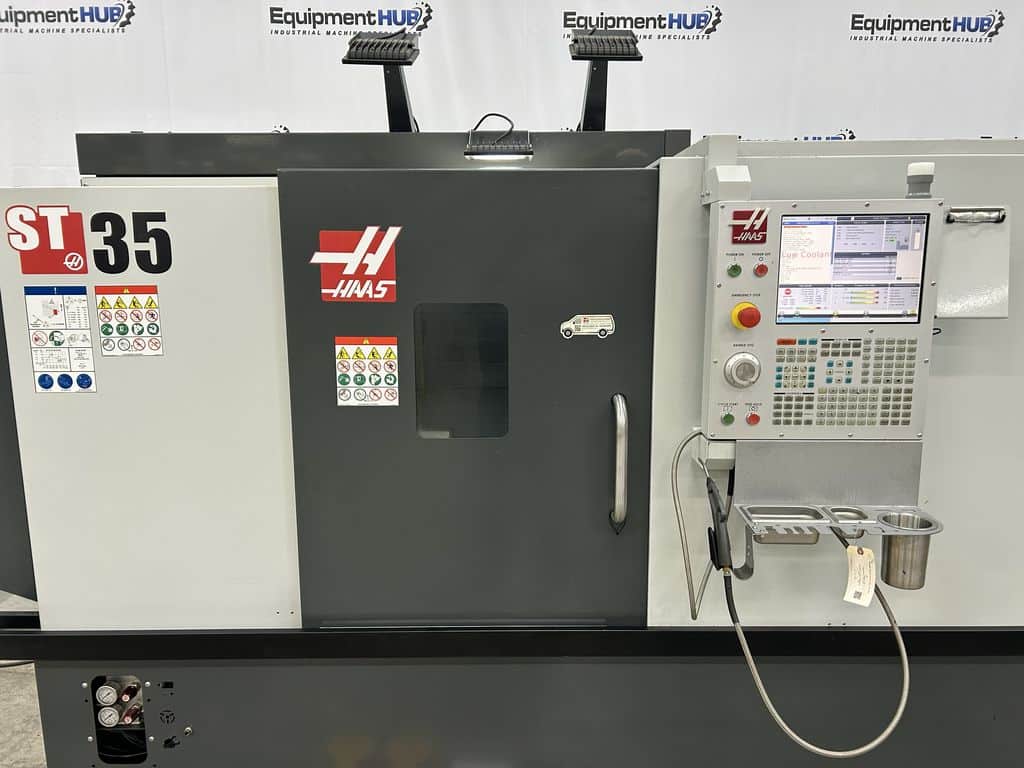

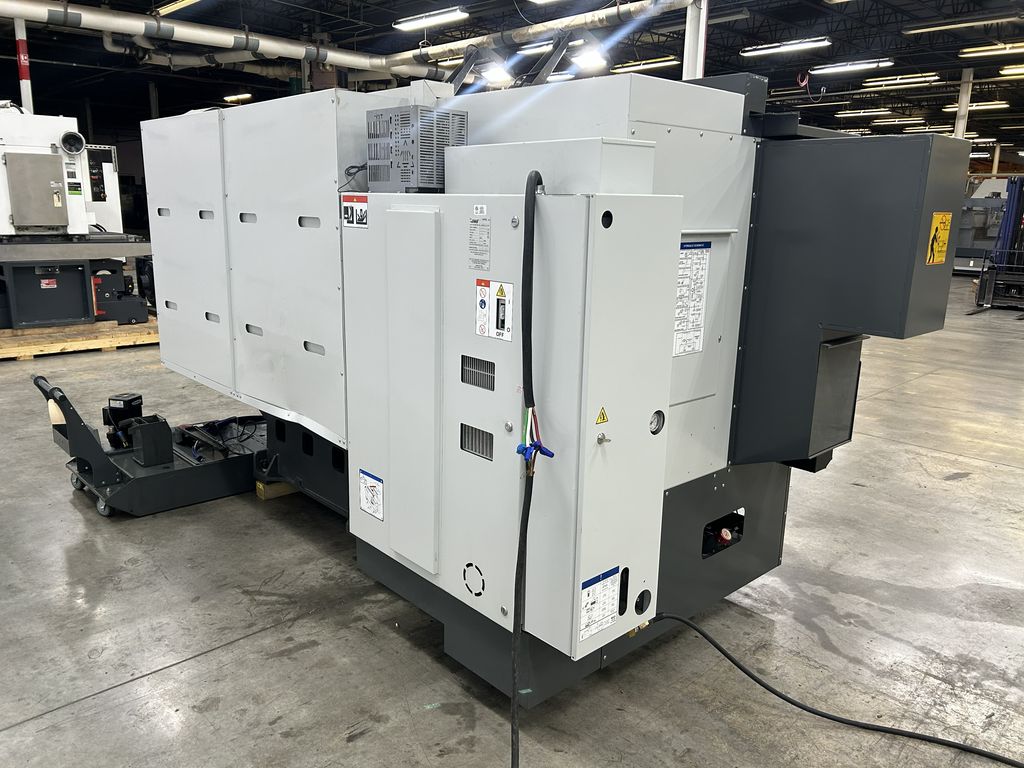

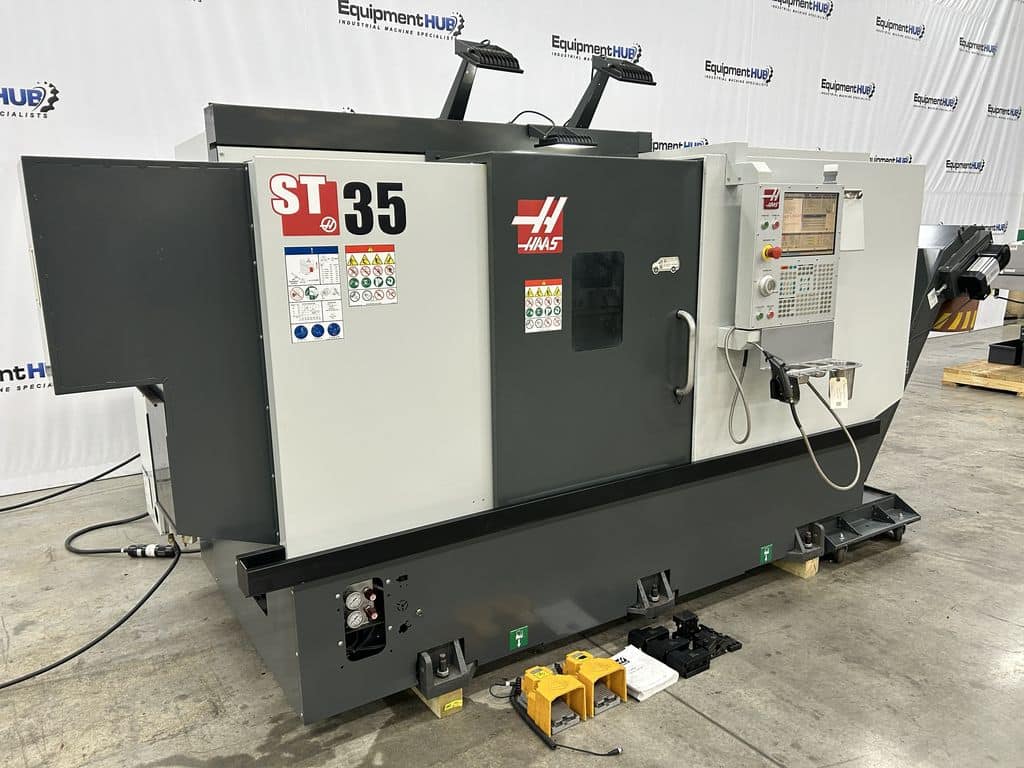

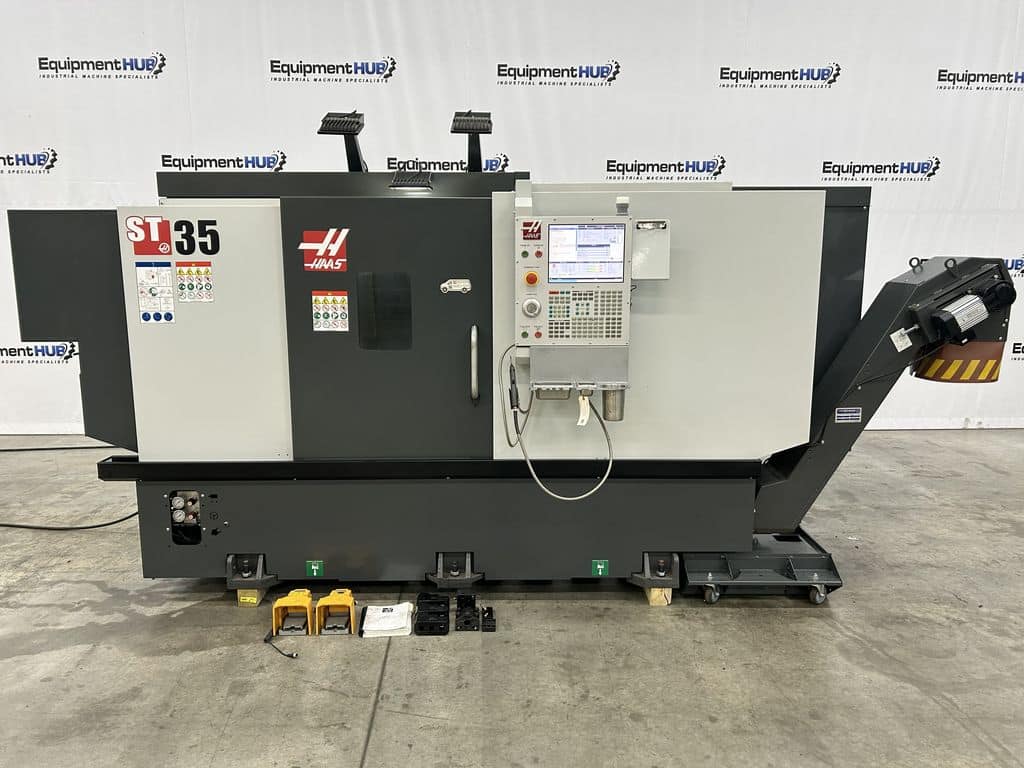

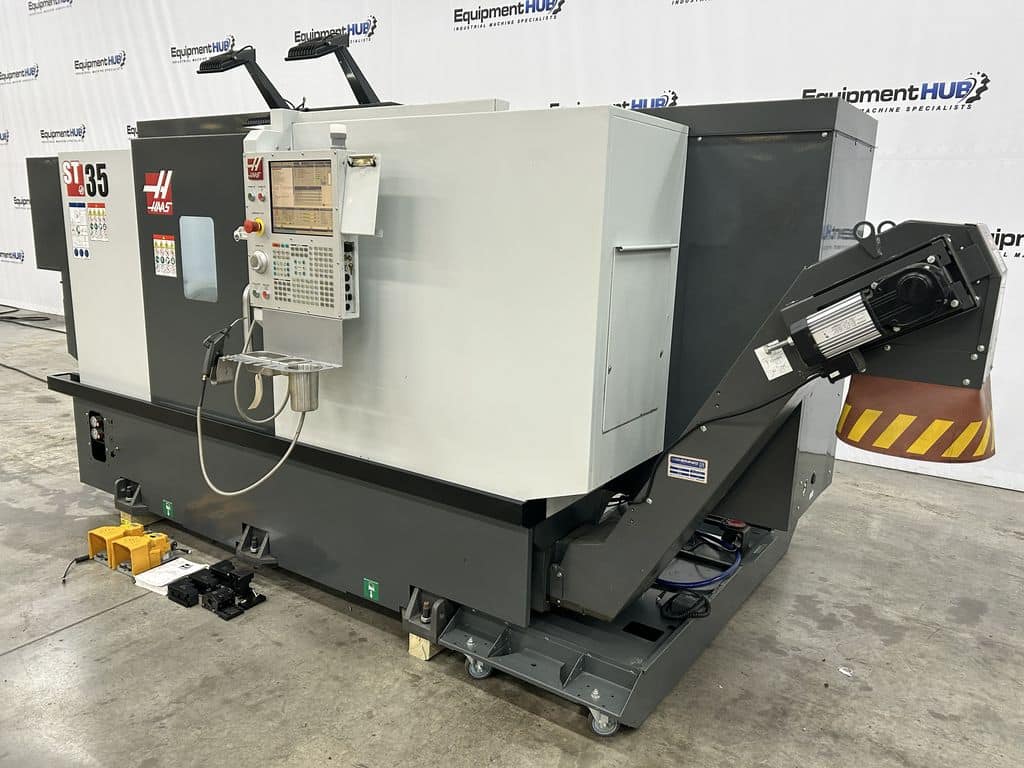

Haas ST-35 CNC Lathe (2023)

Stock #: 180260002

$79,500.00

See Product Details

Business Financing Available

  • Stock #: 180260002
  • Brand: Haas

Business Financing Available

  • Stock #: 180260002
  • Brand: Haas

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Provide Shipping Quote
Provide Financing Options
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Product Description

General Info

  • Stock #: 180260002
  • Location: Decatur, GA
  • Brand: Haas
  • Model: ST-35

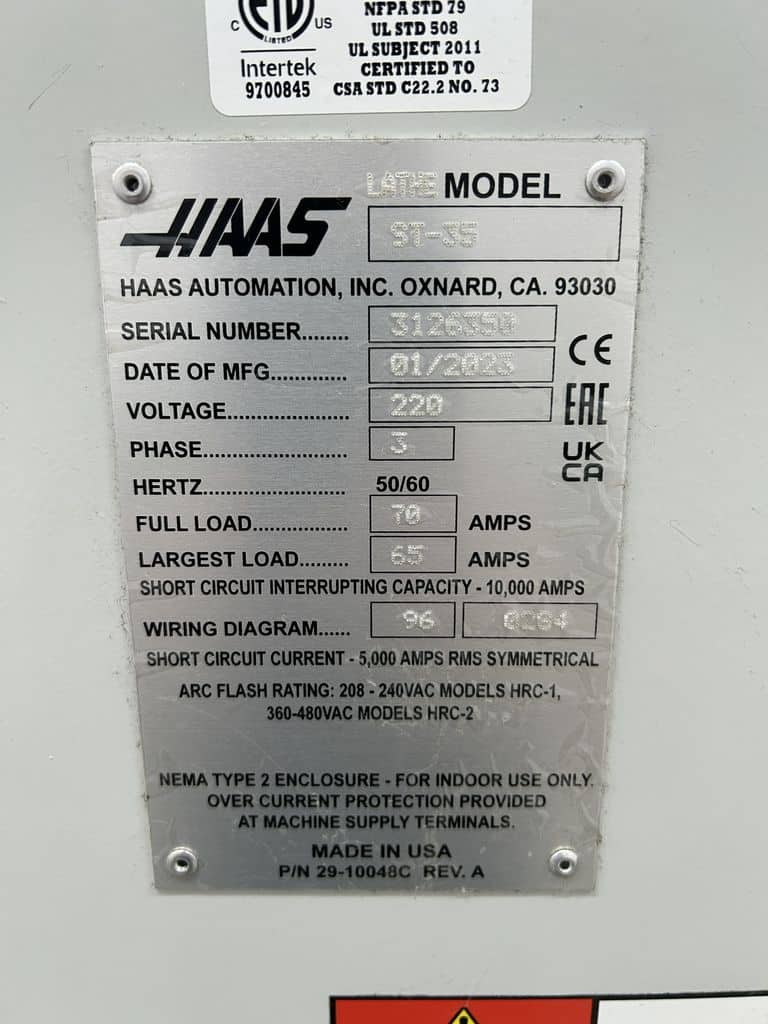

  • Serial #: 3126350
  • Year: 2023
  • Approx. Shipping Weight: 14,000 Lbs.
  • Approx. Shipping Dimensions: 24′ L x 8′ W x 7’9″ H

Specifications

  • Chuck Size: 15″
  • Max Part Swing: 21″
  • Max Cutting Diameter (with BOT Turret): 15″
  • Max Cutting Diameter (with BMT65 Turret): 13.75″
  • Max Cutting Length (Varies with Workholding): 32.5″
  • Bar Capacity: 4″
  • Between Centers (Max): 32.5″
  • X-Axis Travel: 9.4″
  • Z-Axis Travel: 32.5″
  • Rapids on X: 945 IPM
  • Rapids on Z: 945 IPM
  • Spindle Nose: A2-8
  • Max Spindle Rating: 40 HP
  • Max Spindle Speed: 3200 RPM
  • Max Spindle Torque: 425.0 ft-lbf @ 325 rpm
  • Spindle Bore: 4.62″

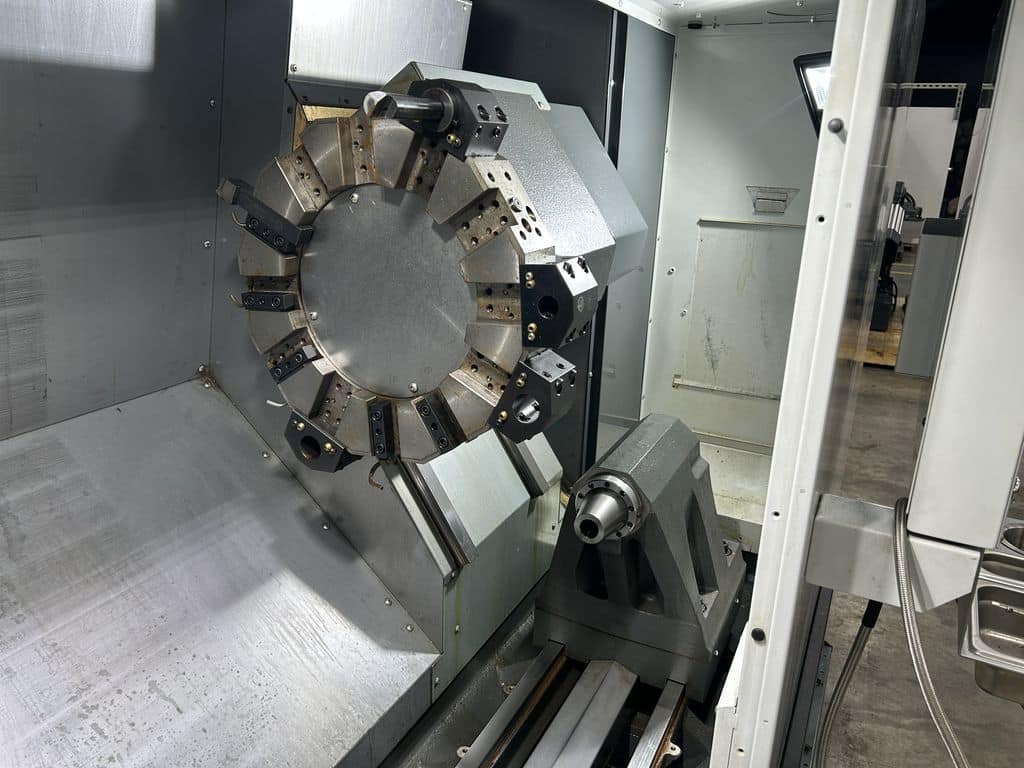

  • Number of Tools: 12-Station BOT
  • Boring Bar Rear Clearance (from back of turret): 4.0″

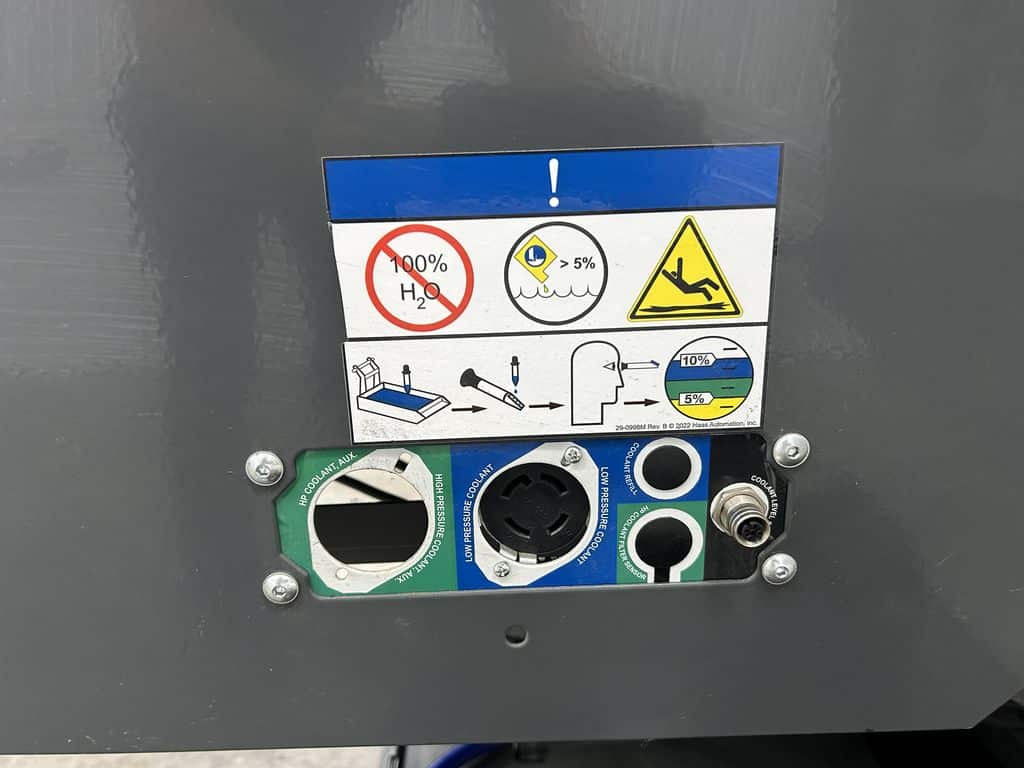

  • Coolant Capacity: 55 Gal
  • Electrical: 220V/3PH

Equipped With

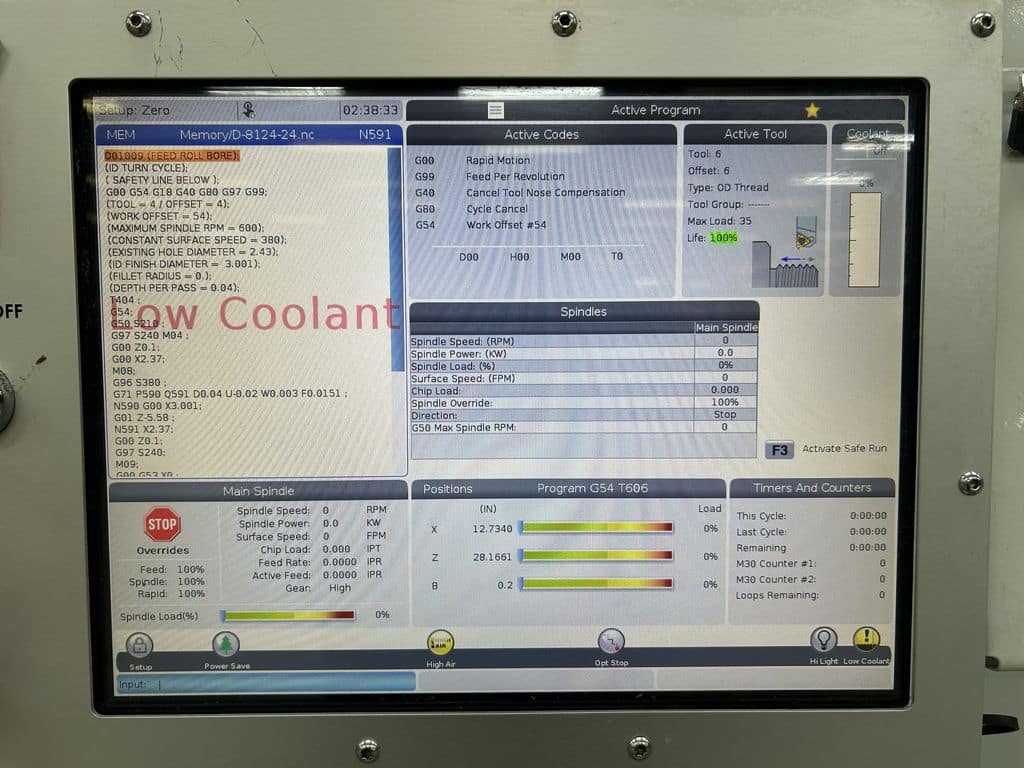

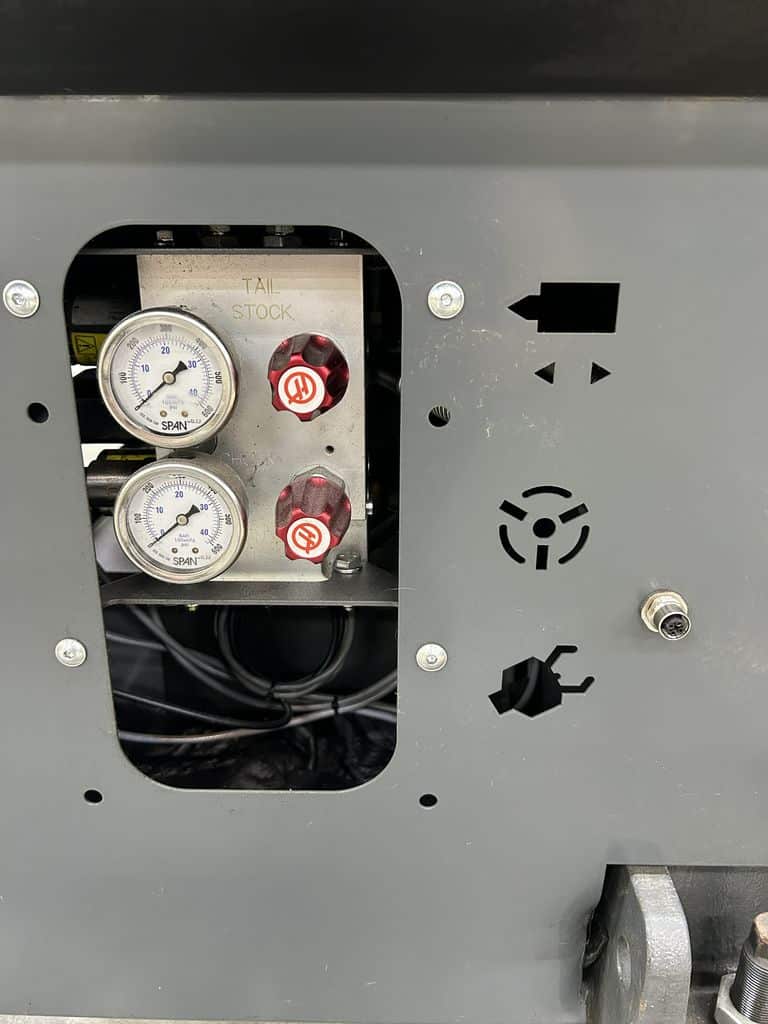

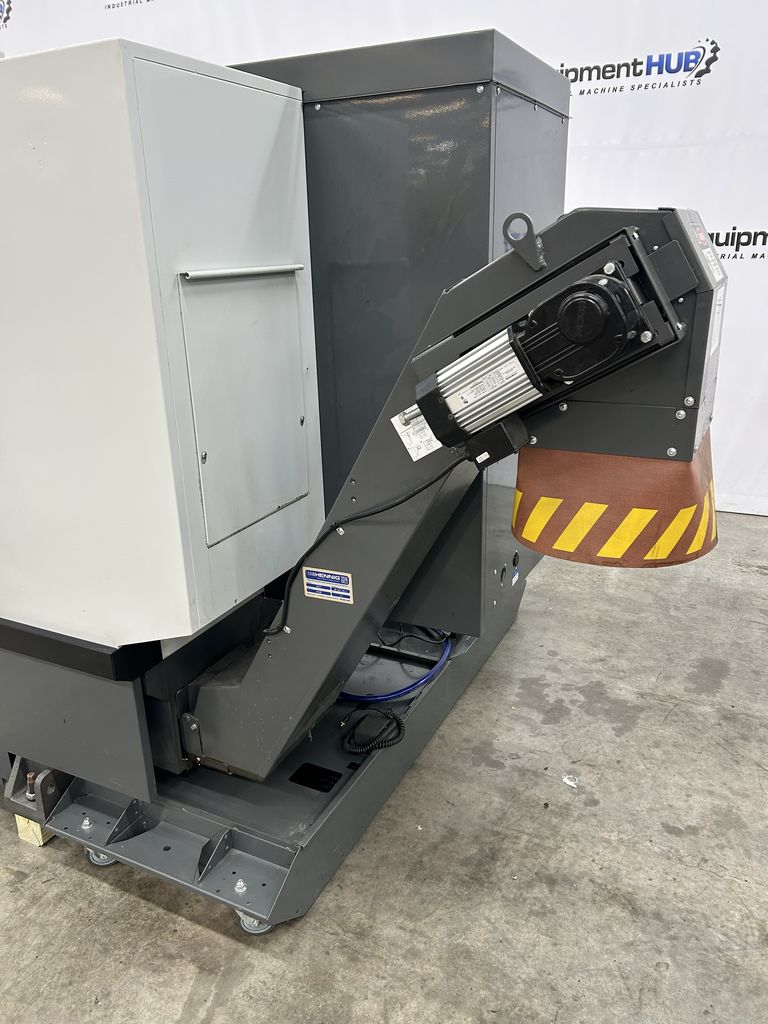

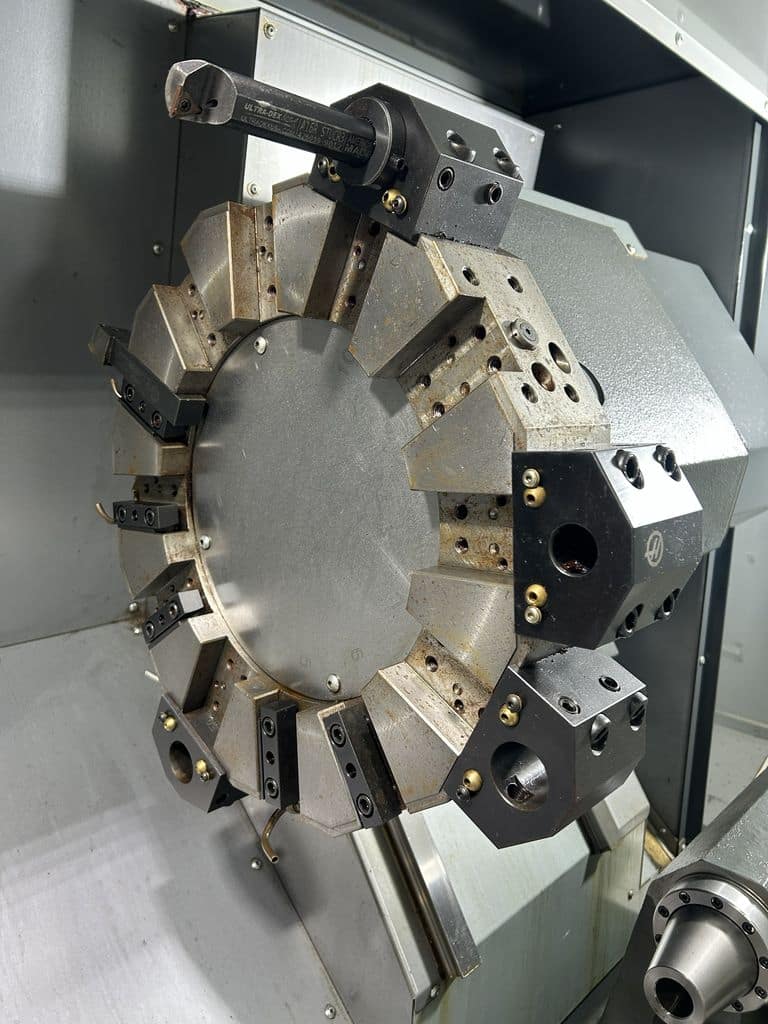

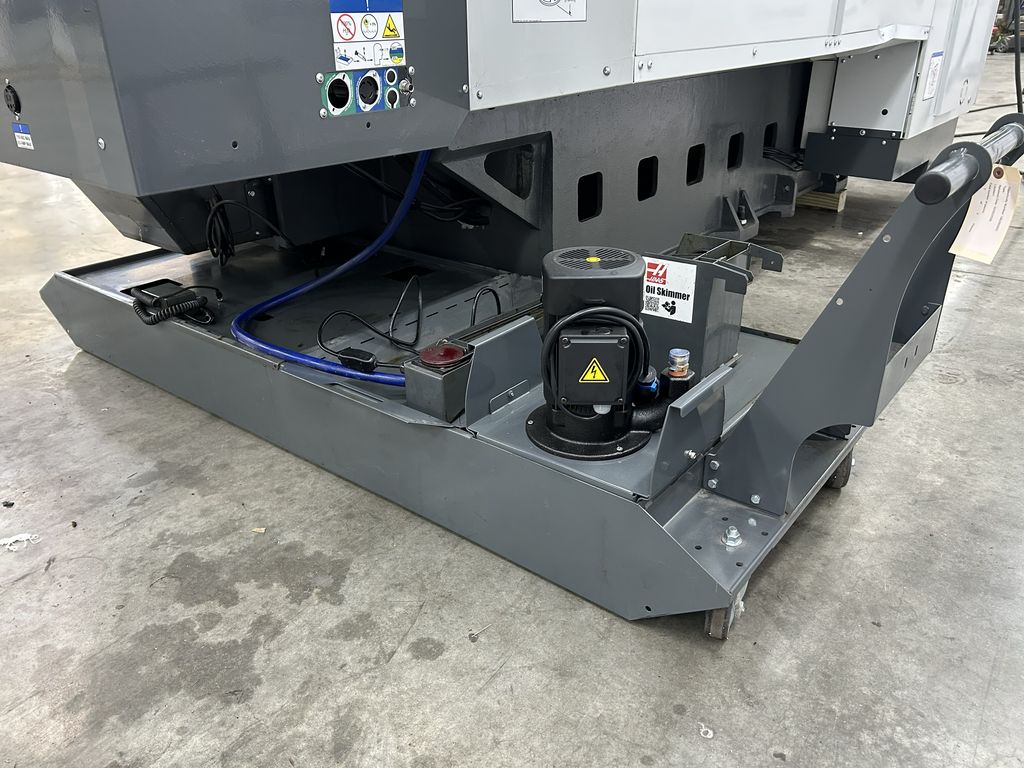

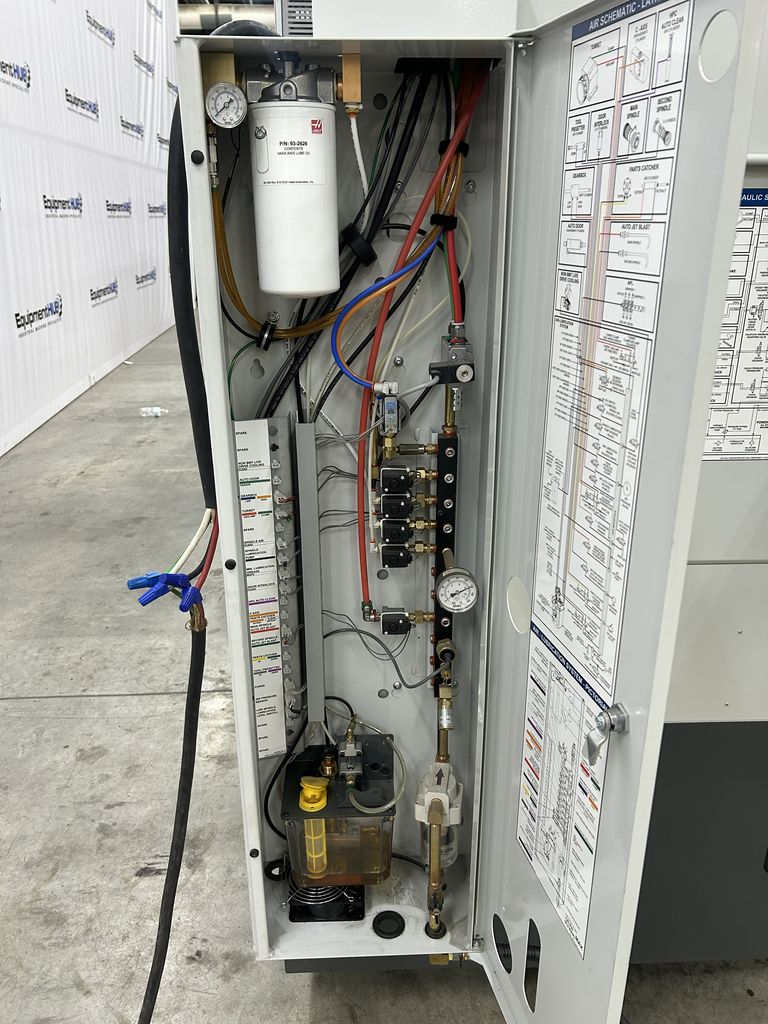

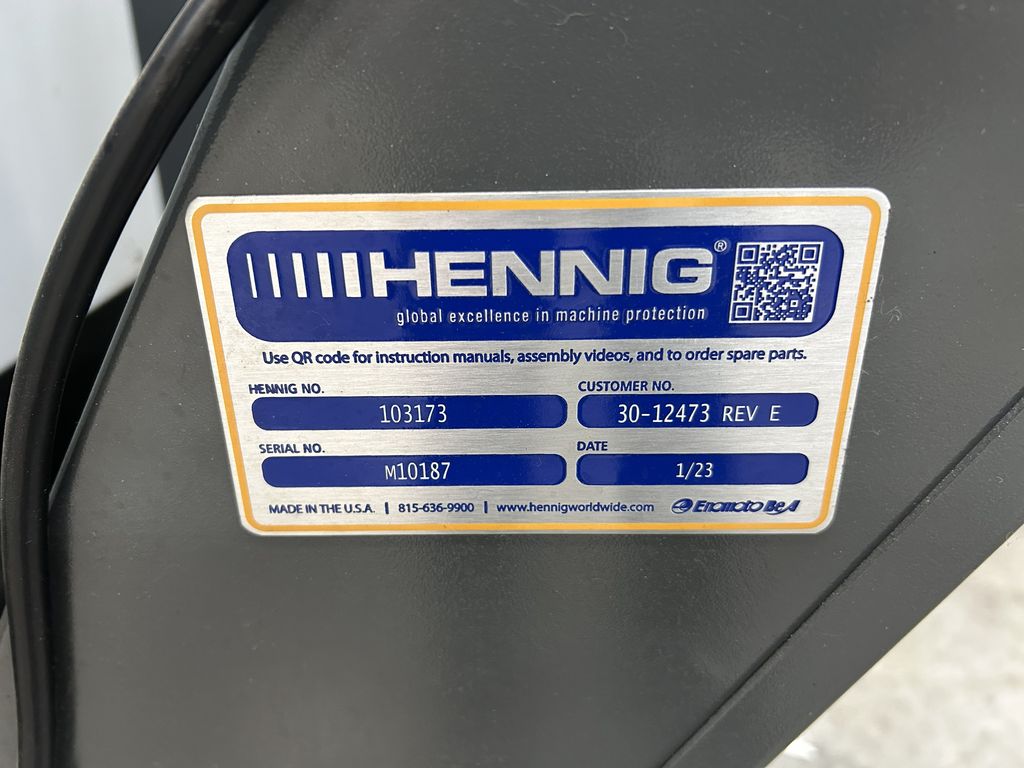

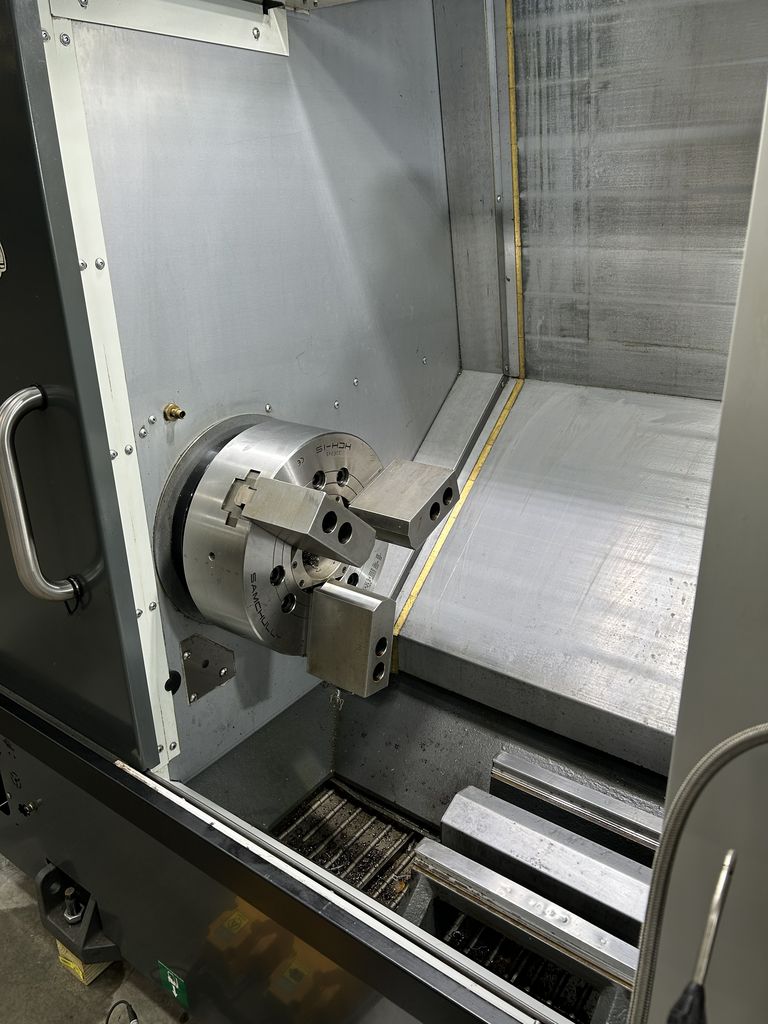

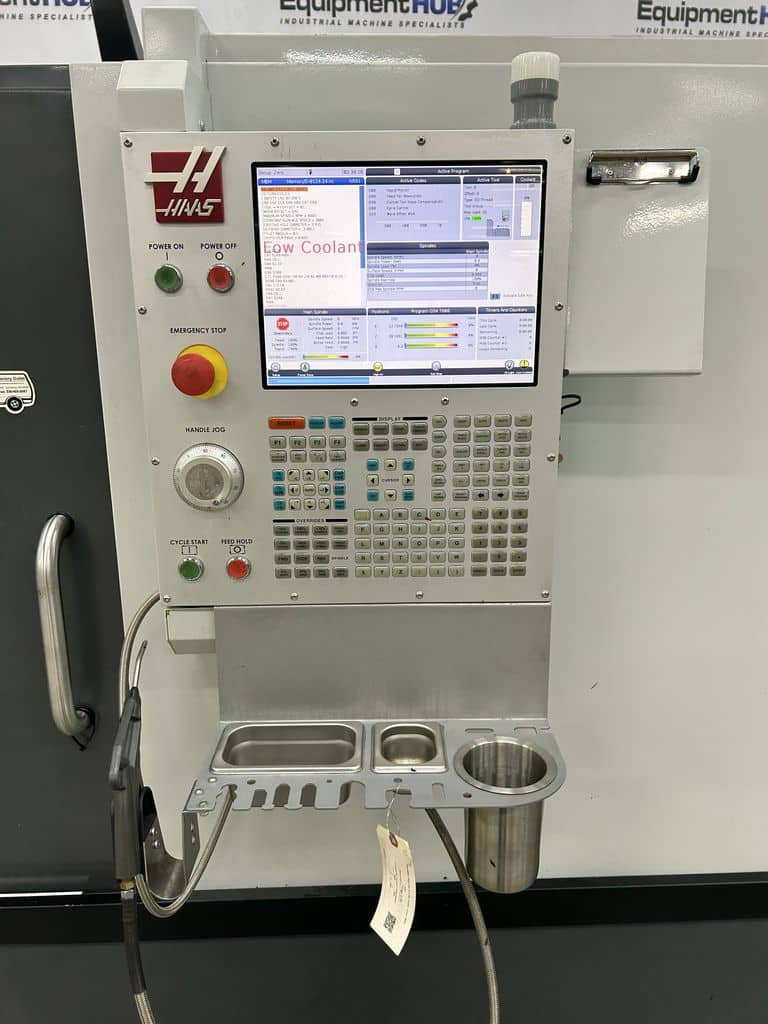

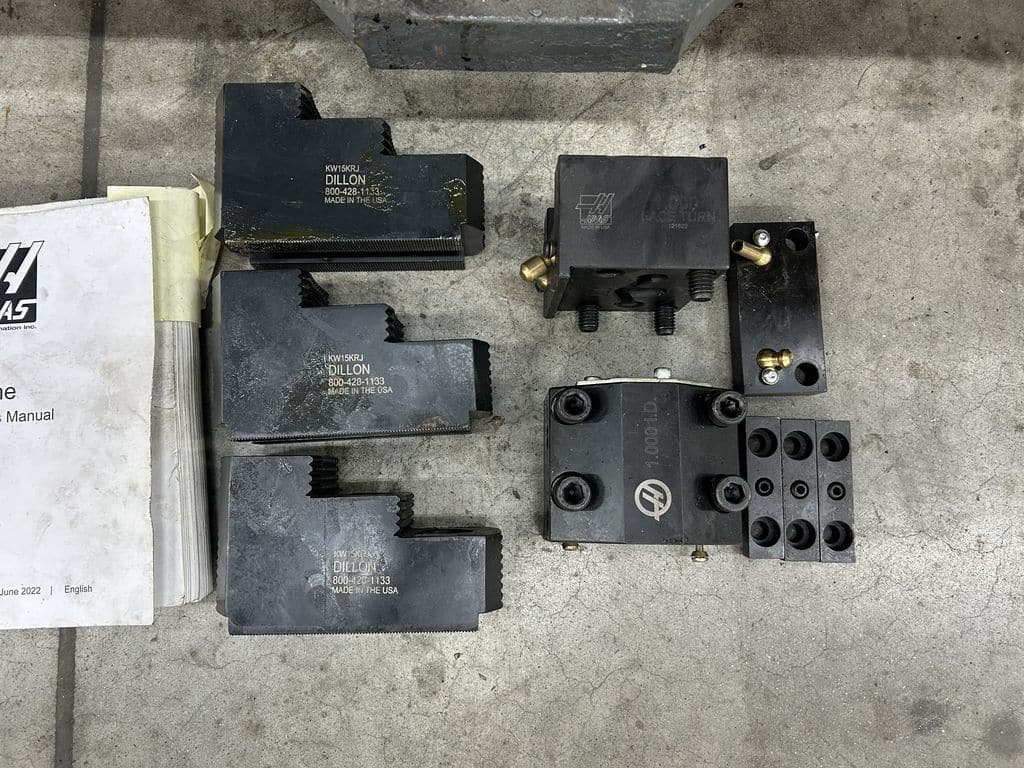

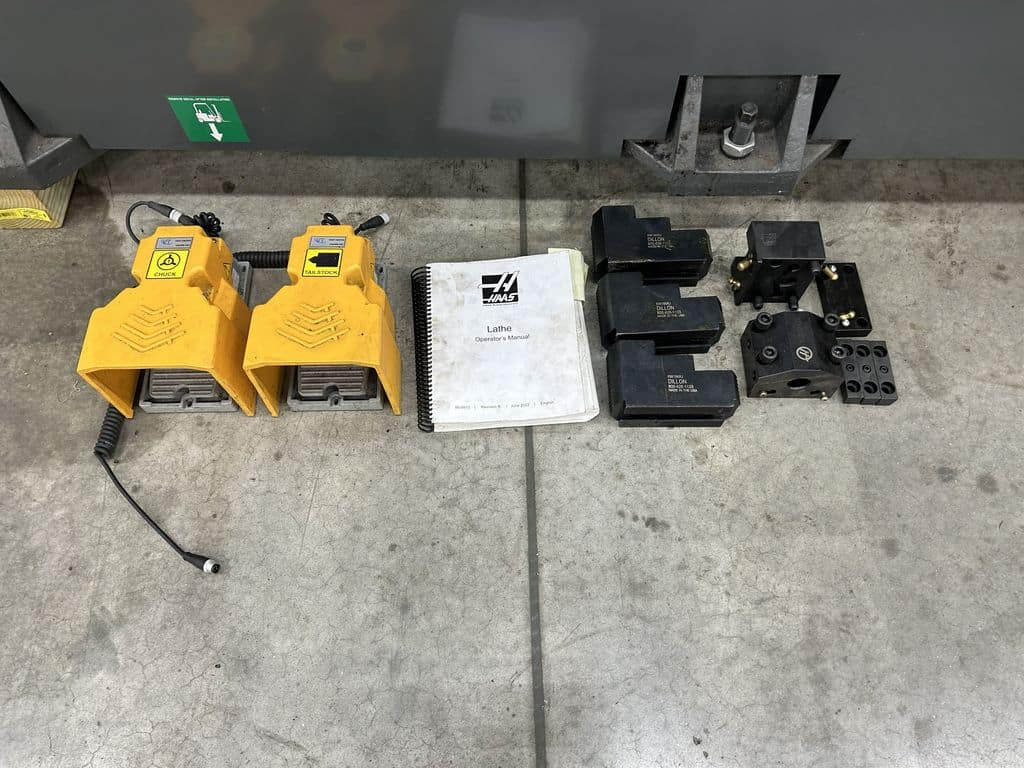

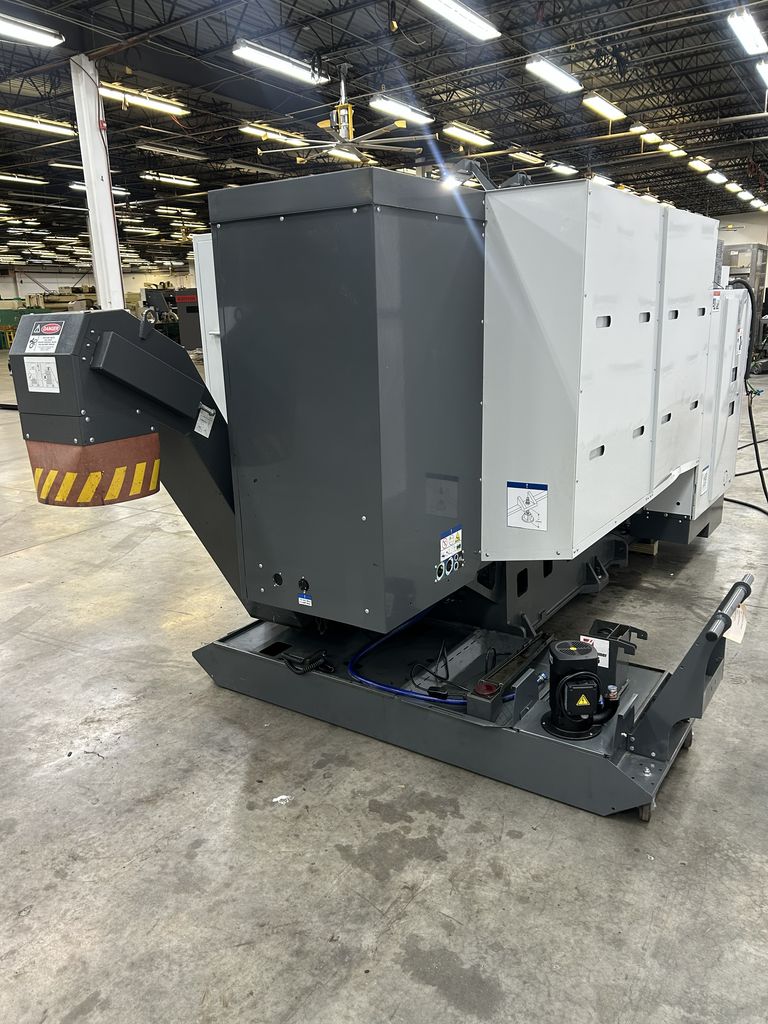

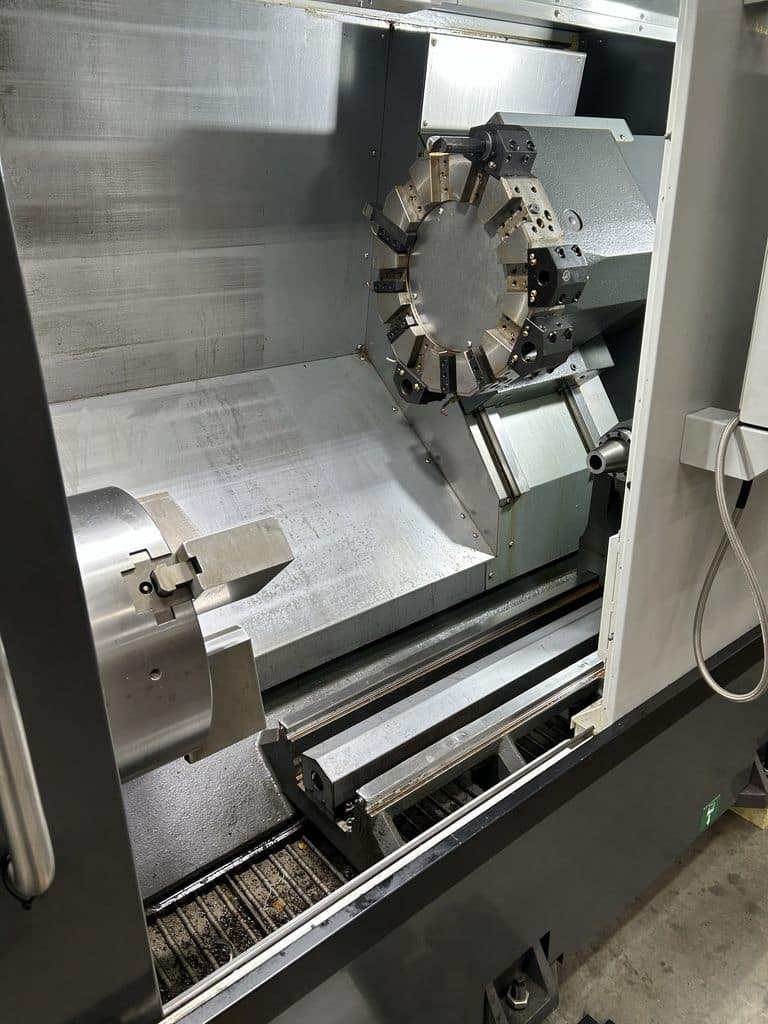

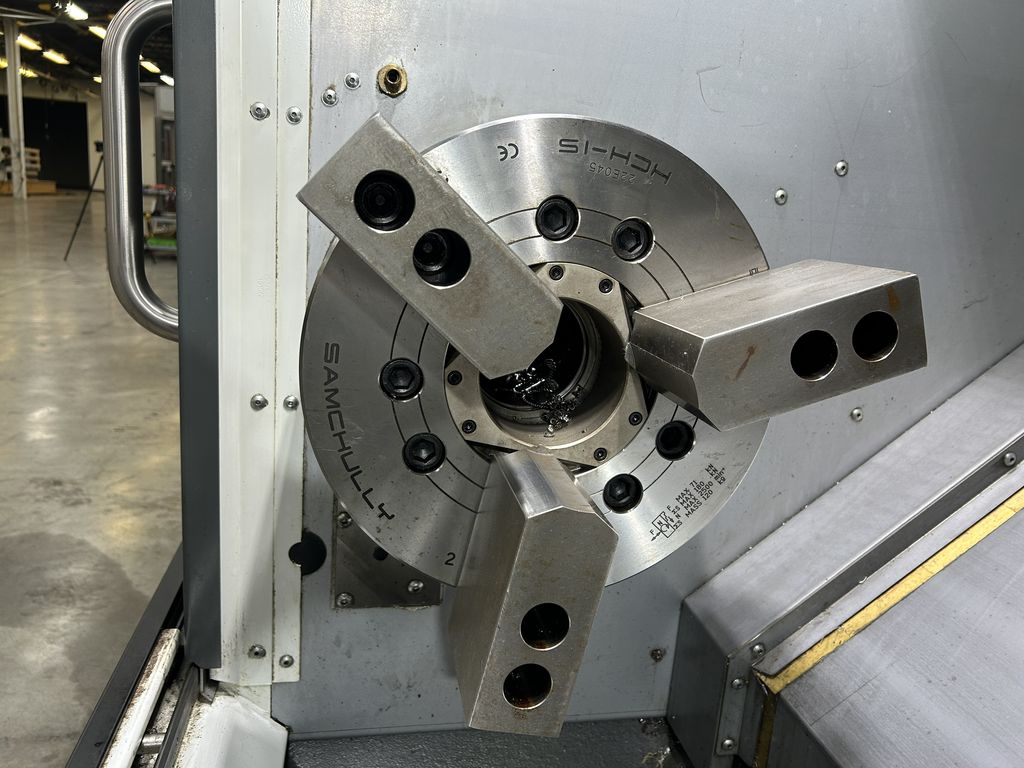

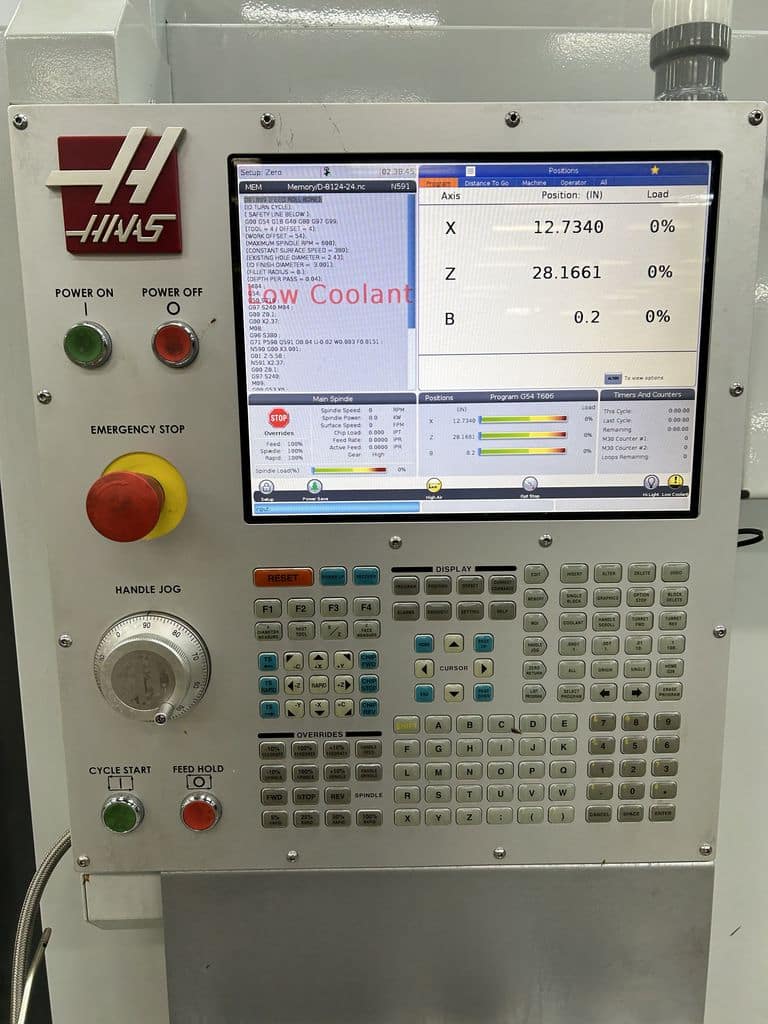

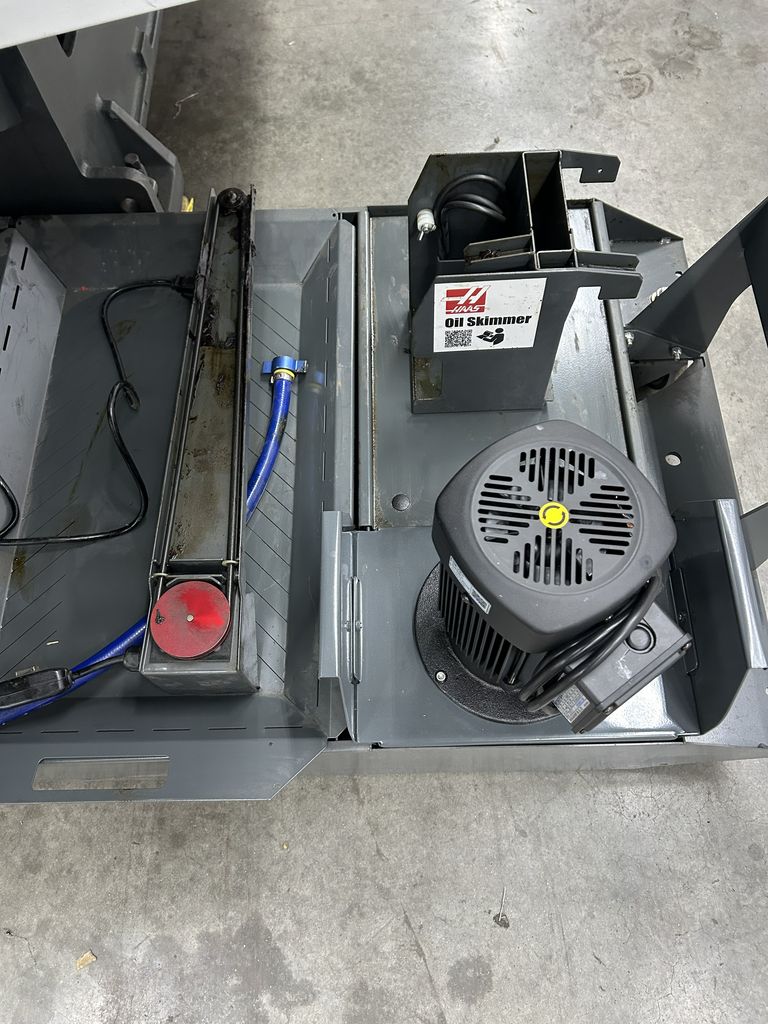

15″ Samchully HCH-15 Hydraulic 3-Jaw Chuck (Upgraded from Standard 12″), 55-Gallon Coolant Tank & Pump, Programmable Hydraulic Tailstock, 12-Station Bolt-On Turret, Hennig Chip Conveyor, Oil Skimmer, 15″ Color LCD Display, Haas Automatic Lubrication System, Dillon KW15KRJ Tool Holders (3), Haas Face Turn Holder, 1.000″ I.D. Boring Bar Holder, Operator’s Manual

Additional Info

The Haas CNC Lathe can be demoed upon request.
