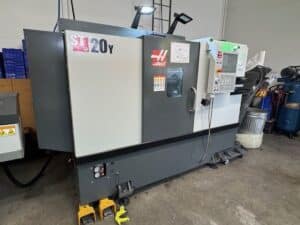

Haas ST-20Y CNC Lathe w/ Live Tooling (2023)
Stock #: 173250004
$99,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 173250004
- Location: CA
- Brand: Haas
- Model: ST-20Y
- Year: 2023
- Approx. Shipping Weight: 10,480 LBS
- Approx. Shipping Dimensions: 143″ L x 90″ W x 92″ H
- Loading Fee: Loading Included
Specifications
- Chuck Size: 8.3″
- Max Part Swing: 21″
- Max Cutting Diameter: 11.75″
- Max Cutting Length: 22.5″
- Bar Capacity: 2.5″
- X-Axis Travel: 8.4″
- Y-Axis Travel: 2″
- Z-Axis Travel: 22.5″
- Rapid Rate (X, Y, Z): 472 IPM, 472 IPM, 945 IPM
- Spindle Nose: A2-6
- Spindle Bore: 3.5″
- Spindle Motor: 20 HP
- Spindle Speed: 4,000 RPM
- C-Axis Live Tooling Speed: 6,000 RPM
- Turret: 12 Station
- Coolant Capacity: 55 Gallons
- Power Required: 220V / 3 Phase
Equipped With

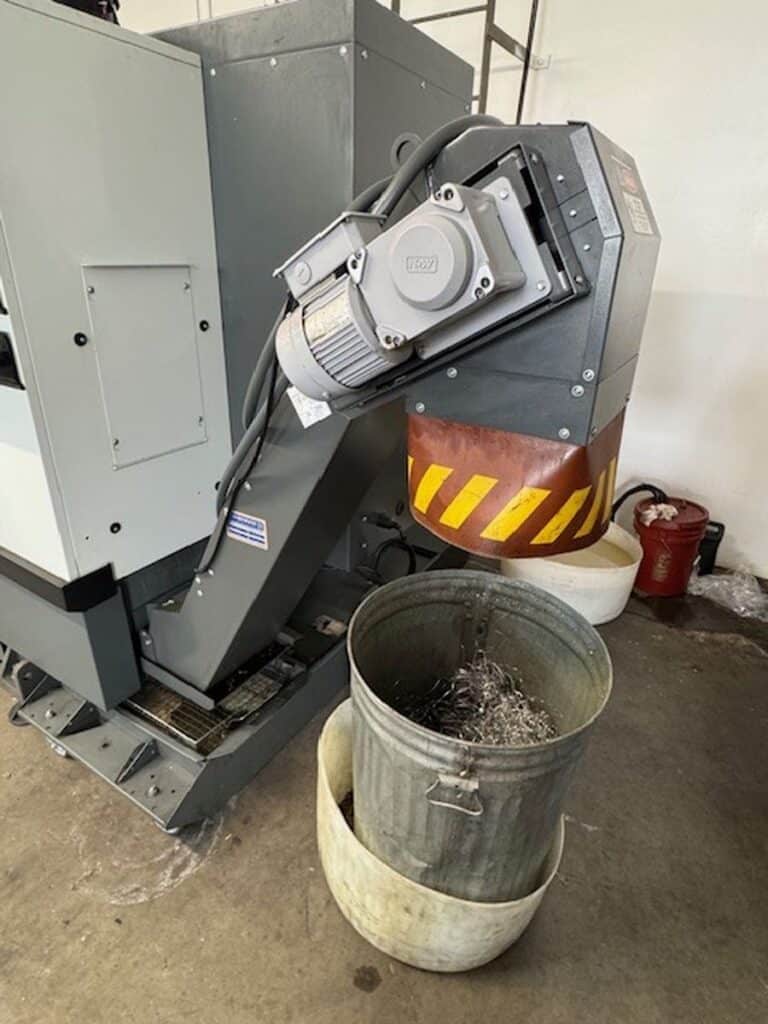

Haas CNC Control, 15″ Color LCD Monitor, High Torque C-Axis Live Tool, Haas Bar Feeder, Programmable Tailstock, Live & Standard Tooling, Automatic Tool Presetter, Chip Conveyor, USB Port & Rigid Tapping, Coolant System, High Intensity Lighting, Enclosure Exhaust System, Media Display M-Code, Auto Door, Ethernet Interface, Wifi Connection for Haas Control, Early Power Failure Detection Mode
Additional Info
Machine is under power and available to demo.
