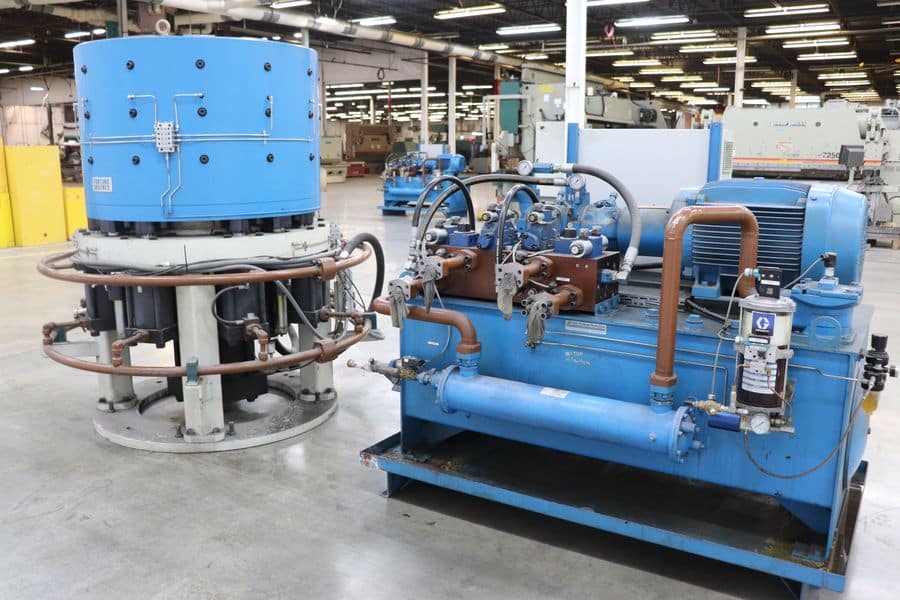

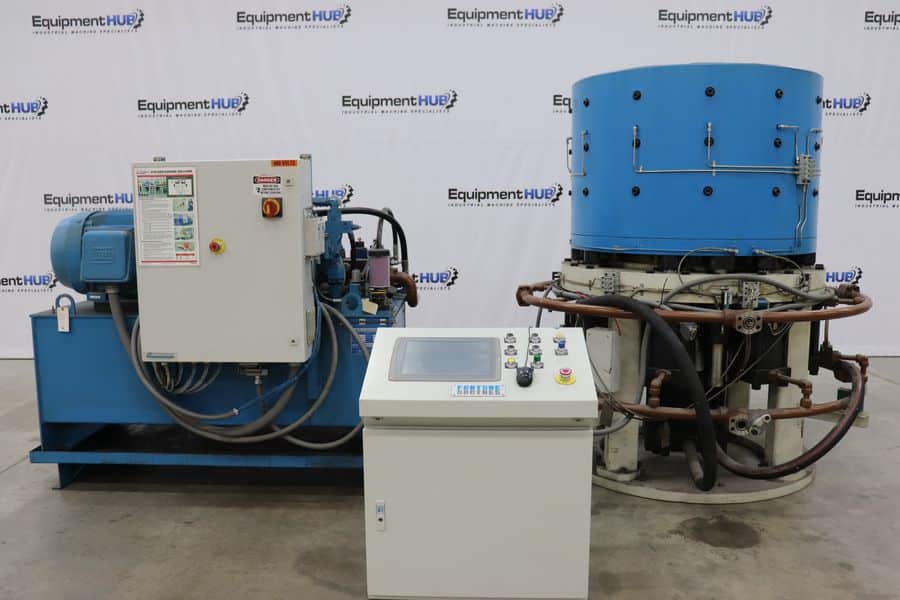

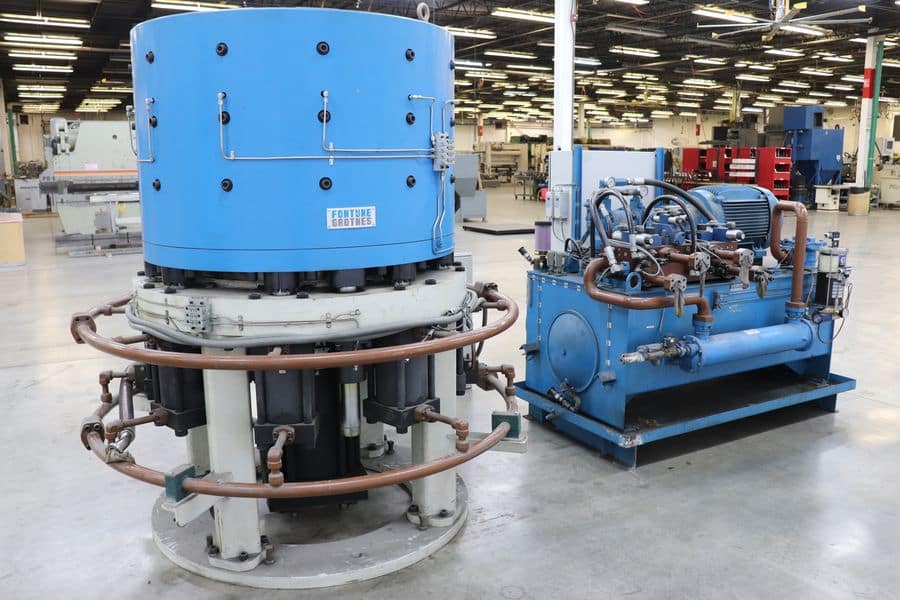

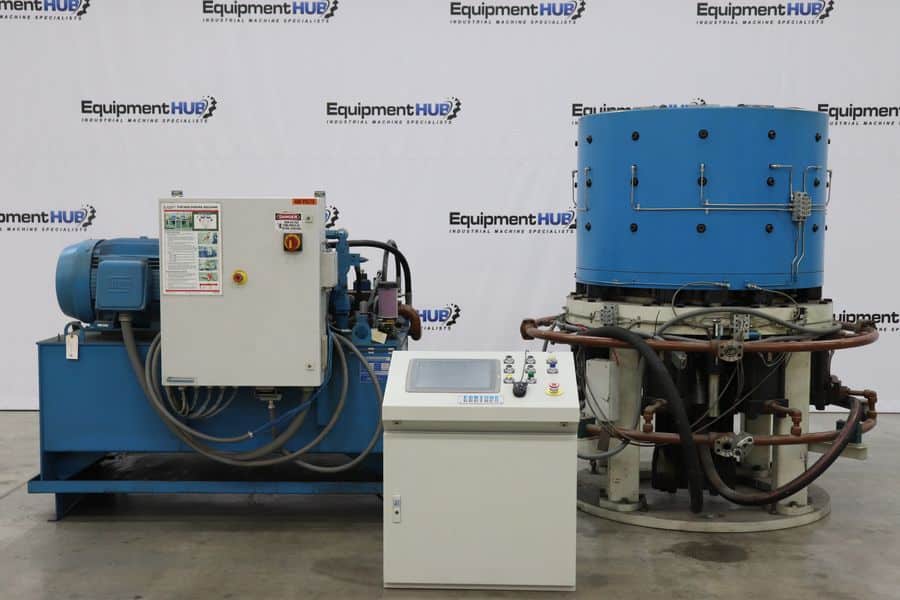

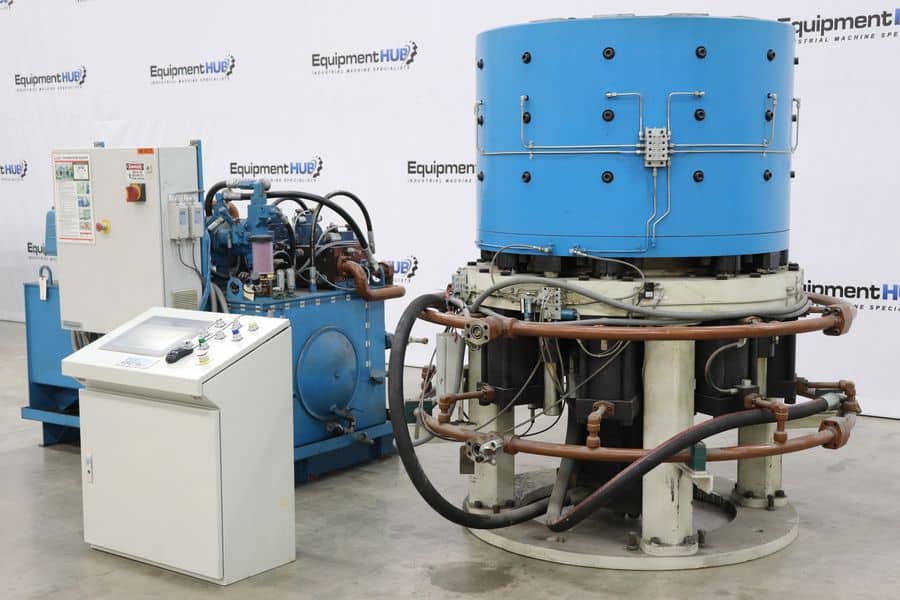

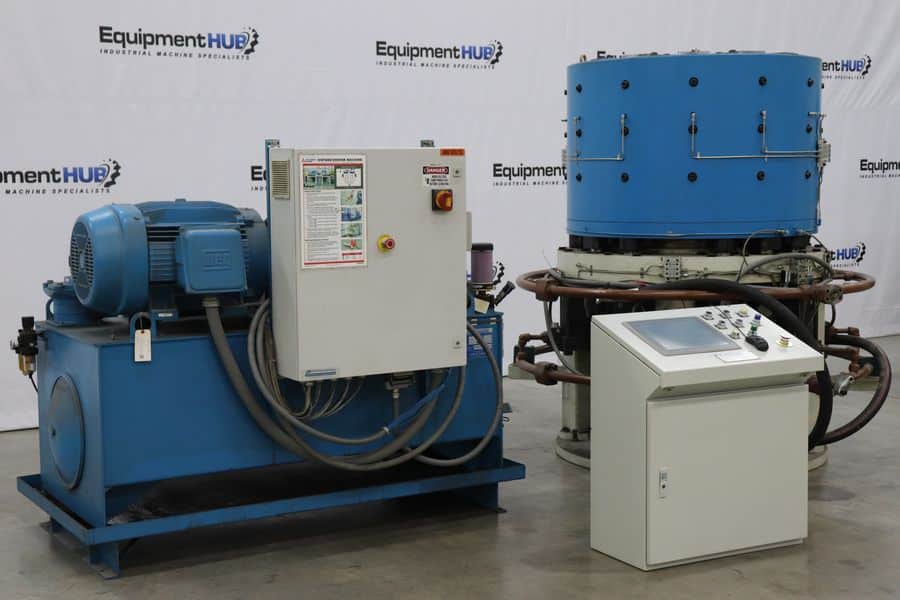

Grotnes 14-HE-300-12 30″ 12 Jaw Hydraulic Ring Expander

Name: Grotnes 14-HE-300-12 30" 12 Jaw Hydraulic Ring Expander
SKU: 195298
Price: 495000.00 USD
Availability: InStock

Stock #: 120250067

$495,000.00

See Product Details

Stock #: 120250067
Brand: Grotnes

Not What You're Looking For?

Have Surplus Machinery to Sell?

Stock #: 120250067
Brand: Grotnes

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: 120250067
Location: Decatur, GA
Brand: Grotnes
Model: 14-HE-300-12
Year: 2011
Approx. Shipping Weight: 27,000 lbs.
Approx. Shipping Dimensions: 20′ L x 8′ W x 7′ H

Specifications

Shrinker Cylinders: 8
Expander Type: Pull
Bore: 8″ Each
Pull Area: 43.196 Square Inches Each
Return Area: 50.265 Square Inches Each
Shrinker Head Retracted Jaws Diameter: 31.875″
Nominal Jaws Shrunk Diameter: 30″
Min. Jaws Shrunk Diameter: 29.875″
Height of Jaws: 20″
Nominal Diametrical Travel: 1.875″

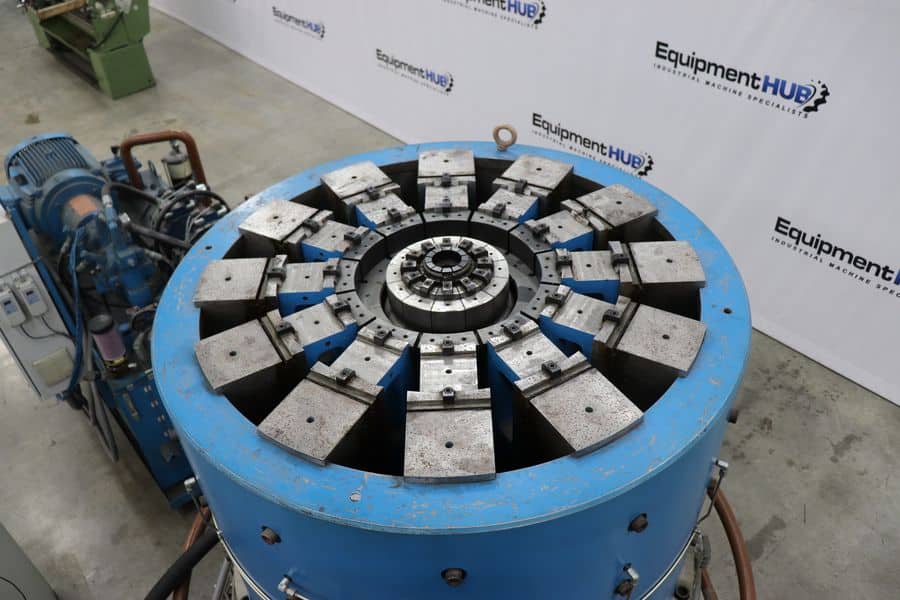

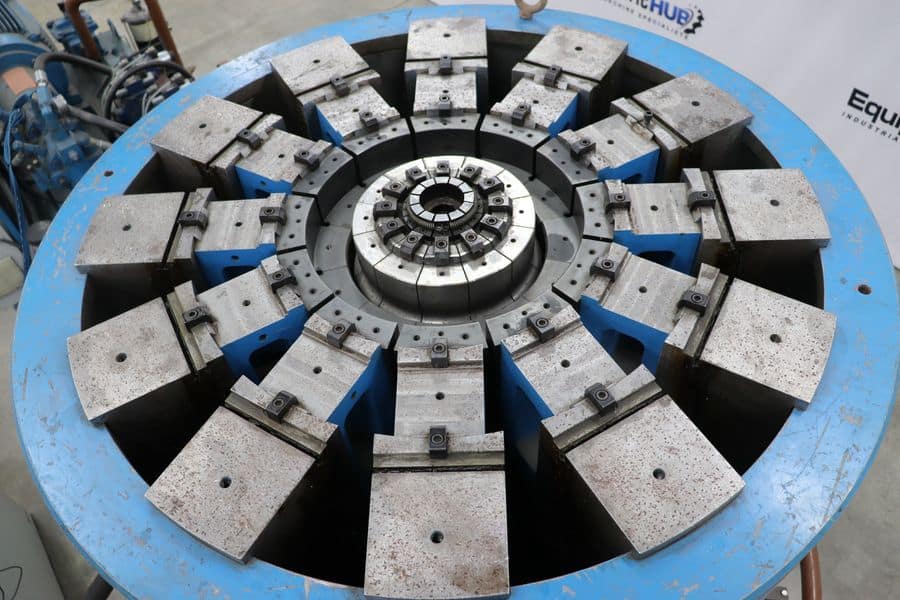

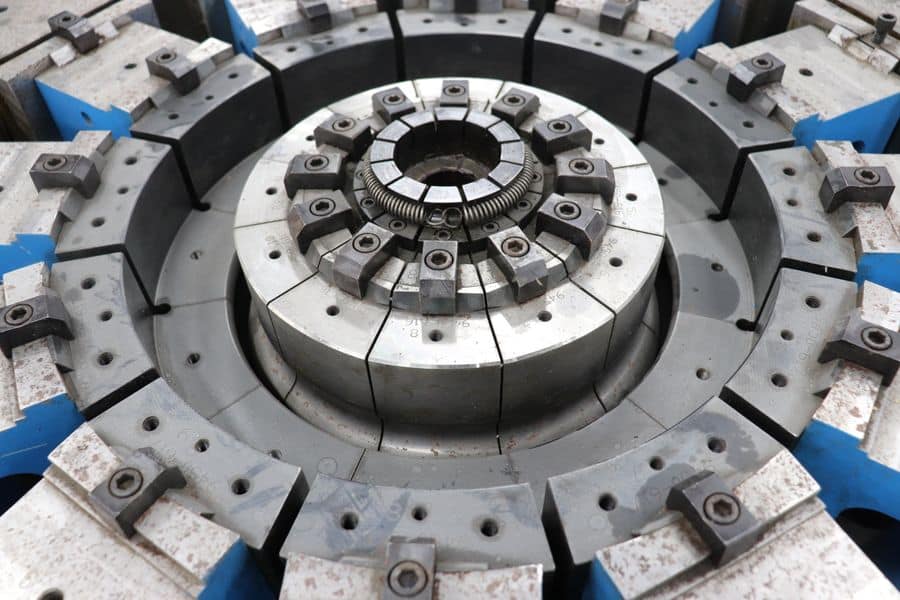

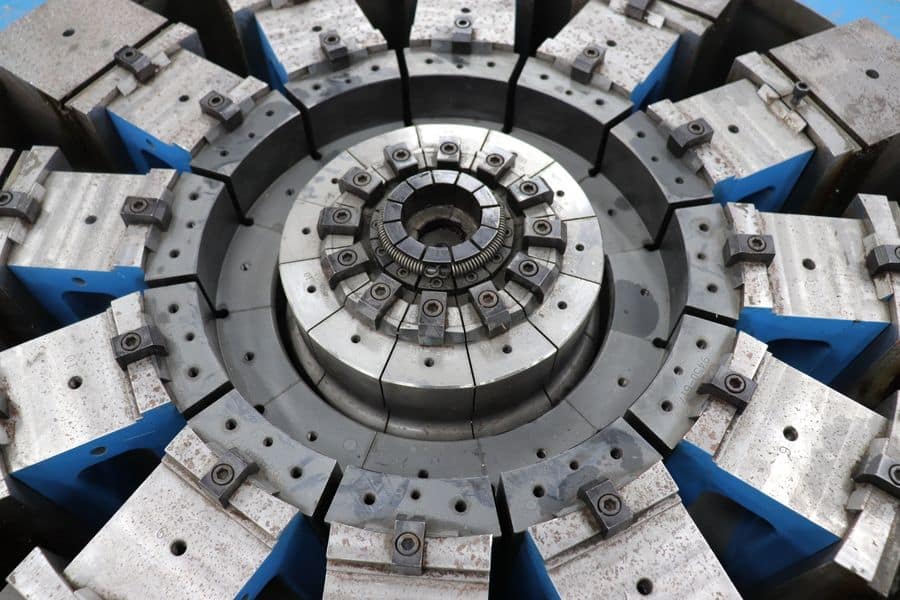

Number of Jaws: 12
Cone Angle: 8 Degrees (Tan=0.145)
Table Diameter: 38.5″
Jaw Returned By: Compression Springs
Lubrication System: Graco Centralized
Lubrication Type: Permalube Red #35
Material Yield Strength: 55,000 PSI
Maximum Cross Sectional Area in Which Tangential Stress will Be Produced: 10.580 Square Inches

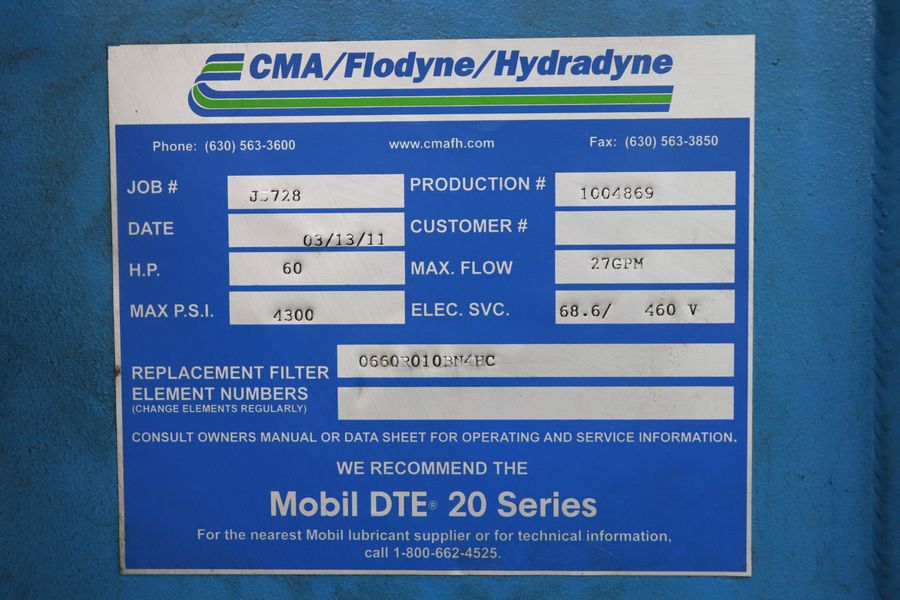

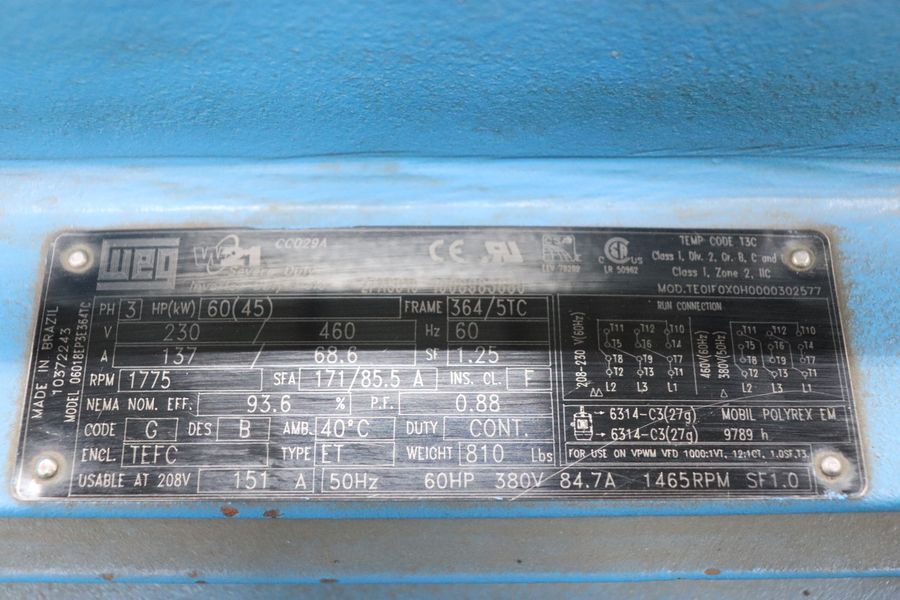

Hydraulic Power Unit: 60HP @ 1800 RPM
Max Operating Pressure: 3,600 PSI
