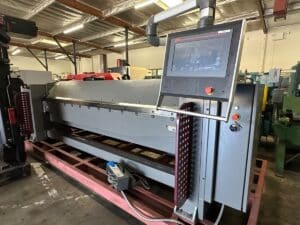

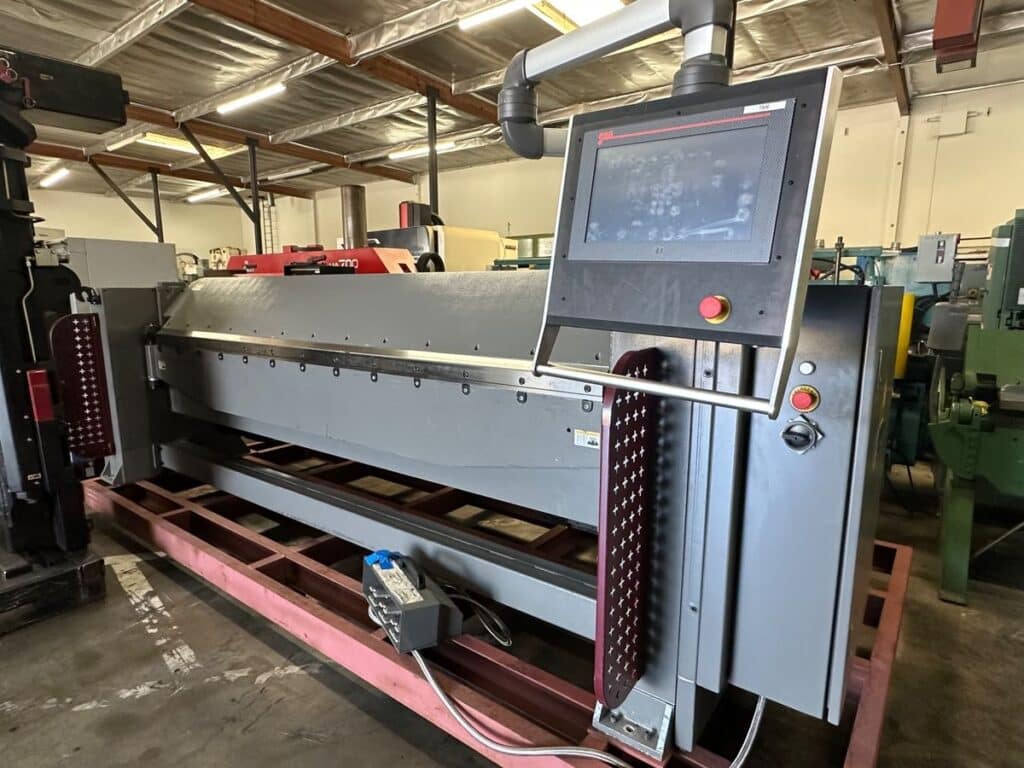

GMC EFM-1014CNC 10′ x 14 Ga. CNC Sheet Metal Folder (2023)
Stock #: 173250008
$45,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 173250008
- Location: CA
- Brand: GMC
- Model: EFM-1014CNC
- Year: 2023
- Approx. Shipping Weight: 8,850 LBS
- Approx. Shipping Dimensions: 158″ L x 79″ W x 64″ H
- Loading Fee: Loading Included
Specifications
- Bending Length Capacity: 10’1″
- Bend Angle Degree, Programmable: 0 – 135°
- Capacity Mild Steel: 14 Ga
- Capacity Stainless Steel: 18 Ga
- Close Hemming: 22 Ga
- Open Hemming: 22 Ga
- Hemming Capacity, Mild Steel: 20 Ga
- Hemming Capacity, Stainless Steel: 24 Ga
- Large Beam Opening/ Clamping Opening: 4-7/8″
- Min. Reverse Bend: 1/2″
- Max, Table Back Gauge Distance: 48-3/8″
- Min. Table Back Gauge Distance: 1/2″
- Back Gauge Repeatability: 0.0039″
- Power Required: 220V / 3 Phase
Equipped With

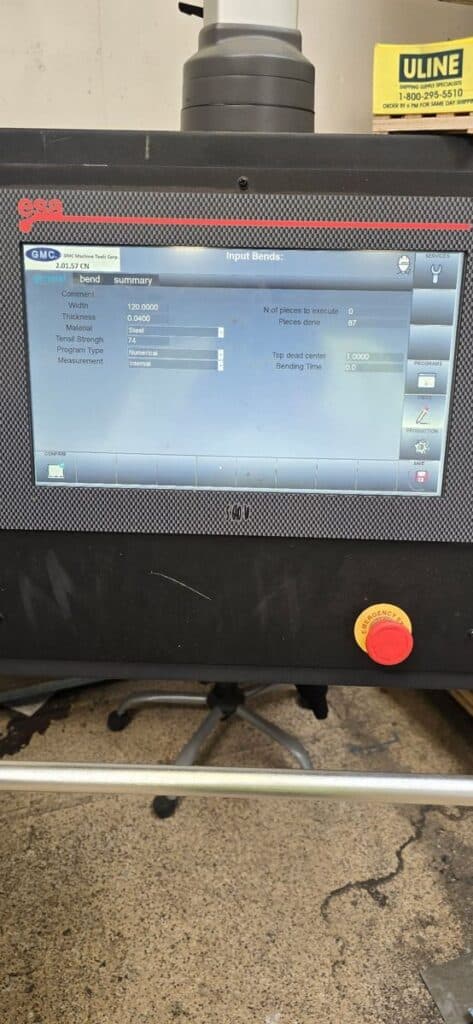

ESA CNC Control, 16″ Large Digital Glass Touch Screen, Max. 99 Bends Per Program, Up to 2,000 Programs Stored, Profiles Library with Graphics, Programmable Radius Bend, Programmable Angle/ Angle Correct
Additional Info
Machine is available to demo under power.
