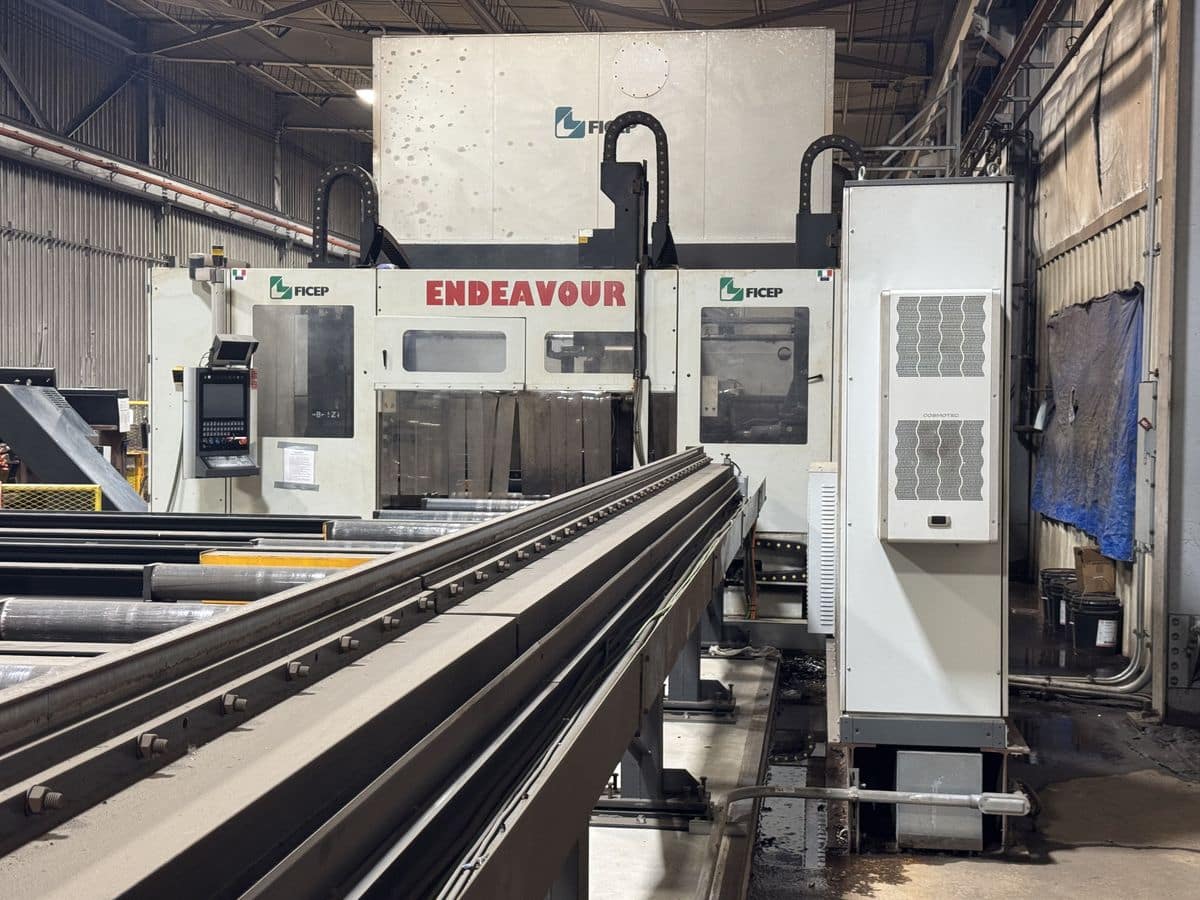

FICEP Endeavor 1204 DDRC CNC Drilling & Robotic Coping Line (2017)

Stock #: 173250002

$415,000.00

See Product Details

Business Financing Available

  • Stock #: 173250002
  • Brand: Ficep

Business Financing Available

  • Stock #: 173250002
  • Brand: Ficep

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Provide Shipping Quote
Provide Financing Options
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Product Description

General Info

  • Stock #: 173250002
  • Brand: FICEP
  • Model: Endeavor 1204 DDRC
  • Year: 2017
  • Loading Fee: Rigging Required

Specifications

  • Min Channel Depth: 3-1/8″
  • Max Channel Depth: 48″
  • Min Flange Height: 1-3/4″
  • Max Flange Height: 11-3/4″
  • Drilling Capacities: 1 Vertical Drill Head, 2 Horizontal Drill Heads, 1 Spindle Per Drill Head
  • Max Hold Diameter: 1-9/16″
  • Max Drilling Thickness: 4″
  • Spindle Motor Per Head: 41 HP
  • Spindle Speed: 180 – 5,000 RPM
  • Max Section Weight: 33,000 LBS
  • Max Carriage Speed: 164 FPM
  • Power Required: 480V / 3 Phase

Equipped With

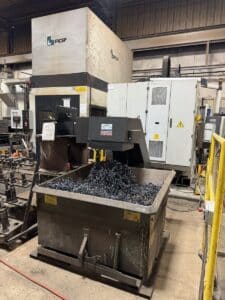

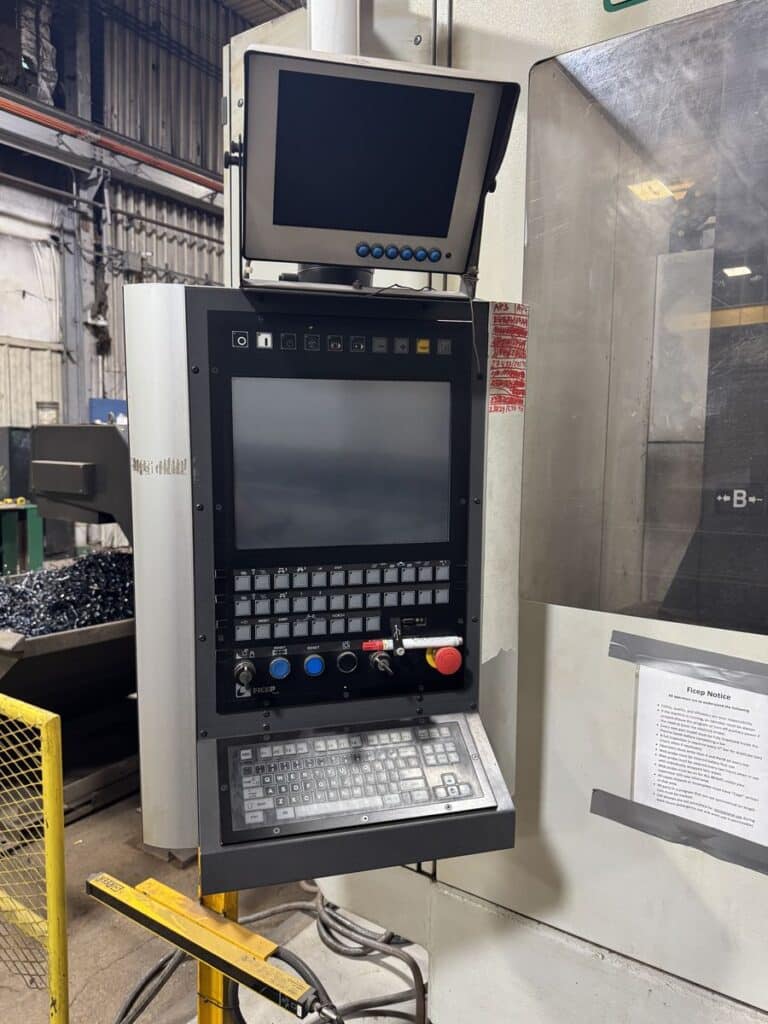

Hypertherm HyPerformance HPR 260XD Plasma Cutting System w/ Automatic Oxy Fuel Torch, Ficep Pegaso Control System, (15) HSK-A80 Connection for Tool Change System, Air Conditioner Units for Electrical Cabinets, Automatic Loading & Unloading Using Transfer Table w/ Catches, Automation System for Section/Piece Loading & Unloading, Chip Conveyor for Drilling Unit, HSK-A80 Tool Holders, Short Piece & Scrap Unloading Device, (2) Additional Scribing Tools, Automatic Gas Control Panel, Camera Mounted on Material Gripper, Profile Survey Device w/ Laser Unit, Smoke Intake System for Robot, Underside Scribing

Additional Info

Machine is under power and available to demo. Additional specifications pictured in photos.
