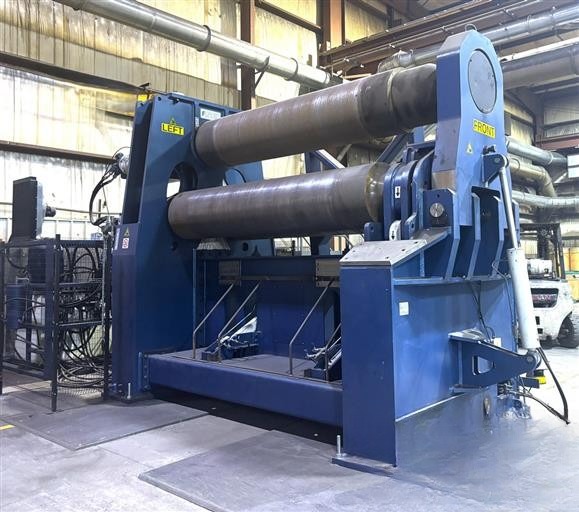

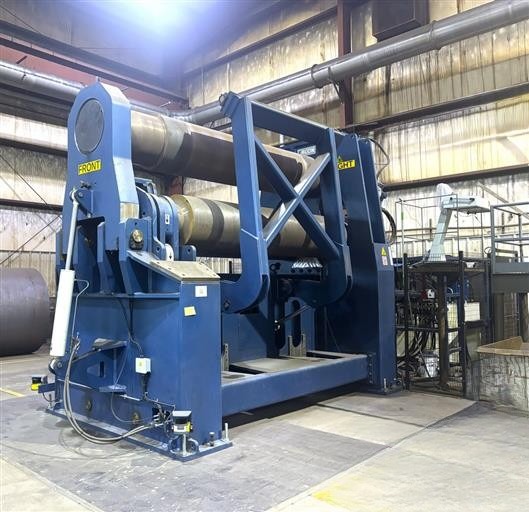

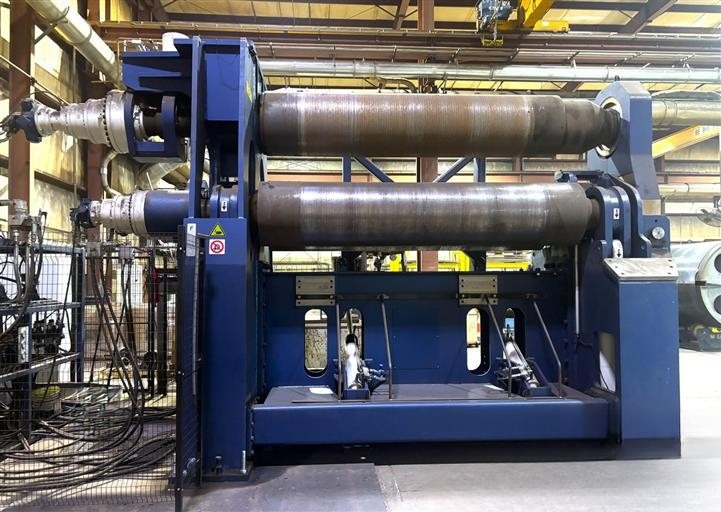

Faccin 3HEP-SX210 3-Roll Planetary Design Plate Bending Roll (2025)

Stock #: 223260013

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Phone

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

Provide Shipping Quote

Provide Financing Options

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

This field is hidden when viewing the form

In Stock?

UTM Campaign

UTM Source

UTM Medium

UTM Term

UTM Content

Product Description

General Info

Stock #: 223260013
Brand: Faccin
Model: 3HEP-SX210
Year: 2025

Specifications

Max. Plate Width: 120"
Top Roll Diameter: 26"
Side Rolls (2) Diameter: 24.8"
Max. Rolling Speed: 20 FPM
Main Drive Motor: 175 HP
Max. Plate Thickness @130" ID (37.7 Ksi): 3" x 120"
Max. Plate Thickness @34" ID (37.7 Ksi): 2.5" x 120"
Max. Plate Thickness @130" ID (37.7 Ksi): 3.75" x 60"
Pre-Bend Max. Plate Thickness @130" ID (37.7 Ksi): 2.5" x 120"
Pre-Bend Max. Plate Thickness @34" ID (37.7 Ksi): 2" x 120"
Pre-Bend Max. Plate Thickness @130" ID (37.7 Ksi): 3.13" x 60"
Max. Plate Thickness @130" ID (52.2 Ksi): 2.5" x 120"
Max. Plate Thickness @34" ID (52.2 Ksi): 2.18" x 120"
Max. Plate Thickness @130" ID (52.2 Ksi): 3.13" x 60"
Pre-Bend Max. Plate Thickness @130" ID (52.2 Ksi): 2" x 120"
Pre-Bend Max. Plate Thickness @34" ID (52.2 Ksi): 1.75" x 120"
Pre-Bend Max. Plate Thickness @130" ID (52.2 Ksi): 2.5" x 60"

Equipped With

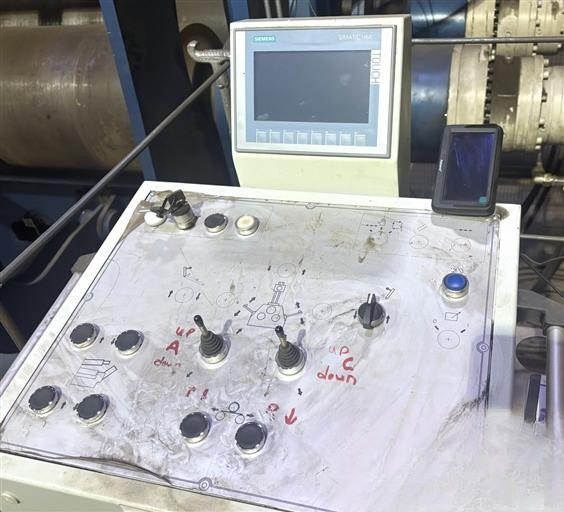

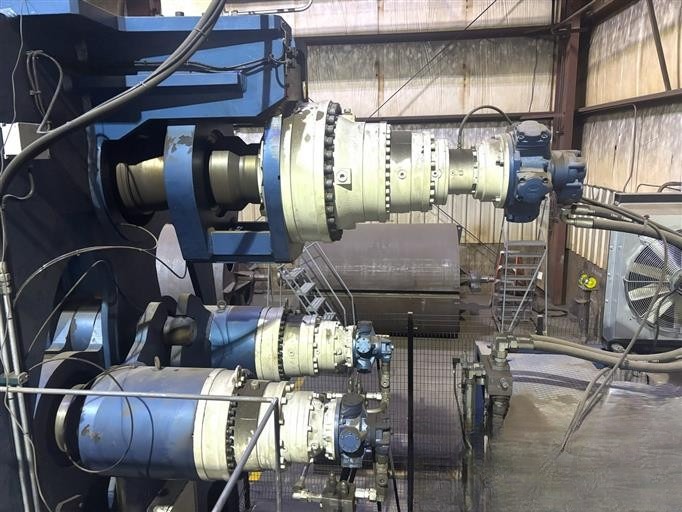

Operators Control Console On Wheels, (2) Electronic Digital Roll Position Readouts, Special Alloyed Rolls For High Surface Hardness Plate Processing., (3) Rolls Independently Motorized For Maximum Torque, Planetary System For Side Rolls Movement, Electronic Balancing System For The Synchronization Of Rolls Movement, Extra-Large Double Shaft Drop End
