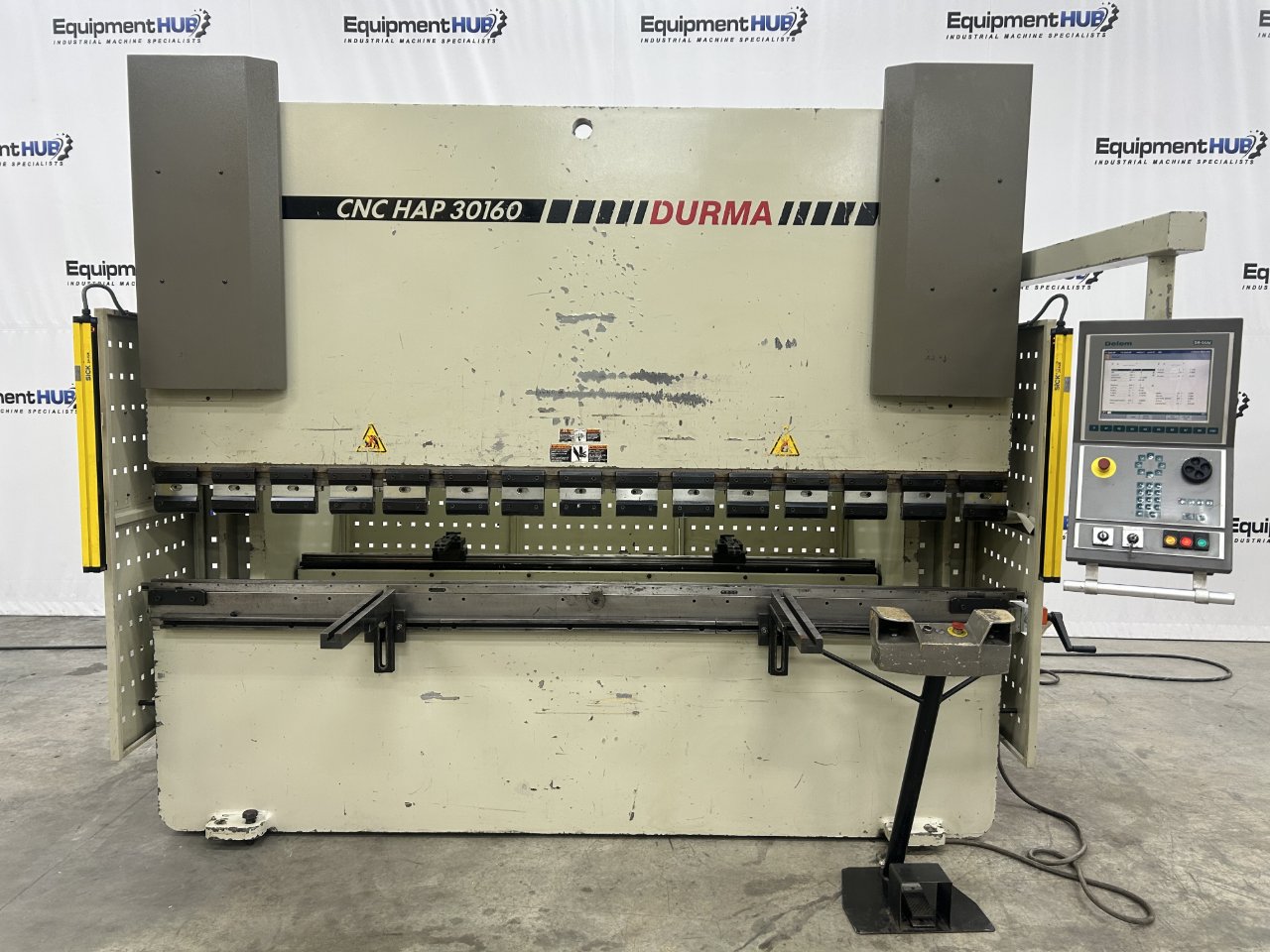

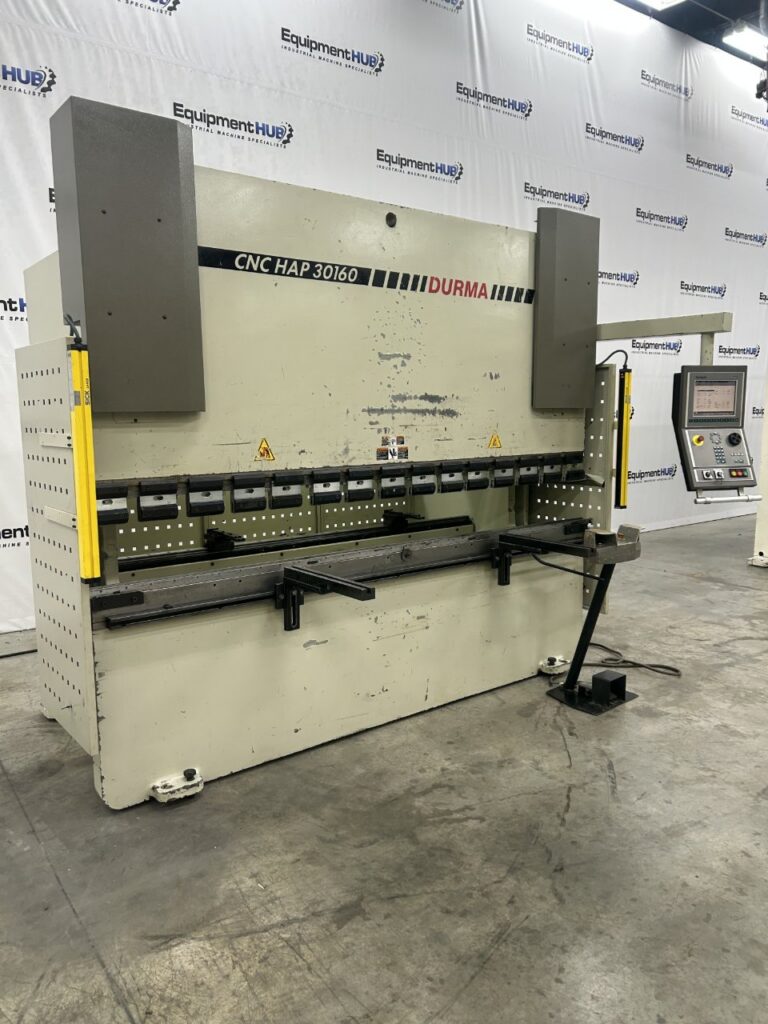

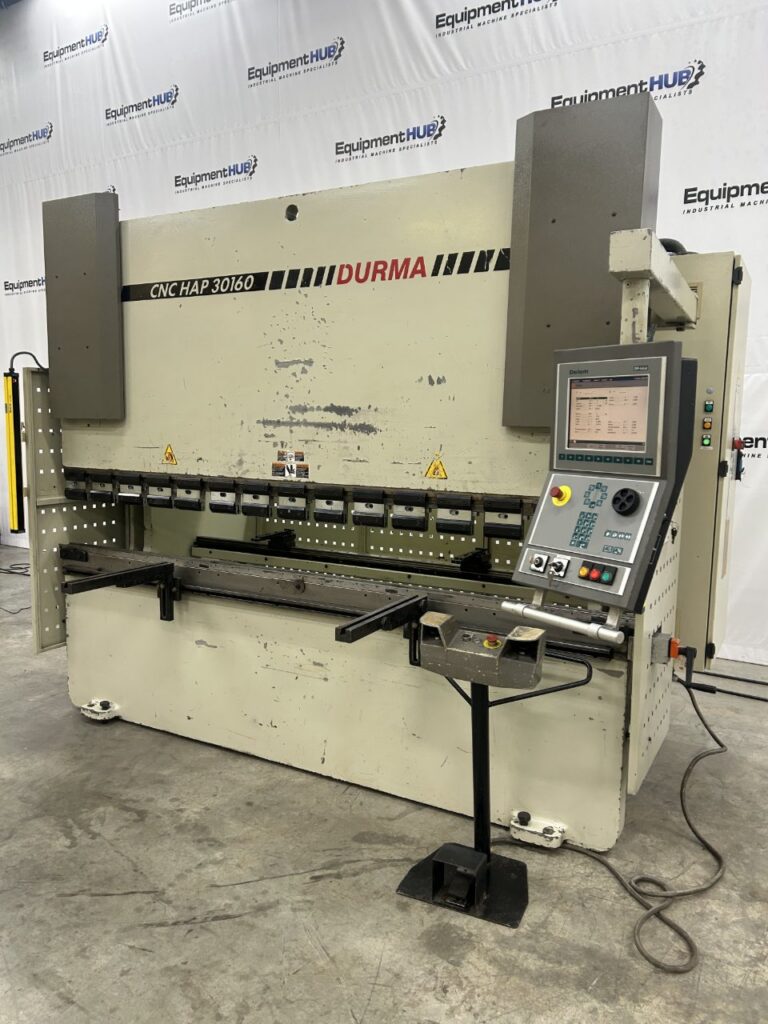

Durma CNC HAP 30160 176 Ton x 10′ CNC Press Brake

Stock #: 150260015

$29,500.00

See Product Details

Business Financing Available

  • Stock #: 150260015
  • Brand: Durma

Business Financing Available

  • Stock #: 150260015
  • Brand: Durma

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Provide Shipping Quote
Provide Financing Options
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Product Description

General Info

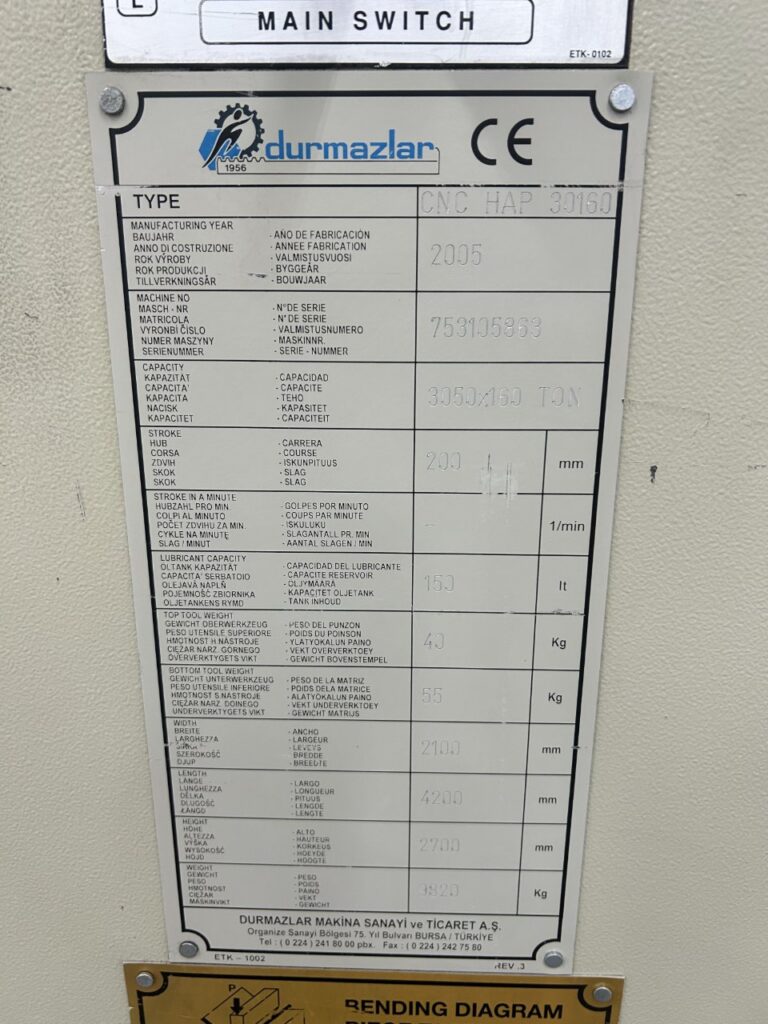

  • Stock #: 150260015
  • Location: Decatur, GA
  • Brand: Durma
  • Model: CNC HAP 30160
  • Serial Number: 753105863
  • Year: 2005
  • Approx. Shipping Weight: 21,650 lbs
  • Approx. Shipping Dimensions: 165″ L x 83″ W x 106″ H

Specifications

  • Tonnage: 176 US Tons (160 Metric Tons)
  • Overall Bending Length: 120″
  • Distance Between Housings: 100″
  • Stroke: 7.87″
  • Open Height: 14.7″
  • Approach Speed: 236 IPM
  • Forming Speed: 21 IPM
  • Return Speed: 203 IPM
  • Backgauge Range: 24.4″

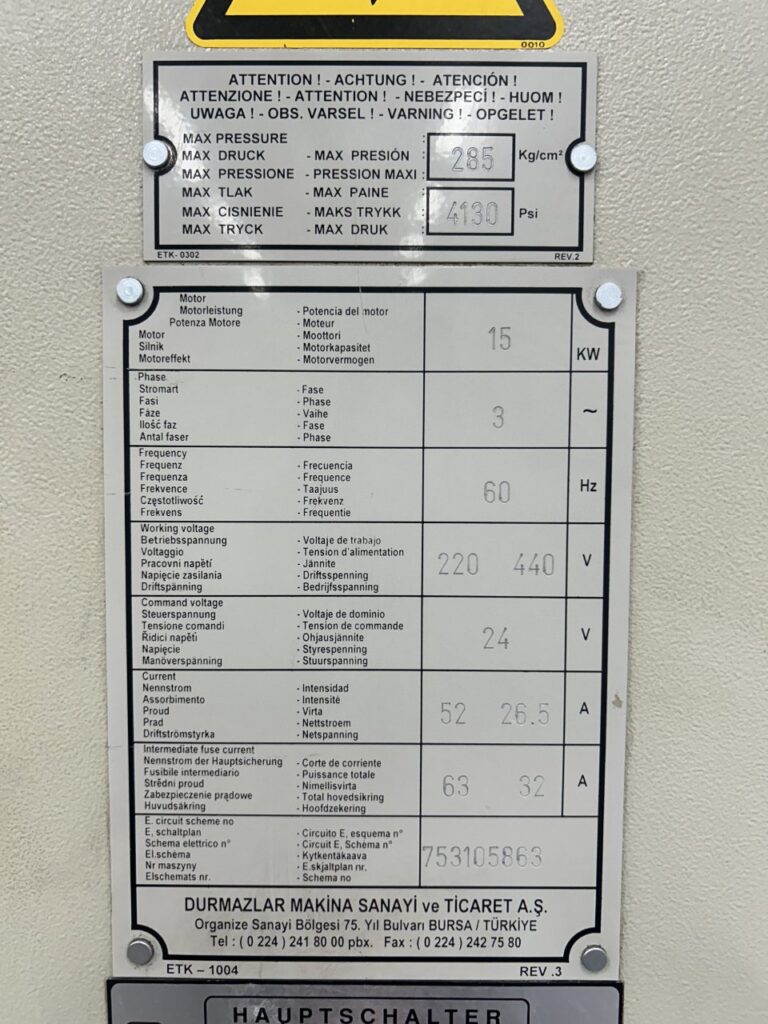

  • Max Hydraulic Pressure: 4,130 PSI (285 kg/cm²)
  • Lubricant Capacity: 150 L
  • Motor: 15 kW (20 HP)
  • Electrical: 440 V / 3 PH

Equipped With

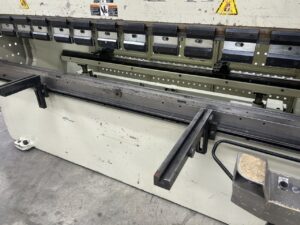

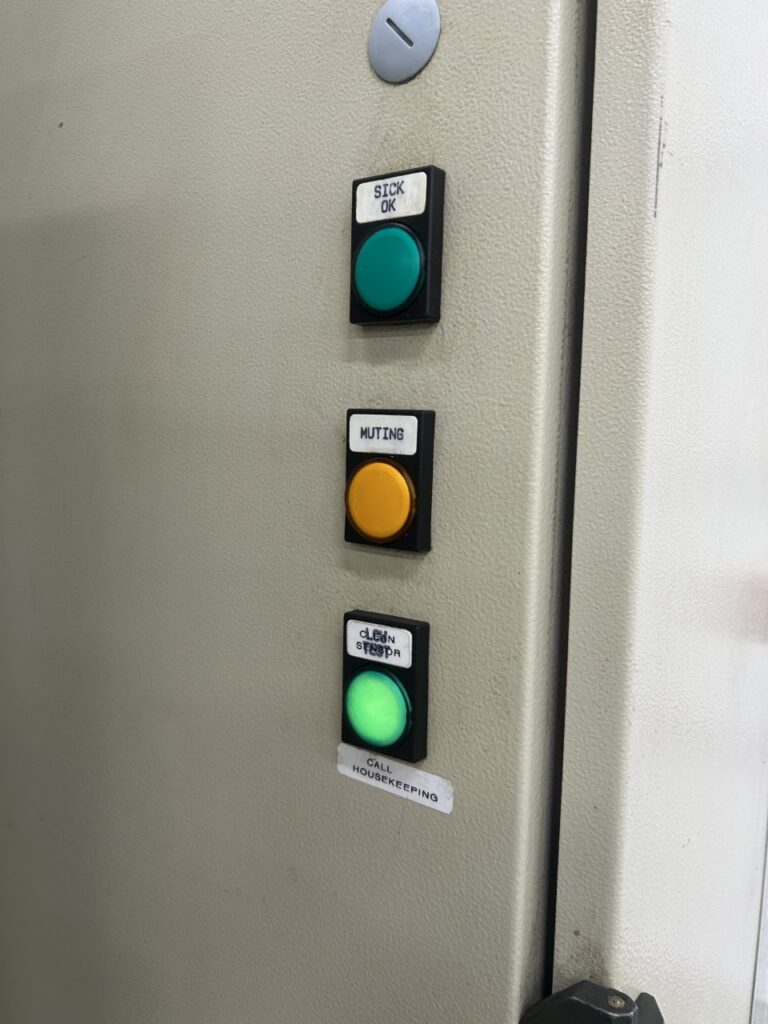

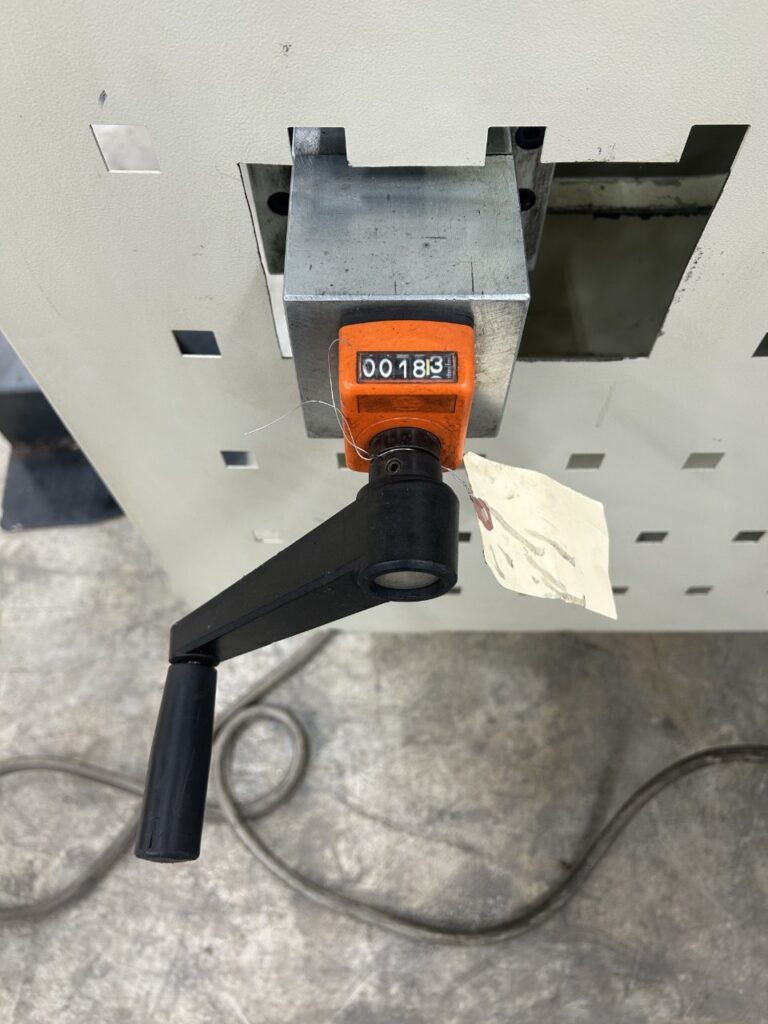

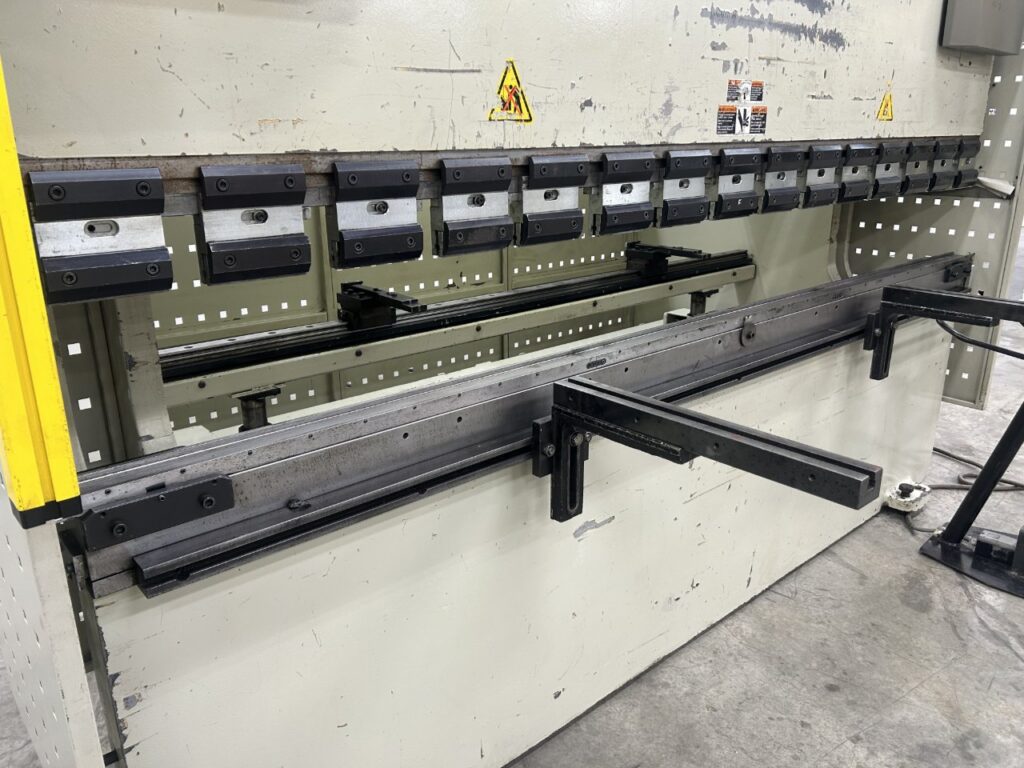

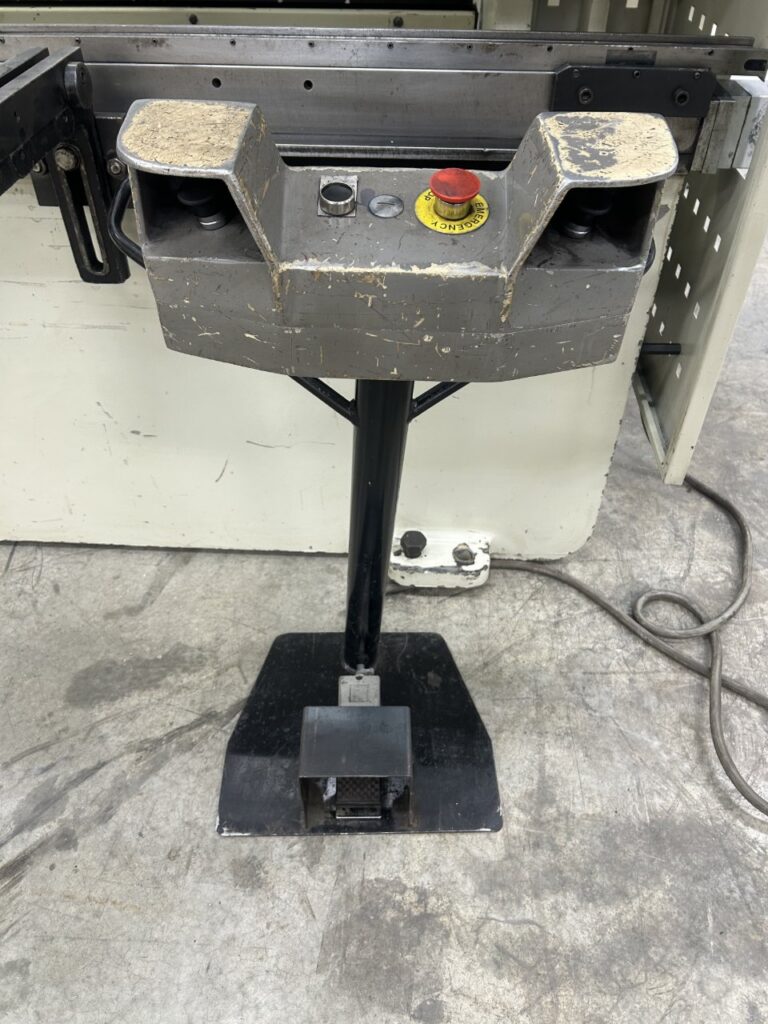

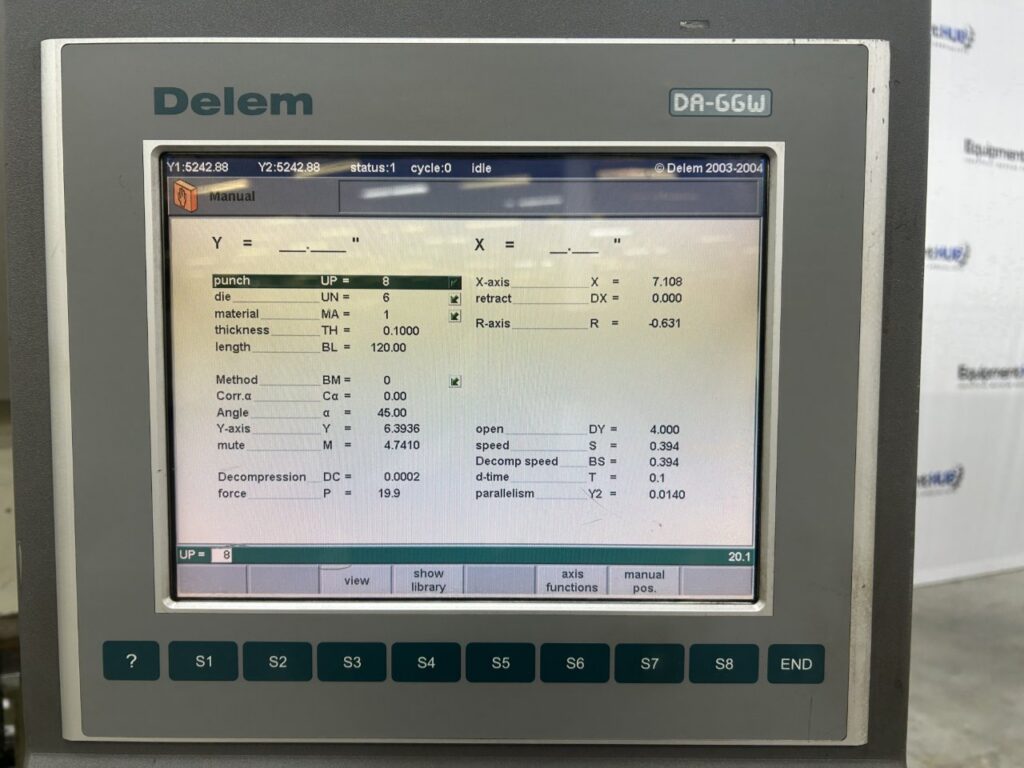

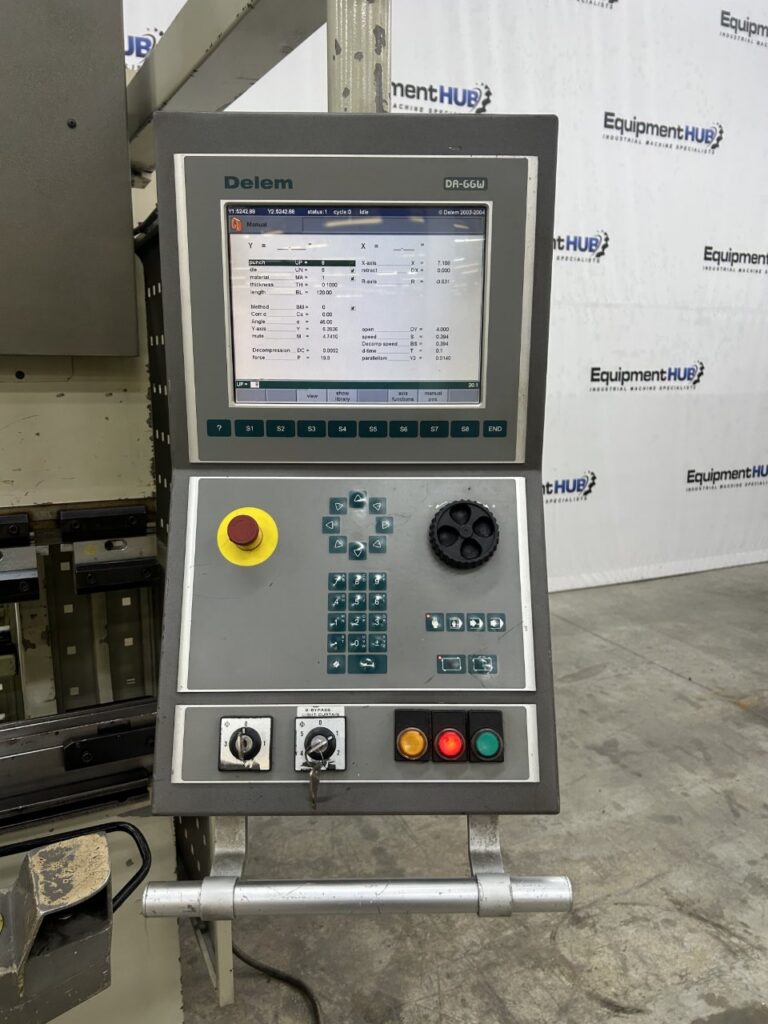

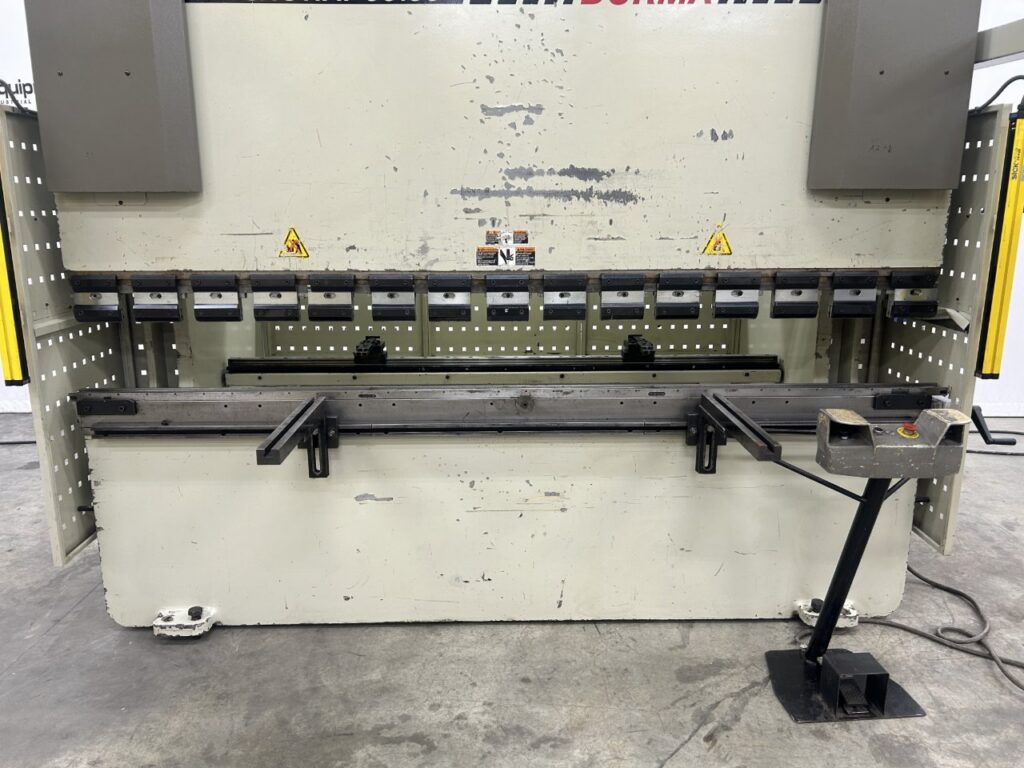

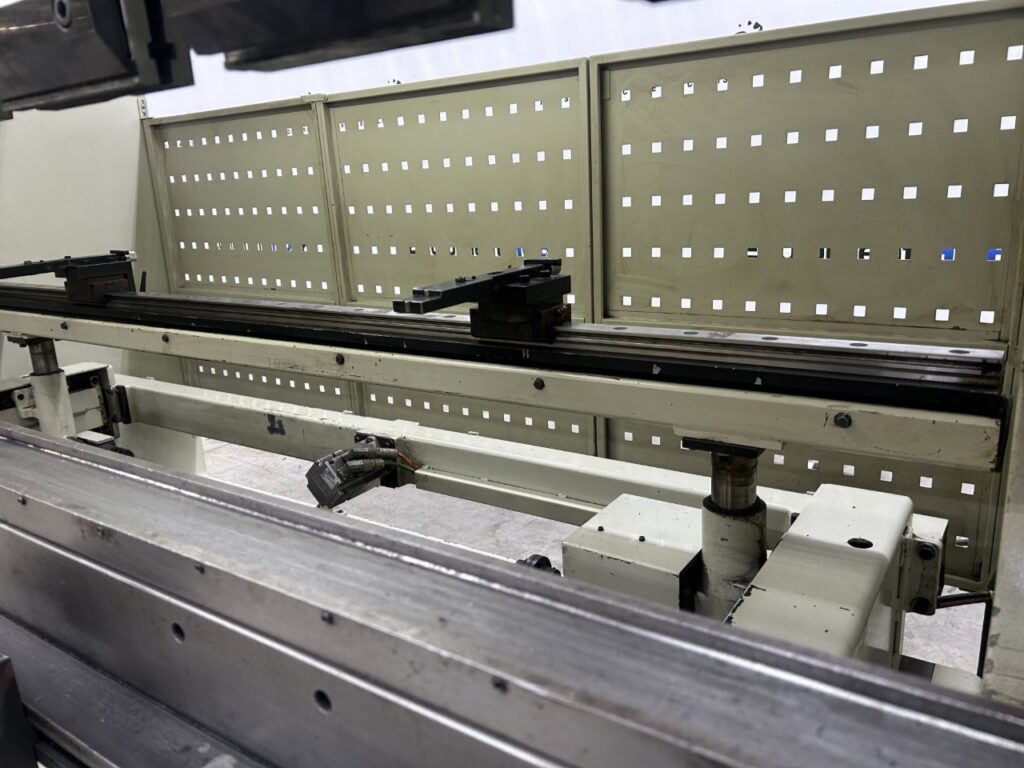

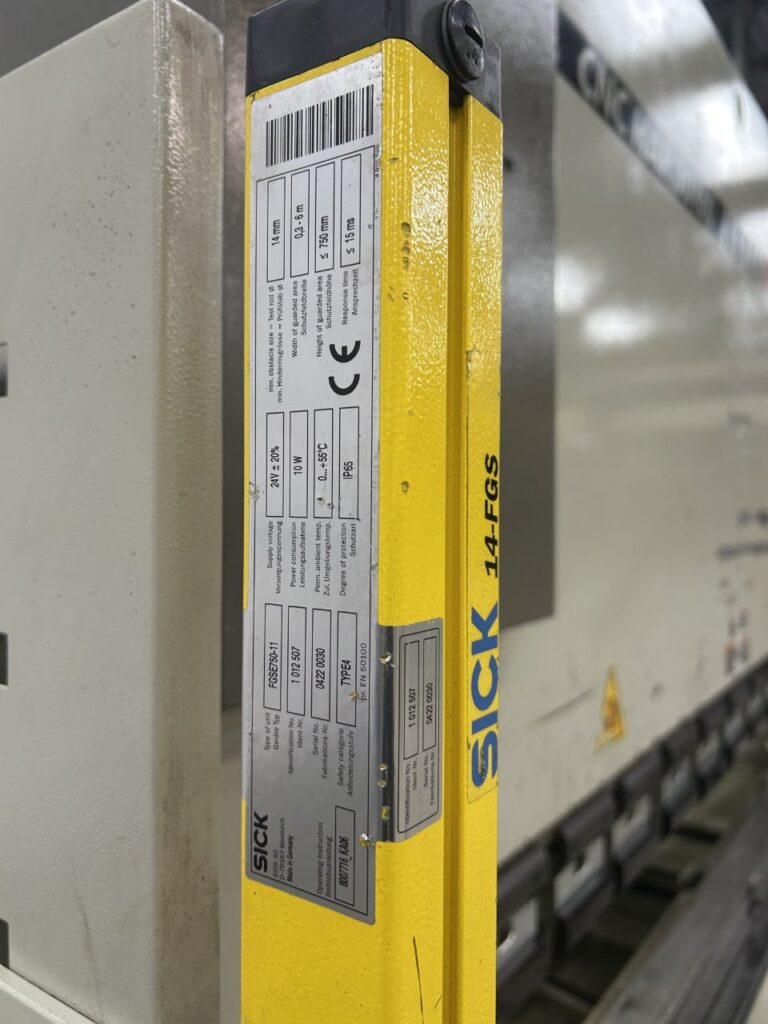

Delem Da-66W CNC Control (4-Axis: Y1, Y2, X, R), CNC Backgauge (X & R Axes), Sick 14-Fgs Type 4 Light Curtains, Segmented Quick-Clamp Top Tooling, Front Support Arms, Dual Palm Button Pedestal With E-Stop, Stroke Counter (Shows 183)

Additional Info

The machine can be demoed upon request, check out the video on the listing to see it in operation.
