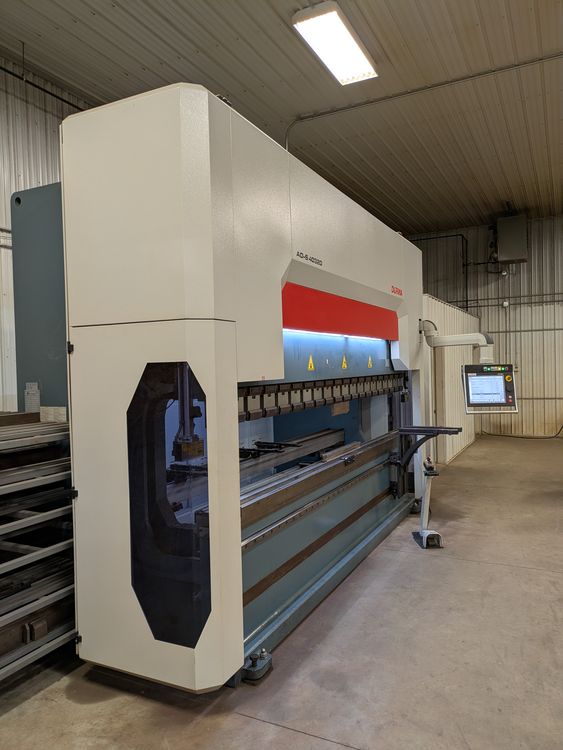

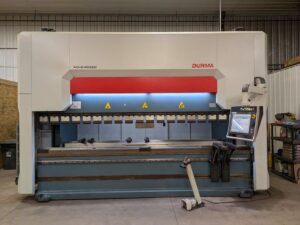

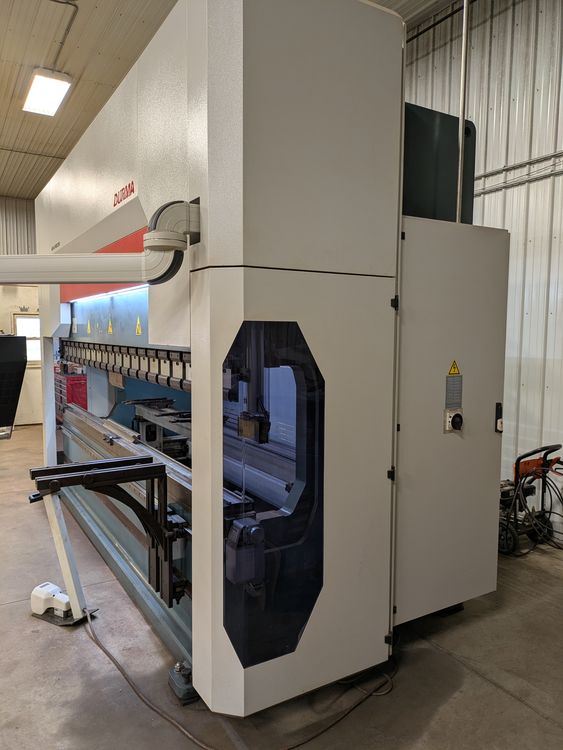

Durma ADS-40320 320 Ton x 159″ 5-Axis CNC Press Brake
Stock #: 181250023
$97,750.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 181250023
- Location: Grand Forks, ND
- Brand: Durma
- Model: ADS-40320- 320 Ton
- Year: 2018
- Approx. Shipping Weight: 50,000 lbs
- Approx. Shipping Dimensions: 208″ L x 75″ W x 127″ H)
- Loading Fee: Rigging Required
Specifications
- Bending Force: 352 Tons
- Maximum Bending Length: 159.4″
- Distance Between Side Frames: 141.7″
- Usable Bending Length: 159.4″
- Distance Between Housings: 141.7″
- Open Height: 24.8″
- Ram Travel: 14.4″
- Throat Depth: 16.1″
- Approach Speed: 4.7 in./s
- Bending Speed: 0.39 in./s
- Return Speed: 4.7 in./s

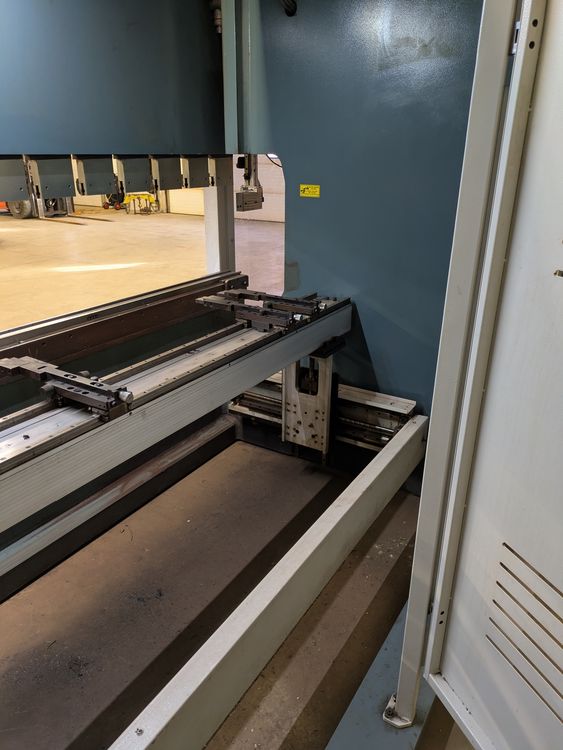

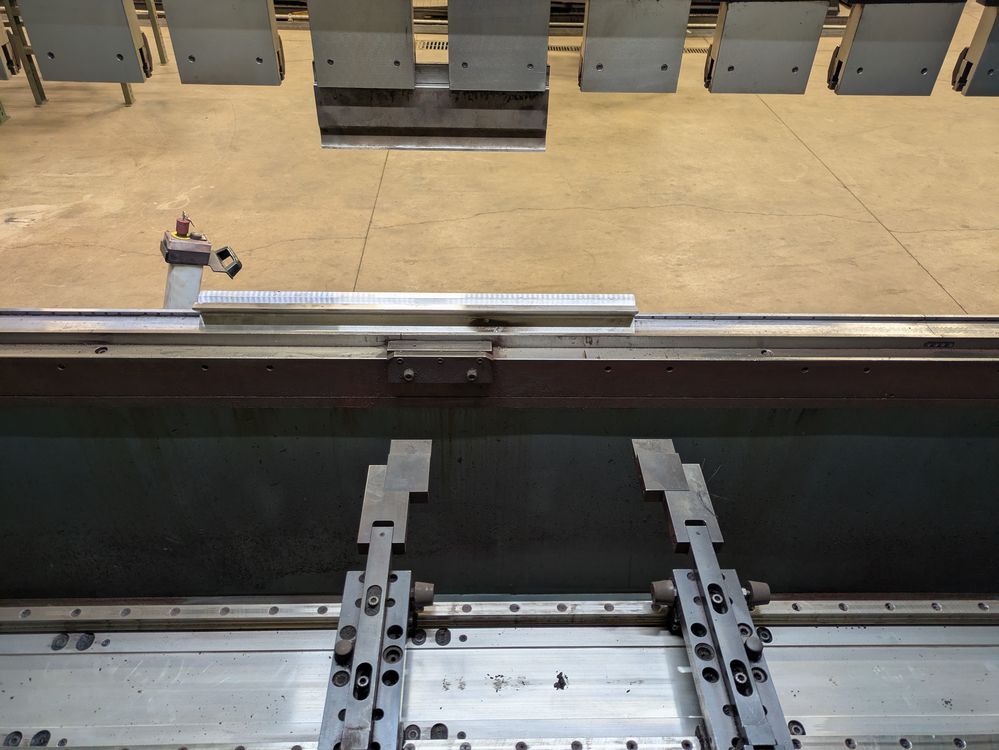

- Backgauge: 2-Axis CNC (X1, R1)
- Backgauge X-Axis Travel: 39.4″
- Backgauge X-Axis Speed: 1,640 ft/min
- Backgauge R-Axis Travel: 9.8″
- Backgauge R-Axis Speed: 11.81 in./s

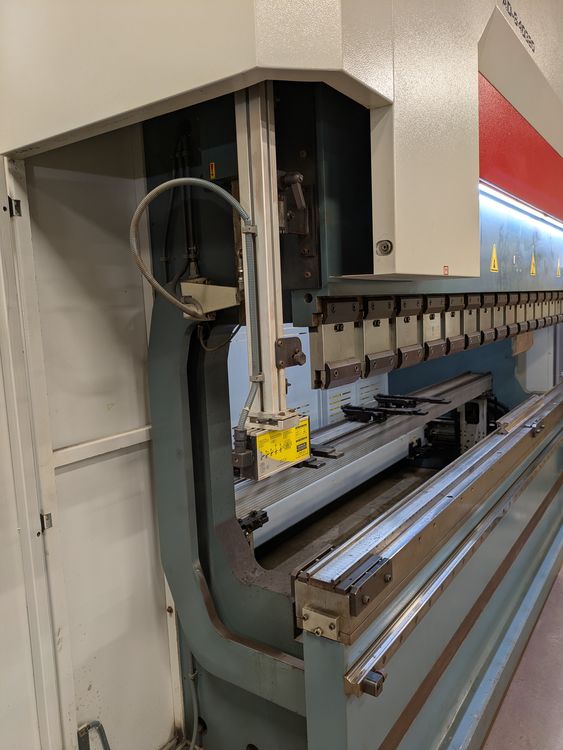

- Ram & Guidance Guidance System: ADS Deep Sliding (Dual Rails)
- Ram & Guidance Y1/Y2 Accuracy: ±0.01 mm
- Ram & Guidance Crowning: CNC Hydraulic (Automatic)
- Hydraulics System: Bosch-Rexroth Closed-Loop
- Hydraulics Max Pressure: 300 bar
- Hydraulics Oil Capacity: 79.25 Gal.
- Hydraulics Oil Type: ISO VG 46
- Power & Drive Main Motor: 40 HP.
- Power & Drive Voltage: 480V / 3-Phase / 60 Hz (configurable)
- Power & Drive Full Load Amps (FLA): 63 A
- Power & Drive Total Connected Load: 38 kVA
Equipped With

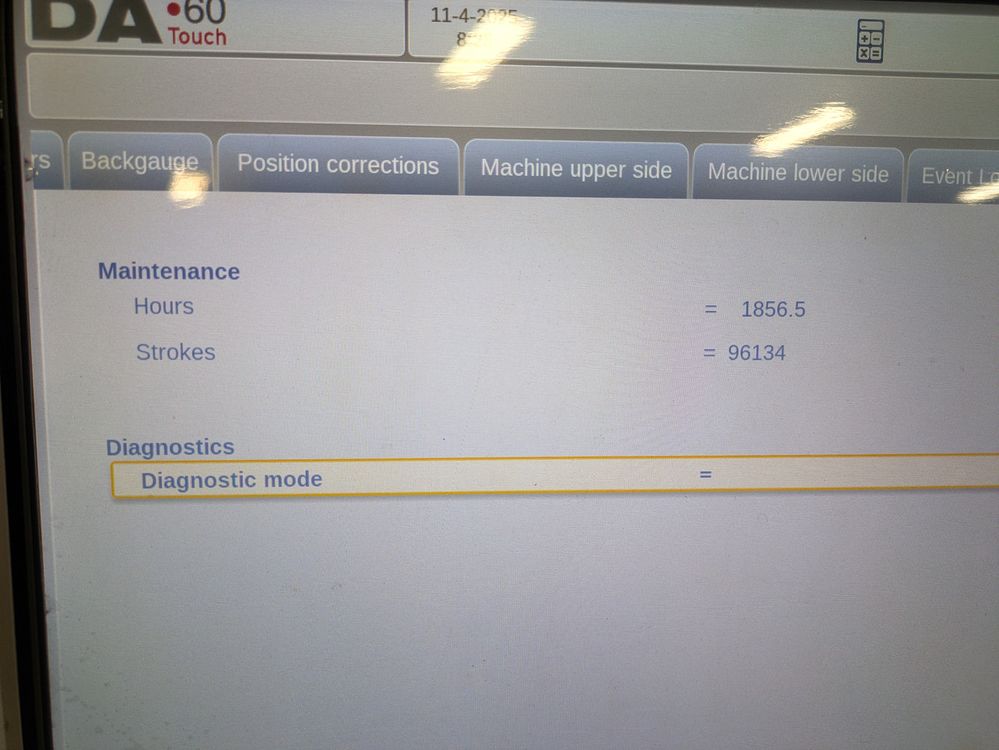

Control System featuring a CNC Controller with Delem DA-66T (17″ touchscreen) offering a 2D/3D graphical bending simulation interface, 16 GB SSD program storage (10,000+ programs), and control over Y1, Y2, X1, R1, and Crowning axes via Ethernet + USB connectivity; includes Delem Profile-T 3D Offline, Safety Systems feature SICK C4000 front light curtains (full width), AKAS III rear laser finger protection (Class 1), fixed mesh side/rear guards with interlock, dual palm buttons + foot pedal E-stop, and Pilz PNOZmulti safety PLC. Dimensions & Weight: 5,100 mm (200.8″) L × 2,350 mm (92.5″) W × 3,350 mm (131.9″) H, 950 mm (37.4″) bed height, and 23,500 kg (51,808 lbs). Standard Features include LED work area lighting (front + rear), dual foot pedal with safety relay, oil cooler (air/oil heat exchanger). Tooling available at additional cost.
Additional Info
Inspection Upon Request
