This item has been sold

Search our inventory for a comparable solution

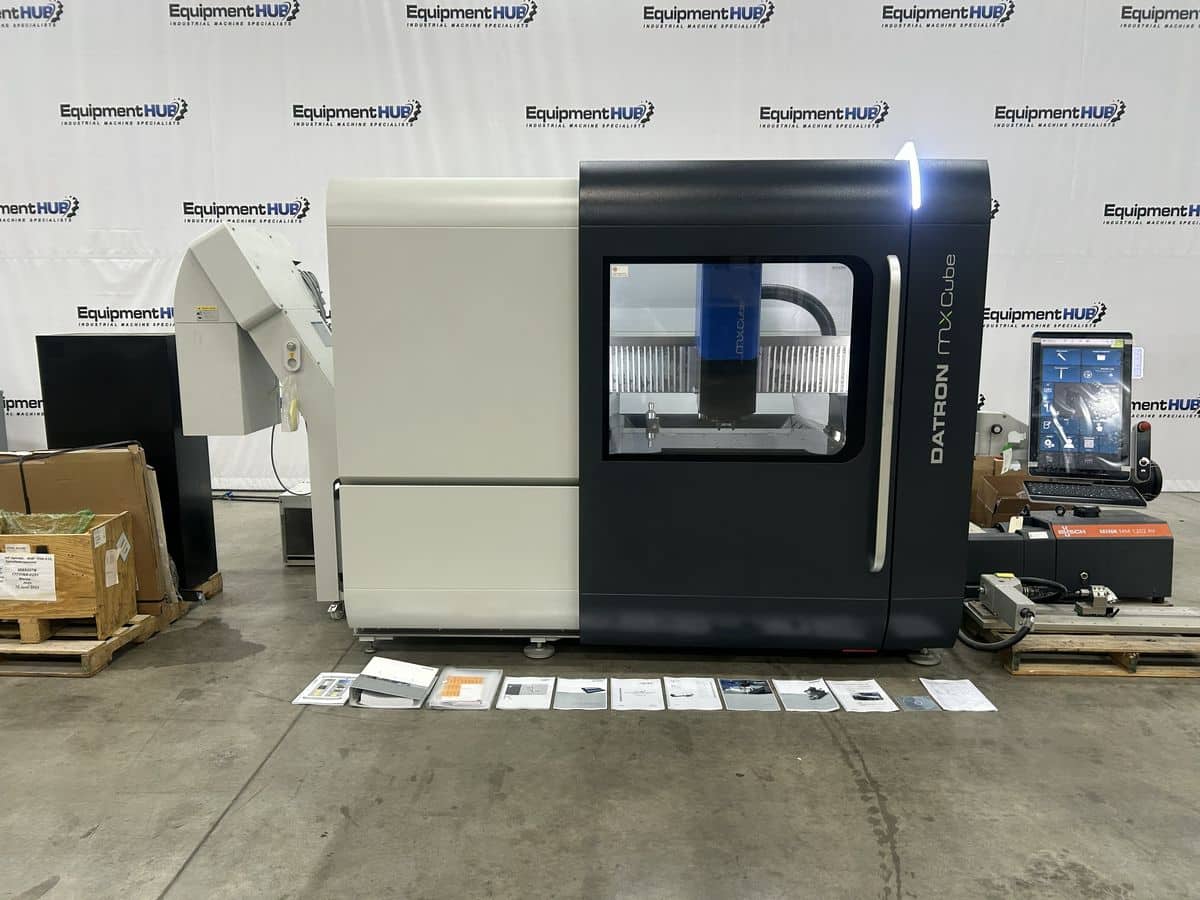

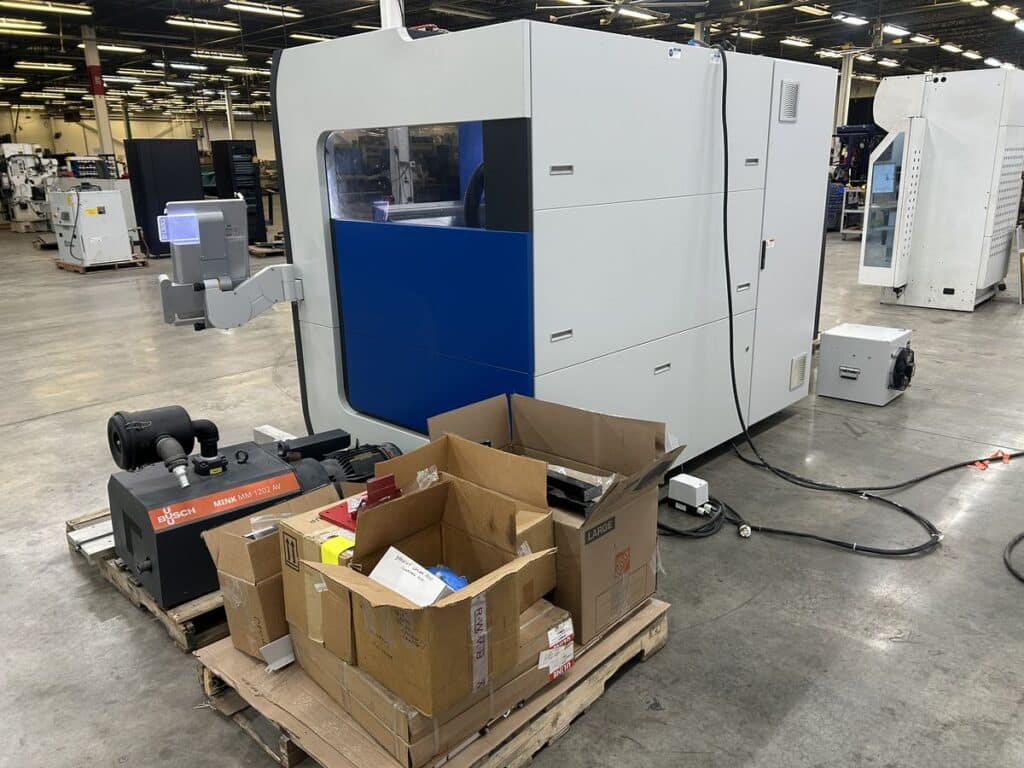

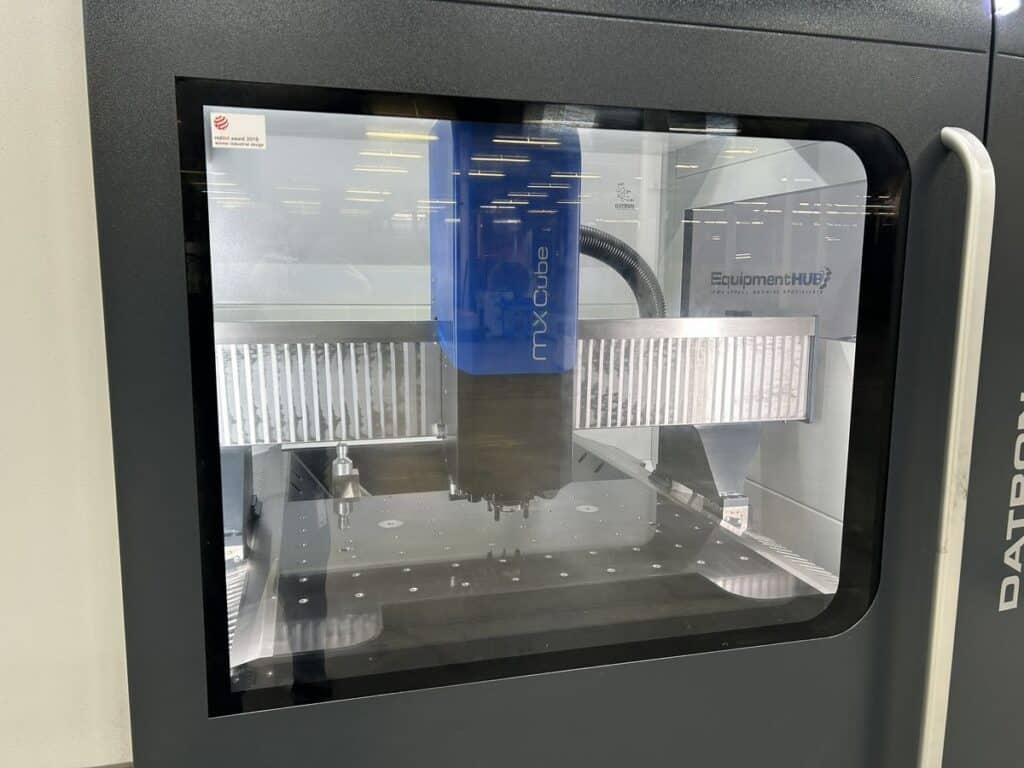

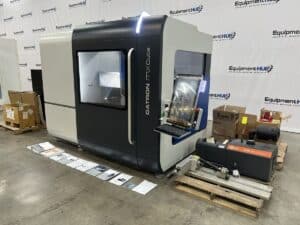

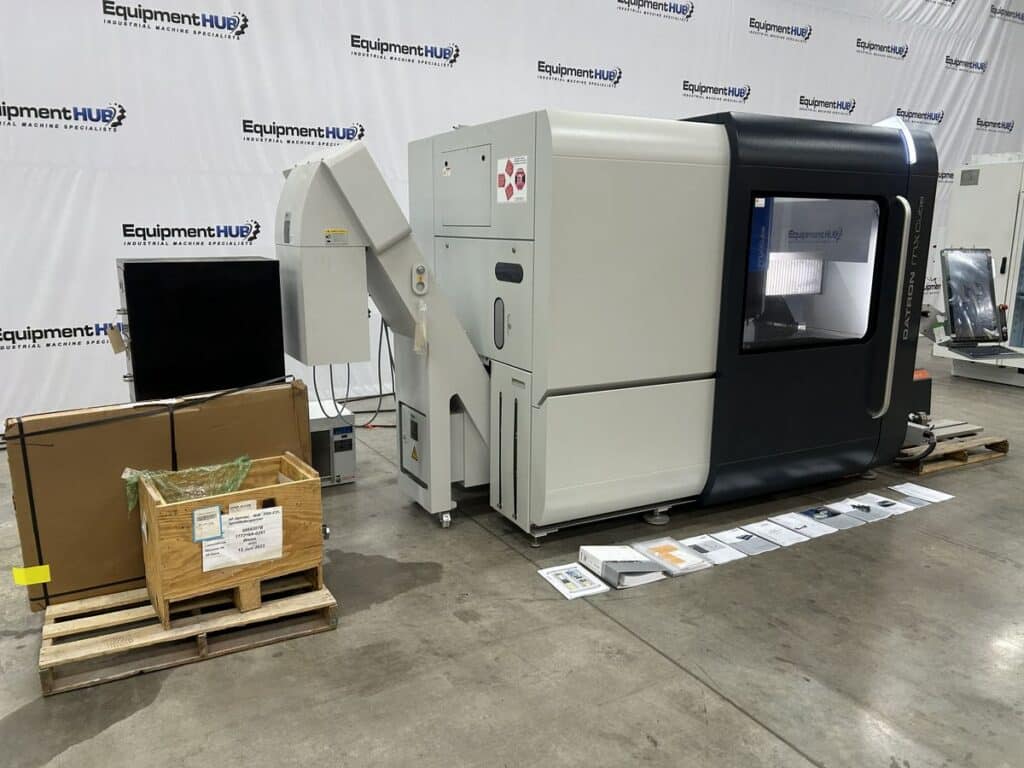

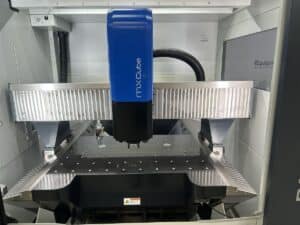

Datron MXCube B 4KW High Speed CNC Vertical Machining Center (2023)

Stock #: 114260001

$149,500.00

See Product Details

Out of stock

  • Stock #: 114260001
  • Brand:

Out of stock

  • Stock #: 114260001
  • Brand:

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Provide Shipping Quote
Provide Financing Options
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Product Description

General Info

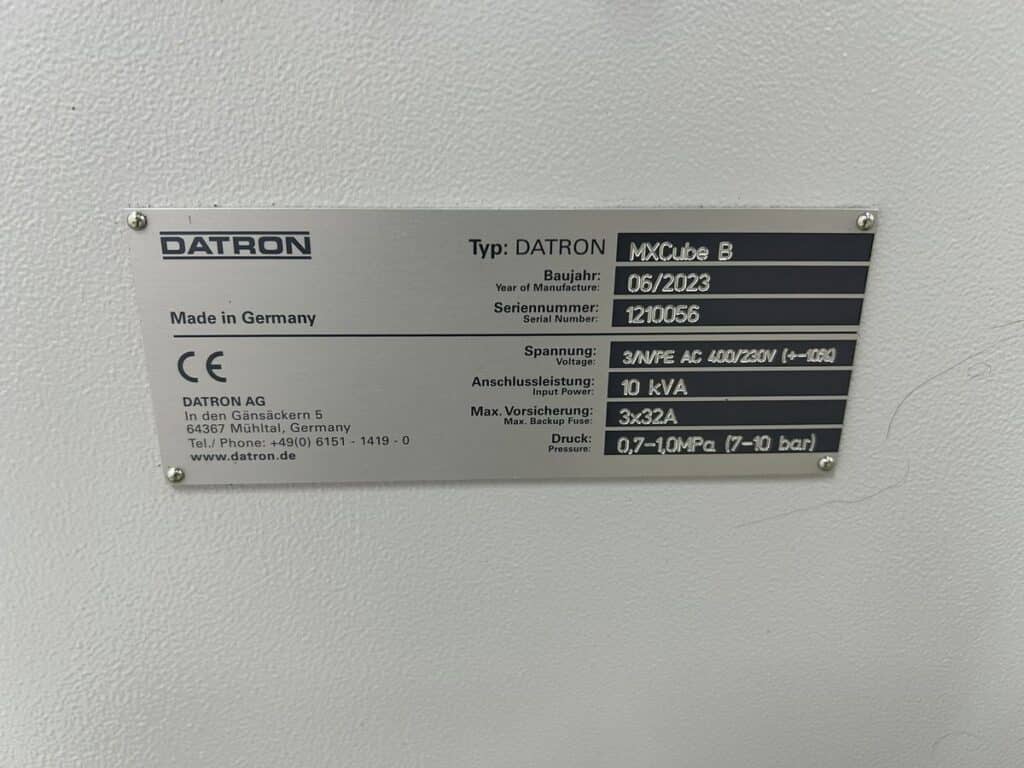

  • Stock #: 114260001
  • Location: Decatur, GA
  • Brand: Datron
  • Model: MXCube B
  • Serial #: 1210056
  • Year: 2023
  • Approx. Shipping Weight: 10,000 Lbs.
  • Approx. Shipping Dimensions: 26′ L x 8′ W x 8′ H
  • Skidding Fee: Skidding Unavailable

Specifications

  • Travel (XYZ): 41″ x 33.5″ x 11″
  • Gantry Clearance: 8.07″

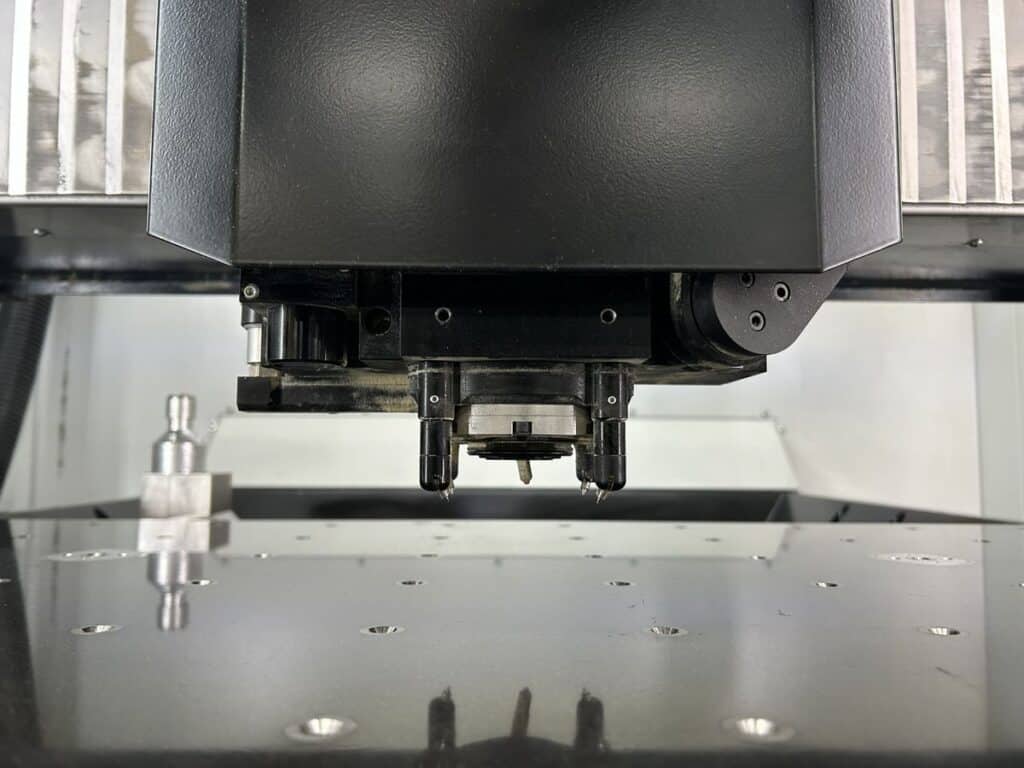

  • Spindle: Standard 4 kwatt, 1k-40k RPM, E-25 HSK Collet
  • Feed(XY): Up to 1,574 in/min
  • Feed(Z): 787 in/min.
  • Accuracy(mean values): ISO 230 Standard X,Y, Positional +/- 0.0002″, Repeatability +/- 0.0001″
  • Tool Changer: 143 Tool Change Capacity

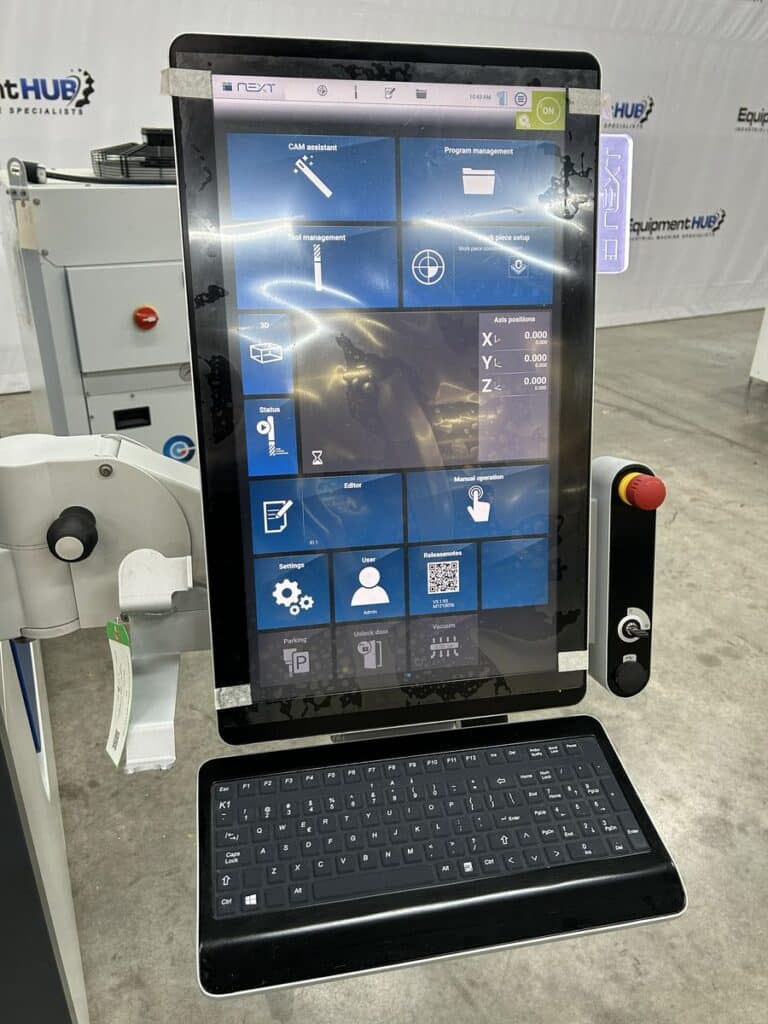

  • Control System: DATRON next
  • Working Area: 39″ x 27.5″ x 7.5″
  • Rotary Axis: 4th Axis Ready
  • Electrical: 400V/3PH

Equipped With

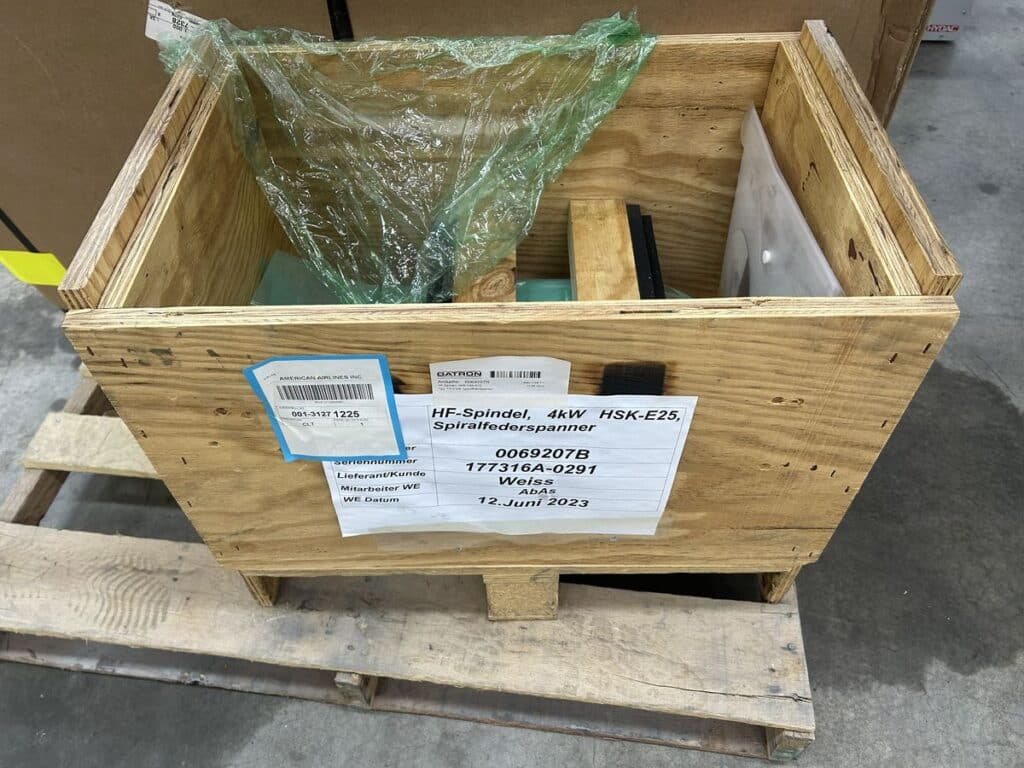

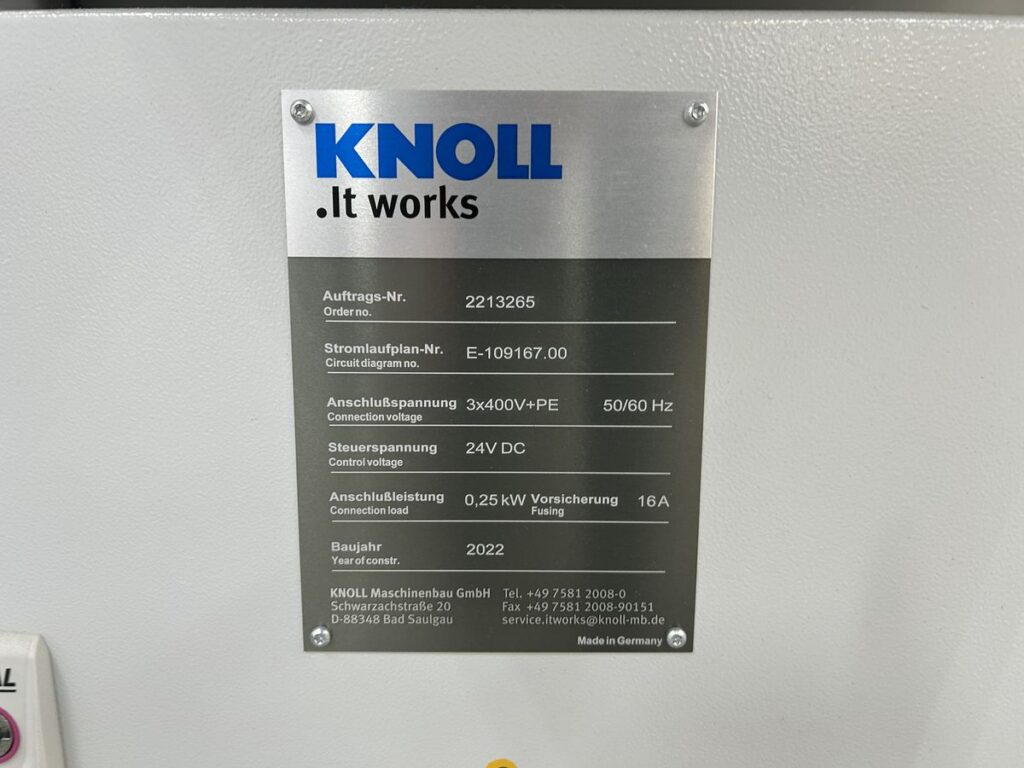

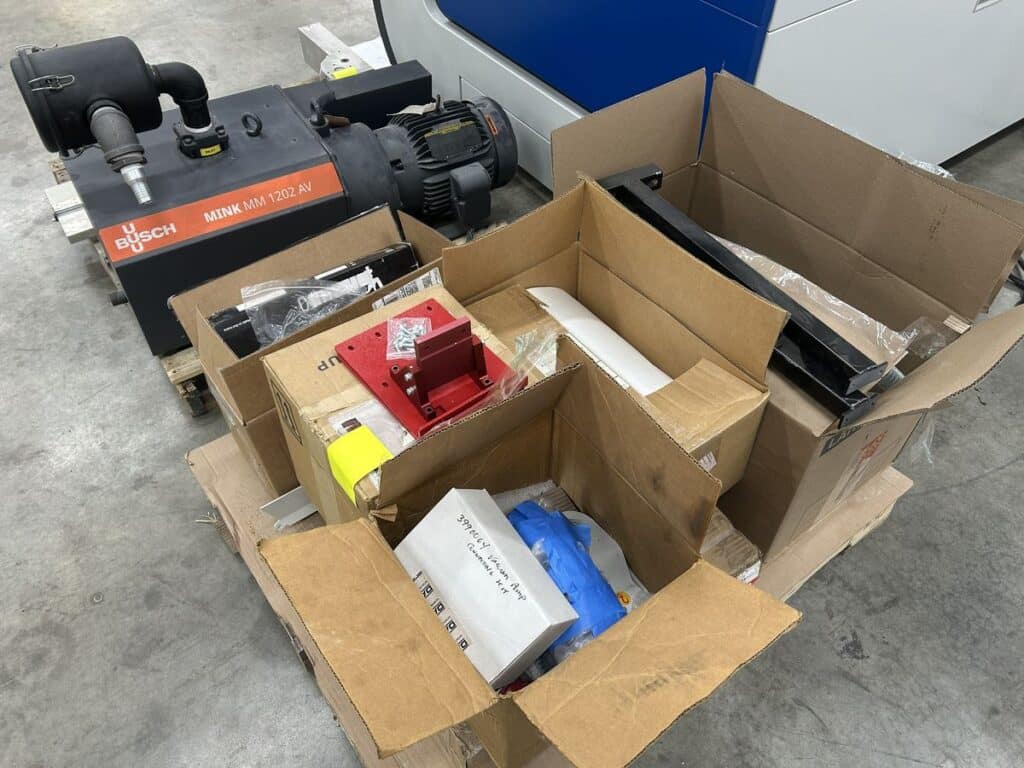

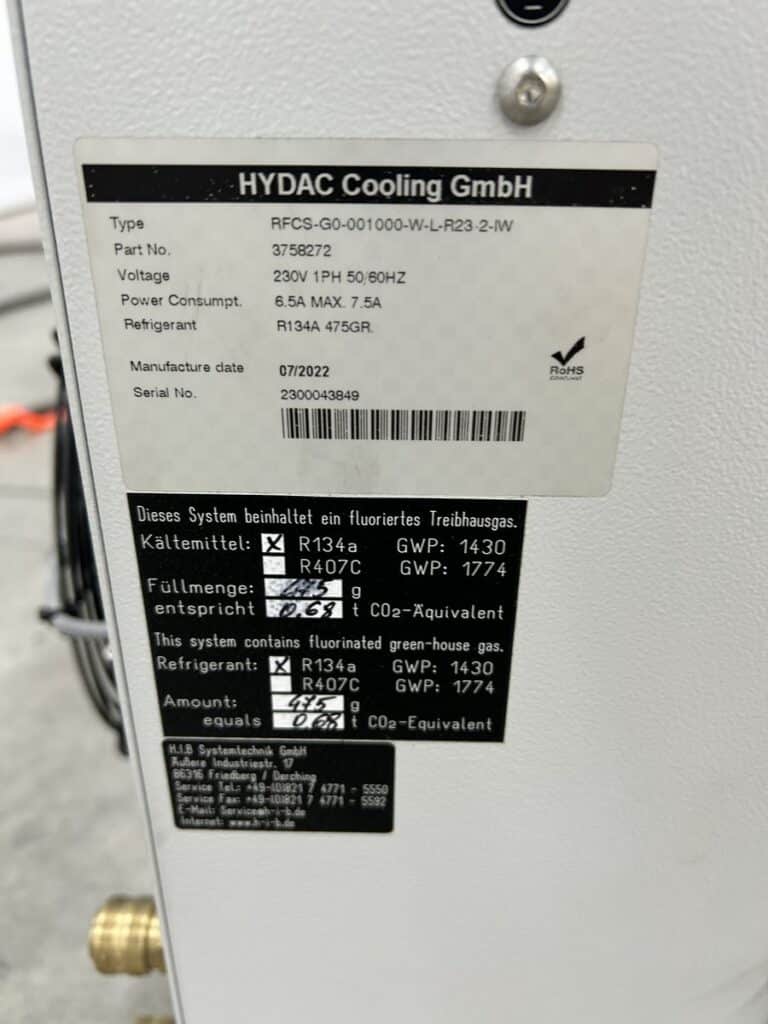

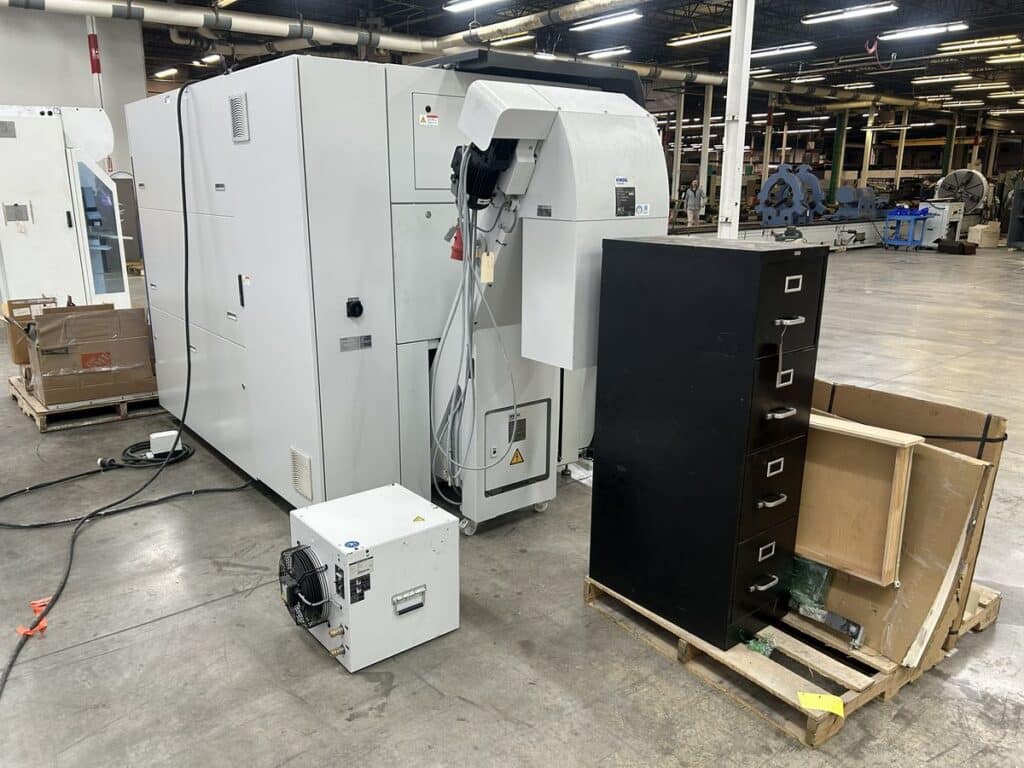

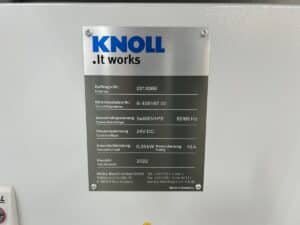

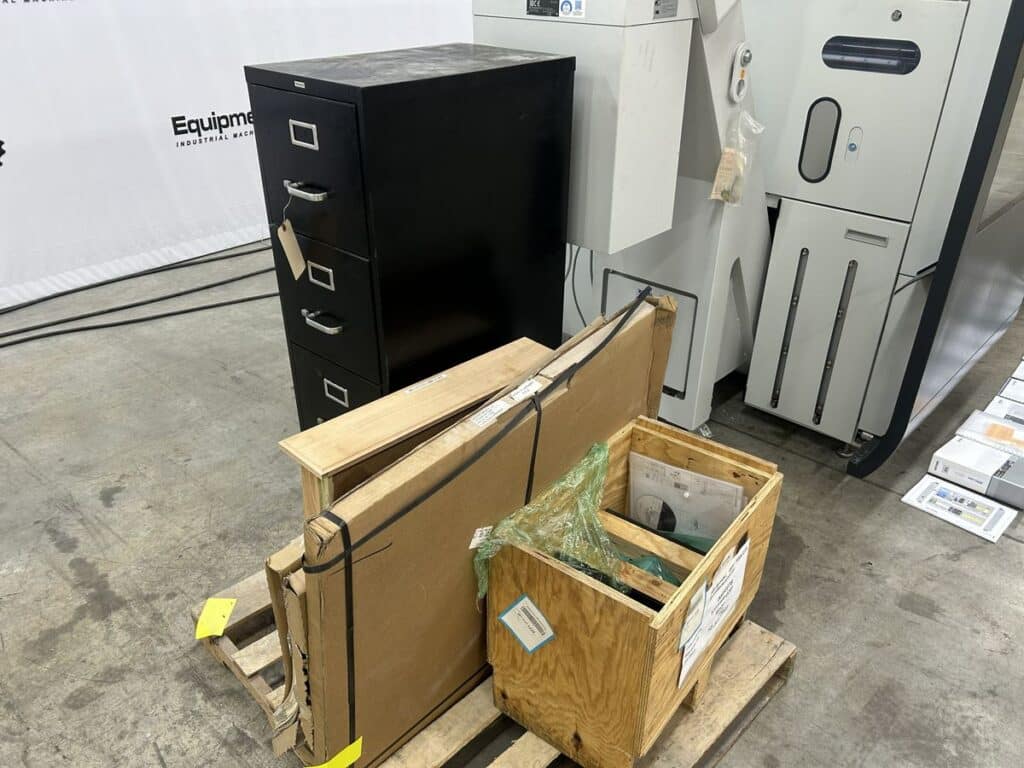

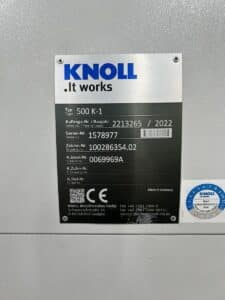

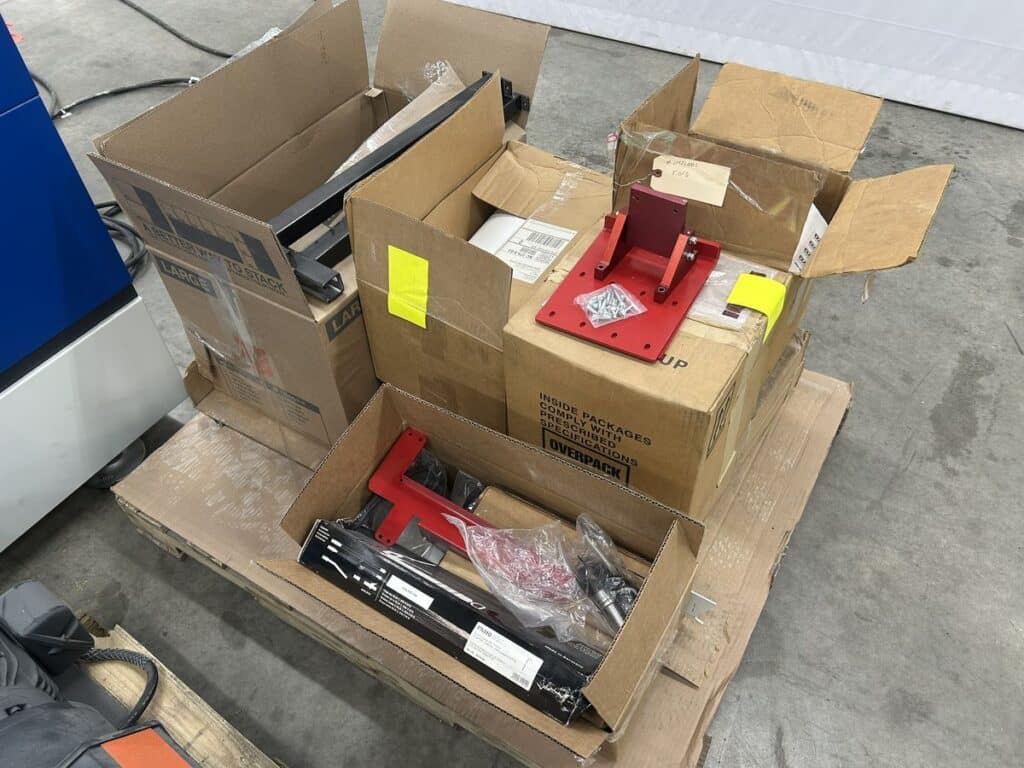

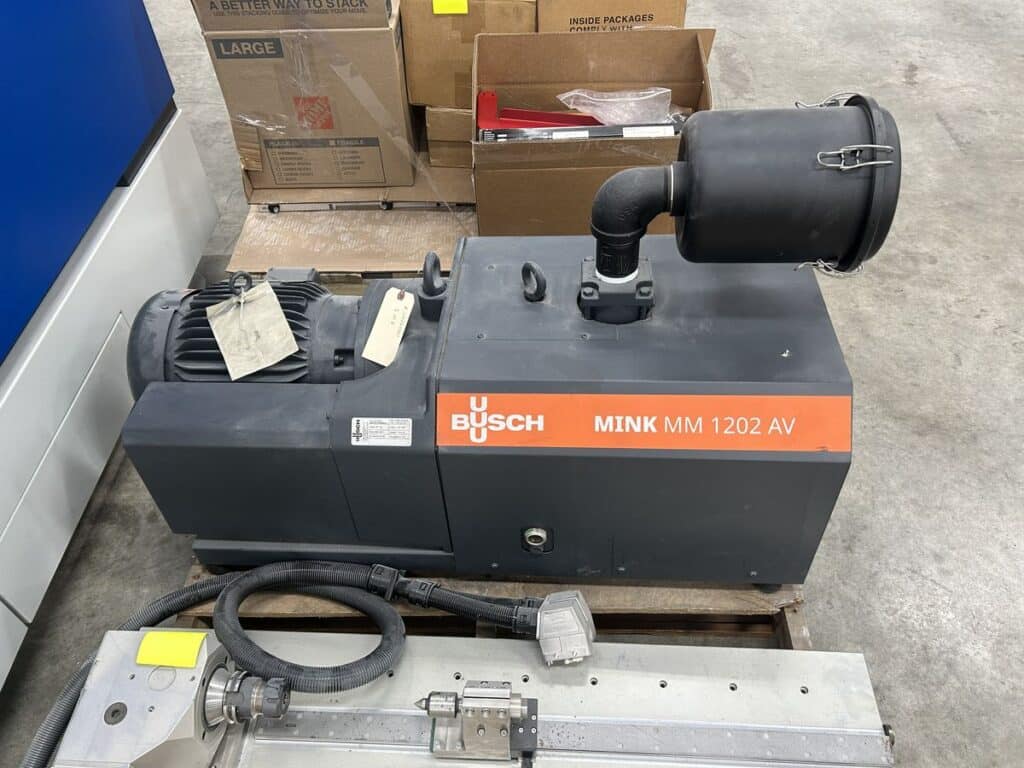

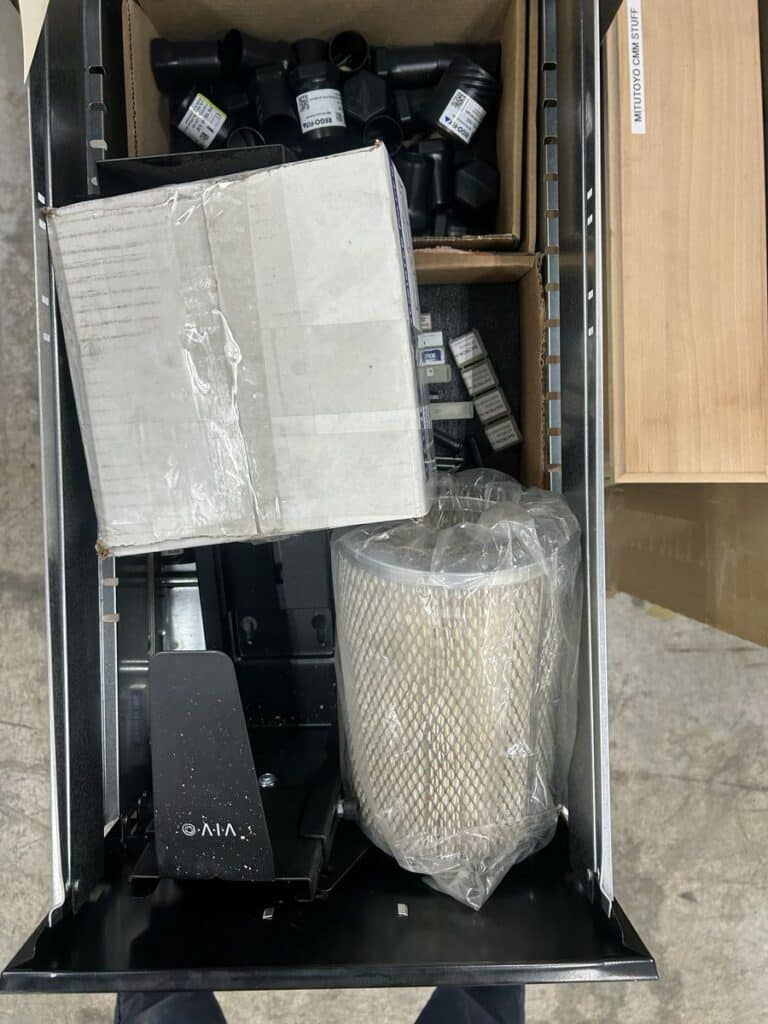

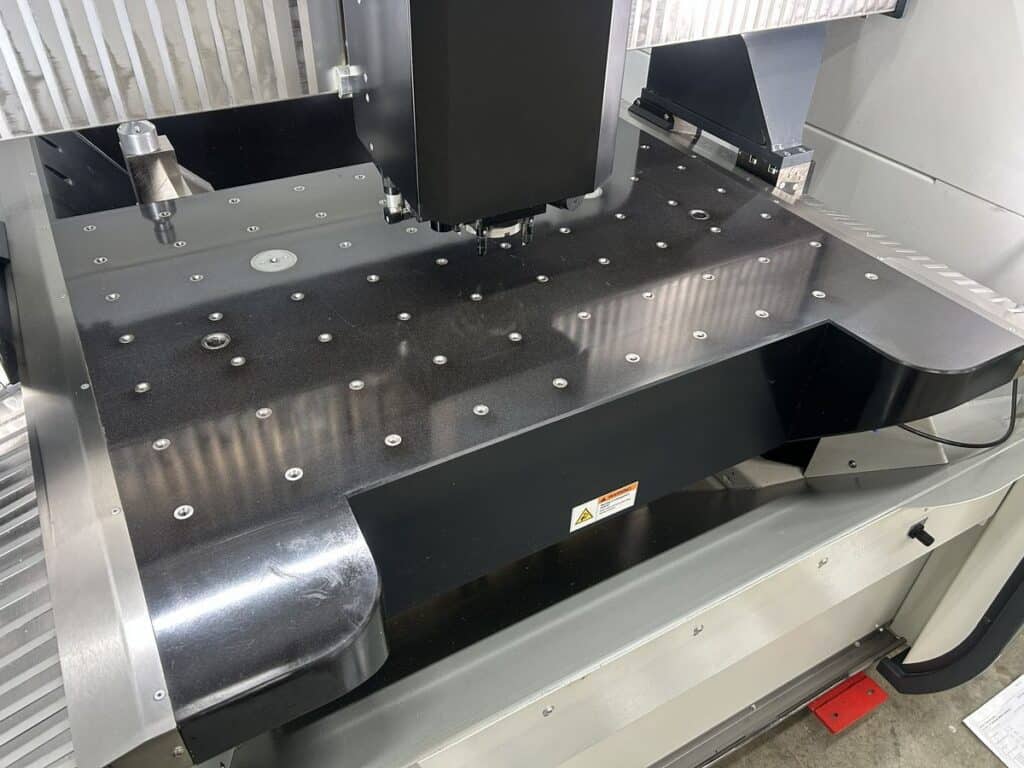

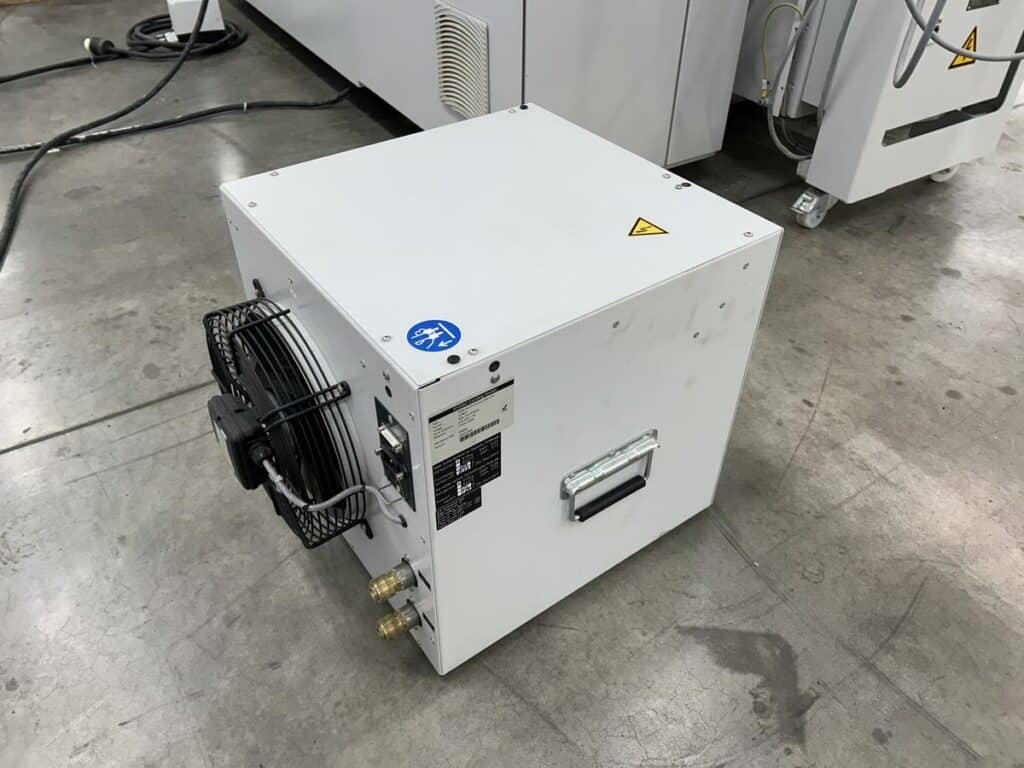

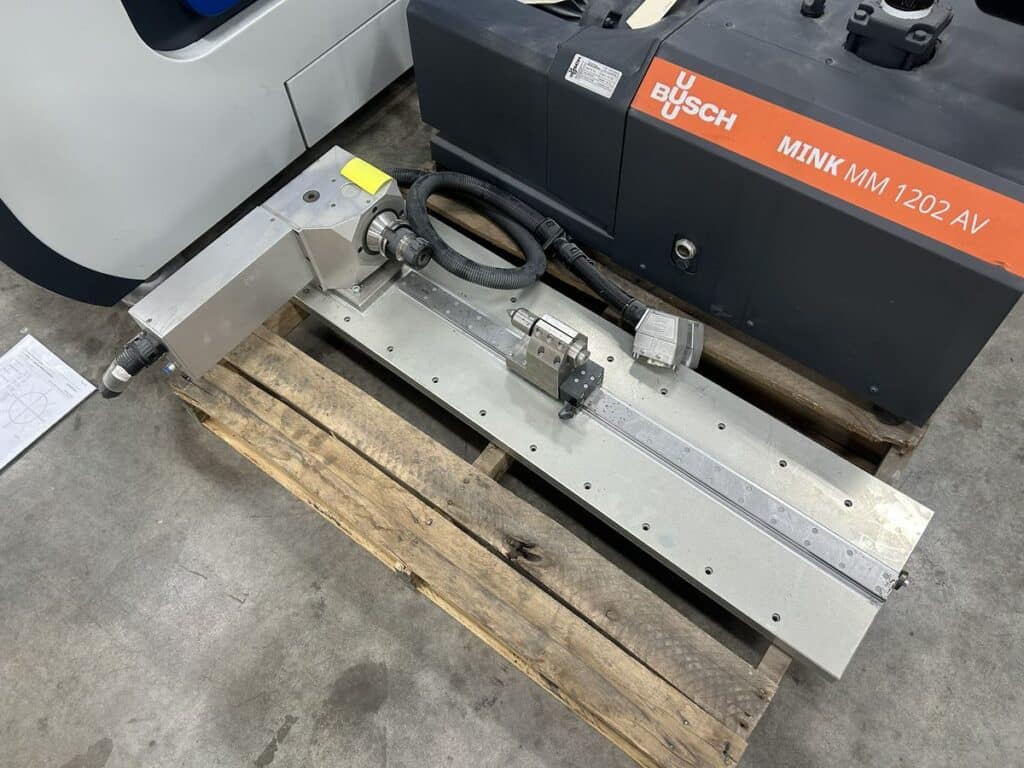

Knoll 500 K-1 Chip Conveyor System, Auto Tool Management Software, Cooling Lubrication System, Precision Tool Length Sensor, Vacuum Distributor, Vacuum Table, PDA Pro 4th Rotary Axis, High Precision 3D Touch Probe, Spare Spindle, Busch Mink MM 1202 Vacuum Pump, Hydac Cooling System, Misc. accessories, Manuals

Additional Info

The Datron Vertical Machining Center can be demoed upon request.
