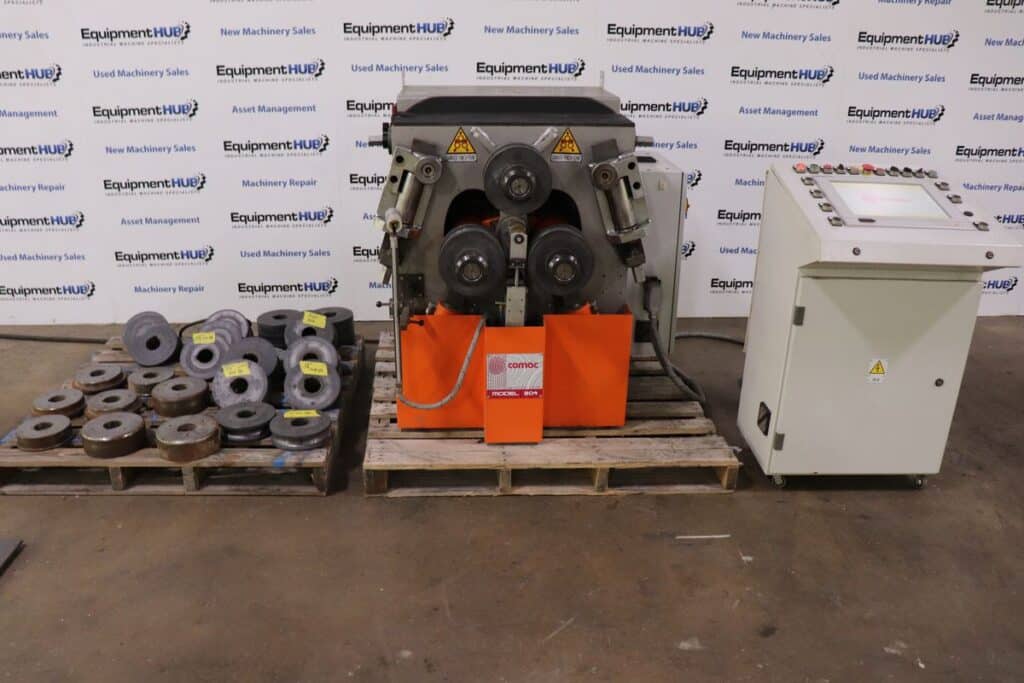

Comac 304 CN31V 2-1/2″ x 5/16″ Hydraulic Double Initial Pinch Angle Roll

Name: Comac 304 CN31V 2-1/2" x 5/16" Hydraulic Double Initial Pinch Angle Roll
SKU: 169562
Price: 32500.00 USD
Availability: InStock

Stock #: 120250042

$32,500.00

See Product Details

Stock #: 120250042
Brand: Comac

Not What You're Looking For?

Have Surplus Machinery to Sell?

Stock #: 120250042
Brand: Comac

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

Product Description

General Info

Stock #: 120250042
Location: Stone Mountian, Ga
Brand: Comac
Model: 304 CN31V
Serial #: 3040247
Year: 2015
Approx. Shipping Weight: Pallet #1: 400 Lbs. Pallet #2: 2650 Lbs.
Approx. Shipping Dimensions: Pallet #1: 4′ L x 4′ W x 3′ H Pallet #2: 5′ L x 4′ W x 5′ H
Skidding Fee: $225

Specifications

Flat Bar on Edge Capacity: 2 3/4″ x 1/2″ to 23 1/2″ Diameter
Flat Bar on Flat Capacity: 4 3/4″ x 3/8″
Square Bar Capacity: 1 1/2″ x 1 1/2″ to 23 1/2″ Diameter
Round Bar Capacity: 1 3/4″ to 17 3/4″ Diameter
Pipe Example: 3″ Diameter x 0.11″ wall to 47.2″ Diameter (Schedule 10 or Similar)
Angle Bending Capacity (Leg-Out): 2 1/2″ x 5/16″
Angle Bending Capacity (Leg-In): 2 3/8″ x 1/4″
Rolling Speed: 17 FPM
Roll Diameter: 8″
Oil Capacity: 5 Gallons
Shaft Diameter: 2 3/8″
Power Output: 4.7 HP
Electrical: 220V / 3PH / 60 HZ

Equipped With

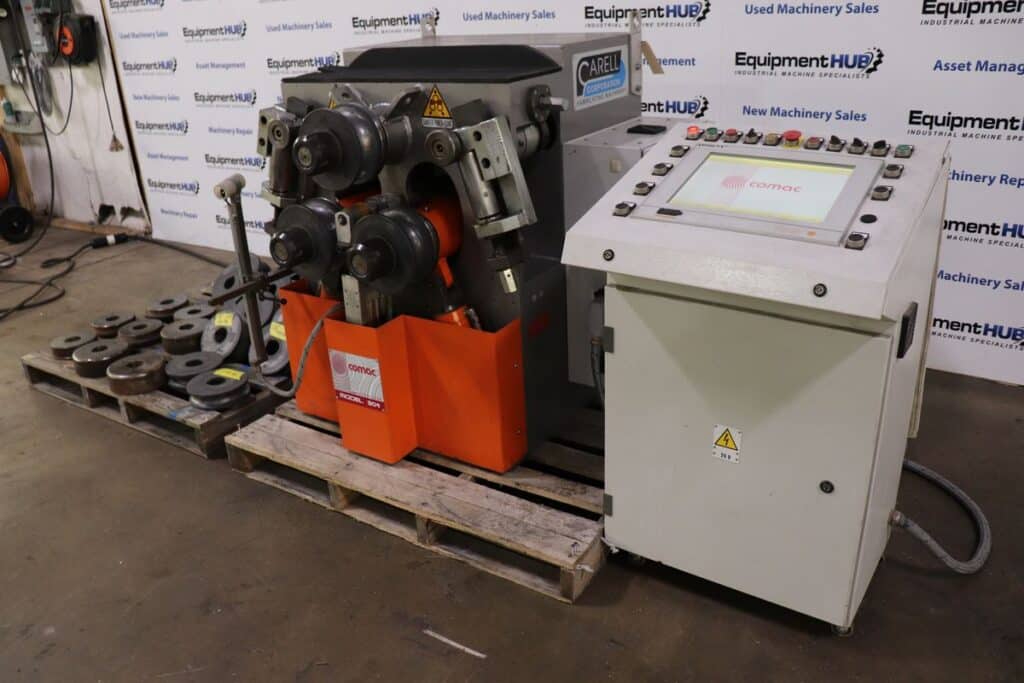

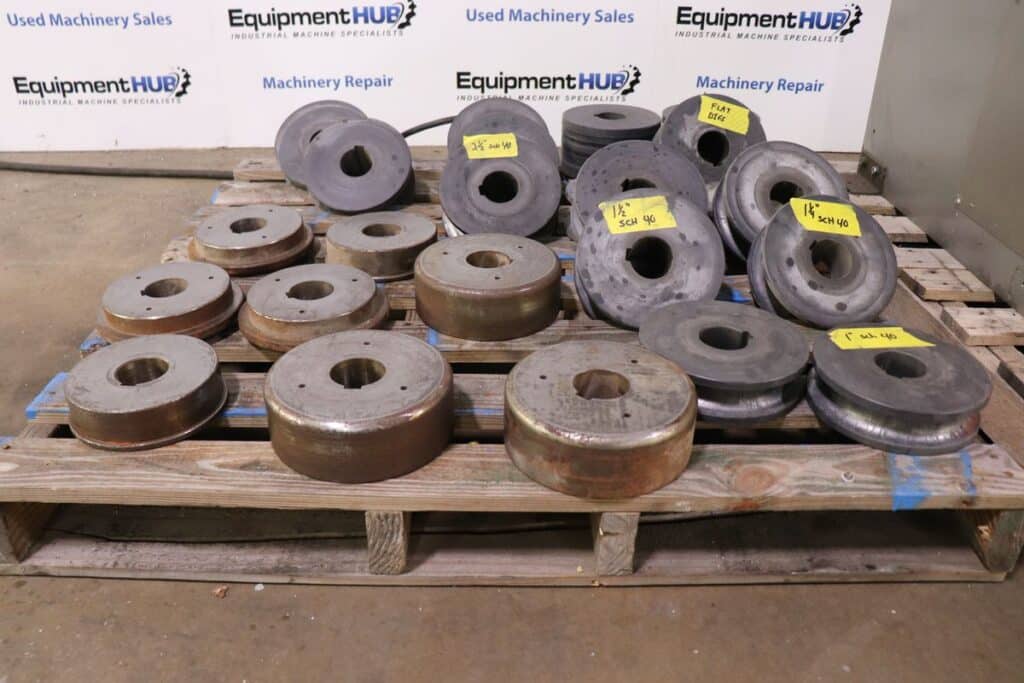

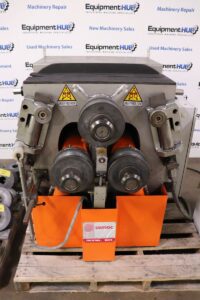

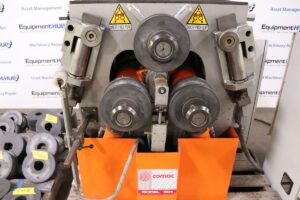

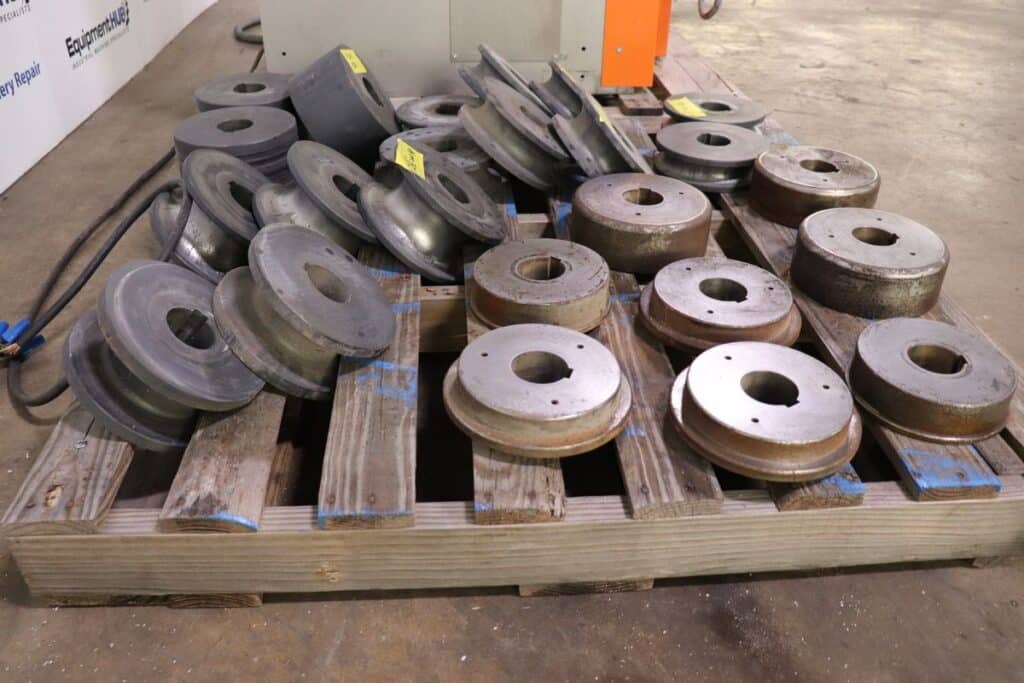

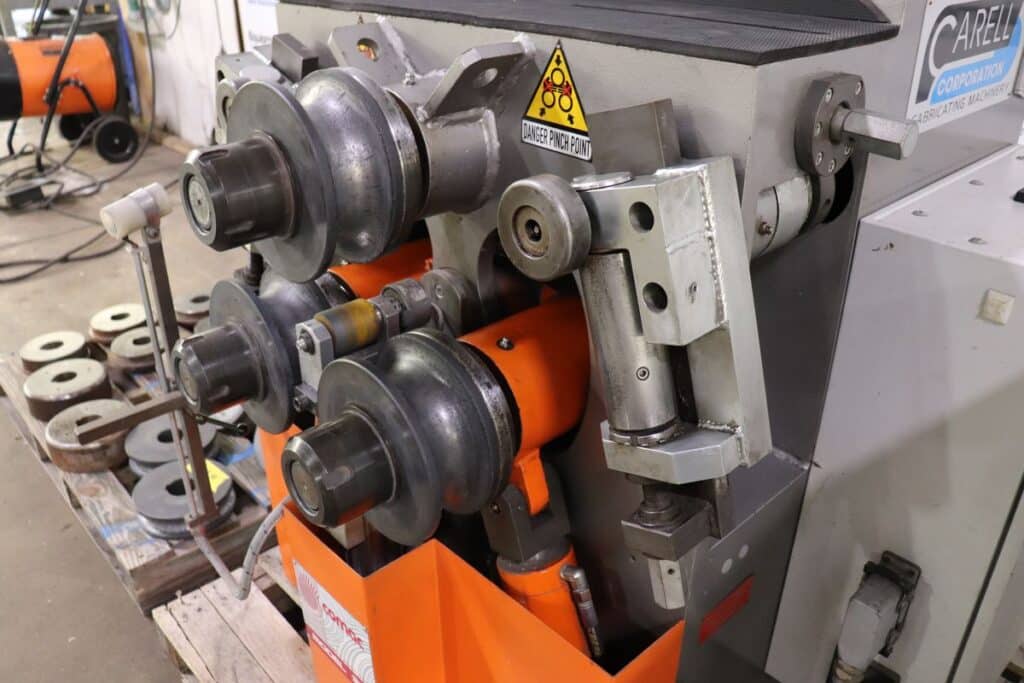

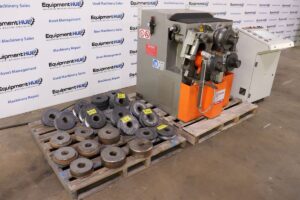

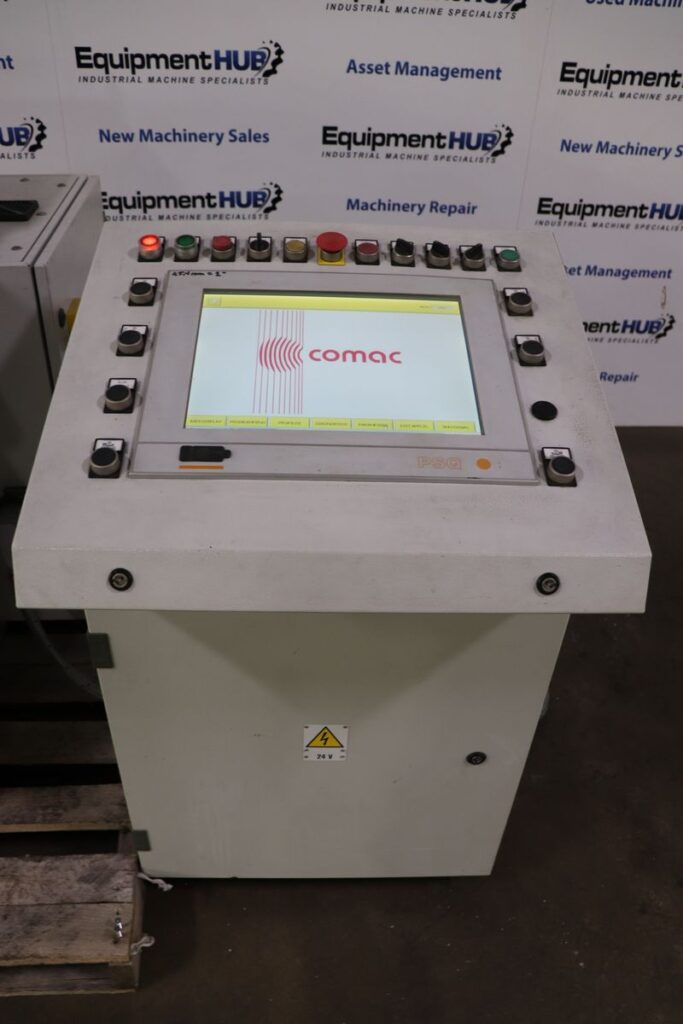

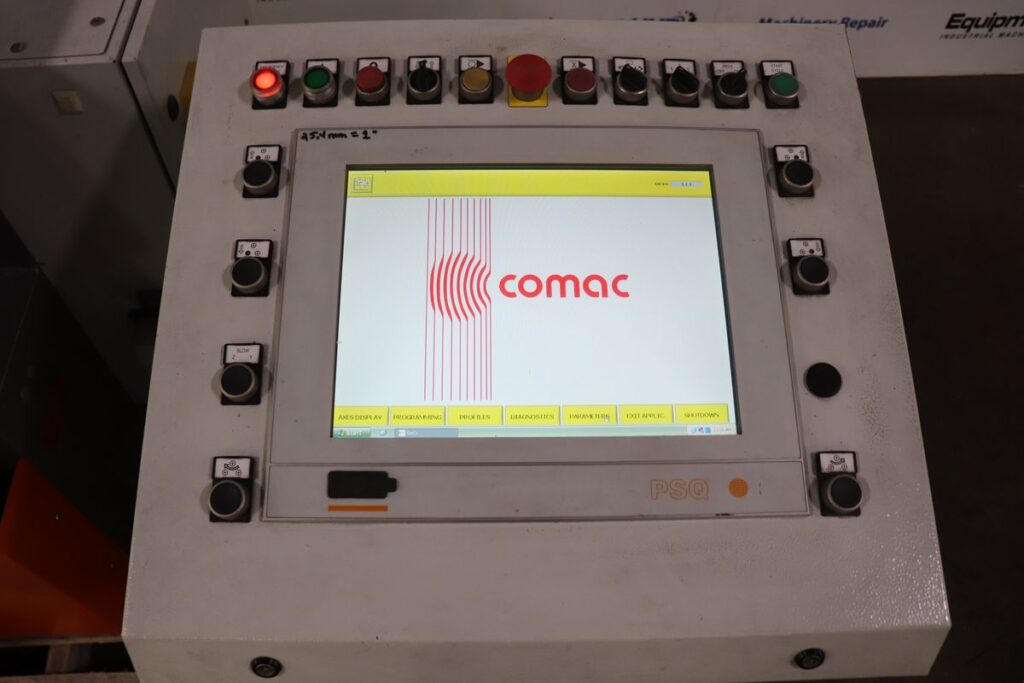

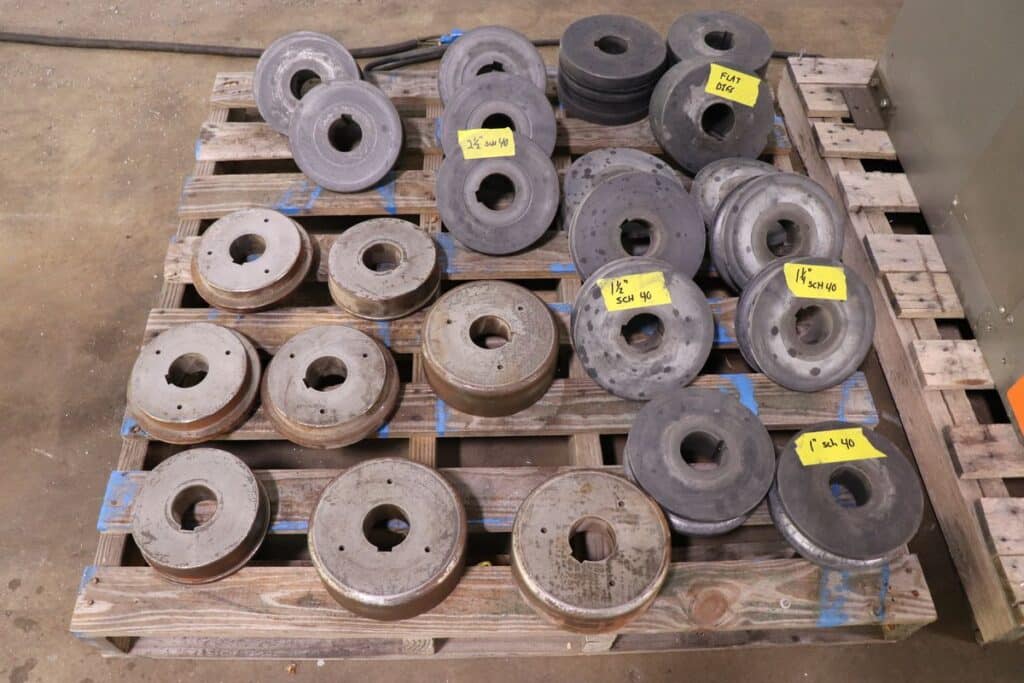

PSQ Mobile LED Control Cabinet, Three driven rolls for optimal traction, Dual pre-bending (double-pinch design), 3D lateral guide rolls for distortion control, Operates horizontally or vertically Programmable CNC CN31V control for automated sequences and repeatability, Pallet of assorted dies on pallet
