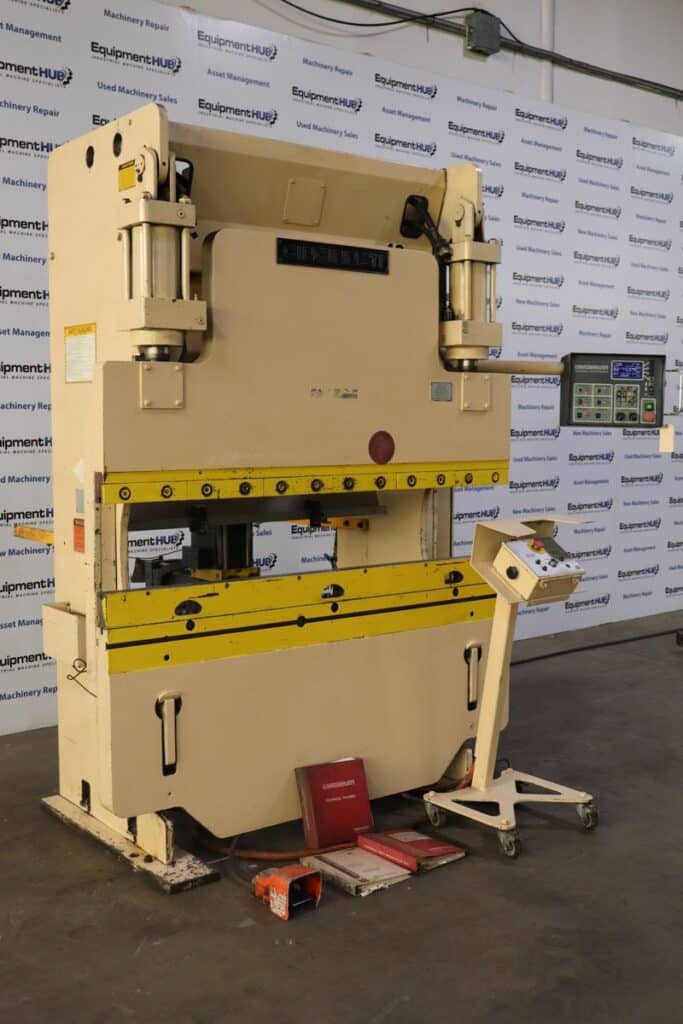

Cincinnati 60 CBII X 4 FT 60 Ton x 6′ Hydraulic Press Brake w/ 2-Axis CNC Backgauge
Stock #: 170250012
$19,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
Product Description
General Info
- Stock #: 170250012
- Location: Stone Mountain, GA
- Brand: Cincinnati
- Model: 60 CBII X 4 FT
- Serial #: 52018
- Approx. Shipping Weight: 9000 Lbs.
- Approx. Shipping Dimensions: 8′ L x 6′ W x 9′ H
Specifications
- Tonnage: 60 Tons
- Total Overall Bed Length: 6′
- Distance Between Housings: 4’6″
- Open Height (Bed to Ram): 17″
- Closed Height (Bed to Ram): 9″
- Stroke Length: 8″
- Throat Clearance from Die Centerline: 10″
- Lowering Speed (High Approach): 180 IPM
- Approx. Ram Speeds (Bending Speed): 10, 35, 70 IPM
- Return Speed: 195 IPM
- Motor HP: 7.5
- Electrical: 230V/3PH
Equipped With

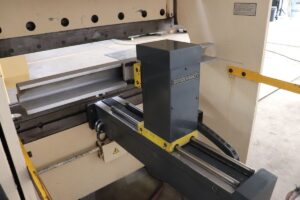

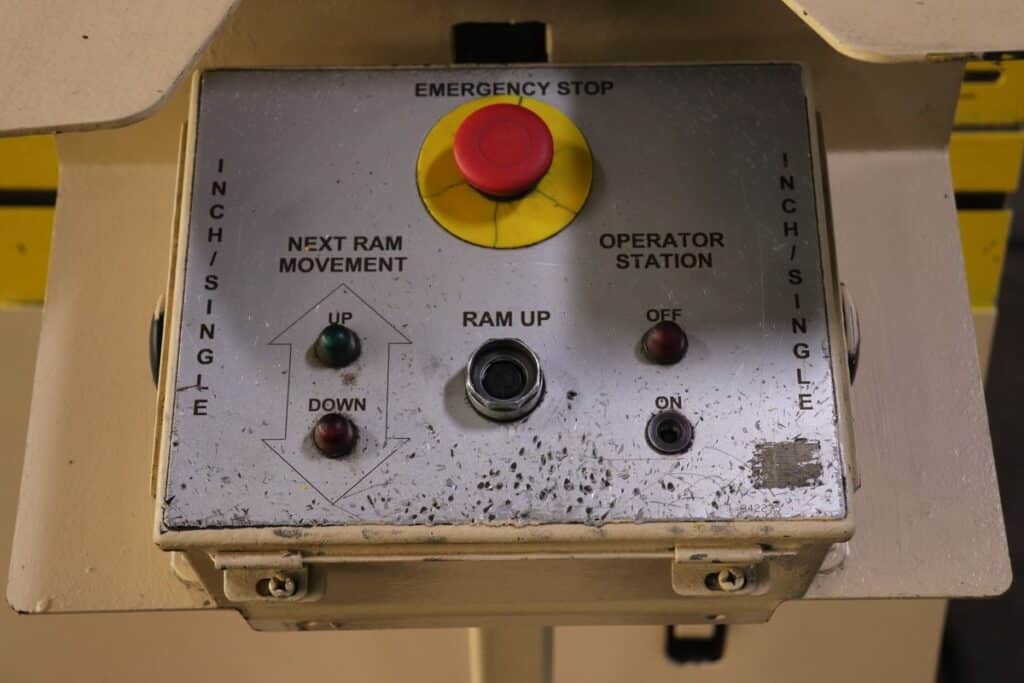

Cincinnati 2-Axis Backgauge, Electric Foot Pedal, Cincinnati Operator Station, Manuals
Additional Info
The Cincinnati CNC Press Brake can be demoed upon request, check out the video on the listing to see it in operation.
