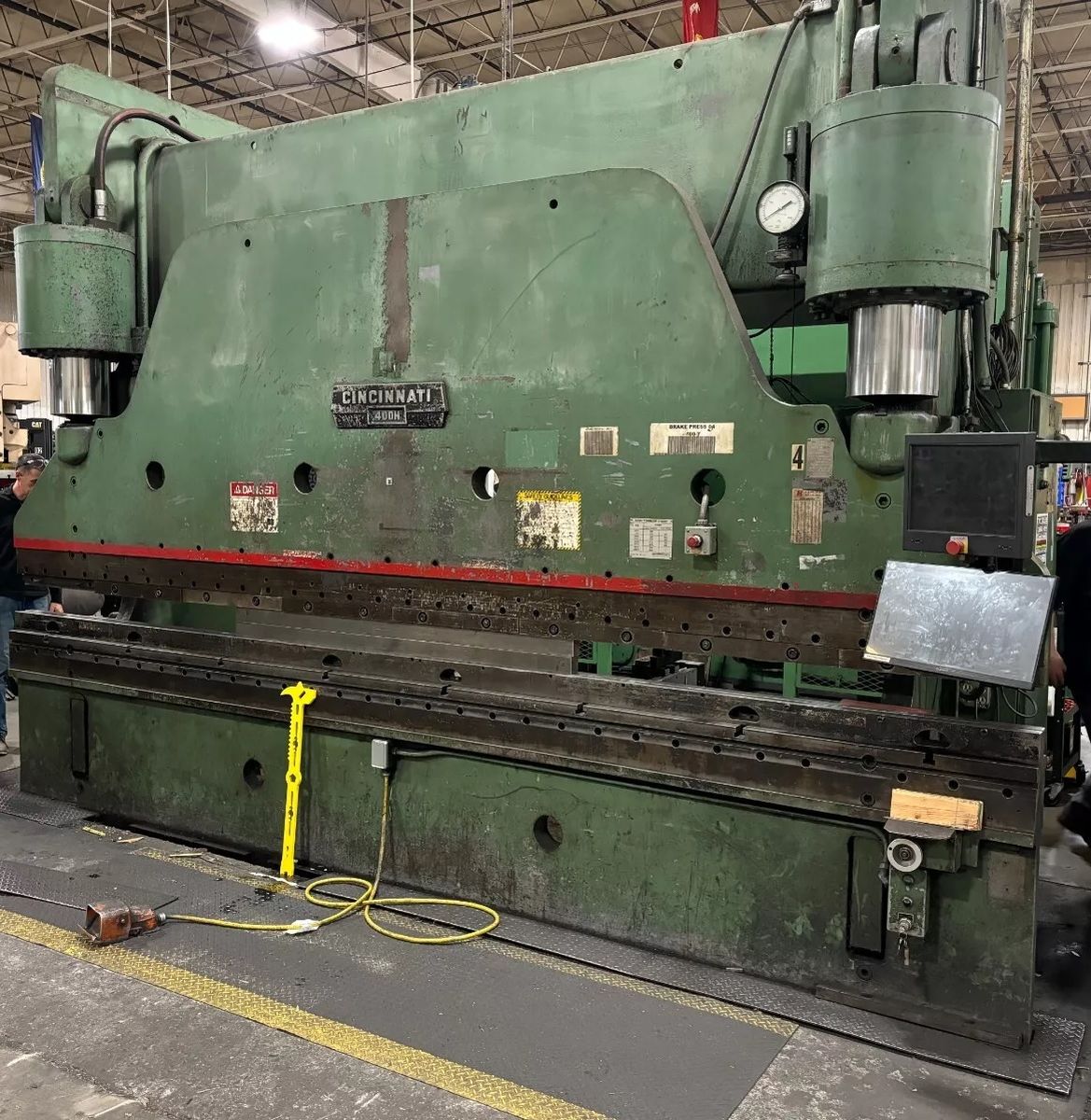

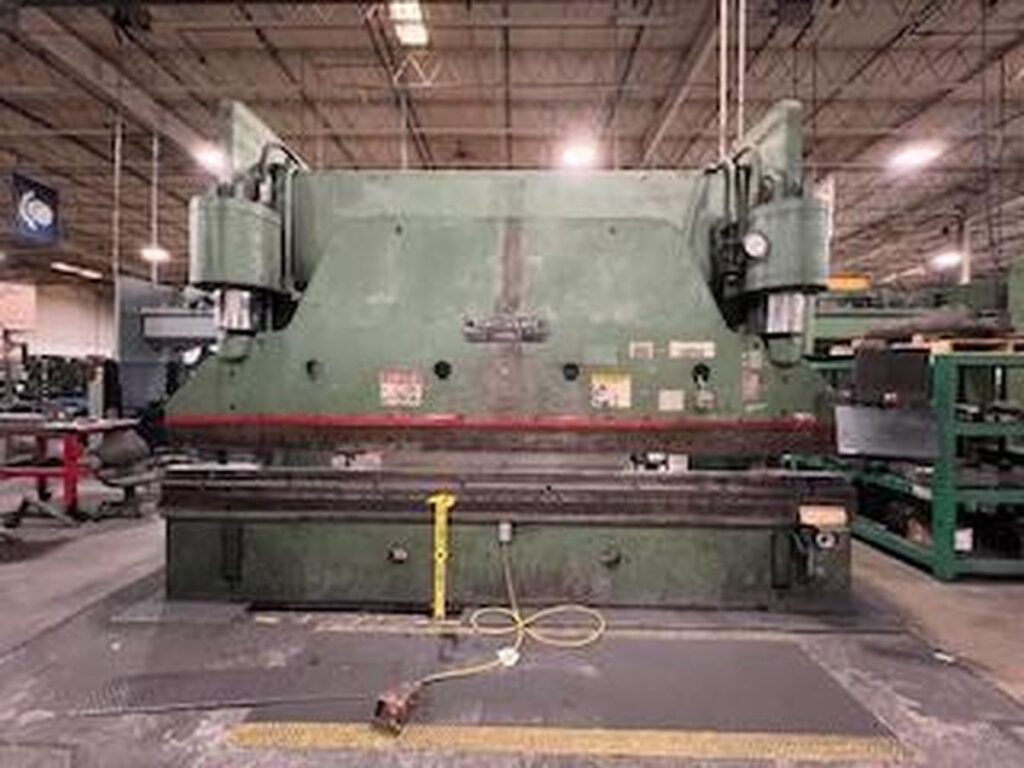

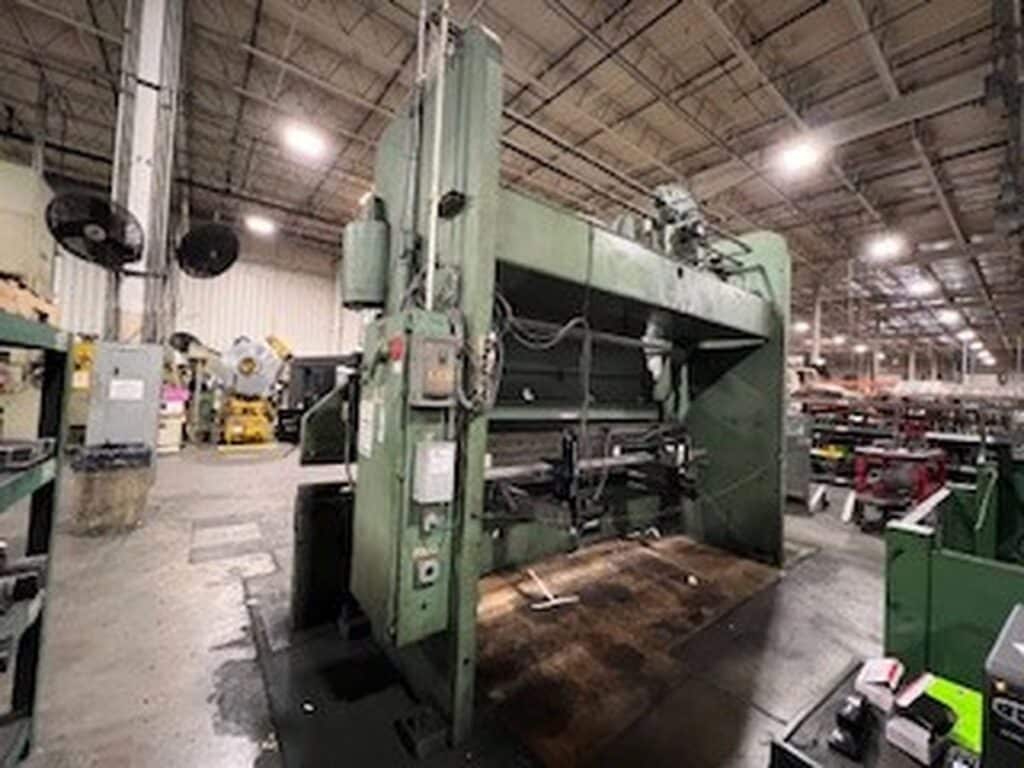

Cincinnati 400H Series 16′ x 400 Ton Hydraulic Press Brake w/ Automec CNC Backgauge

Name: Cincinnati 400H Series 16' x 400 Ton Hydraulic Press Brake w/ Automec CNC Backgauge
SKU: 133582
Price: 24500.00 USD
Availability: OutOfStock

Stock #: 180240048

$24,500.00

See Product Details

Out of stock

Stock #: 180240048
Brand:

Not What You're Looking For?

Have Surplus Machinery to Sell?

Out of stock

Stock #: 180240048
Brand:

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: 180240048
Location: Stone Mountain, GA
Brand: Cincinnati
Model: 400H Series
Serial #: 38458
Approx. Shipping Weight: 58,000 Lbs.
Approx. Shipping Dimensions: 17′ L x 8′ W x 12′ H

Specifications

Max Tonnage Capacity: 400 Ton
Overall Bed & Ram Length: 16′
Distance Between Housings: 12’5-3/4″
Stroke: 12″
Open Height: 20″
Closed Height: 8″
Ram Speed, Fast Press: 64 IPM
Ram Speed, Full Tonnage Press: 27 IPM
Ram Speed, Return Speed: 51 IPM
Main Motor HP: 40

Equipped With

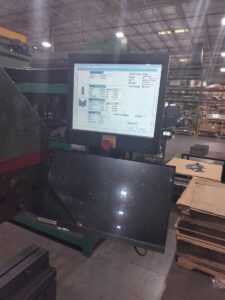

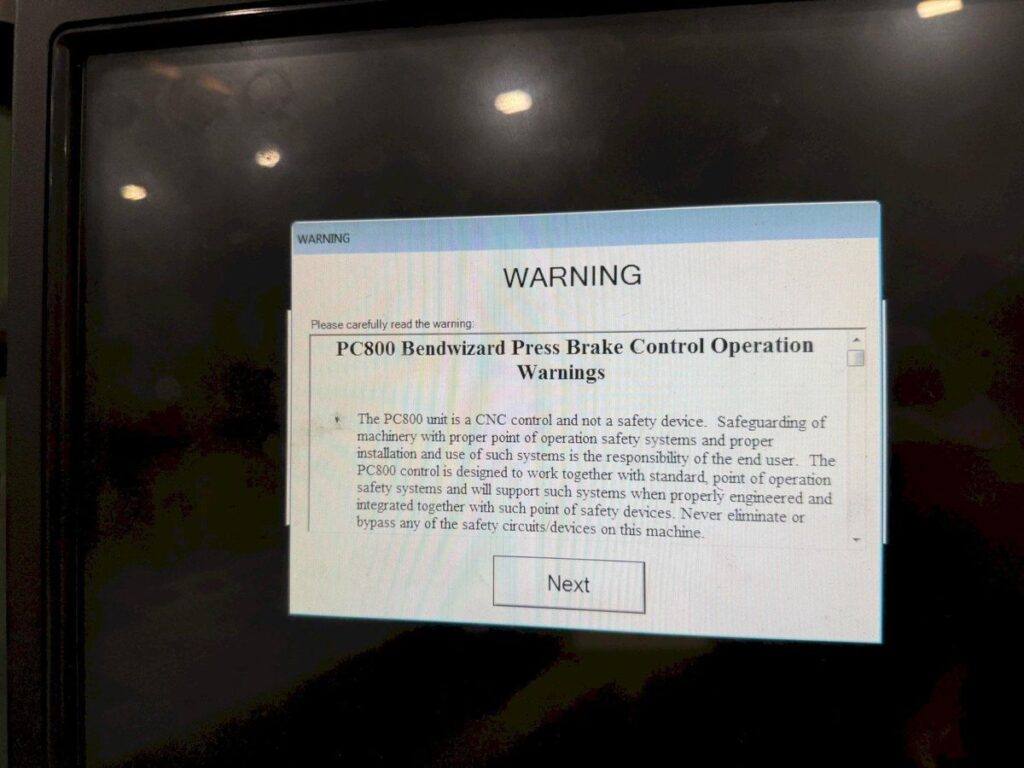

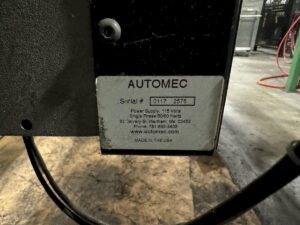

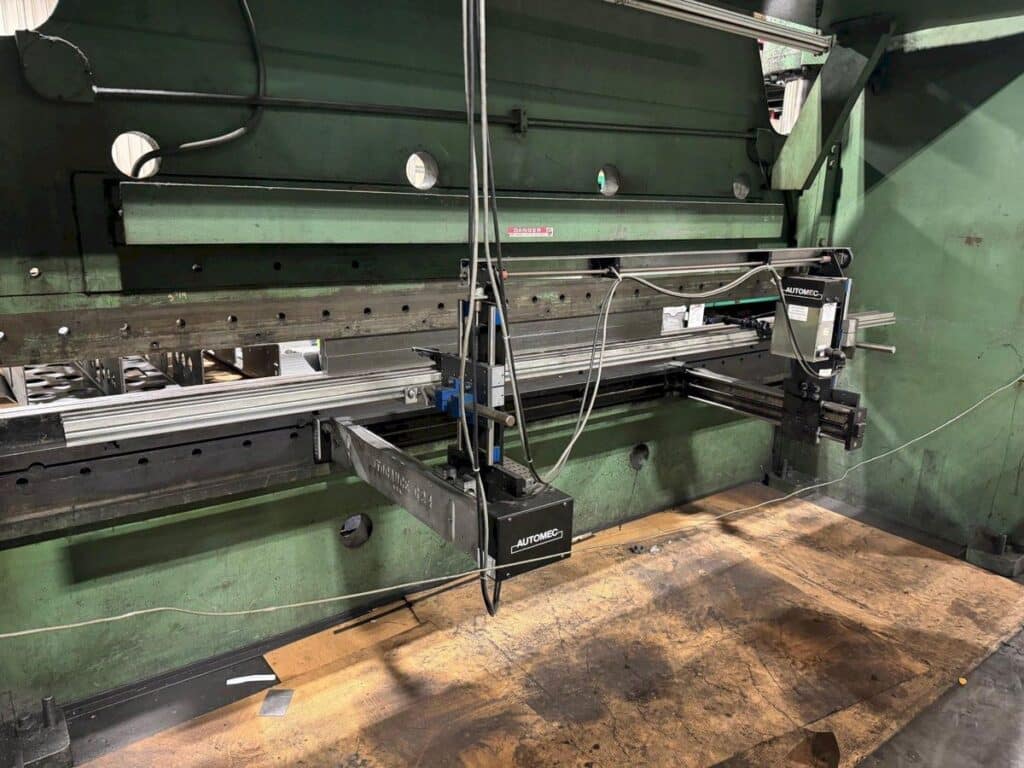

Automec Autogauge CNC Back Gauge, Electric Foot Pedal Operation, 3-1/2″ Die Filler Block

Additional Info

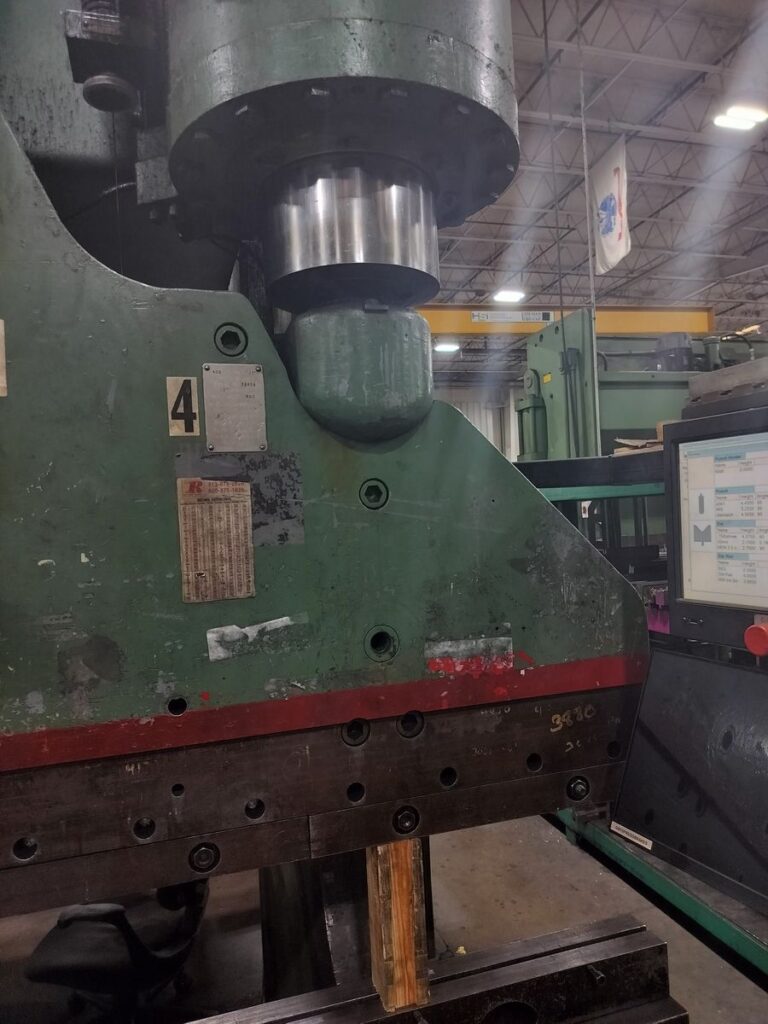

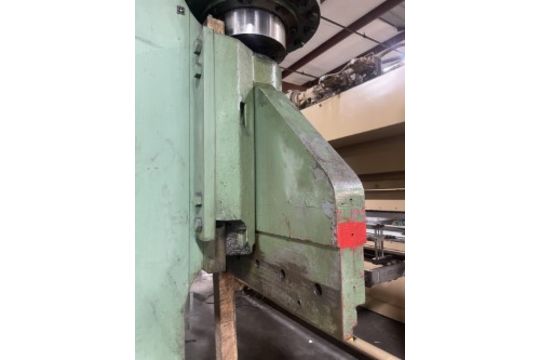

Both ram guide way clamp castings are cracked. Please see the last two photos for reference. Both cylinders leak hydraulic oil from around the wiper seals. Lower die and upper punch pictured are not included.
