Product Description

General Info

  • Stock #: 153260039
  • Brand: Cincinnati Inc
  • Model: 230AFX10FT

Specifications

  • Tonnage: 230 T
  • Type: Hydraulic
  • Overall Length: 168"
  • Between Housings: 126"
  • Stroke: 10"
  • # Axis: 6

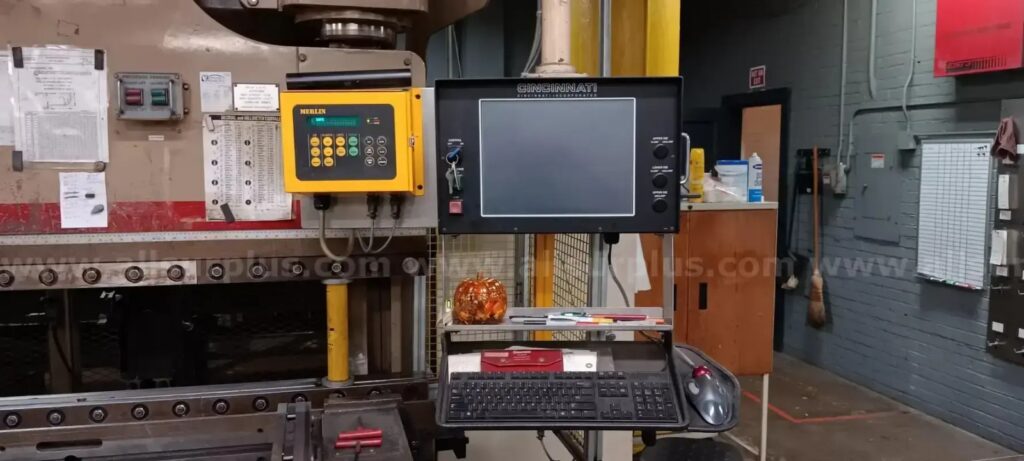

  • Control: CNC (Cincinnati Gen 4 Autoform CNC Control)
  • Weight: 39000 LBS
  • Tonnage Capacity, Medium Or Low Speed: 230 TON
  • Tonnage Capacity, Full Forming Speed: 190 TON
  • Overall Length Of Bed And Ram: 14′
  • Distance Between Housings: 10’6.5"
  • Bending Capacity: 12’9" x 1/4"
  • Bending Capacity: 8’3 x 3/8"
  • Stroke Length: 10"
  • Open Height: 17"
  • Closed Height: 7"
  • Throat Depth: 8"
  • Ram Speed, High Approach: 230 IPM
  • Ram Speed, Variable Forming: 1 to 45 IPM
  • Ram Speed, Variable Return: 1 to 250 IPM
  • Hydraulic Motor, Horsepower: 25 HP
  • Weight, Approximately: 41000 LBS

Equipped With

Cincinnati Inc Gen 4 Autoform CNC Control (2012 Retrofit) W/6-Axis Cincinnati CNC Back Gauge, Front Gage, Auto Crown Automatic Crowning Attachment, Power Clamp, Hydraulic Die Holding Attachment, 2′ Horn Extension On Left Hand Side, No Pit Required
