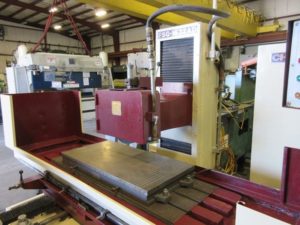

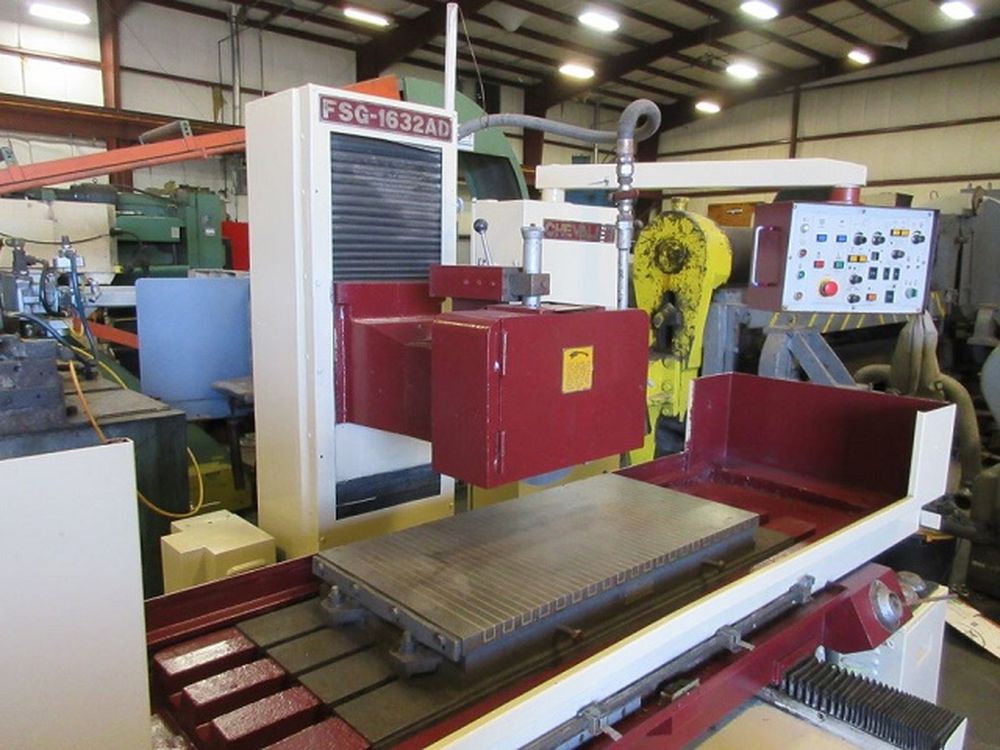

Chevalier FSG-1632AD 16″ x 32″ Automatic Surface Grinder
Stock #: CS-D-220040
$17,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: CS-D-220040
- Location: Pulaski, TN
- Brand: Chevalier
- Model: FSG-1632AD
- Serial #: G37950027
- Approx. Shipping Weight: 6,500 Lbs.
- Approx. Shipping Dimensions: 132″ x 68″ x 86″
- Crating Fee: Unavailable
- Loading Fee: Loading Available
Specifications
- Grinding Capacity: 16″ X 32″
- Max Spindle Height From Table: 24″
- Longitudinal Table Travel: 35-3/8″
- Table Speed Range: 5 – 25 FPM
- Spindle Speed: 3450 RPM
- Grinding Wheel Size: 14″ X 2″ X 5″
- Mag Chuck Size: 32-3/8″ X 15-3/4″
- Increment of down feed: 0.00005″ – 0.002″
- Automatic Cross Feed: 0.005 IPR
- Power Elevation: 12 FPM
- Spindle Motor Output: 5 HP
- Hydraulic Motor Output: 2 HP
Equipped With

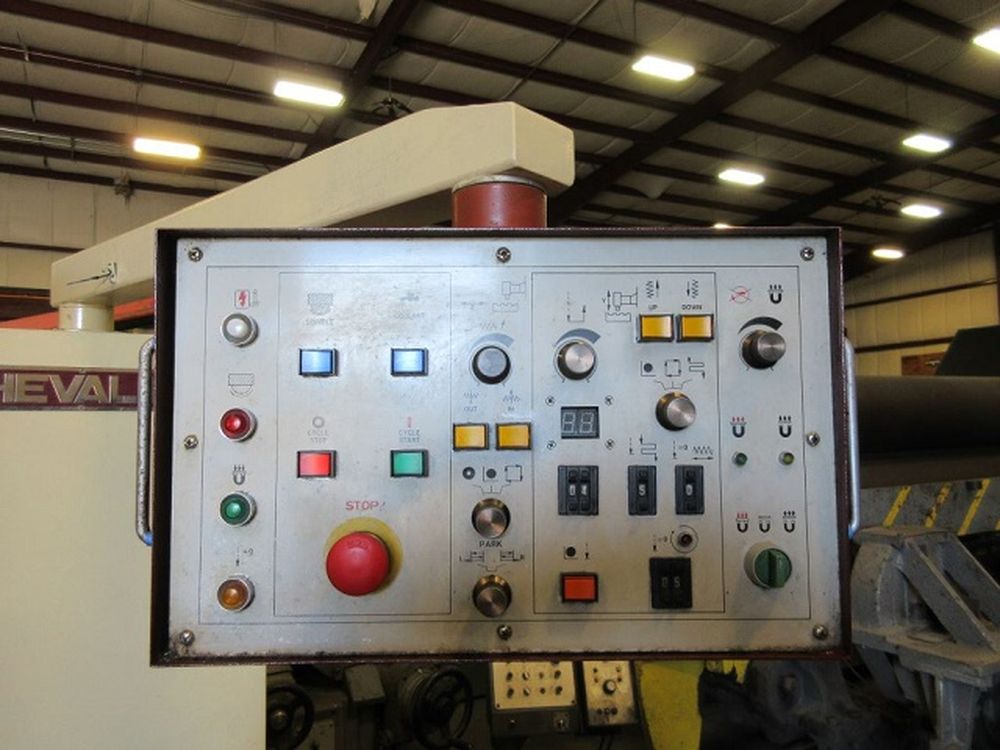

3 Axis Power Feed, Coolant W/ Paper Filter, Over the Wheel Dresser, Mag Chuck W/ Controls
Additional Info
All specifications subject to buyer verification.
This machine is being sold from our client’s facility and is sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.
