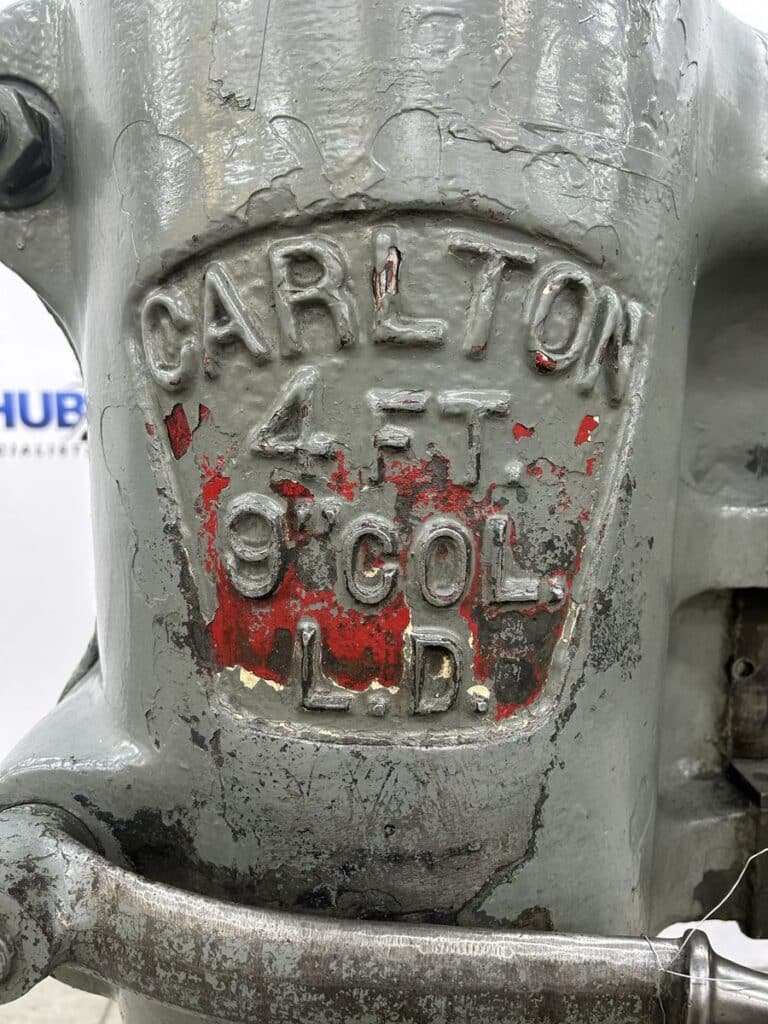

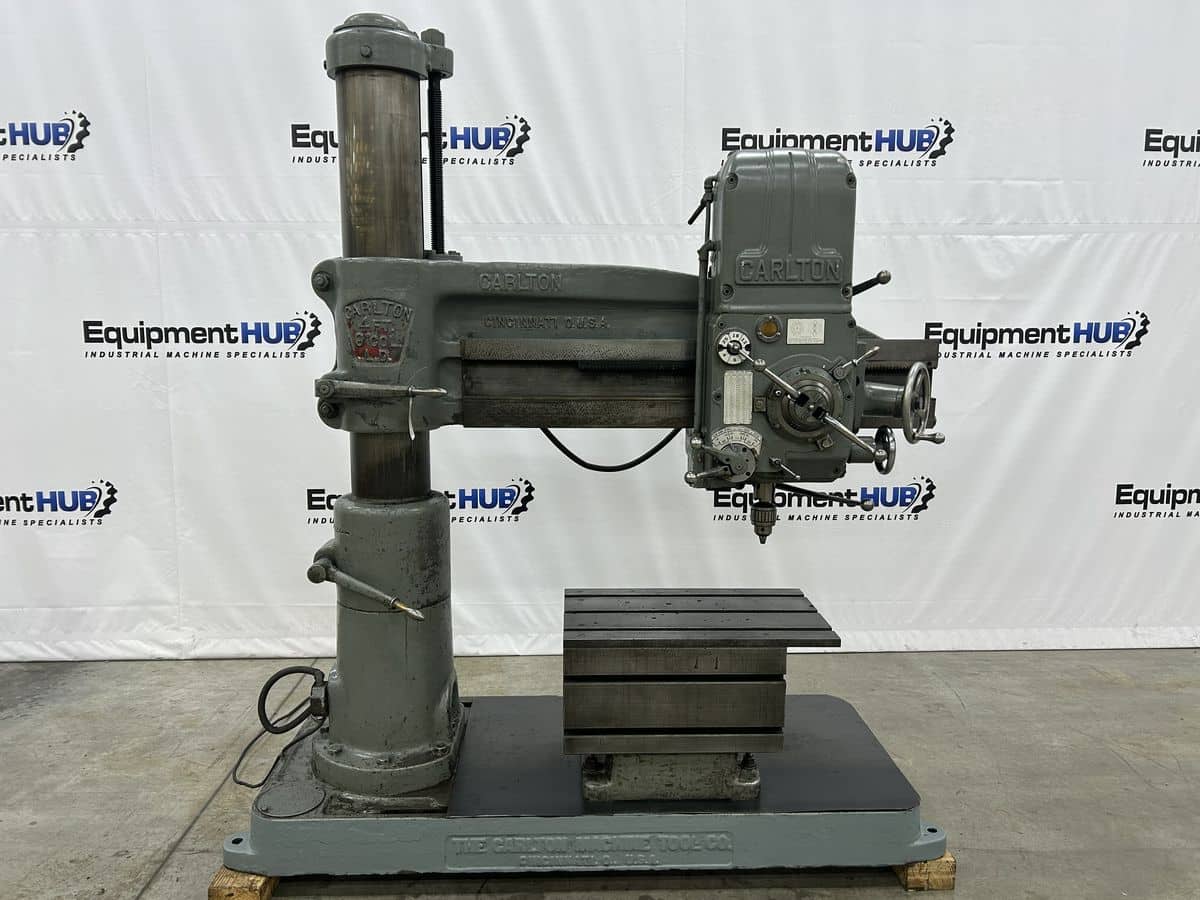

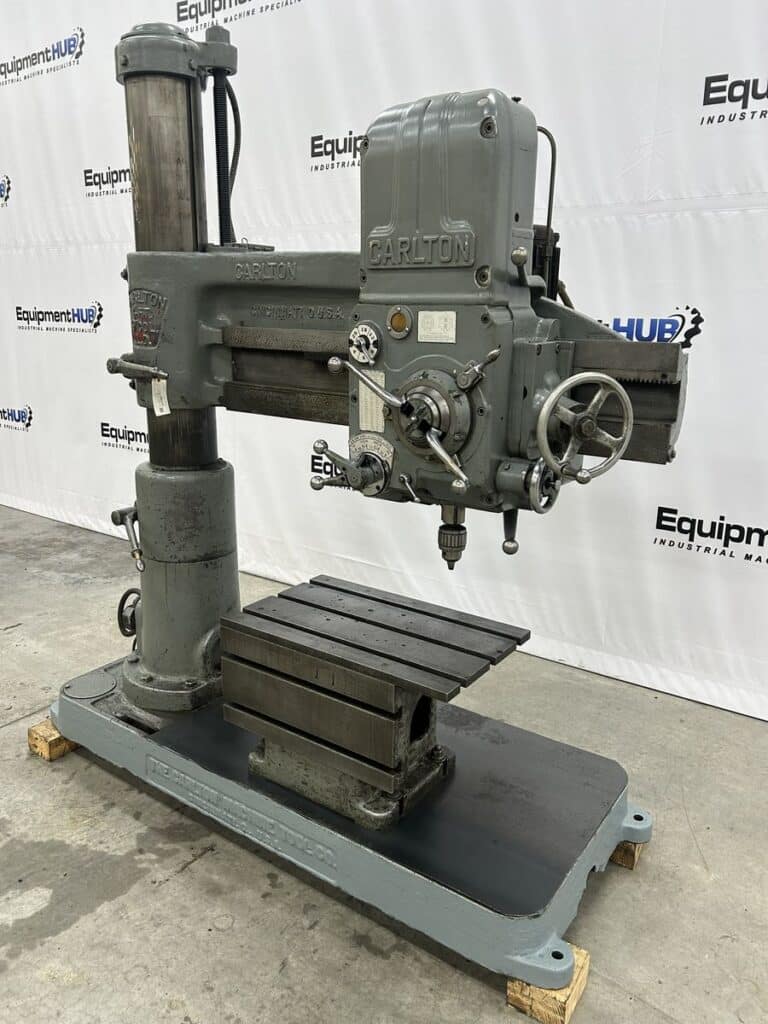

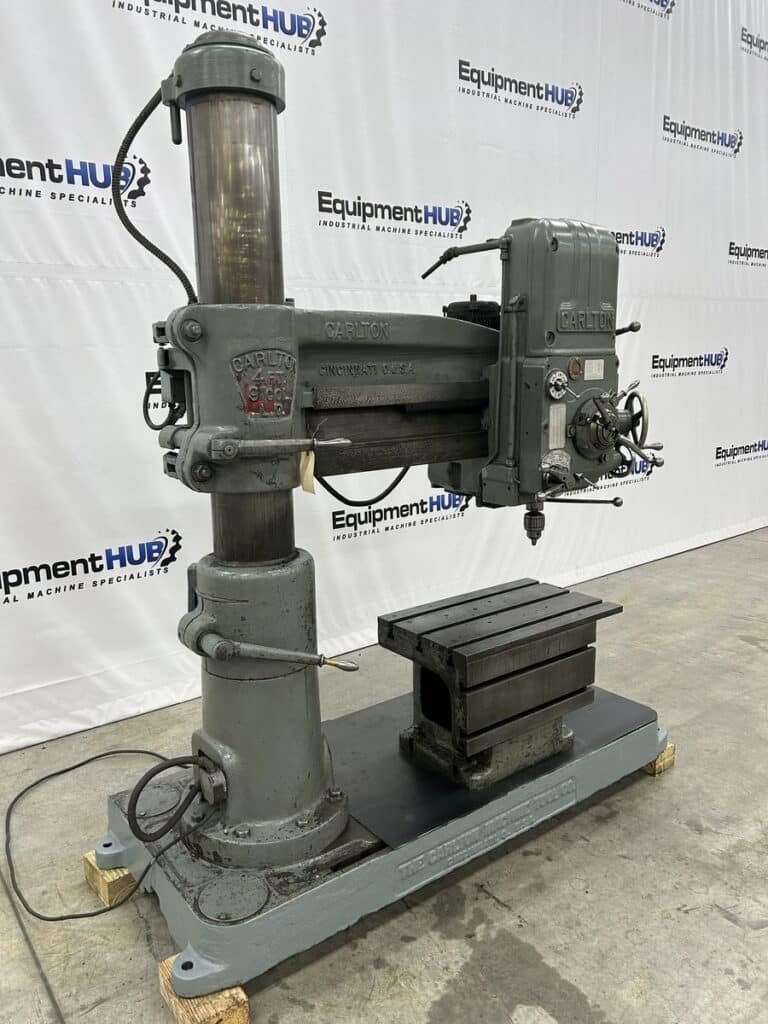

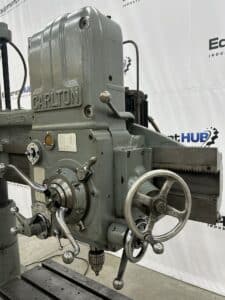

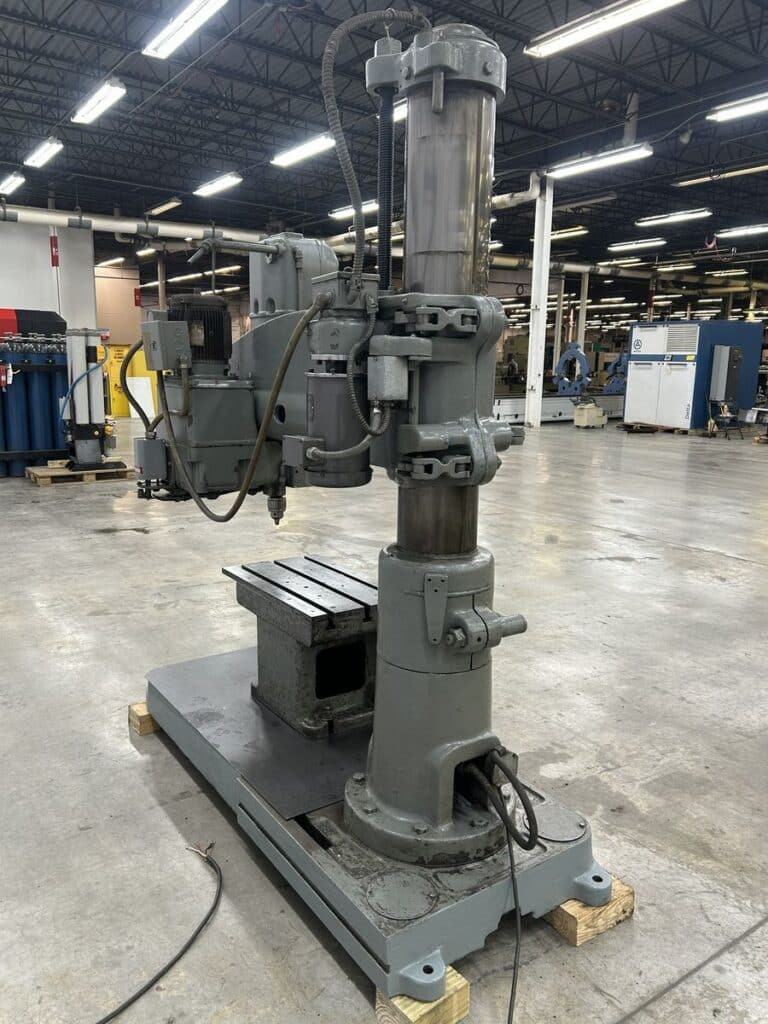

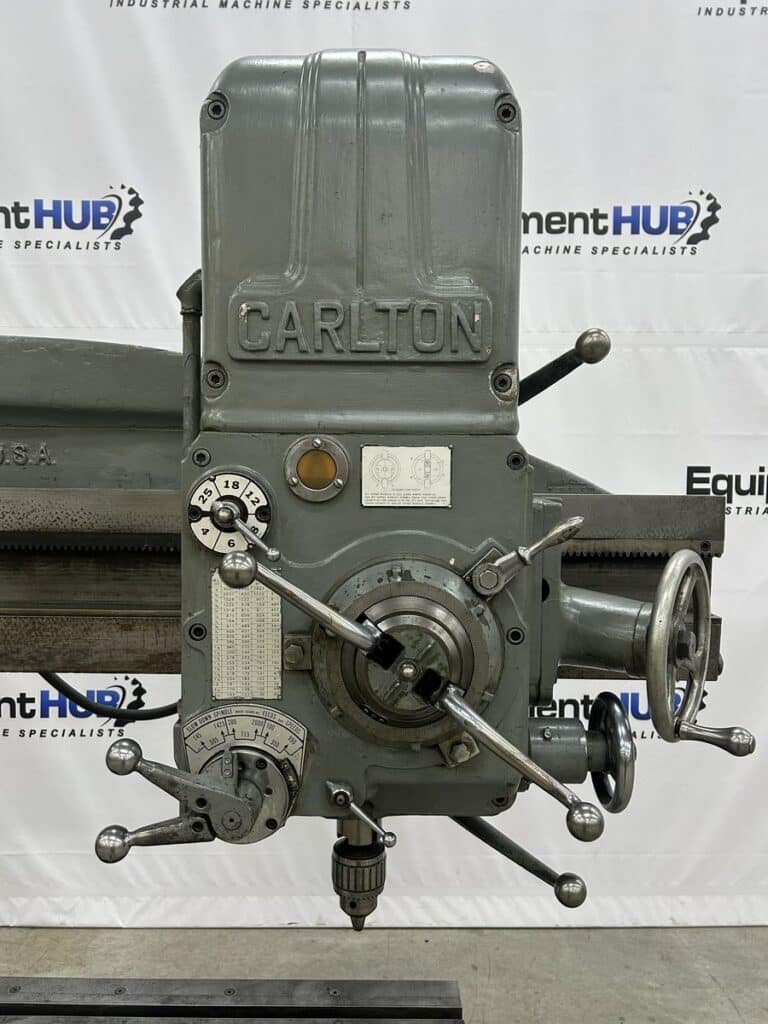

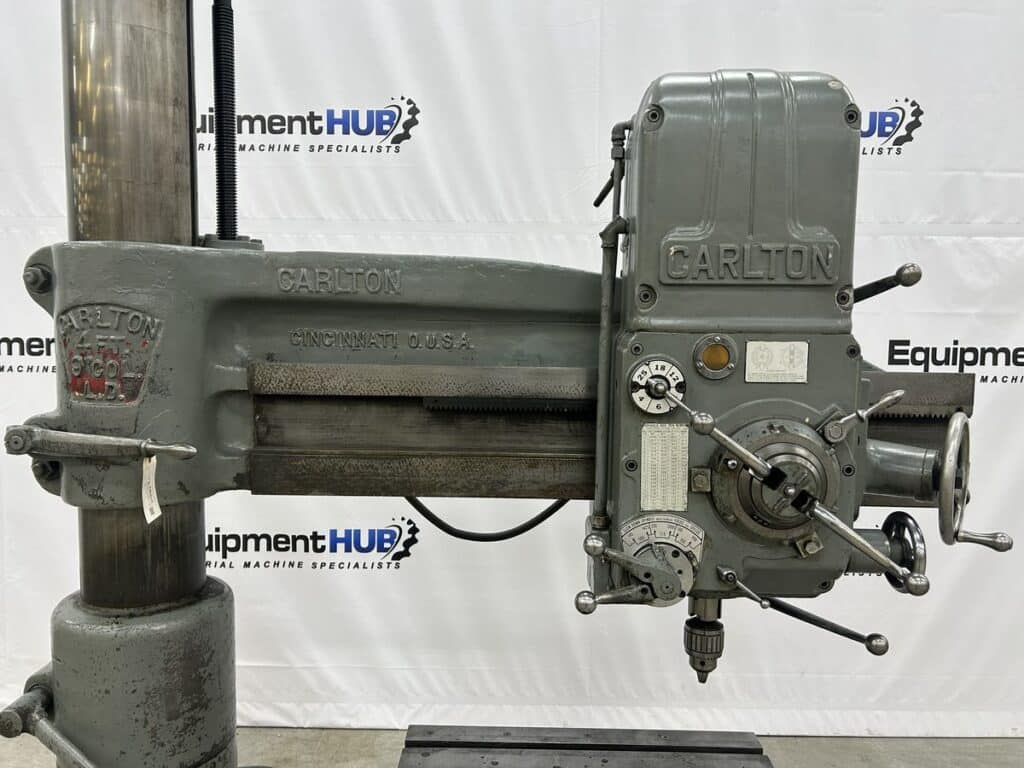

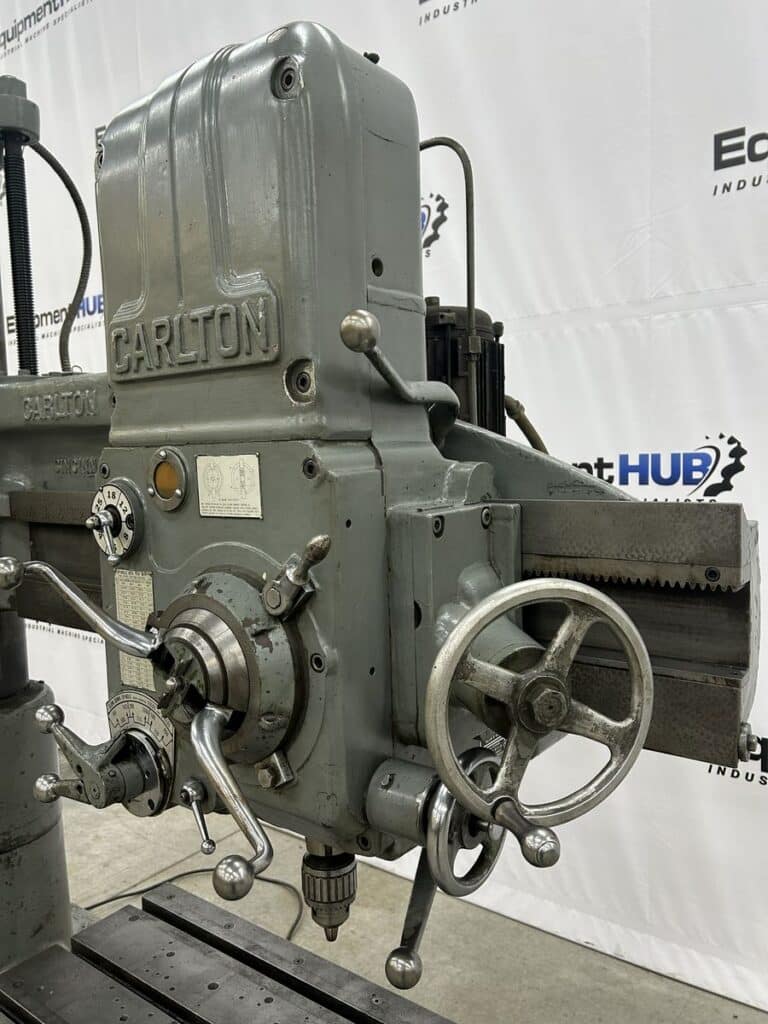

Carlton 0A 4′ x 9″ Radial Arm Drill
Stock #: 180260012
$5,950.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 180260012
- Location: Decatur, GA
- Brand: Carlton
- Model: 0A
- Serial #: 0A 231
- Approx. Shipping Weight: 6,000 Lbs.
- Approx. Shipping Dimensions: 7′ L x 4′ W x 8′ H
- Skidding Fee: Skidding Unavailable
Specifications
- Arm Length: 4′

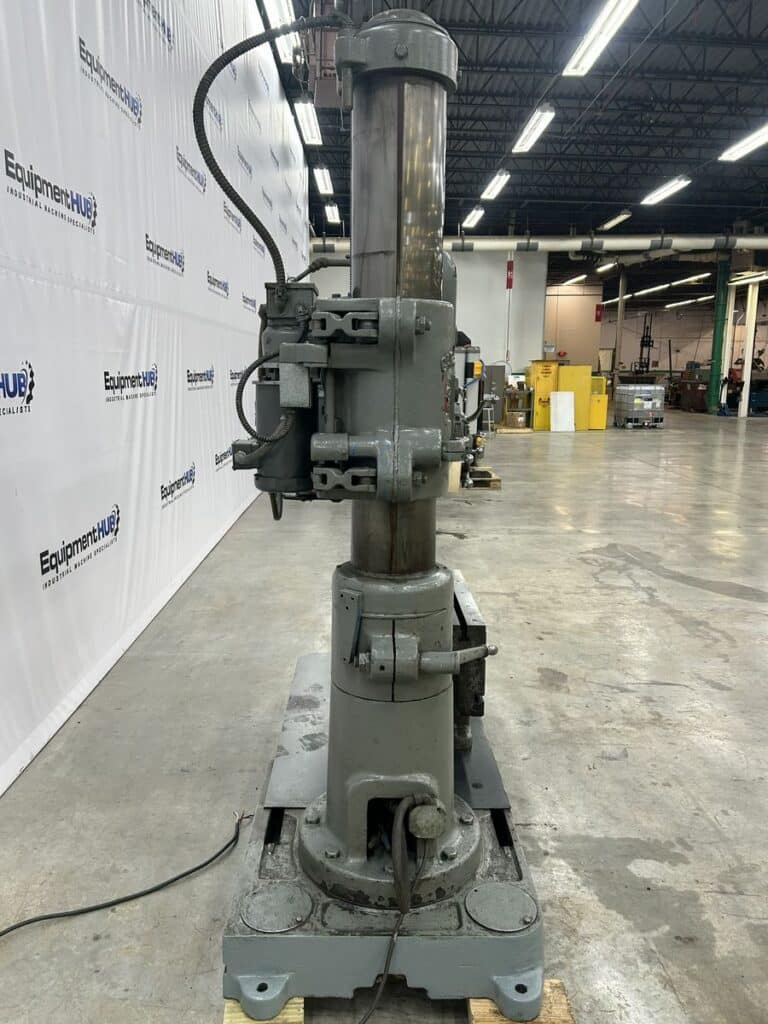

- Column Diameter: 9″

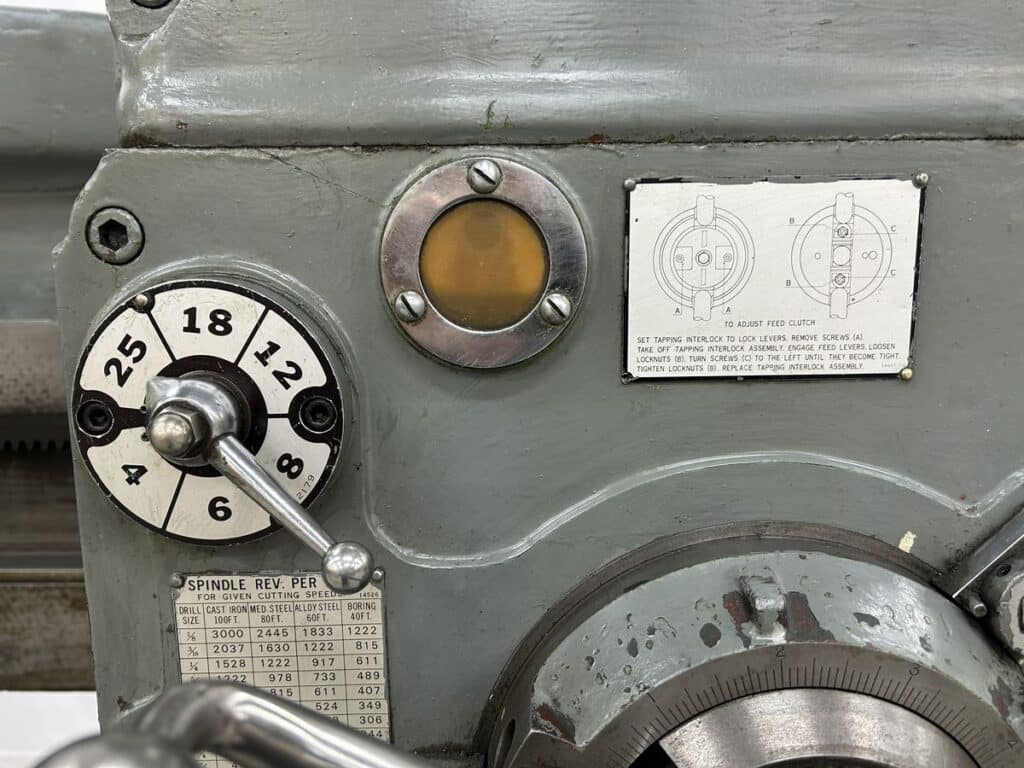

- Spindle Speeds (12): 145 to 2000 RPM
- Feeds (6): .004 to .025 IPR
- Spindle Quill Travel: 12″
- Travel of Head on Arm: 39″
- Travel of Arm on Column: 28-1/2″

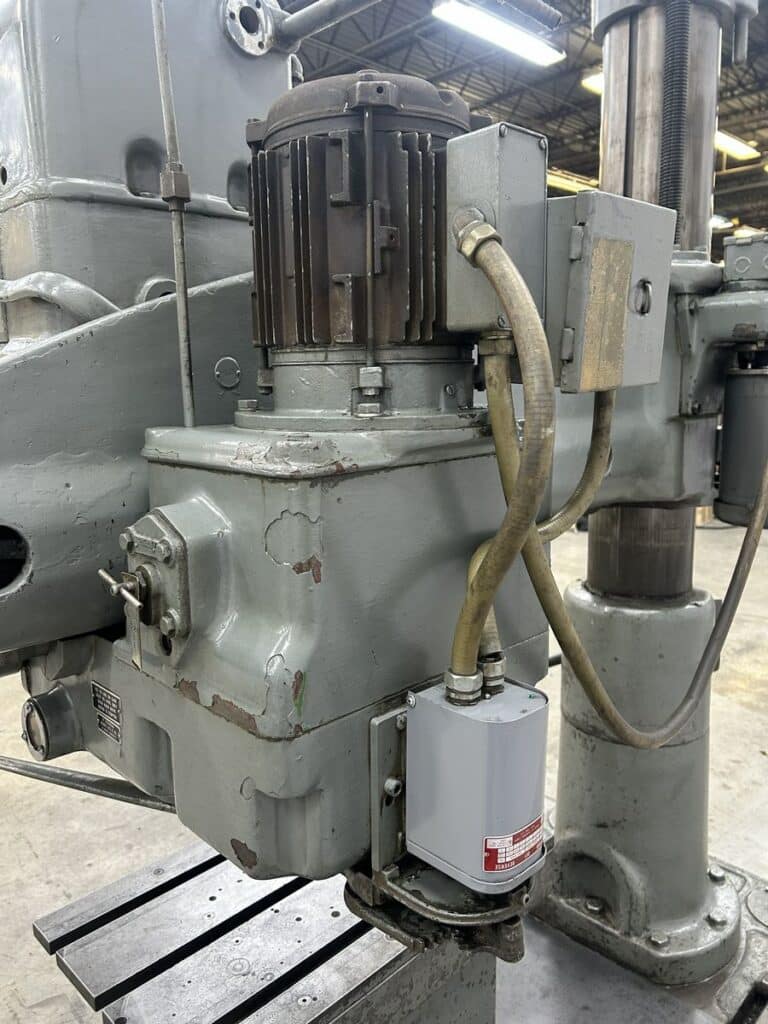

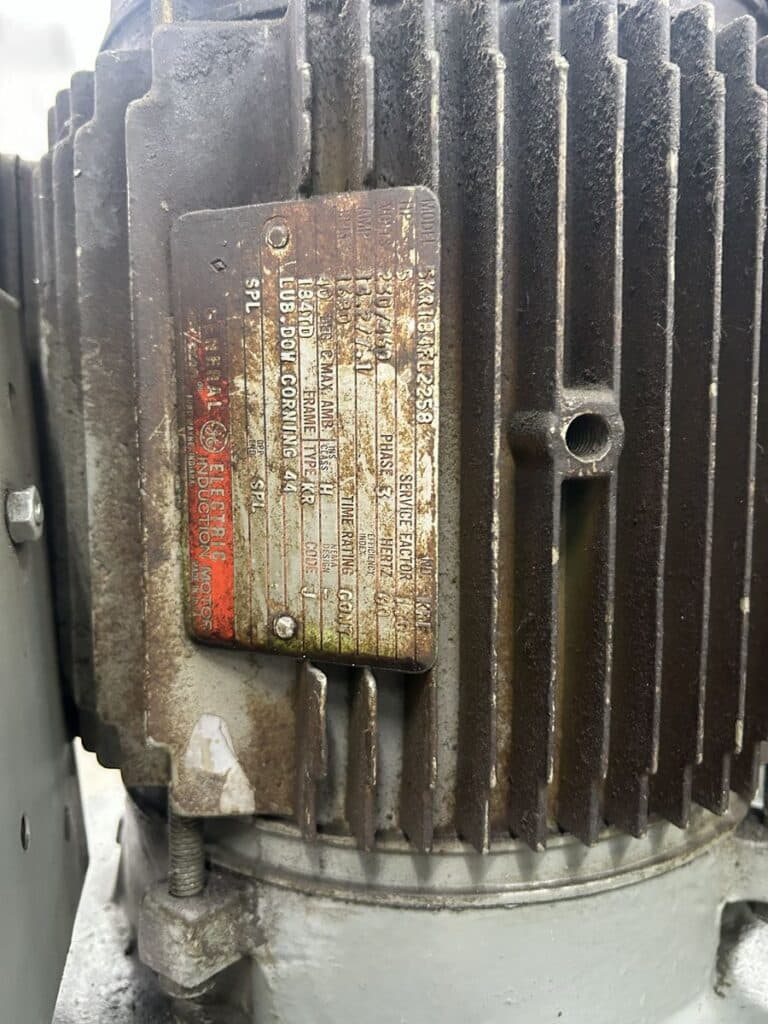

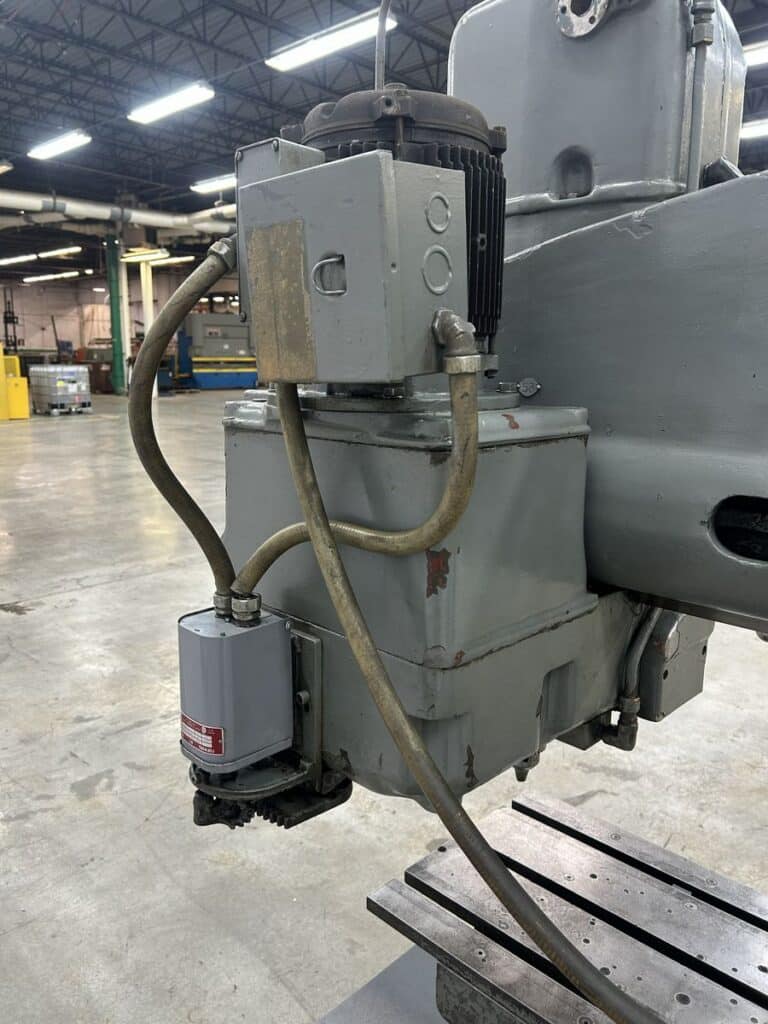

- Spindle Motor HP: 5
- Electrical: 230V/3PH
Equipped With

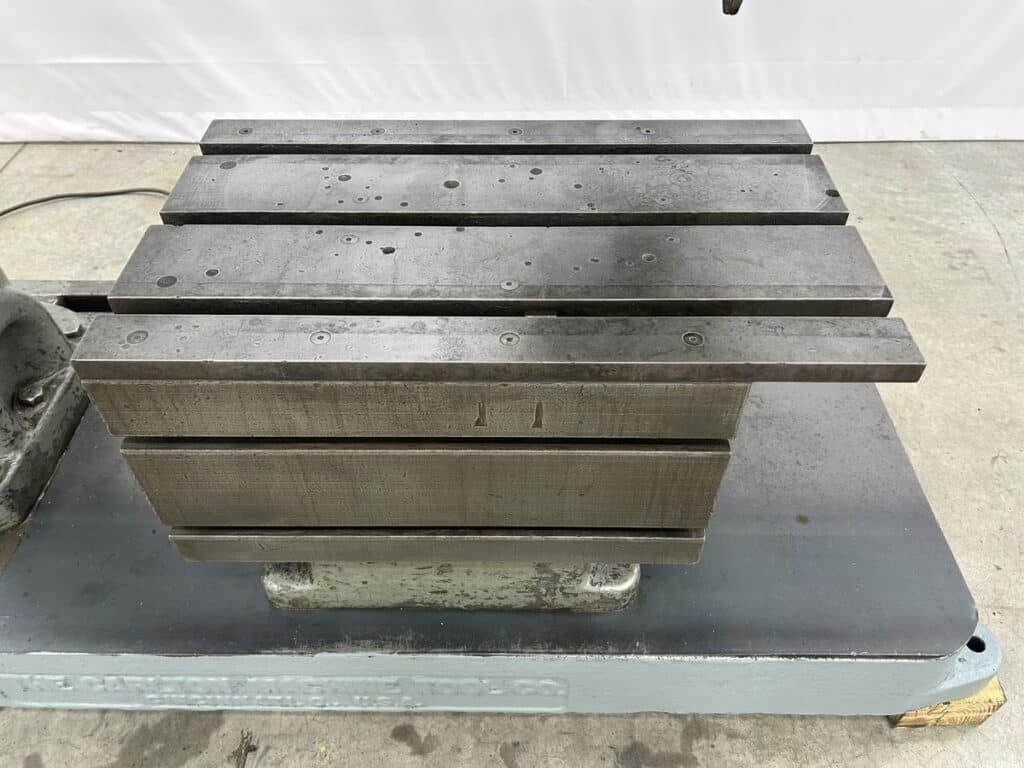

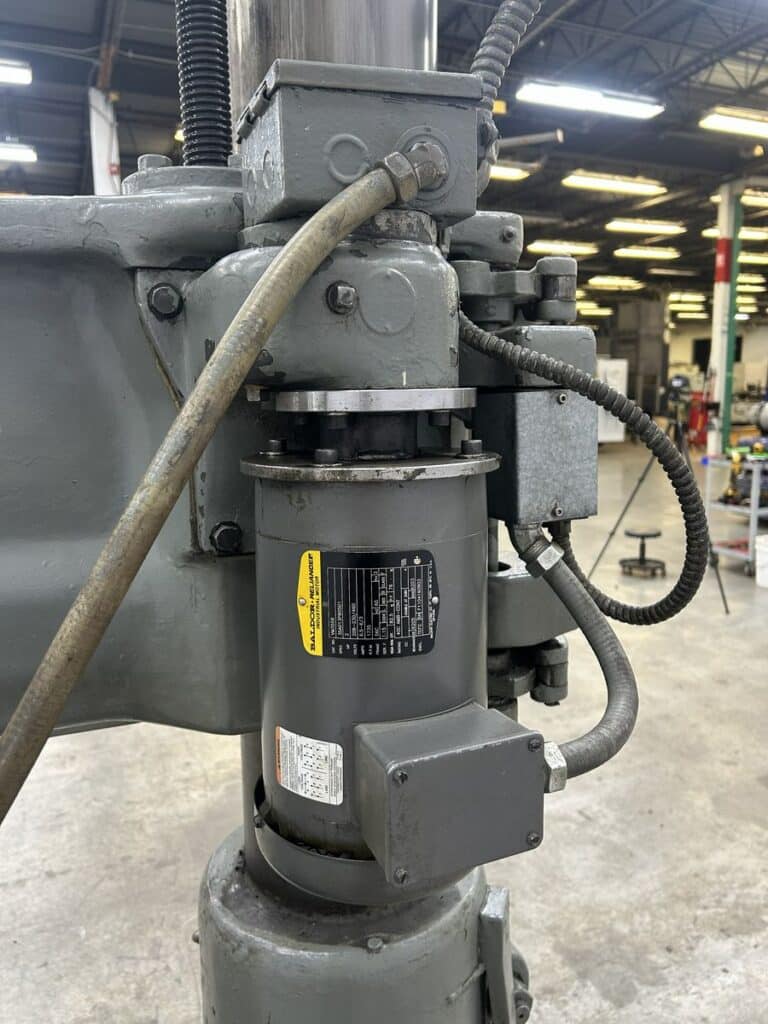

Power Elevation, Manual Head Clamp Lock/Release Lever, Manual Column Lock/Release Lever, Box Table
Additional Info

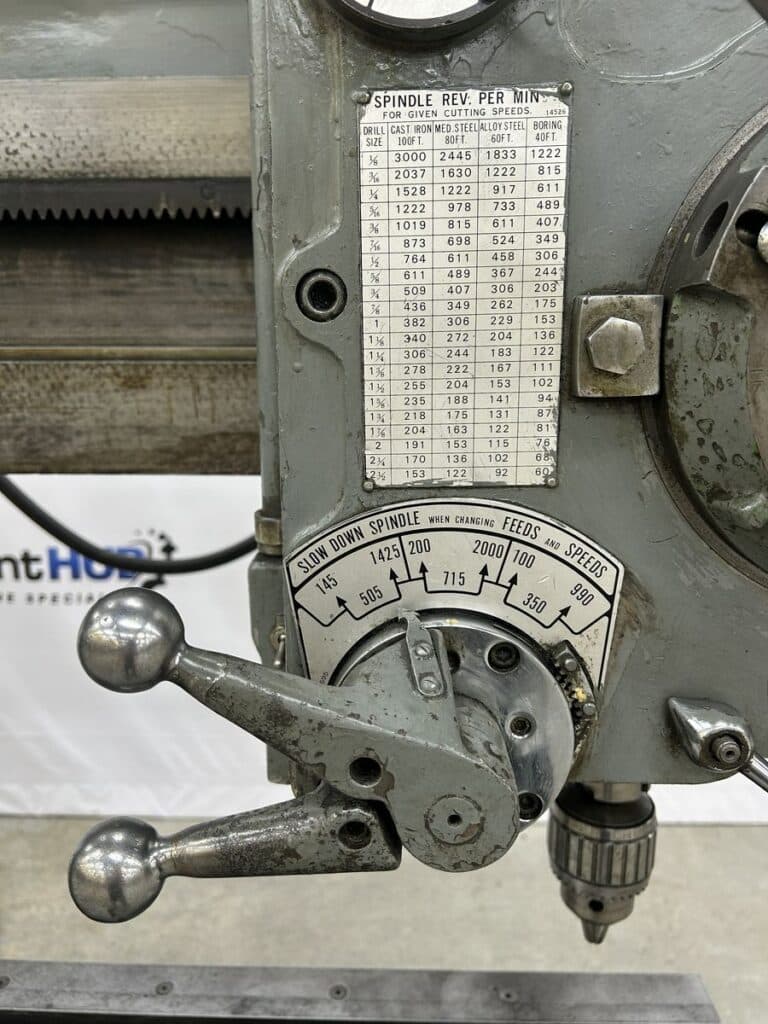

The Carlton Radial Arm Drill can be demoed upon request. Check out the video on the listing to see it in operation. ***Spindle speeds 100/350/990 don’t work***
