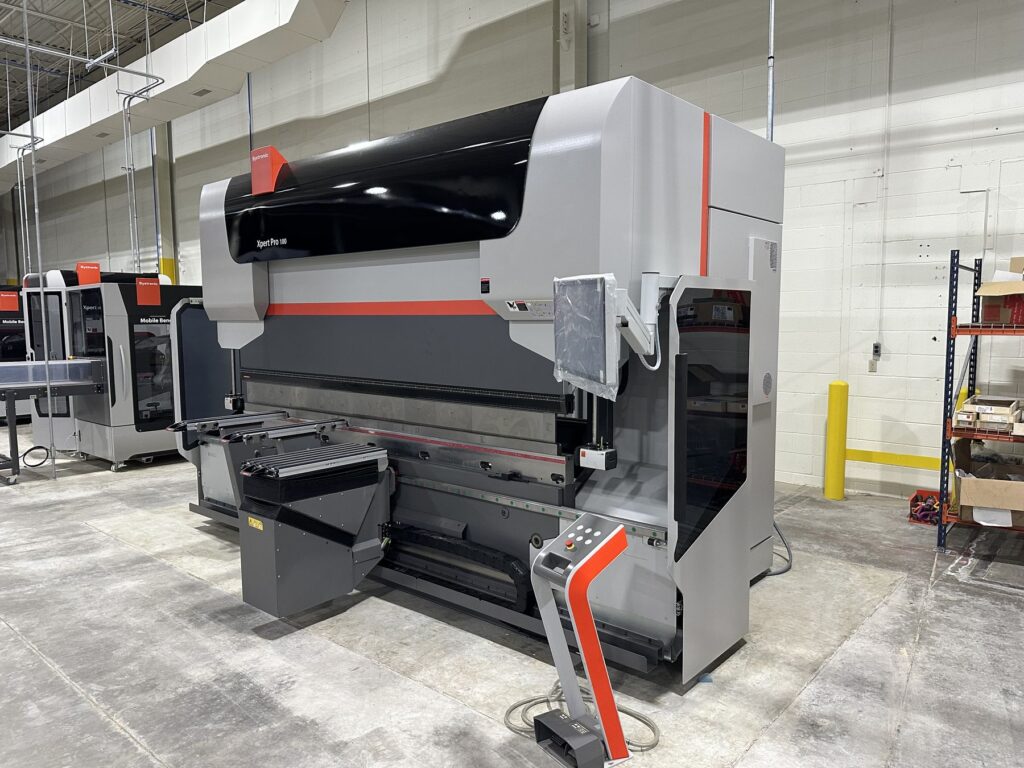

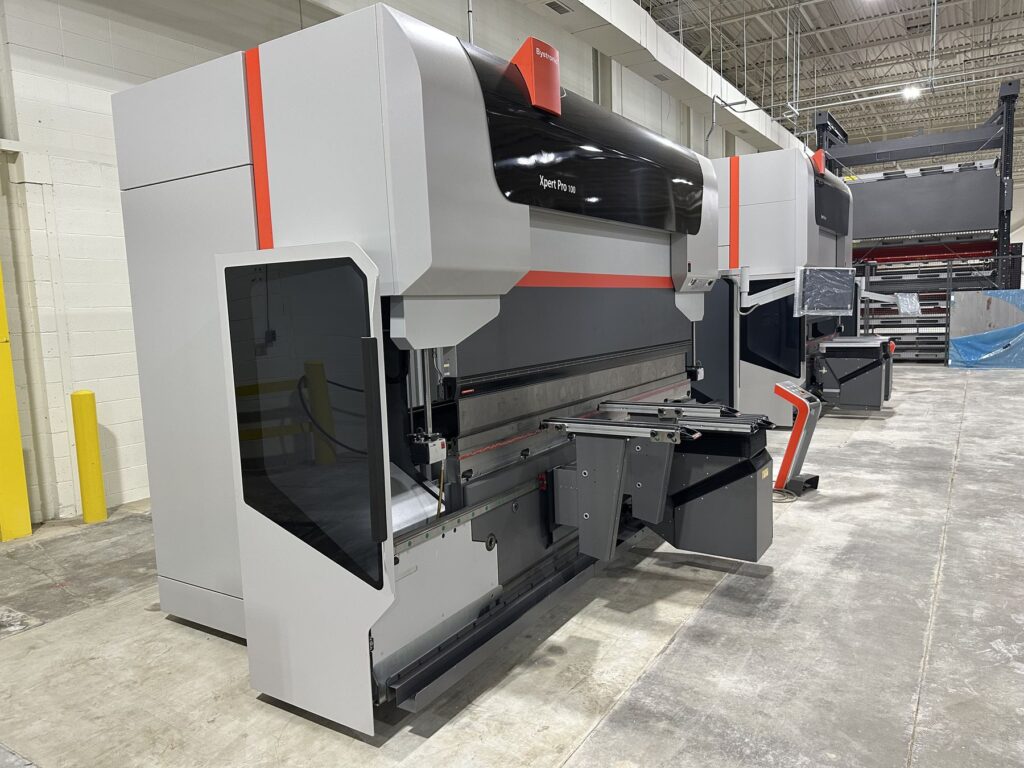

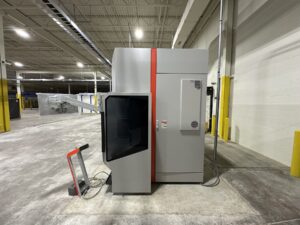

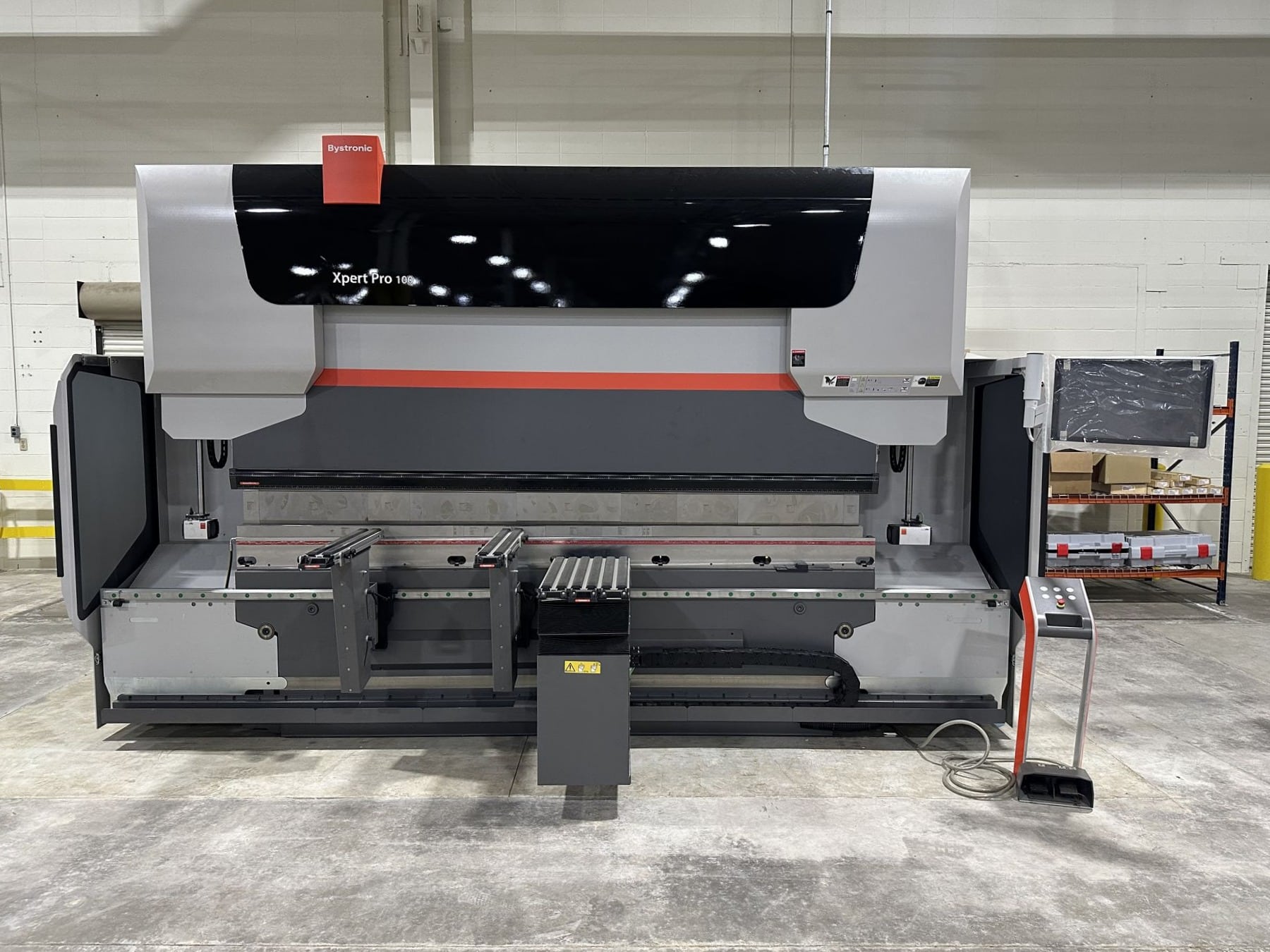

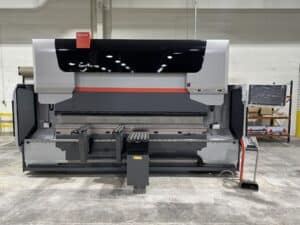

Bystronic Xpert Pro 100 x 3100 CNC Press Brake (Unused 2023)

Stock #: 112250003

$215,000.00

See Product Details

Out of stock

  • Stock #: 112250003
  • Brand:

Out of stock

  • Stock #: 112250003
  • Brand:

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Product Description

General Info

  • Stock #: 112250003
  • Location: GA
  • Brand: Bystronic
  • Model: Xpert Pro 100 x 3100
  • Year: 2023
  • Approx. Shipping Weight: 12.2 Tons
  • Approx. Shipping Dimensions: 4,180 mm x 2,000 mm x 2,820 mm High

Specifications

  • Tonnage: 1,000 kN
  • Bending Length: 3,100 mm
  • Standard Stroke: 250 mm
  • Open Height: 640 mm
  • Distance Between Side Frames: 2,750 mm
  • Throat: 400 mm
  • Table Width: 60 mm
  • Max Back Gauge Range (X Axis): 1,050 mm
  • X Axis Travel: 600 mm
  • X Axis Speed Speed: 650 mm/s
  • X Axis Accuracy: .04 mm
  • R Axis Travel: 250 mm
  • R Axis Speed: 200 mm/s
  • R Axis Accuracy: .1 mm
  • Z Axis Travel: 1,900 mm
  • Z Axis Speed: 1,500 mm/s
  • Z Axis Accuracy: .1 mm
  • Y Axis Accuracy: .004 mm
  • Oil Capacity: 300 l

Equipped With

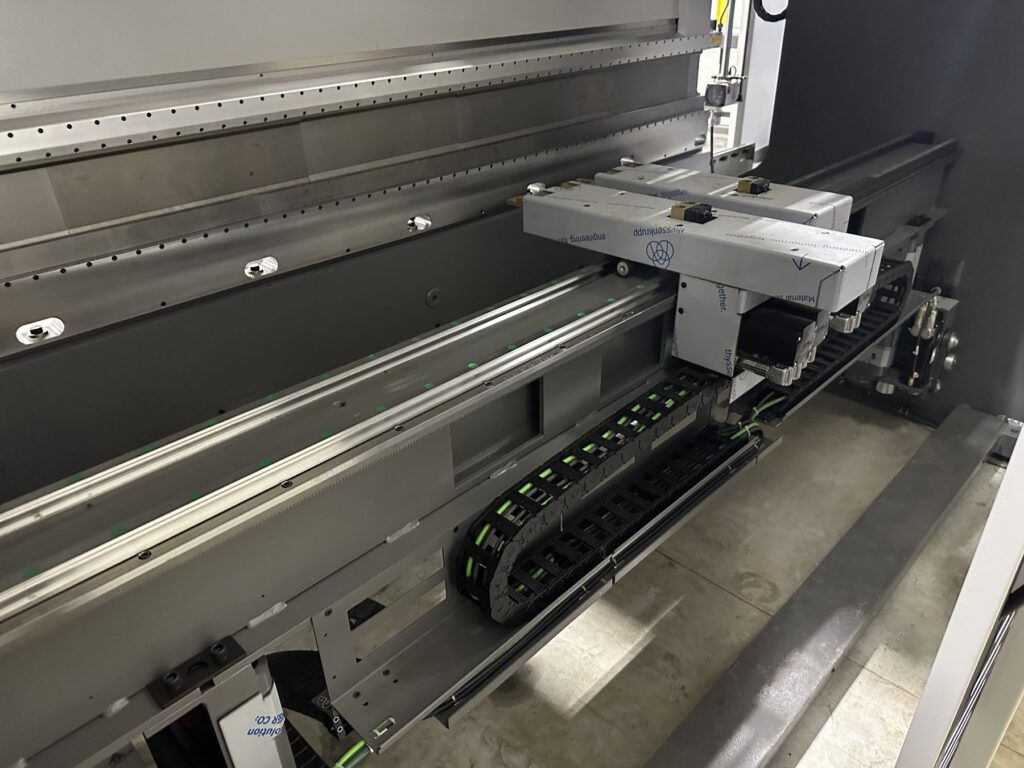

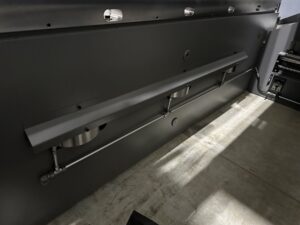

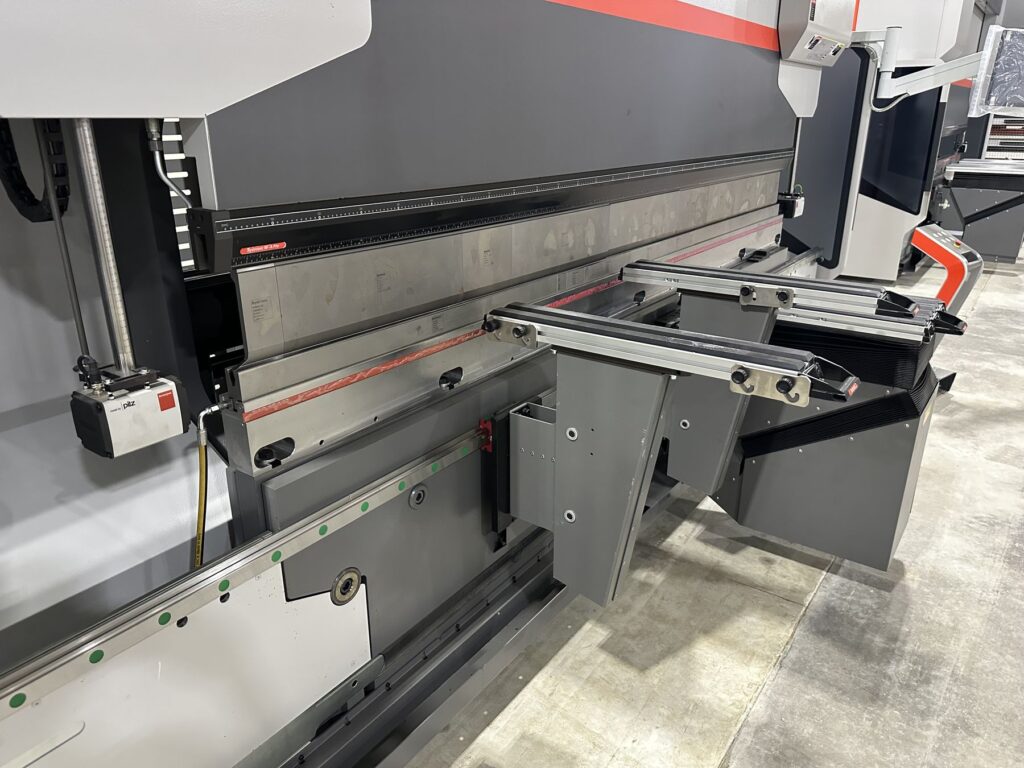

5 Axis Backgauge, Bystronic RF-A Pro Hydraulic Upper Lower Tool Clamp, 2 Support Arms, Sheet Follower, Dynamic Crowning, Pilz Light Curtain

Additional Info

We purchased this machine and several other Bystronic machines from a facility that never went into production. This machine was never used. Built in 2023
