Bystronic Xpert 40 x 1030 CNC Press Brake w/ Mobile Bending Robot (Unused 2023)
Stock #: 112250004
$275,000.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 112250004
- Location: GA
- Brand: Bystronic
- Model: Xpert 40 x 1030
- Year: 2023
- Approx. Shipping Weight:
- Approx. Shipping Dimensions: 1,520 mm x 1,584 mm x 2,449 mm High
Specifications
- Tonnage: 400 kN
- Bending Length: 1,030 mm
- Standard Stroke: 200 mm
- Open Height: 515 mm
- Distance Between Side Frames: 1,060 mm
- Table Width: 60 mm
- Max Back Gauge Range (X Axis): 500 mm
- X Axis Travel: 300 mm
- X Axis Speed: 1,500 mm/s
- R Axis Travel: 250 mm
- R Axis Speed: 500 mm/s
- Z Axis Travel: 955 mm
- Z Axis Speed: 2,000 mm/s
- Max. Y-Rapd Traverse: 300 mm/s
- Max. Y-Working Speed: 1,900 mm/s
- Y Axis Accuracy: .004 mm
- Oil Capacity: 300 l
- Main Motor Power: 7.5 kW
- Bending Cell Max Load: 22 Lbs
- Bending Cell Max Part Size: 11.8 × 23.6 in
- Bending Cell Max. part weight: 15 lbs
Equipped With

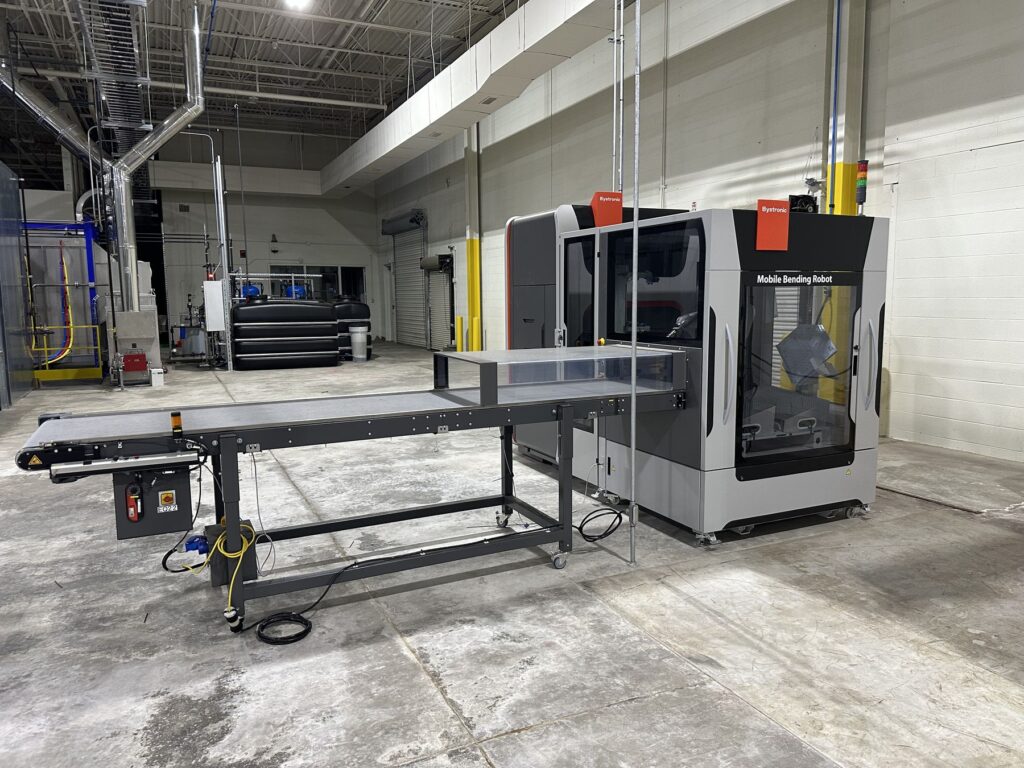

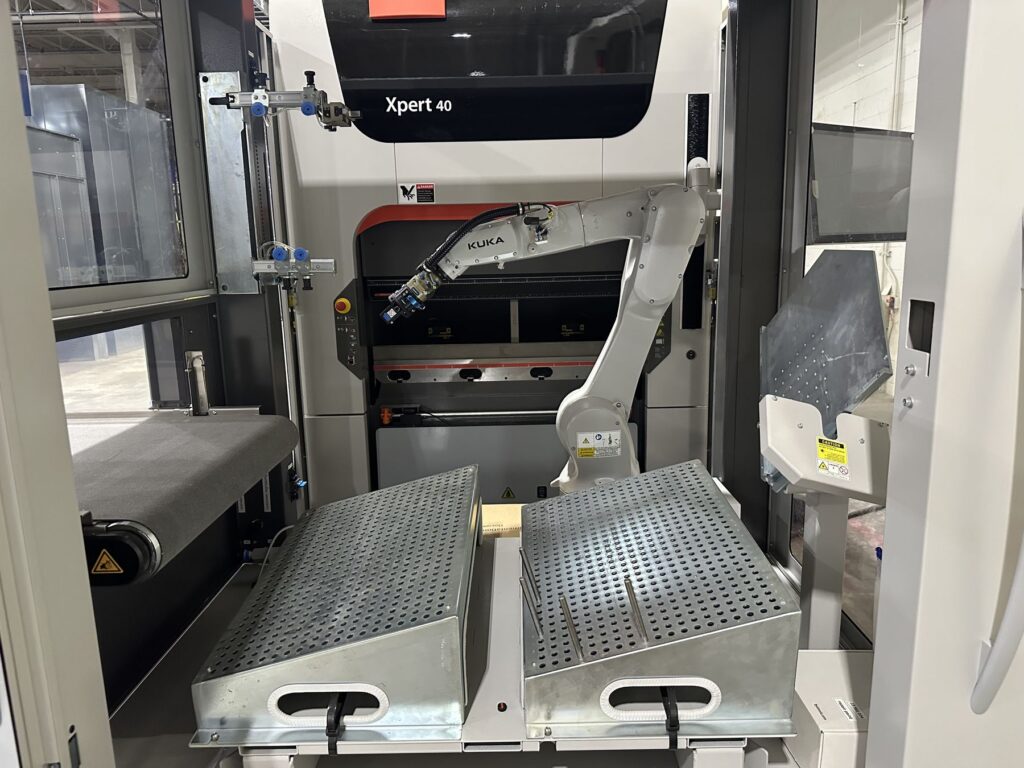

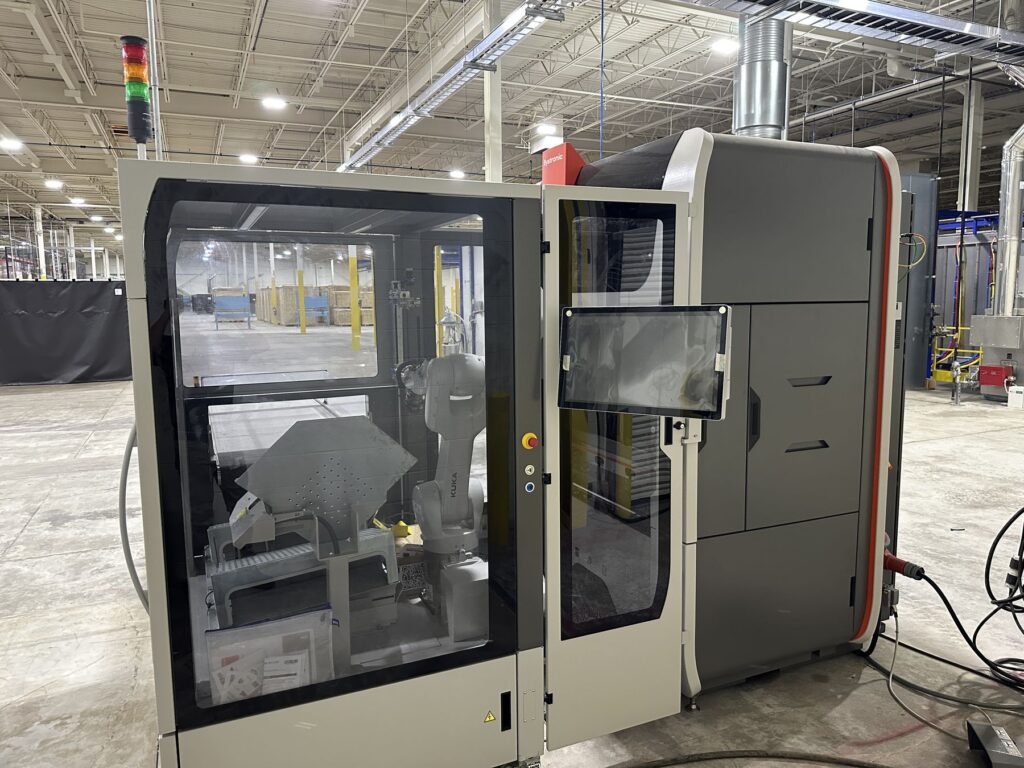

Bystronic RF-A Pro Hydraulic Clamping System, Mobile Bending Robot w/ Kuka Robot, Outfeed Conveyor
Additional Info
We purchased this machine and several other Bystronic machines from a facility that never went into production. This machine was never used. Built in 2023
