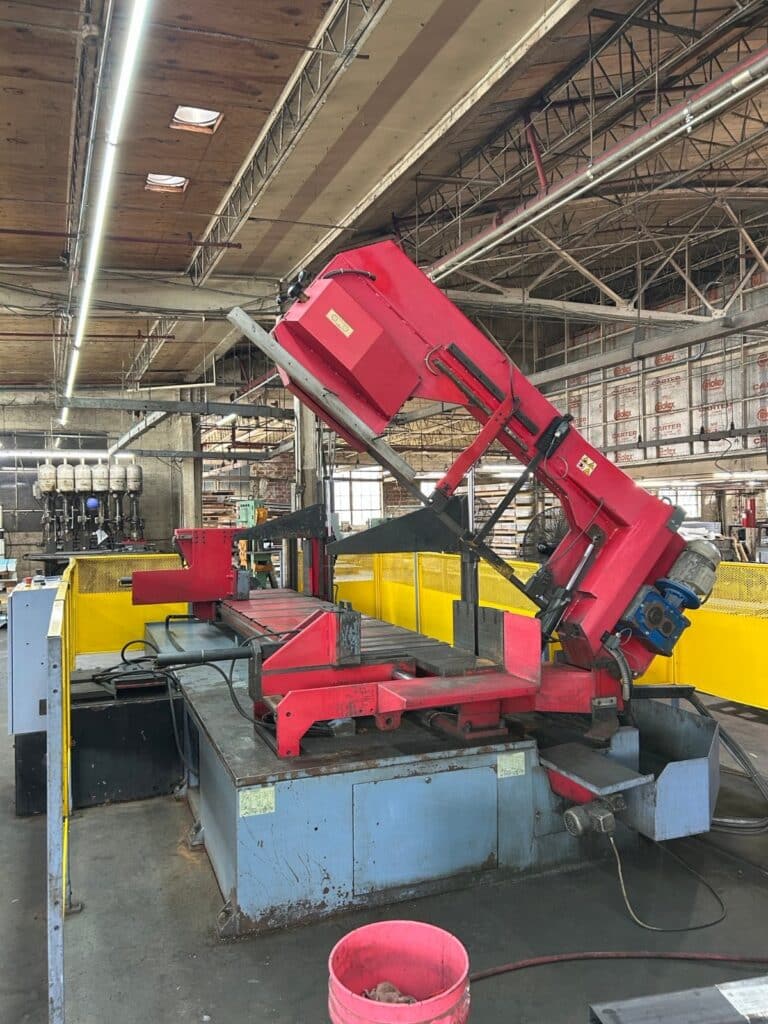

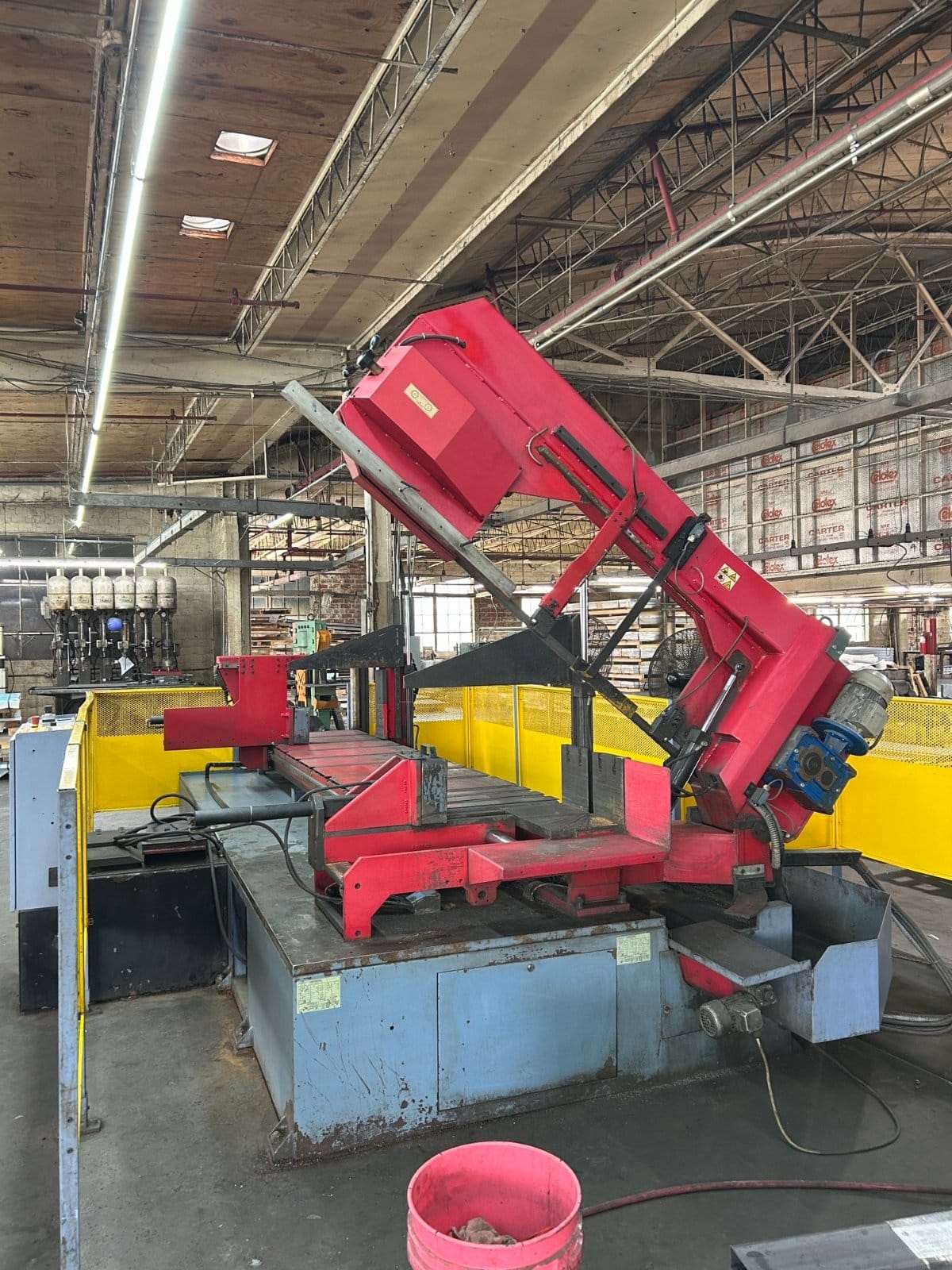

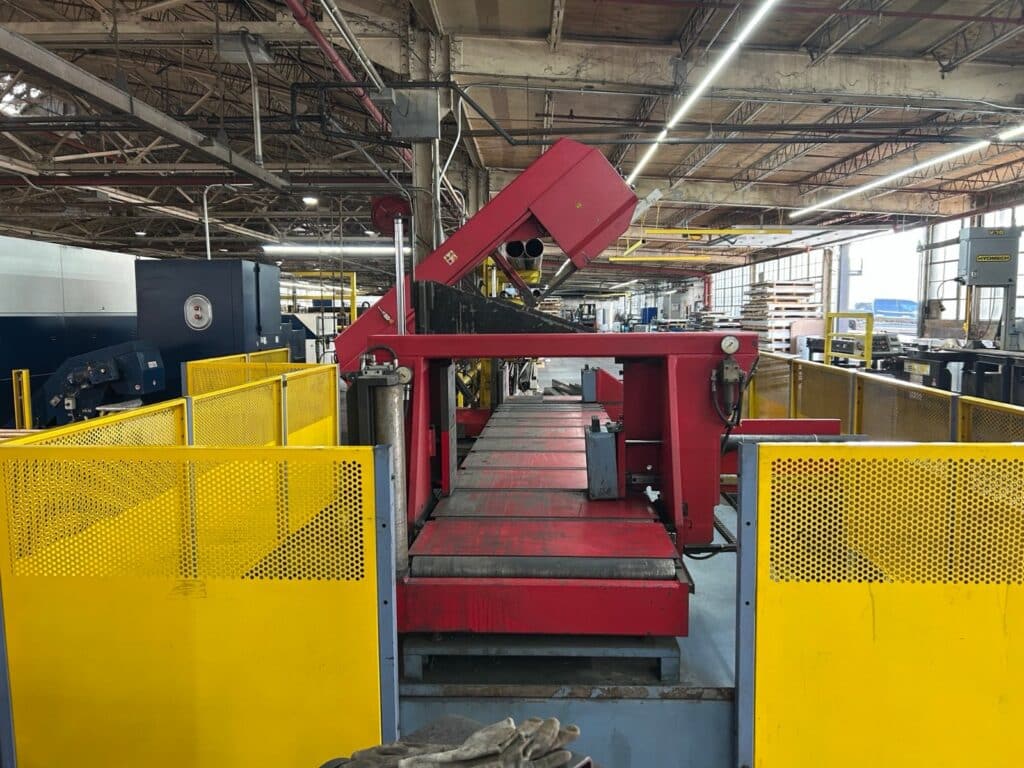

BTM 71.51 ADS 20" x 28" Automatic CNC Horizontal Bandsaw (Not Working)

Inquire Further About this Machine

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Company

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

Provide Shipping Quote

Provide Financing Options

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

This field is hidden when viewing the form

In Stock?

UTM Campaign

UTM Source

UTM Medium

UTM Term

UTM Content

BTM 71.51 ADS 20″ x 28″ Automatic CNC Horizontal Bandsaw (Not Working)

Stock #: 190260010

$9,500.00

See Product Details

1 in stock

Stock #: 190260010
Brand: BTM

Not What You're Looking For?

Have Surplus Machinery to Sell?

1 in stock

Stock #: 190260010
Brand: BTM

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

X/Twitter

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

Provide Shipping Quote

Provide Financing Options

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

This field is hidden when viewing the form

In Stock?

UTM Campaign

UTM Source

UTM Medium

UTM Term

UTM Content

Product Description

General Info

Stock #: 190260010
Location: Decatur, GA
Brand: Btm

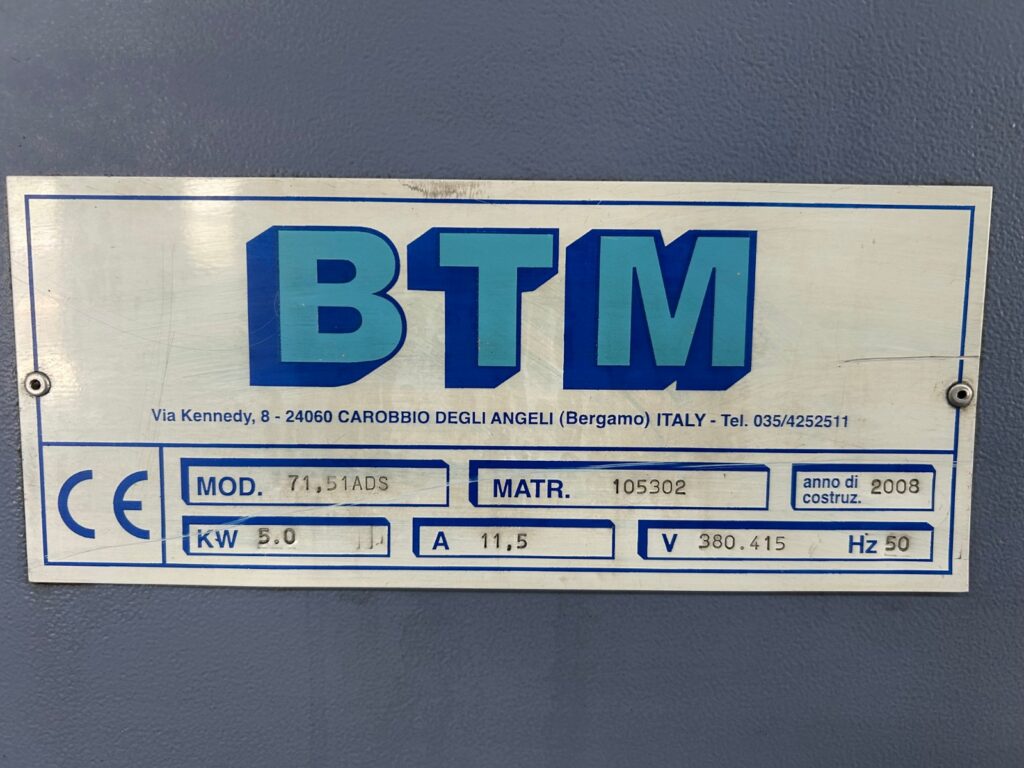

Model: 71.51 ADS
Serial #: 105302
Year: 2008
Approx. Shipping Weight: 11,000 Lbs.
Approx. Shipping Dimensions: 20′ L x 8′ W x 7′ H
Skidding Fee: Skidding Unavailable

Specifications

Rectangular Cutting Capacity (90°): 28″ x 20″
Round Cutting Capacity (90°): 20″
Rectangular Cutting Capacity (45°): 22″ x 12.6″
Round Cutting Capacity (45°): 19.7″
Rectangular Cutting Capacity (60°): 15.7″ x 9.4″
Round Cutting Capacity (60°): 15″

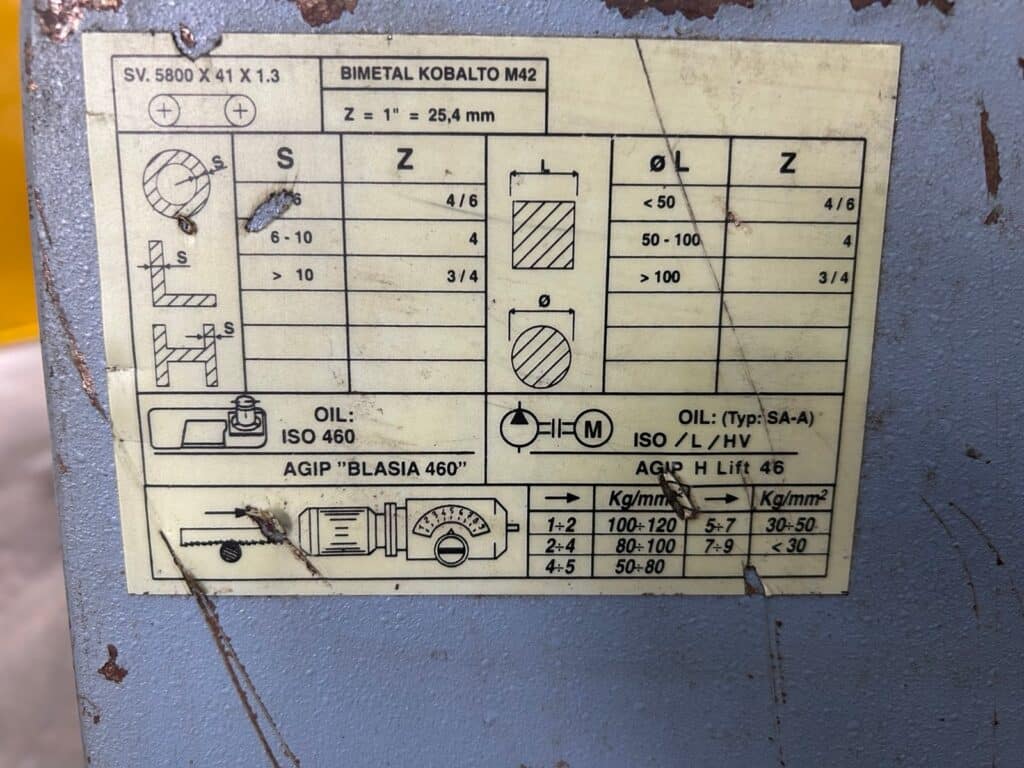

Blade Size: 5800mm x 41mm x 1.3mm, Bimetal M42
Miter Capability: 60° Left & Right
Blade Speed: 22 – 100 m/min (Variable, Inverter Driven)
Carriage Feed Travel: 118″
Max Cutting Length (With Repeats): 39′
Electrical: 230V/3PH

Equipped With

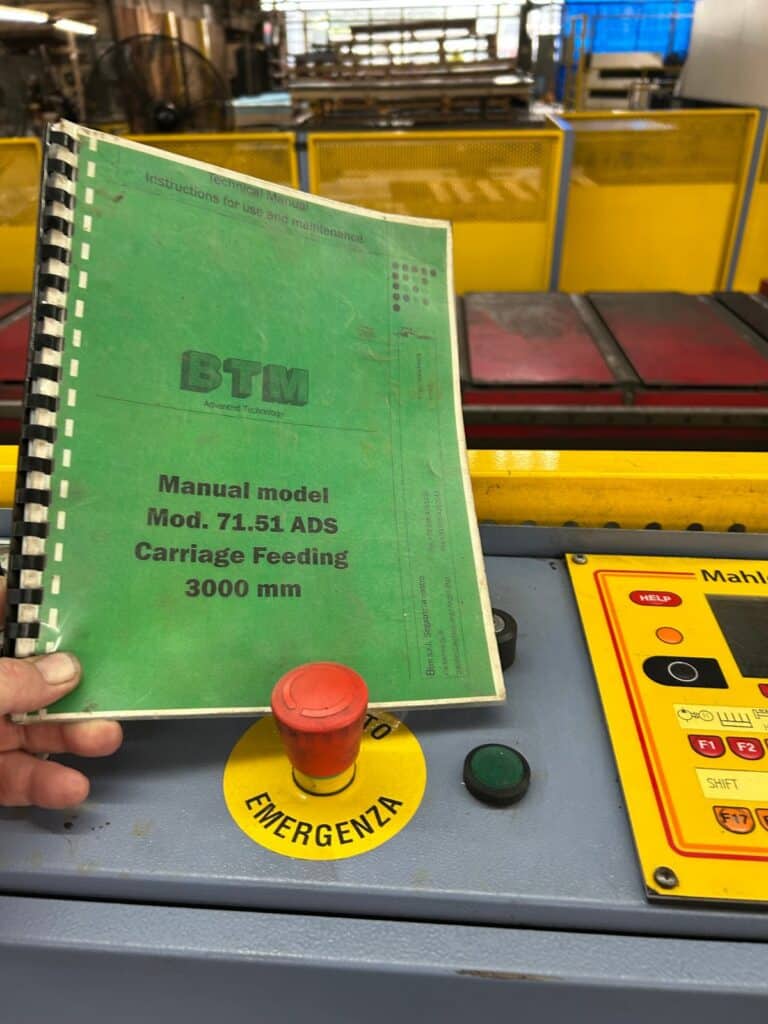

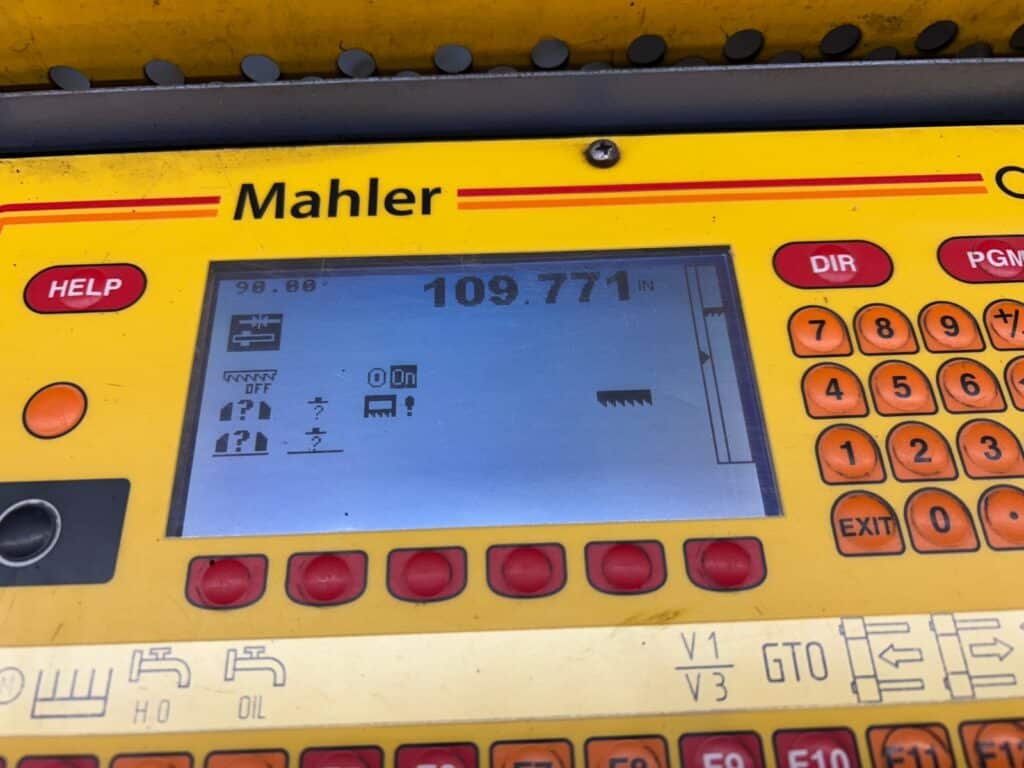

Mahler Ceb CNC Controller (Graphical LCD Display, 99 Program Memory, Programmable Cut Length & Miter Angle), Automatic CNC Carriage Feeding System (3000Mm Travel, Ball Guide Ways, Inverter Driven Motor), Hydraulic Head Rotation To 60° Left & Right (CNC Controlled Via DC Motor), Automatic Hydraulic Blade Tensioning With Auto-Release, Variable Speed Inverter Drive, Hydraulic Full-Stroke Vises, Workpiece Height Sensor, Automatic Feed Rate Correction Based On Cutting Resistance, Carbide (Widia) Blade Guides, Chip Auger, Coolant System, Yellow Perforated Safety Fencing, Emergency Stop Buttons, Btm Technical Manual, Made In Italy

Additional Info

The Main control has internal problems, the screen flickers and inputs from sensors are not consistent so no operation is possible. Main control will need to be repaired or possibly replaced.
