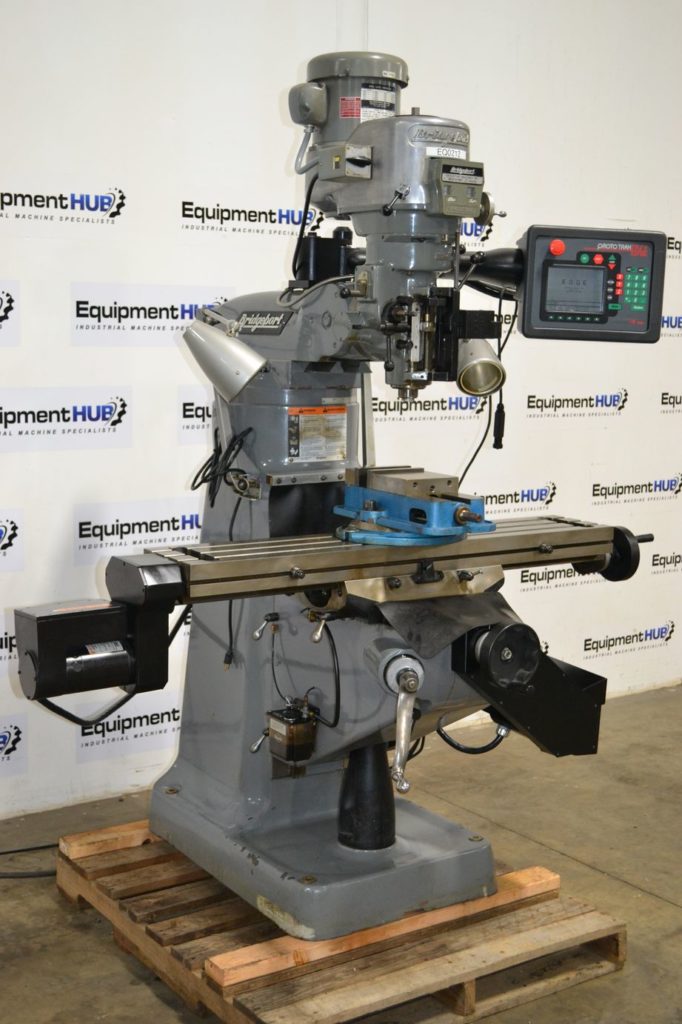

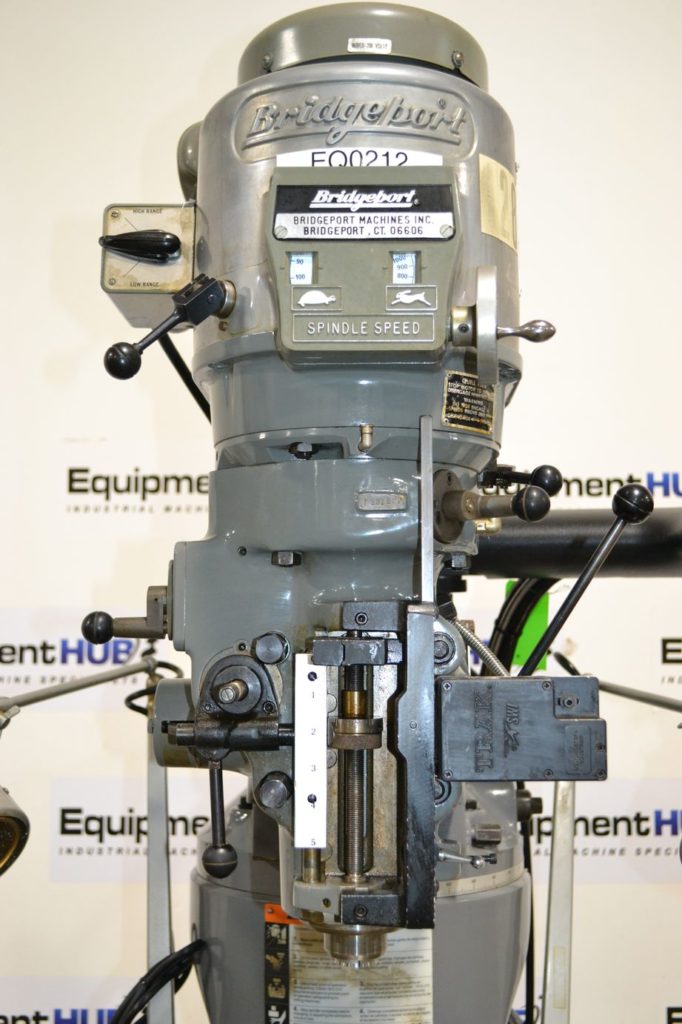

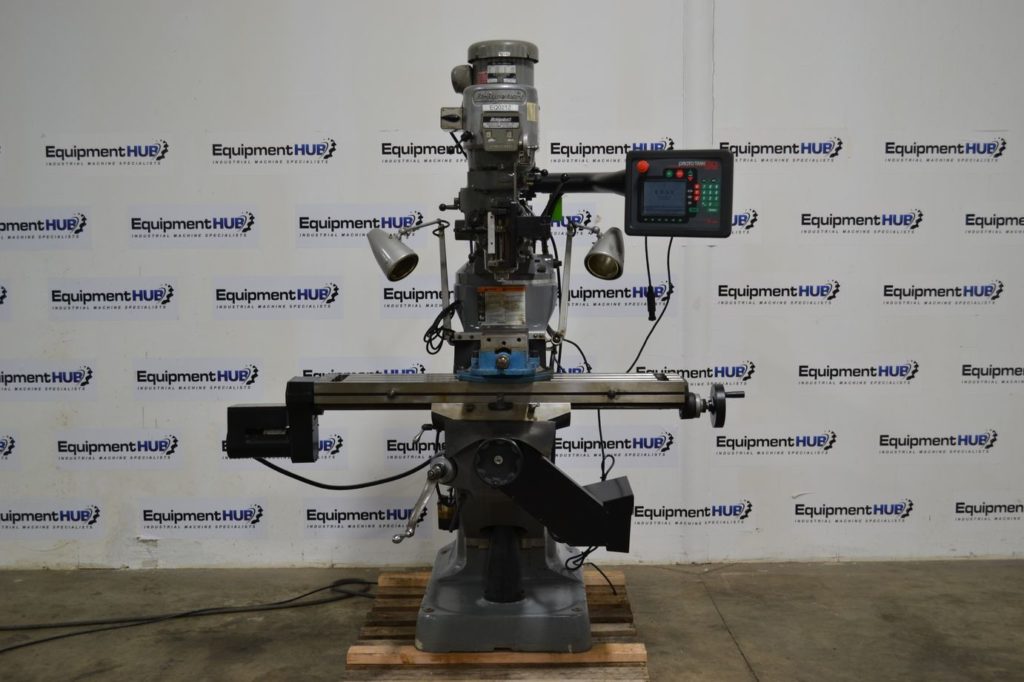

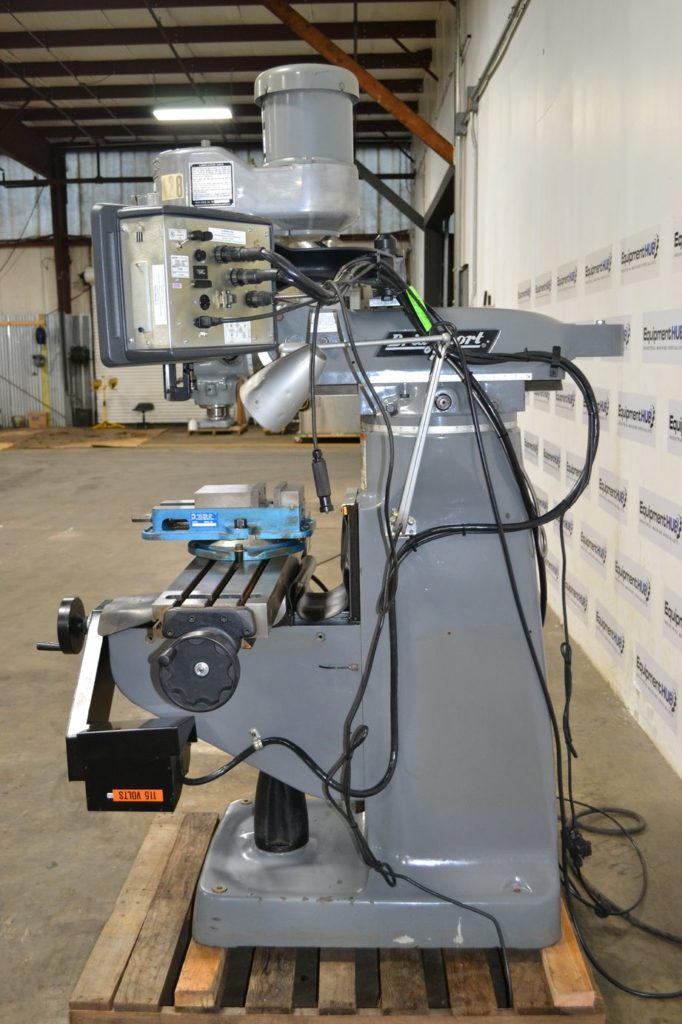

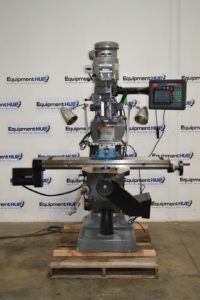

Bridgeport Series I 9″ x 48″ Variable Speed Prototrak Edge CNC Vertical Milling Machine
Stock #: CD-171207
$11,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info:
Stock #: CD-171207
Location: Stone Mountain, GA
Brand: Bridgeport
Model: Series I
Serial: BR256573
Year: 1990
Approx. Shipping Weight: 3,500 Lbs.
Approx. Shipping Dimensions: 72″ L x 68″ W x 92″ H
Skidding Fee: $250
Specifications:
Table Size: 9″ x 48″
Longitudinal Travel (X): 32-1/2″
Cross Travel (Y): 12″
Vertical (Knee): 16″
Quill Travel (Z): 5″
Ram Travel: 12″
Head Tilt (Left & Right): 90°
Head Tilt (Front to Rear): 45° Each Way
Power Quill Feeds (3): 0015, .003, .006 IPR
Spindle Speed Range (Infinitely Variable): 60 – 4200 RPM
Spindle Taper: R-8
Motor HP: 2
Electrical: 230 V, 3 Ph
Equipped With:

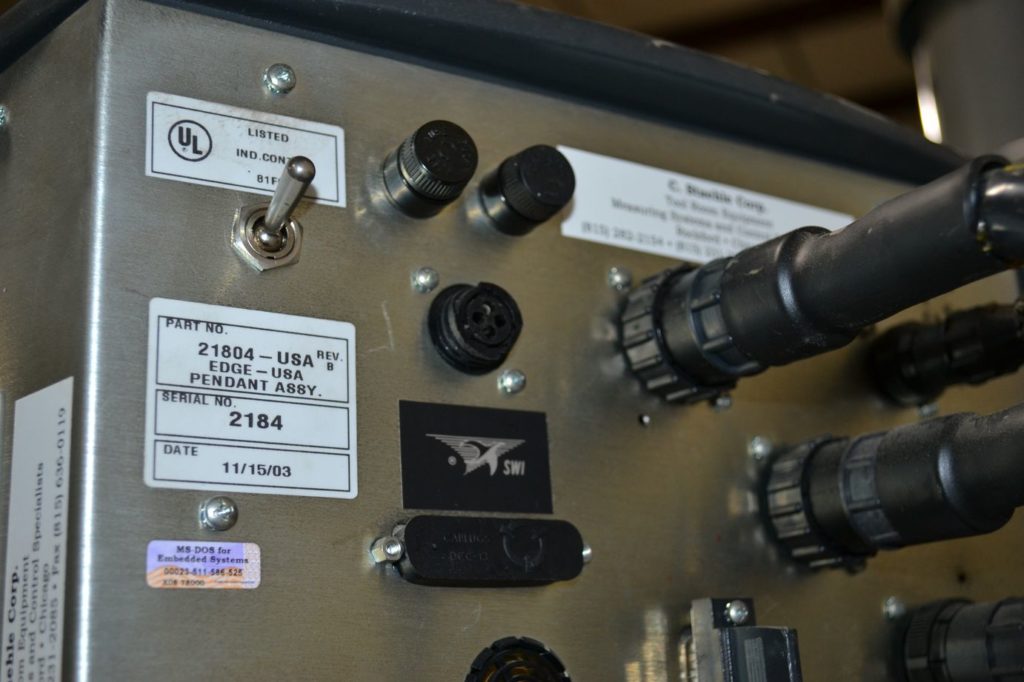

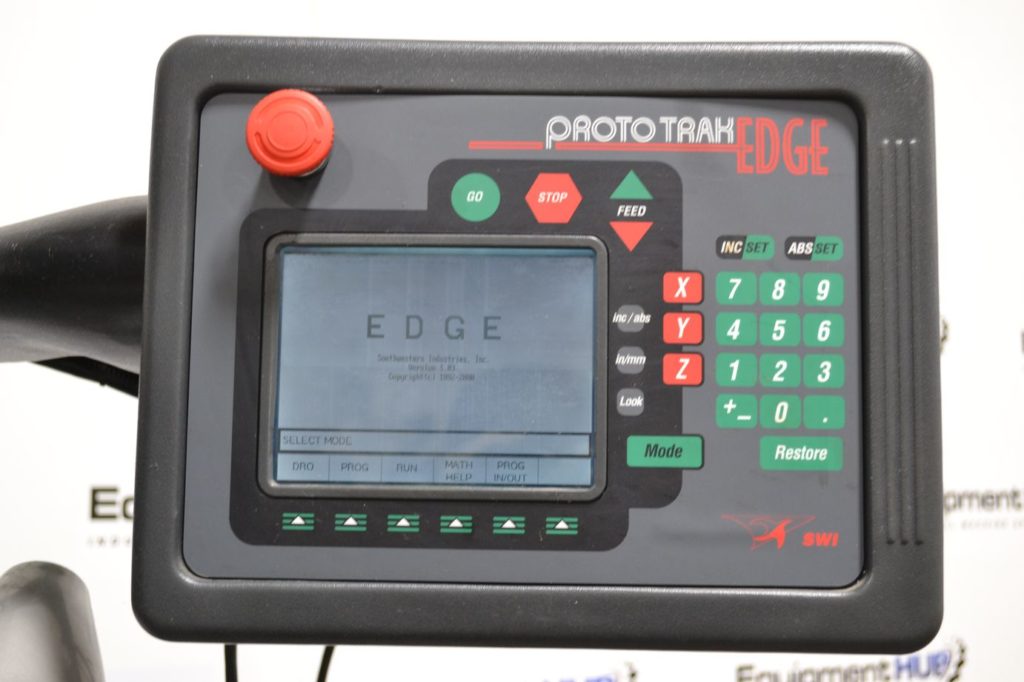

2003 Prototrak Edge CNC Controller 3-Axis DRO (Servo Driven in X and Y Direction), Variable Speed Drive with High / Low Gear, One Shot Lube System, Kurt D60 Vise, Two Work Lights
Additional Info:
The milling machine is in excellent cosmetic and working condition. We are glad to show under power. Below is a video of it in operation.
