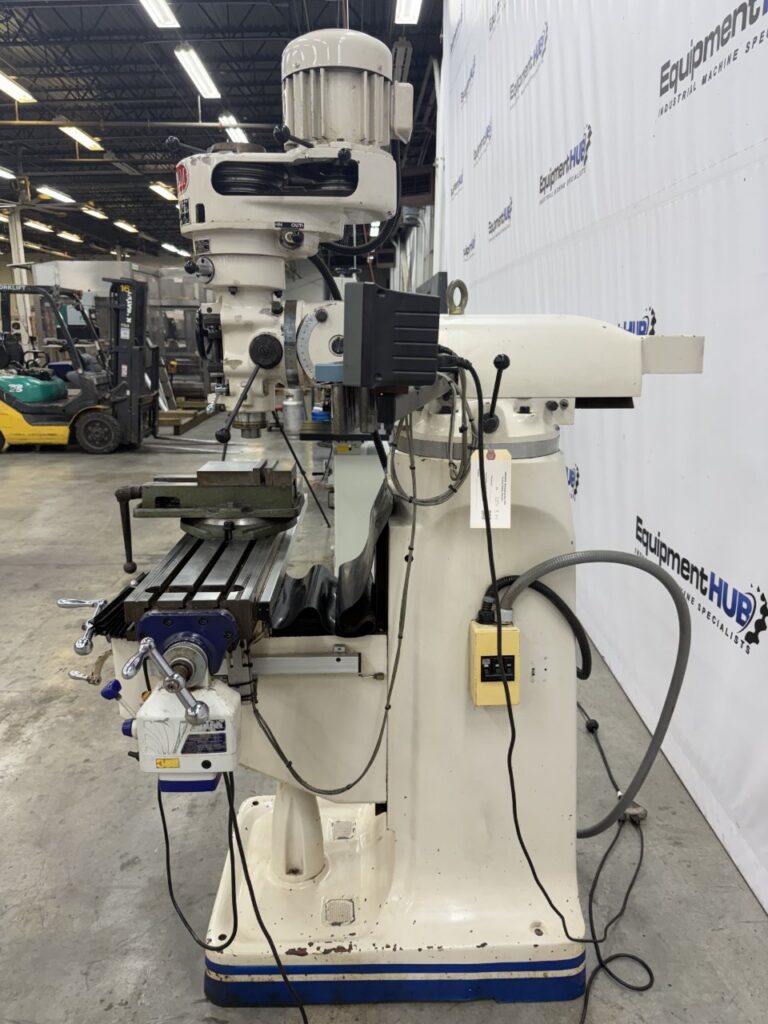

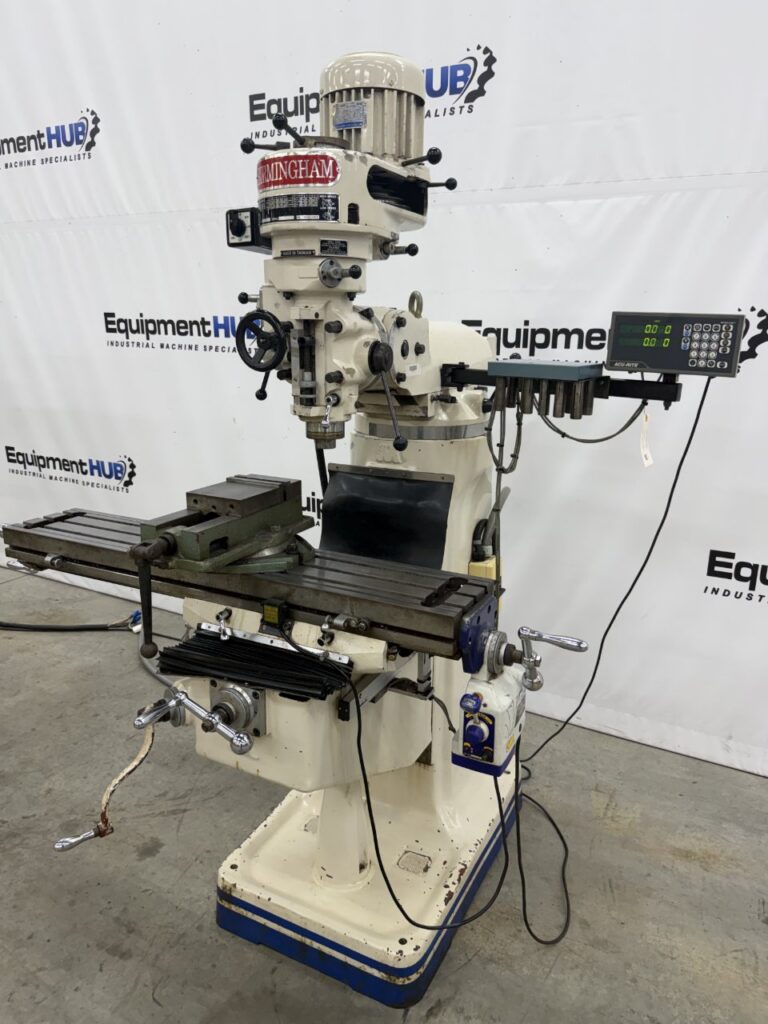

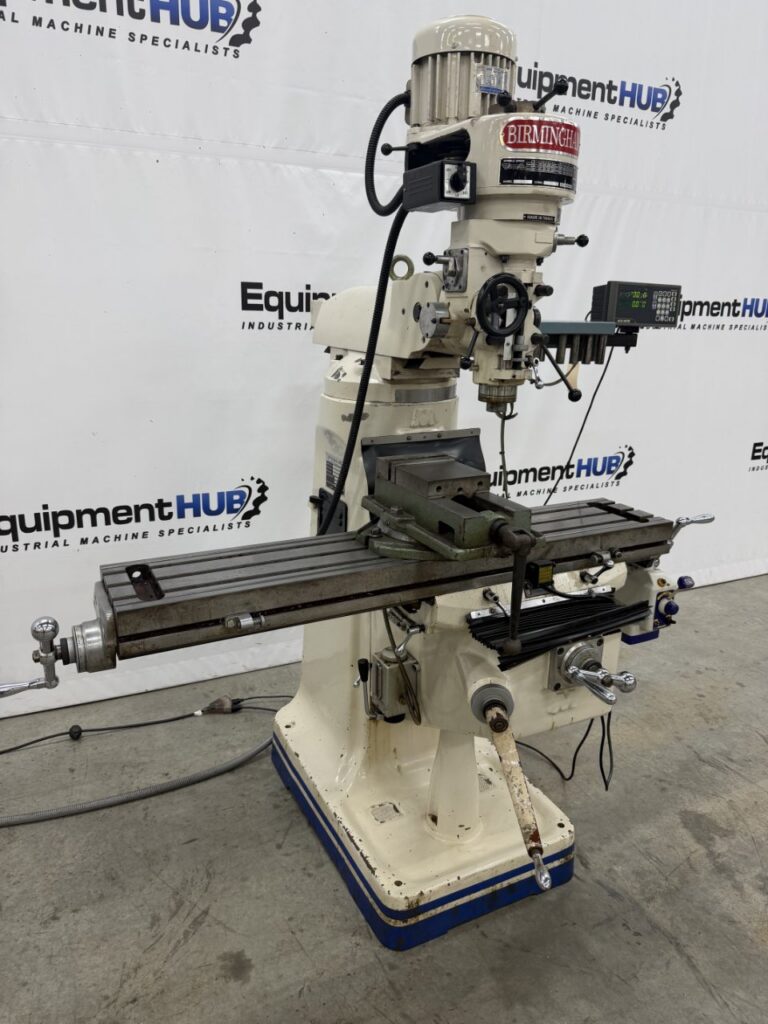

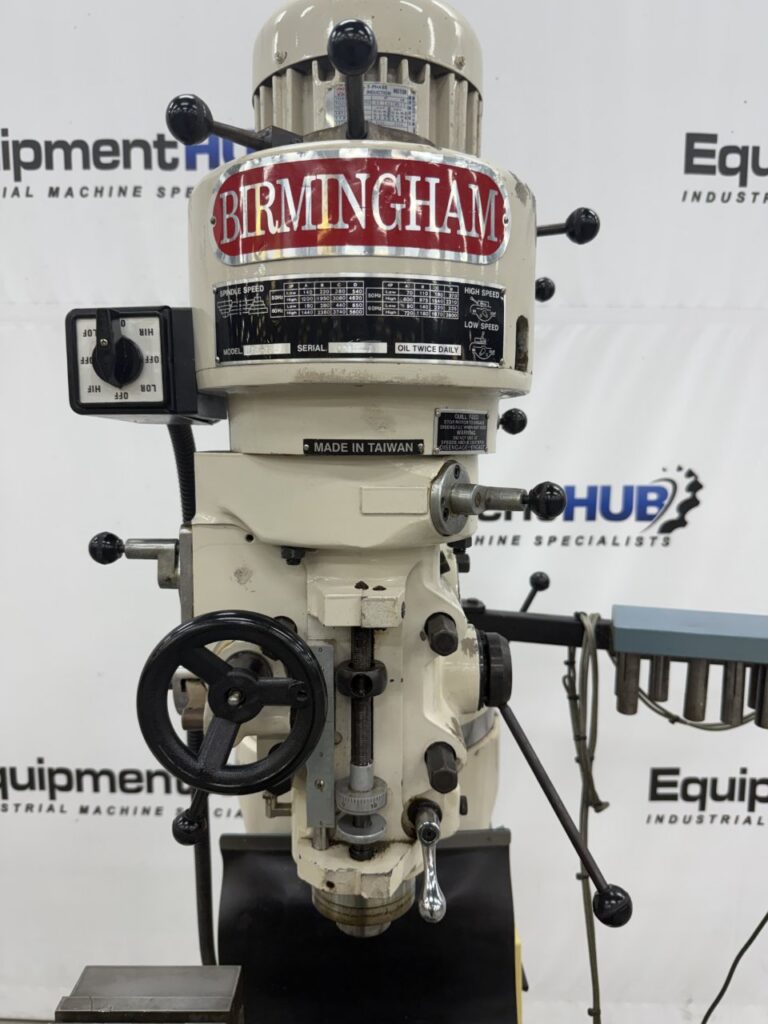

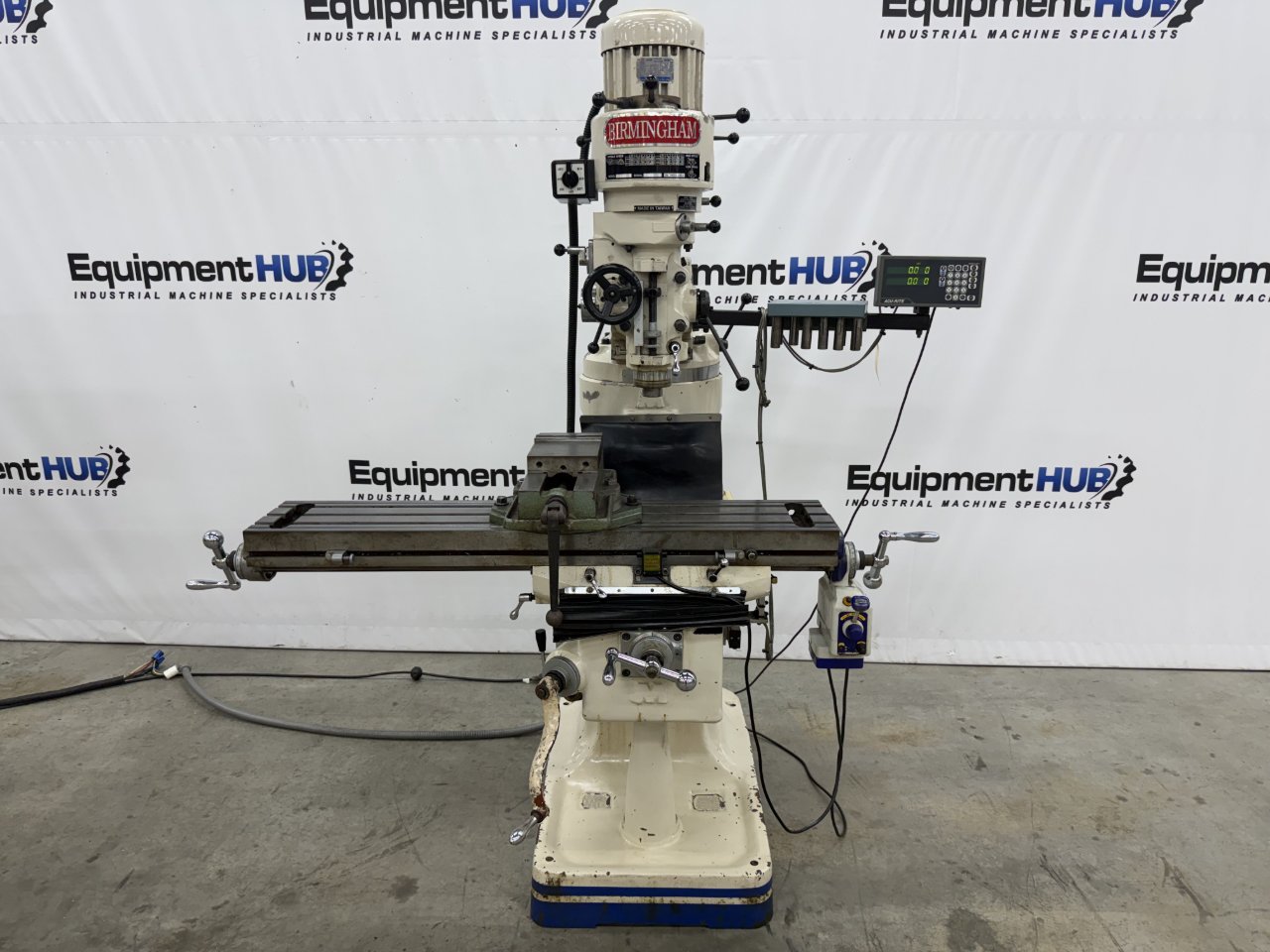

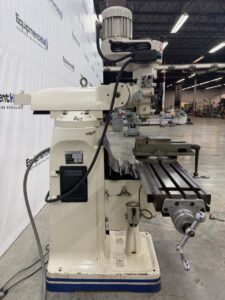

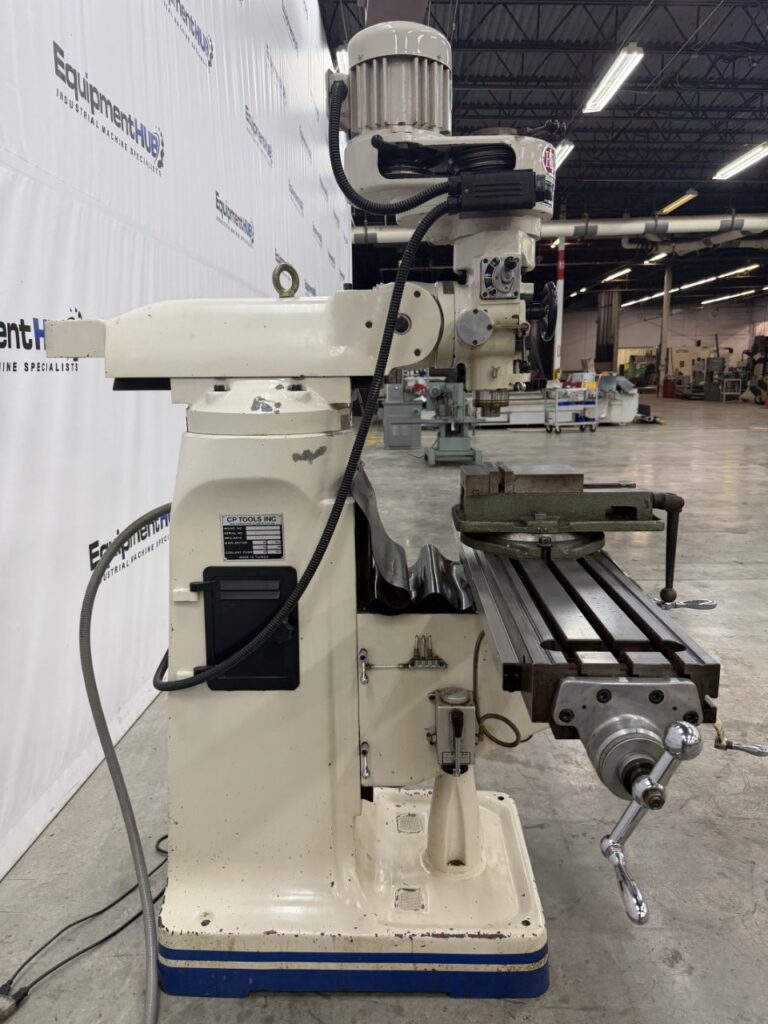

Birmingham BPS-1649 9″ x 49″ Vertical Milling Machine w/ Acu-Rite DRO & Power Feed
Stock #: 190260054
$5,950.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 190260054
- Location: Decatur, GA

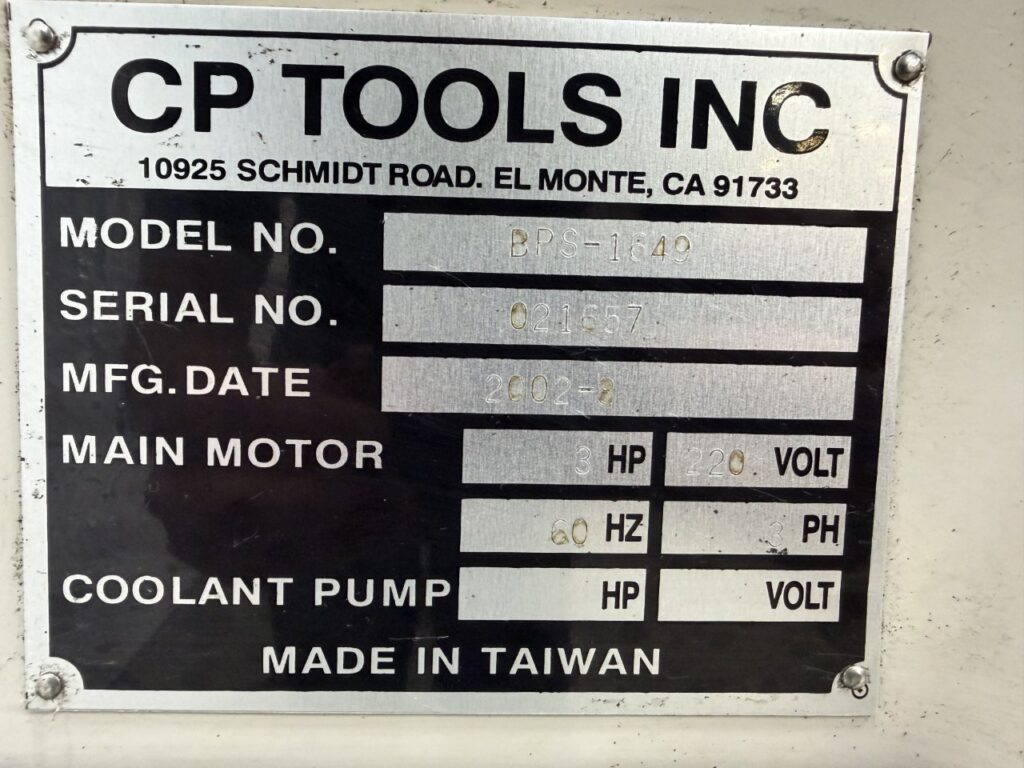

- Brand: Birmingham
- Model: BPS-1649
- Serial #: 021657
- Year: 2002
- Approx. Shipping Weight: 2,500 Lbs.
- Approx. Shipping Dimensions: 6′ L x 5′ W x 7′ H
- Skidding Fee: $175
Specifications
- Table Size: 9" x 49"
- Longitudinal Travel (X): 35.5"
- Cross Travel (Y): 13.25"
- Vertical Knee Travel (Z): 15.75"
- Quill Travel: 5"
- Spindle Taper: R8
- Motor HP: 3HP

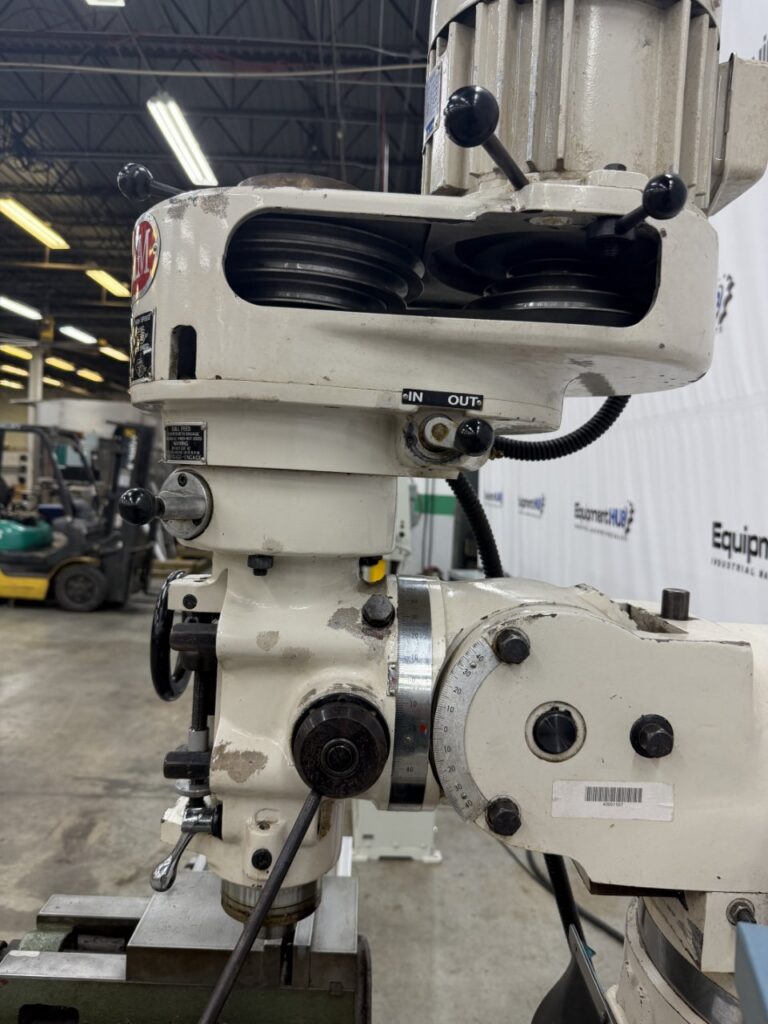

- Spindle Speeds: 70 – 5600 RPM, Step Pulley with Hi/Lo Back Gear
- Quill Feed: .0015" / .003" / .006" Per Rev
- Electrical: 220V/3PH
Equipped With

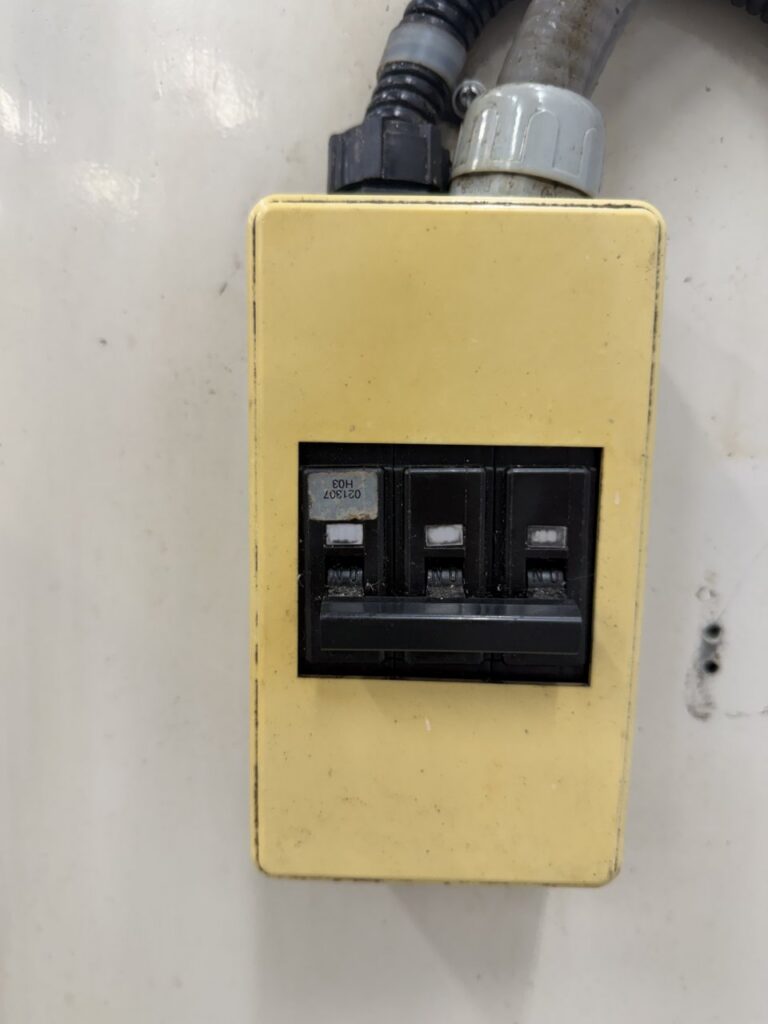

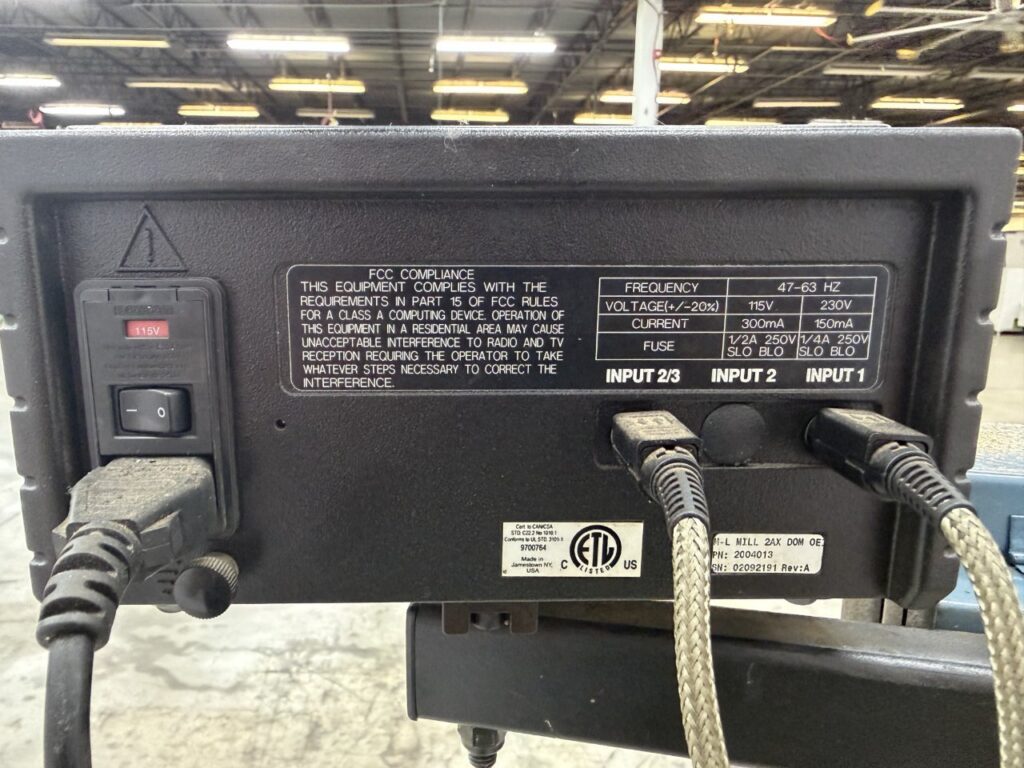

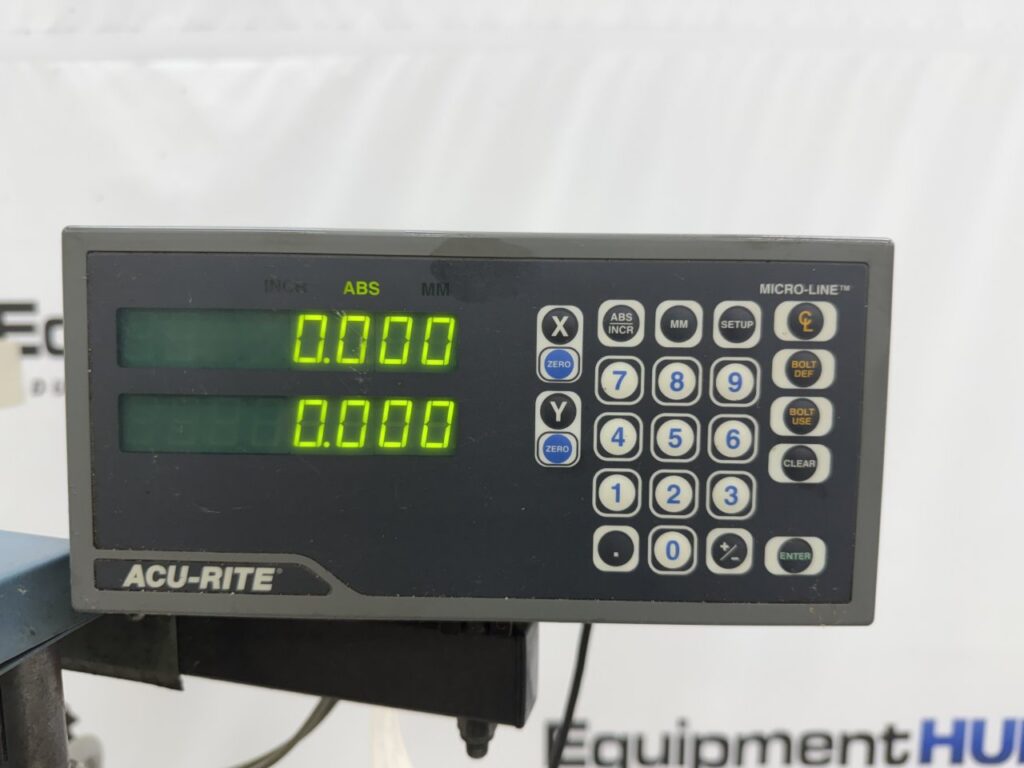

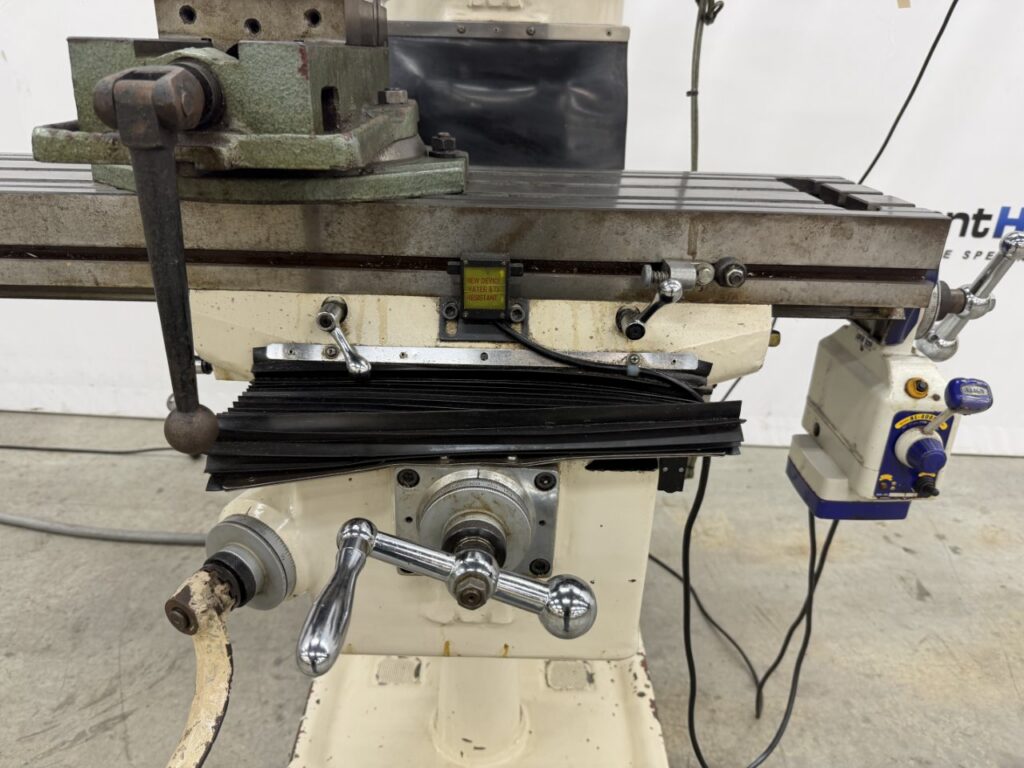

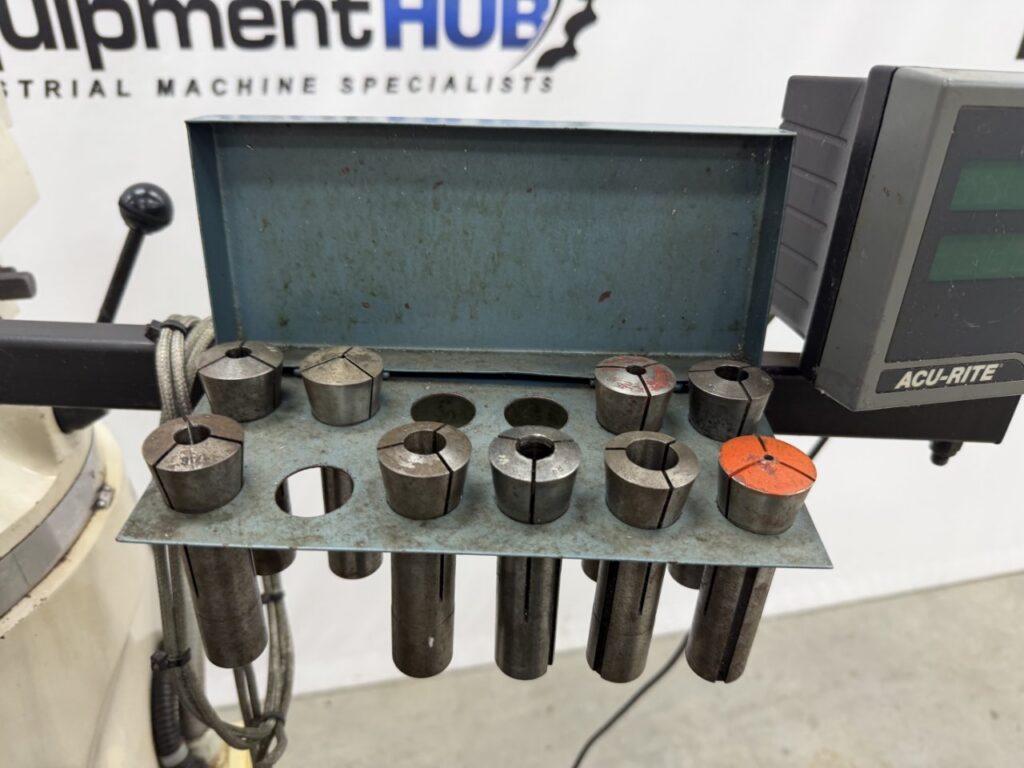

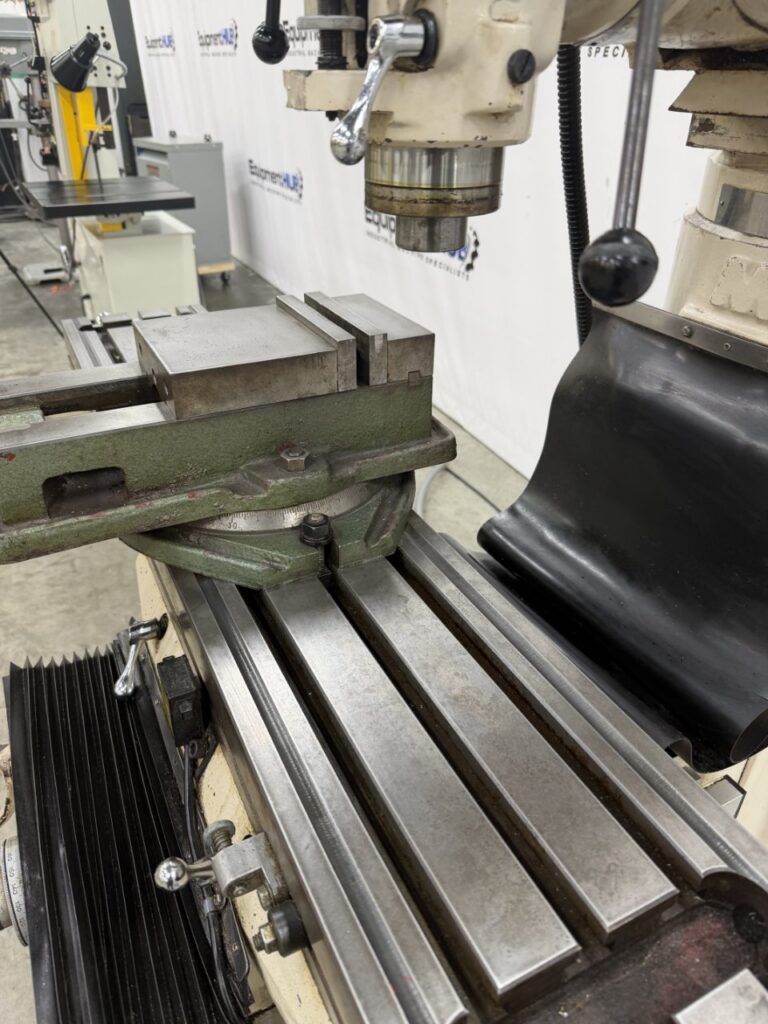

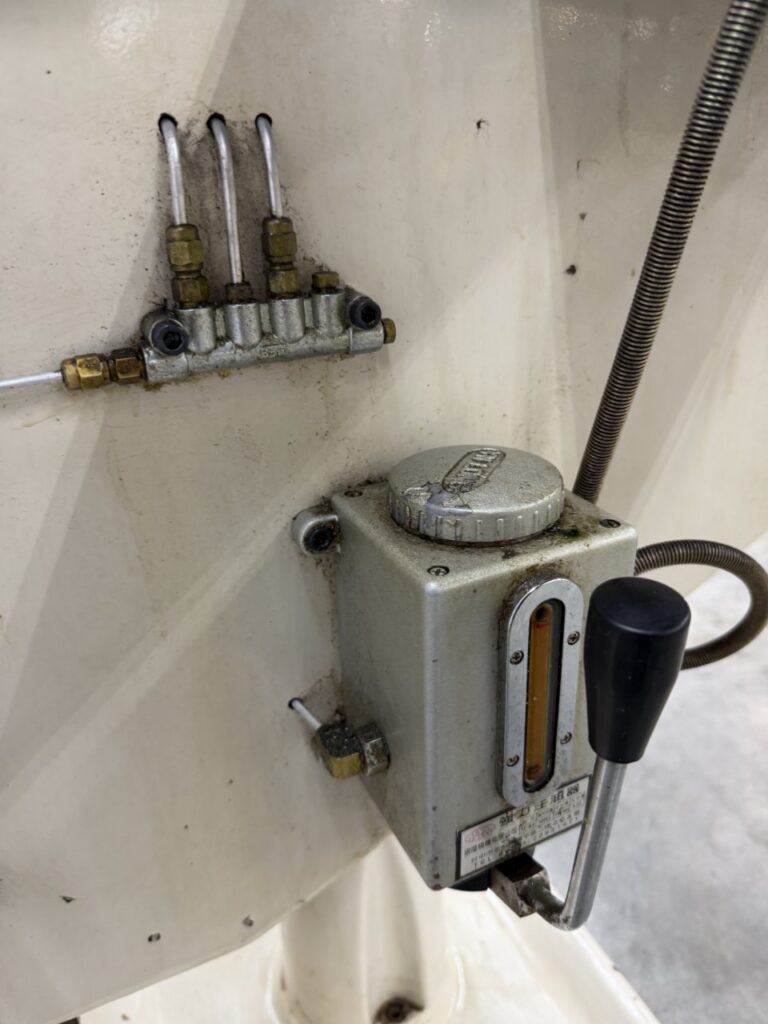

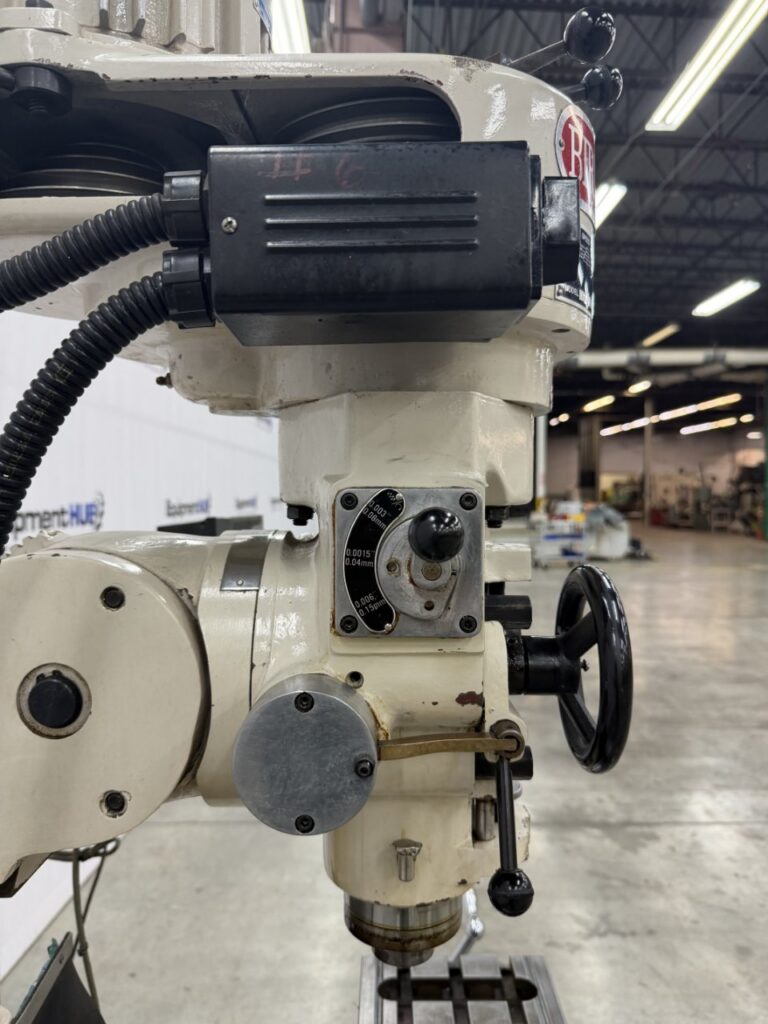

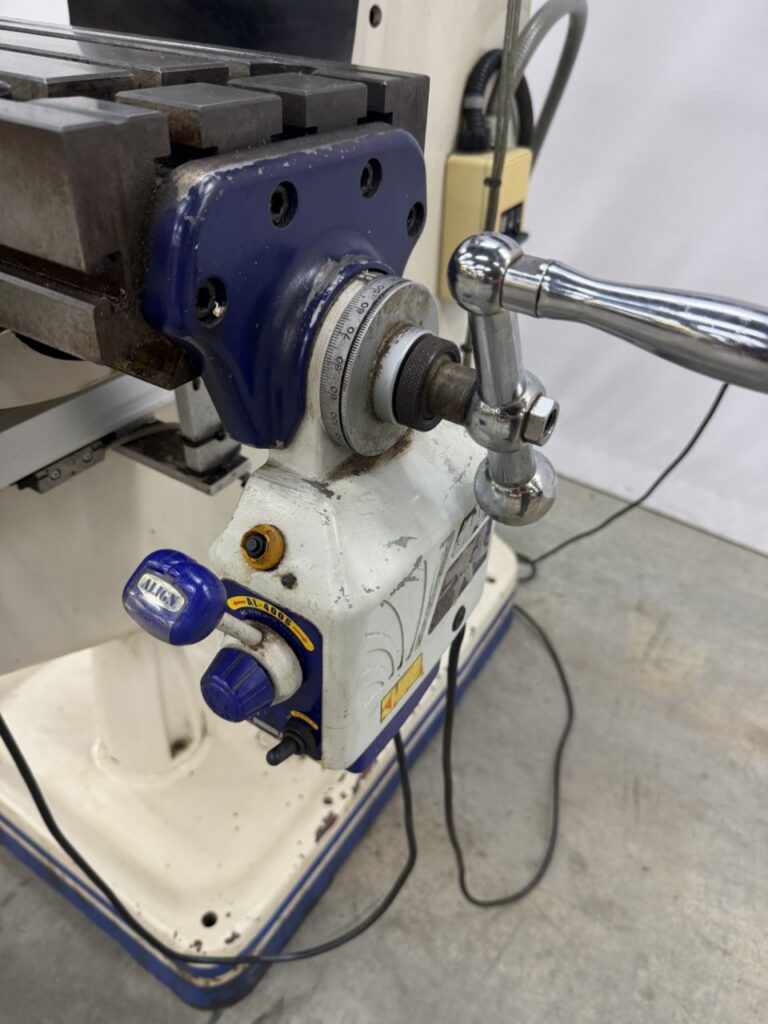

Acu-Rite Micro-Line 2-Axis DRO (Factory Original Equipment), Align Al-400 X-Axis Power Feed, One-Shot Lubrication System, R8 Collet Set With Rack, Milling Vise, Way Covers (X-Axis), Quill Fine Feed With 3-Speed Selector, 3-Pole Circuit Breaker Disconnect
Additional Info
The Birmingham Vertical Milling Machine can be demoed upon request. Check out the video on the listing to see it in operation.
