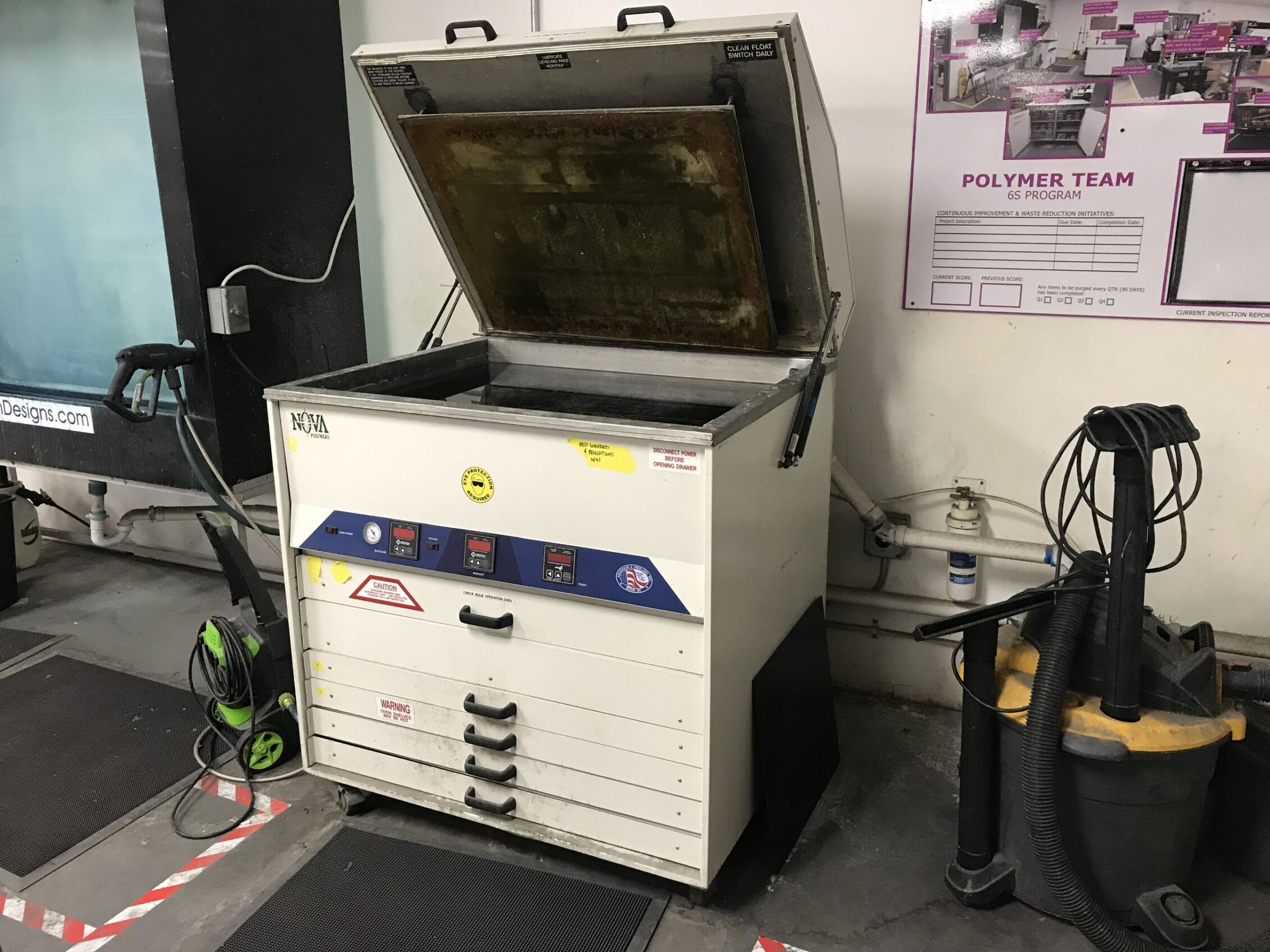

Anderson & Vreeland Inc Oribital X Photopolymer 25″ x 30″ Plate Processor Water-Wash System
Stock #: SB-B-191007
$6,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
Product Description
General Info:
Stock #: SB-B-191007
Location: Tampa, FL 33626
Brand: Anderson & Vreeland Inc
Model: Oribital X
Serial #: 2430x-100107
Approx. Shipping Weight: 800 Lbs.
Approx. Shipping Dimensions: 48″ L x 48″ W x 60″ H
Loading Fee: Rigging Required
Specifications:
Electric: 230 V / 1 Phase / 60Hz
Capacity: 25″ x 30″
Washout: Stainless Steel Wetted Parts Area
Washout Tank: Temperature Controlled 22 Gallons, 3/8″ Inlet, 3/4″ Drain
Plate Mount: Magnetic and PVC
Brush Mount: Adjustable
Platen: Reversing Orbital
Exposure: Optional High or Medium Output
Primary Exposure Lamps: 8
Exposure Ballast: Solid-State
Exposure Timer: Digital
Light Drawer: Optional Post Expose or Detack
Secondary Exposure Lamps: 8
Light Drawer Ballast: Solid-State
Light Drawer Timer: Digital
Dryer: 3 Individual Drying Drawers
Heater: 2250 Watt
Dryer Temp: Thermostat Controlled
Additional Info:
Machine is in production and can be demonstrated upon request.
