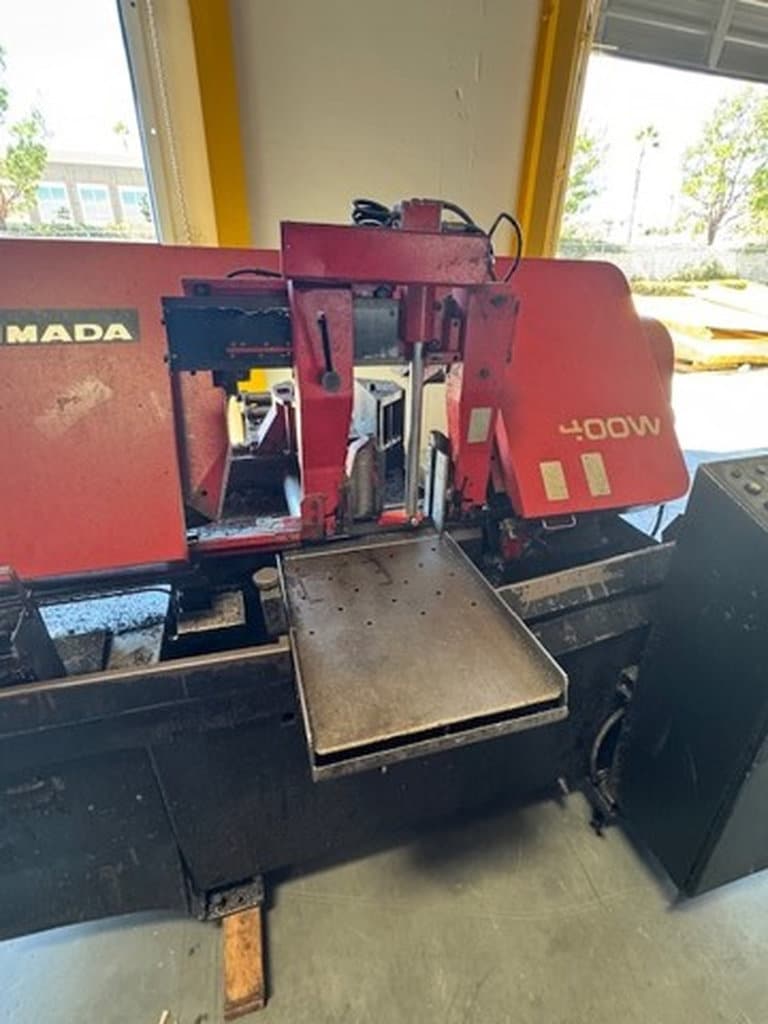

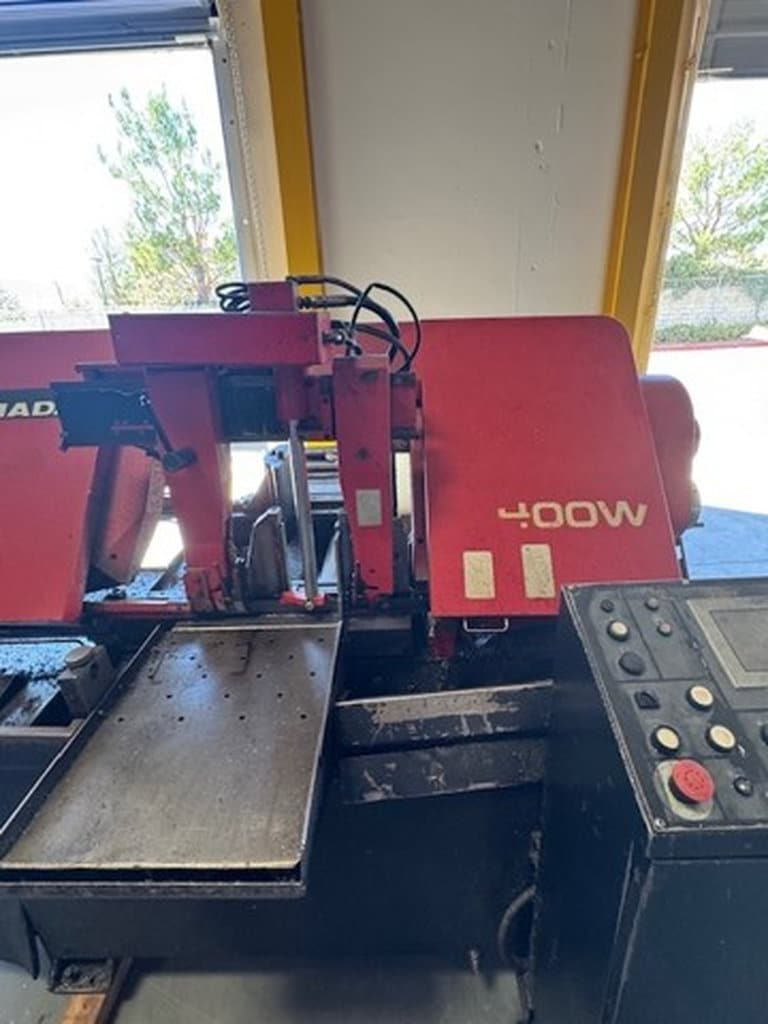

Amada HA400W 16″ x 16″ Automatic Horizontal Band Saw
Stock #: 141250010
$9,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 141250010
- Location: Corona, CA
- Brand: Amada
- Model: HA400W
- Approx. Shipping Weight: 5,000 LBS.
- Approx. Shipping Dimensions: 9′ L x 8′ W x 6′ H
Specifications
- Cutting Capacity Round (Diameter): 0.5″-16″
- Cutting Capacity Rectangle (W x H): 16″ x 16″
- Work Load Capacity: 5,511 LBS
- Blade Dimensions: 15′ x 0.050″ x 1-1/2″
- Blade Speed: 50-295 FT./MIN
- Tension Control: Hydraulic

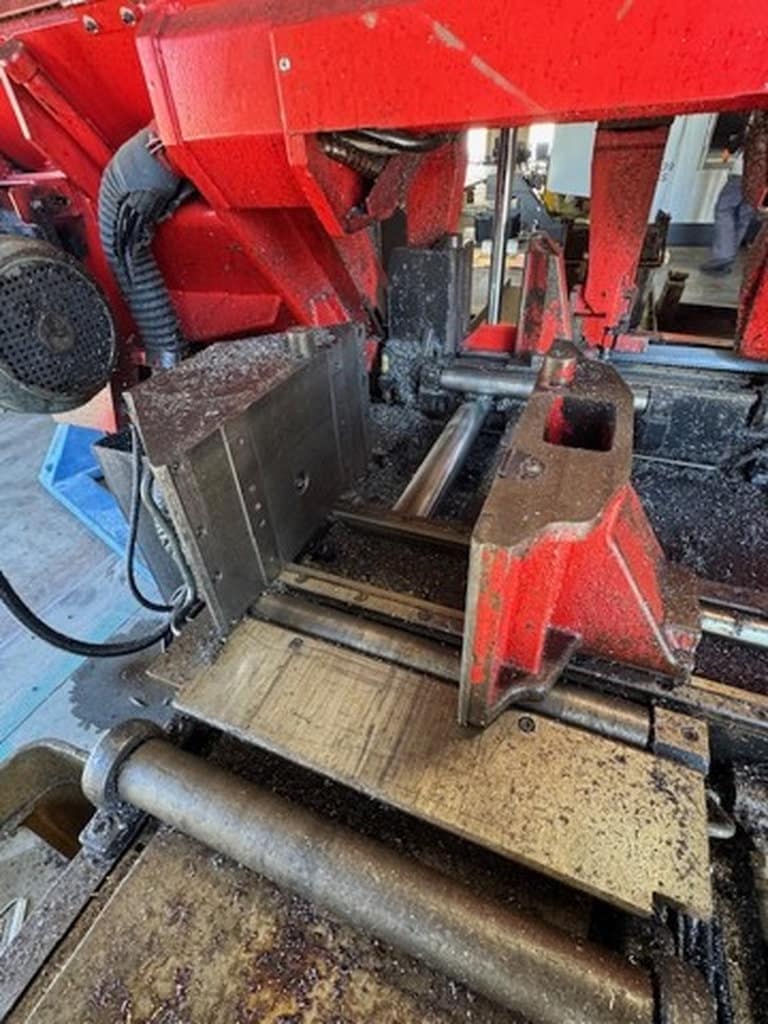

- Vise Operation Type: Main and Rear Vise
- Blade Saw Motor: 7 HP
- Hydraulic Pump Motor: 2 HP
- Cutting Fluid Pump Motor: 1/4 HP
- Chip Disposal: Chip Conveyor
- Material Index Mechanism: Shuttle Vise
- Stroke: 19.6″ (Maximum 9 times index)
- Electrical: 230V / 3PH
Equipped With
Coolant System, Chip Auger, Up to 9 Times Multi-Index Feed, Out of Material Switch, Hydraulic Blade Tensioner, Piece Counter, Variable Blade Speed, Pressure Flow Valve
