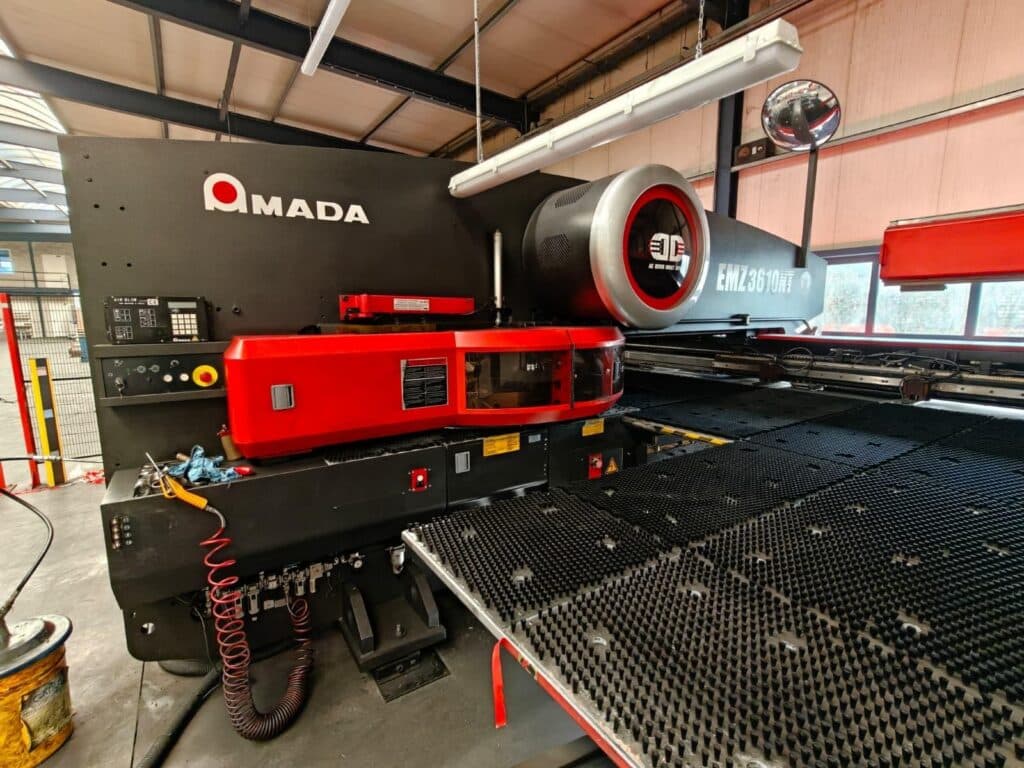

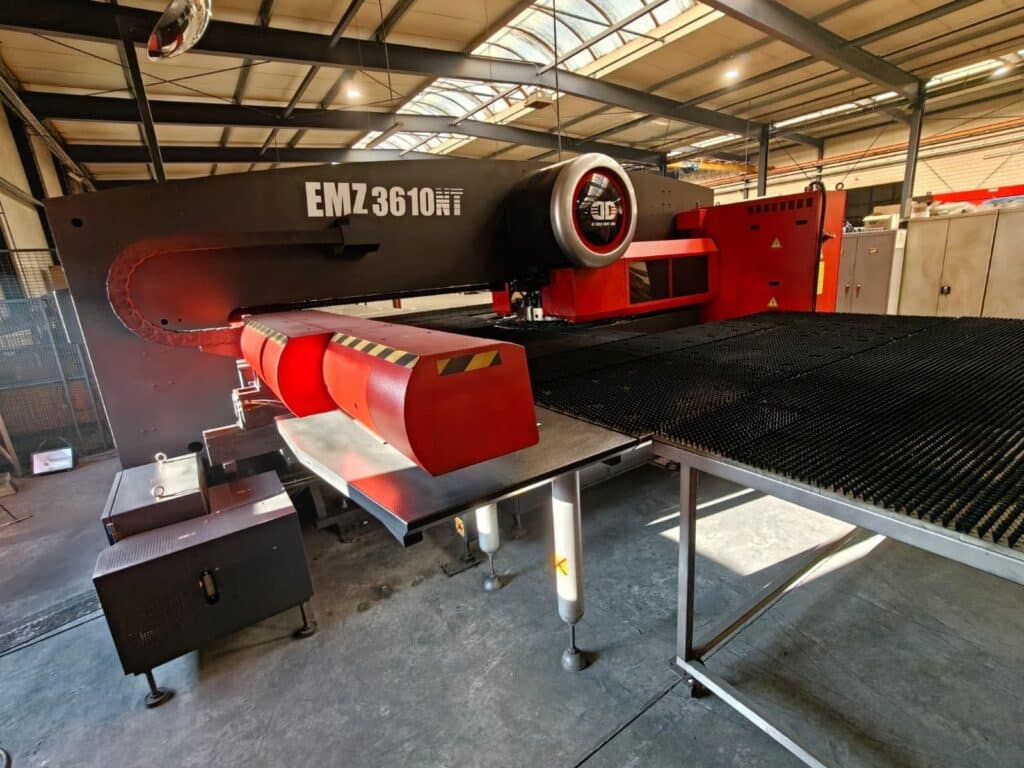

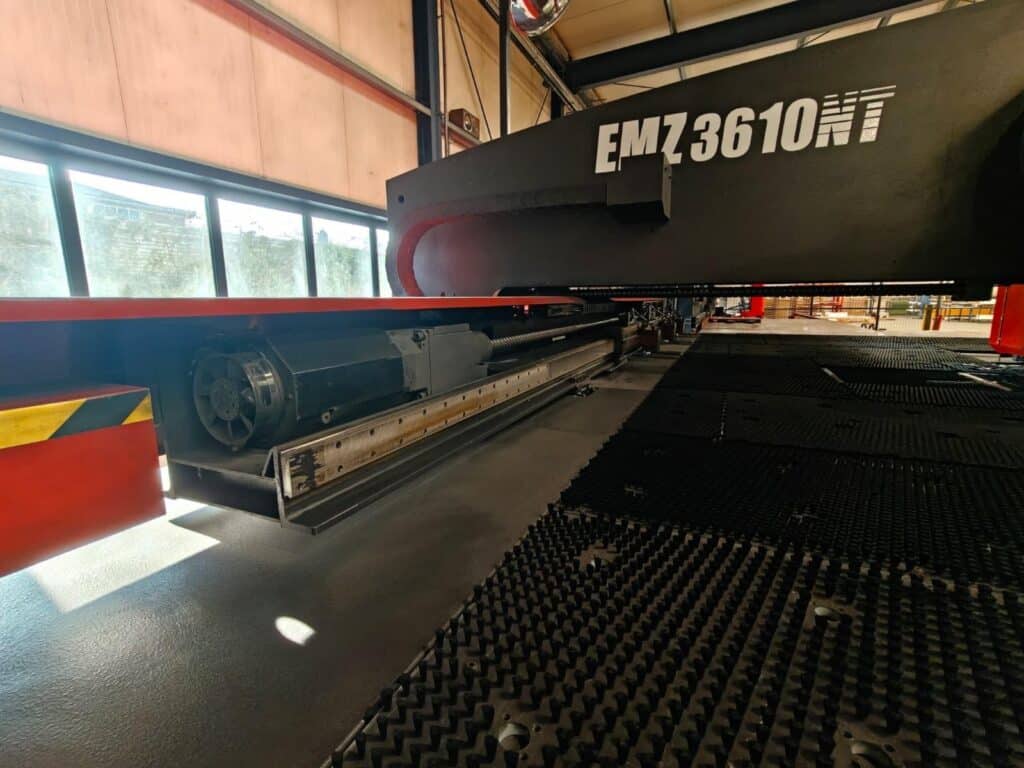

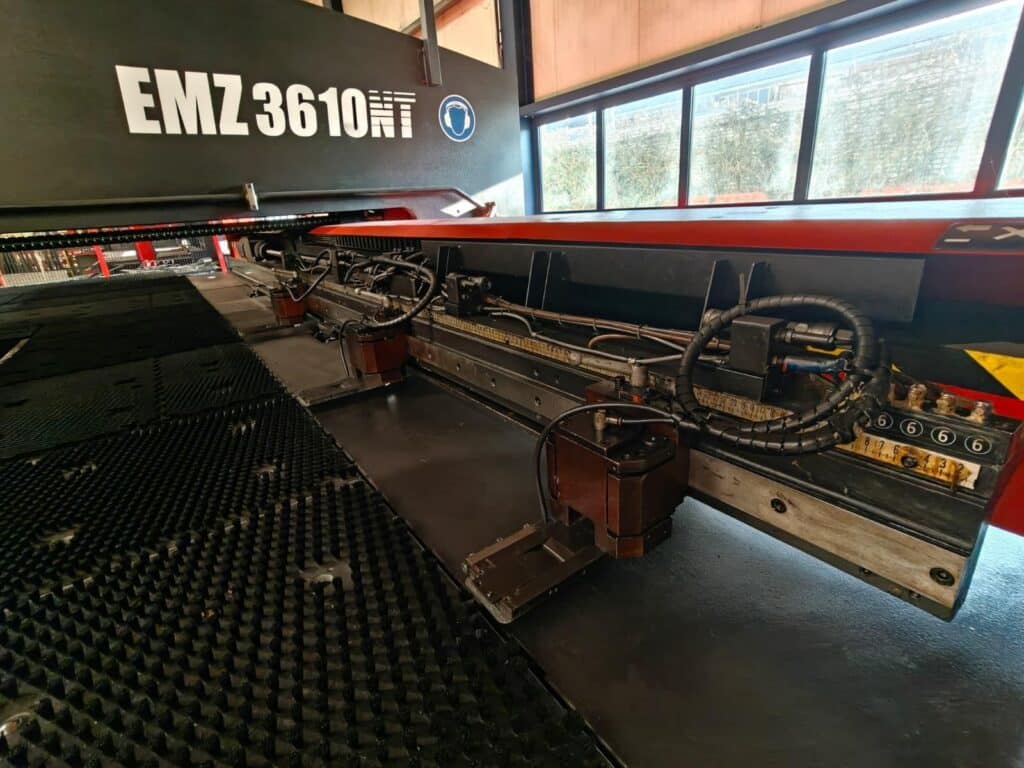

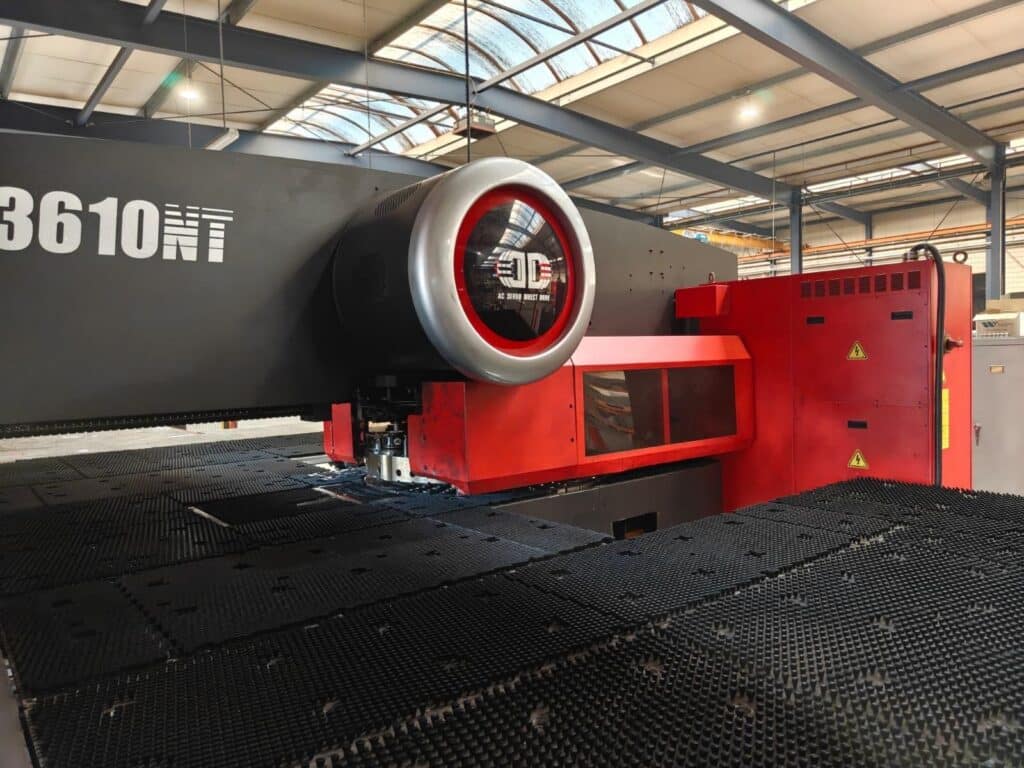

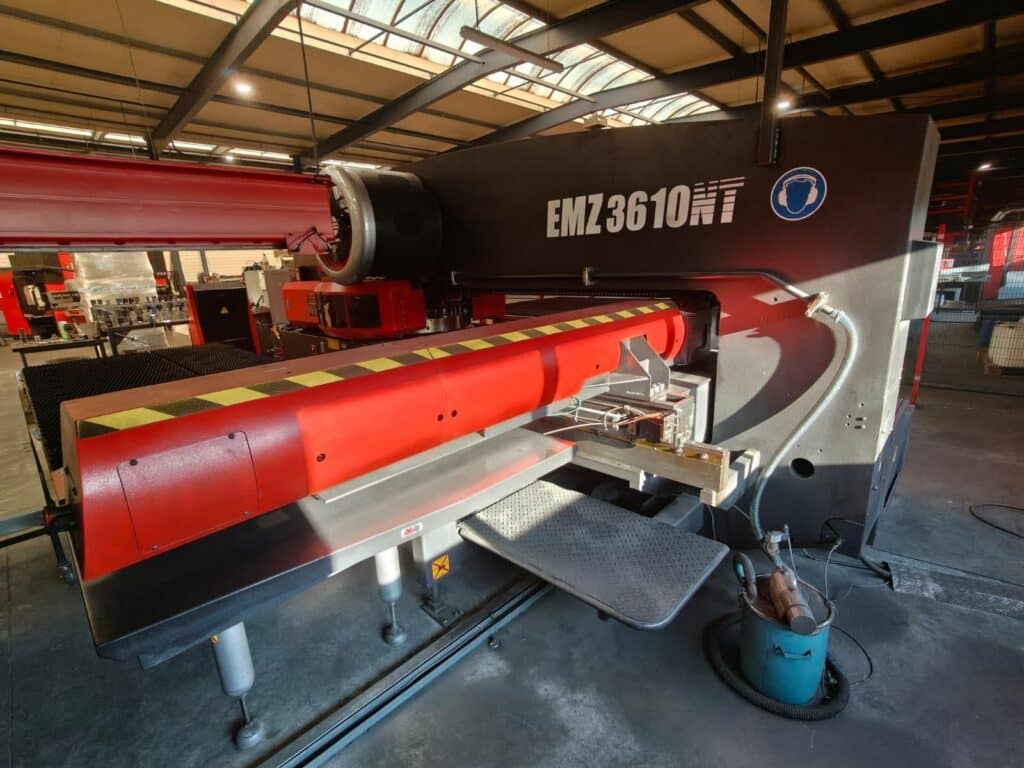

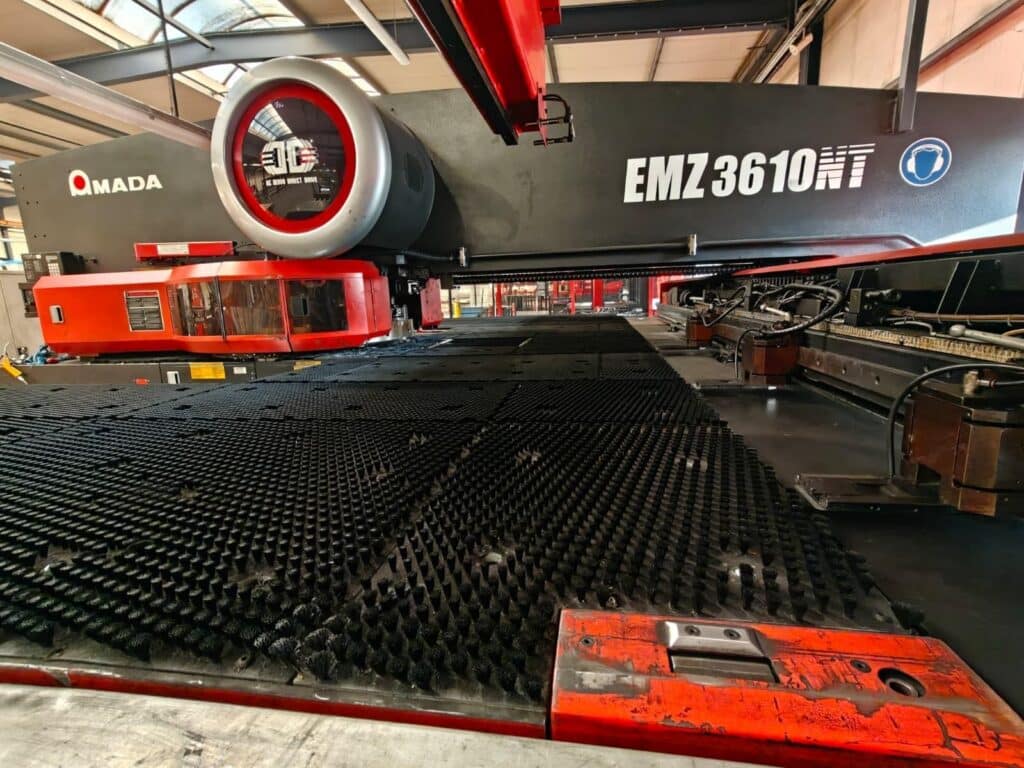

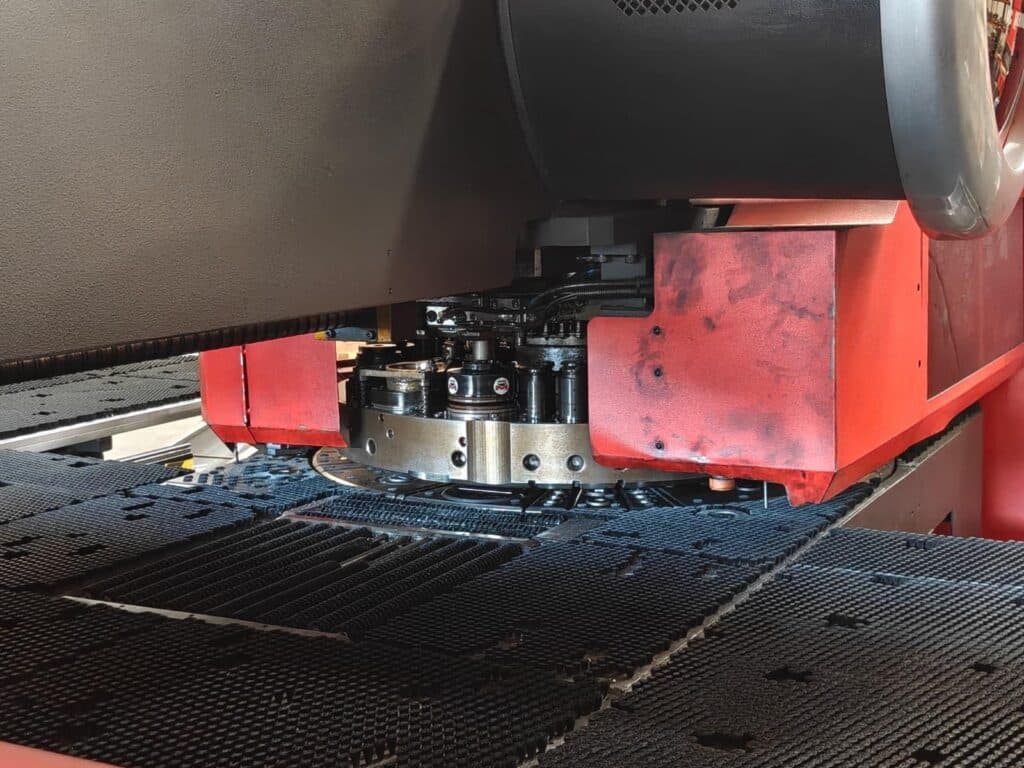

Amada EMZ 3610NT 33 Ton Electric Servo CNC Turret Punch
Stock #: 163260008
$114,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 163260008
- Location: NY
- Brand: Amada
- Model: EMZ 3610NT
- Year: 2006
Specifications
- Punching Capacity: 33 Tons

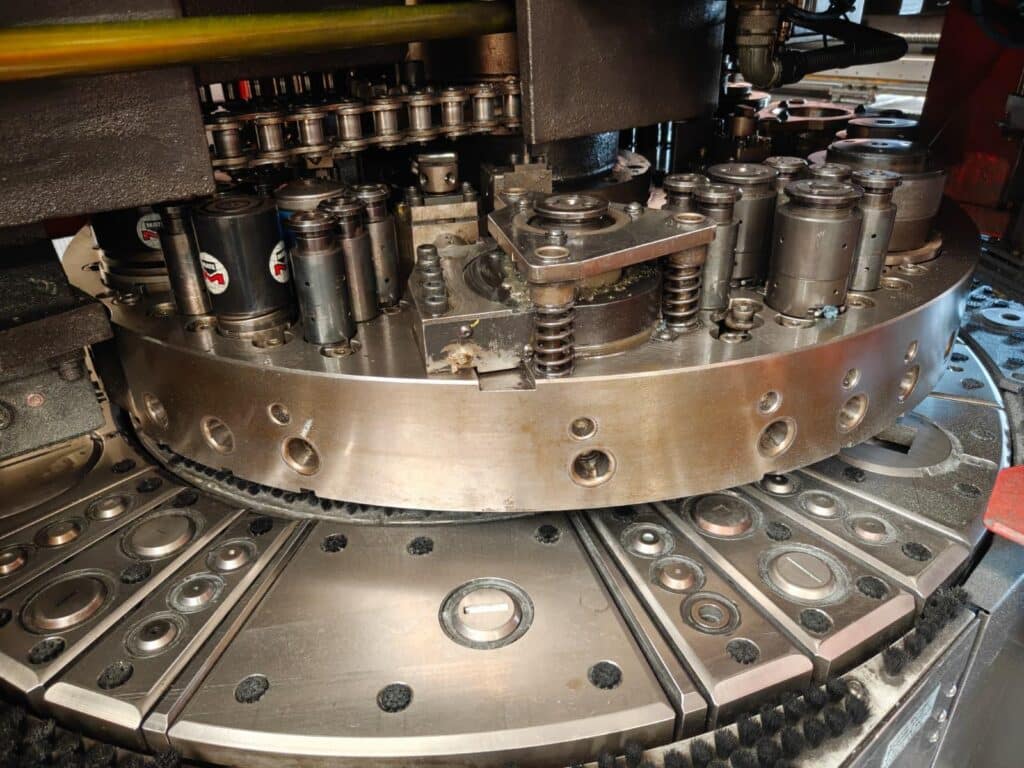

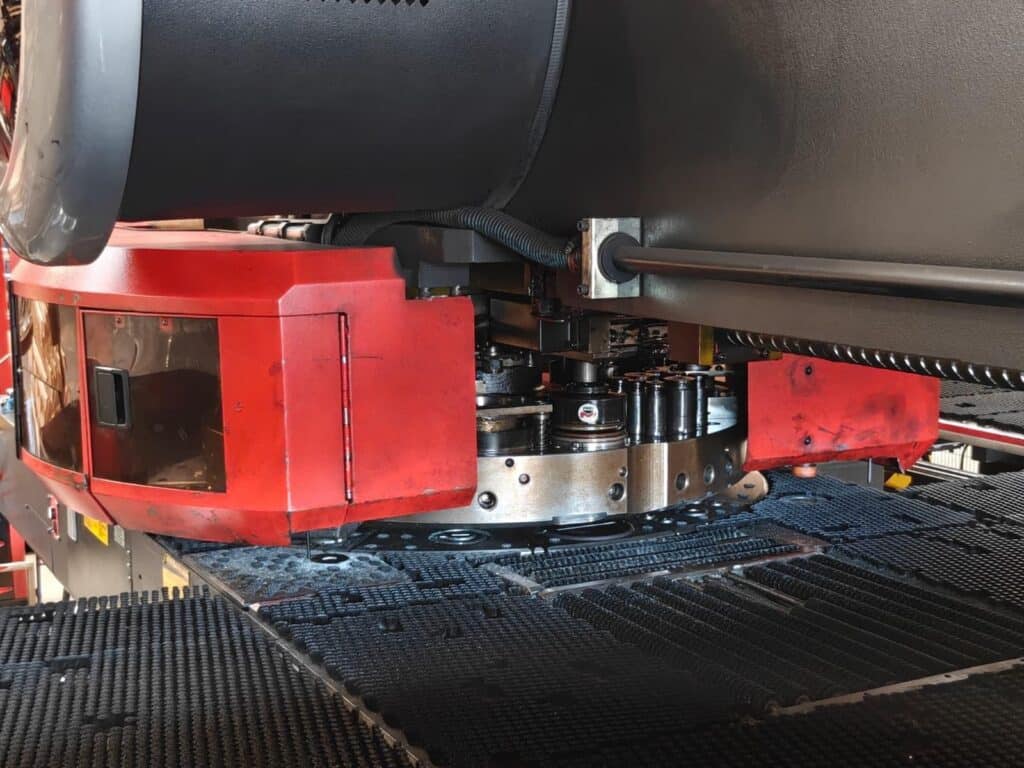

- Turret Capacity: 45 Stations
- Max Sheet Size: 1525mm x 3000mm
- Max Sheet Size (with re-positioning): 1525mm x 5000mm
- Max Sheet Thickness: 4.5mm
- Max Sheet Weight: 50kg (feed speed F1) / 150kg (feed speed F4)
- Y-Axis Travel: 1525mm
- X-Axis Travel: 2500mm
- Positioning Accuracy: +/- 0.07mm
- Strokes Per Minute (1mm pitch, 5mm stroke): 780 strokes/min
- Strokes Per Minute (25.4mm pitch, 5mm stroke – X-axis): 500 strokes/min
- Strokes Per Minute (25.4mm pitch, 5mm stroke – Y-axis): 330 strokes/min
- Max Stroke Length: 37 mm
- Max Feed Speed: X: 100m/min Y: 80m/min
- Turret Rotation Speed: 30 RPM
- Power Supply: 27 kVA
- Air Supply: 250 L /min (8.8 Cu Ft / min
- Operating Air Pressure: 6 bar
Equipped With

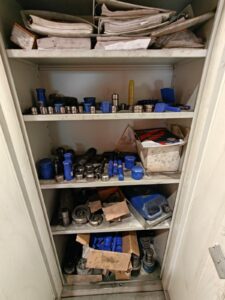

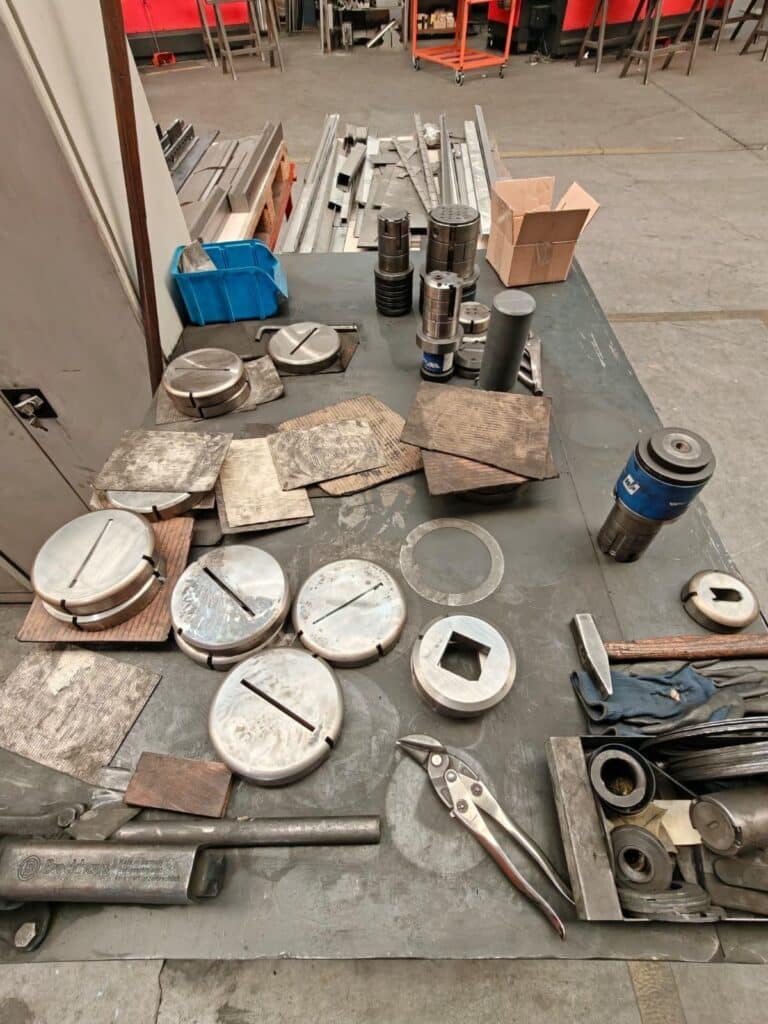

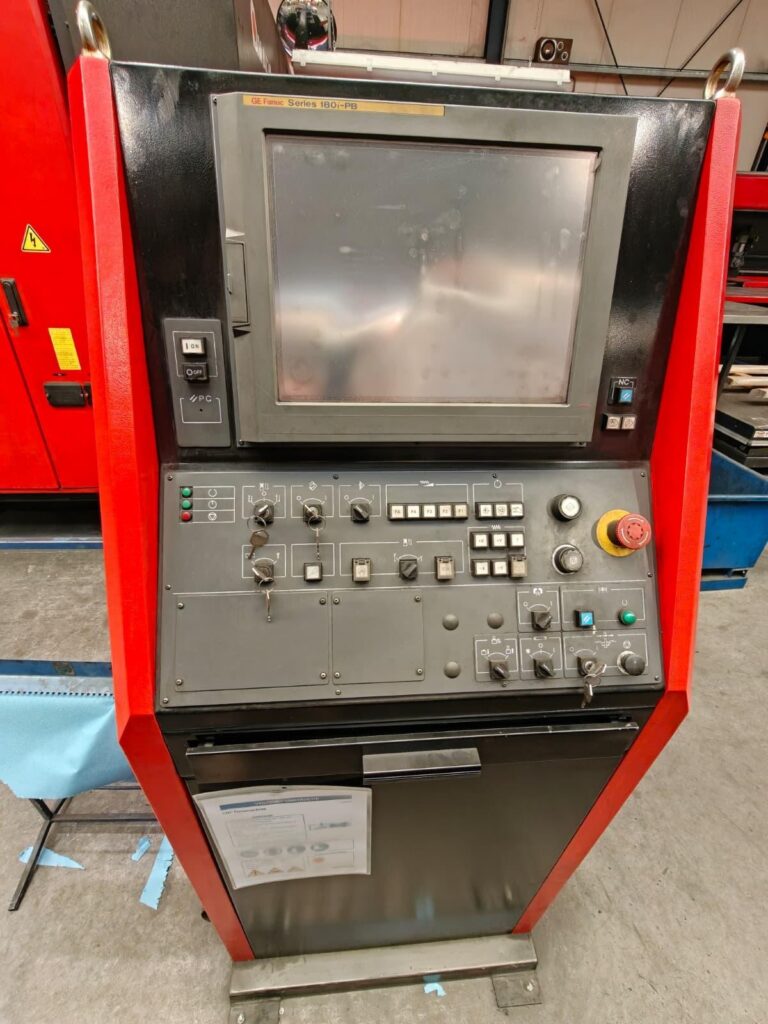

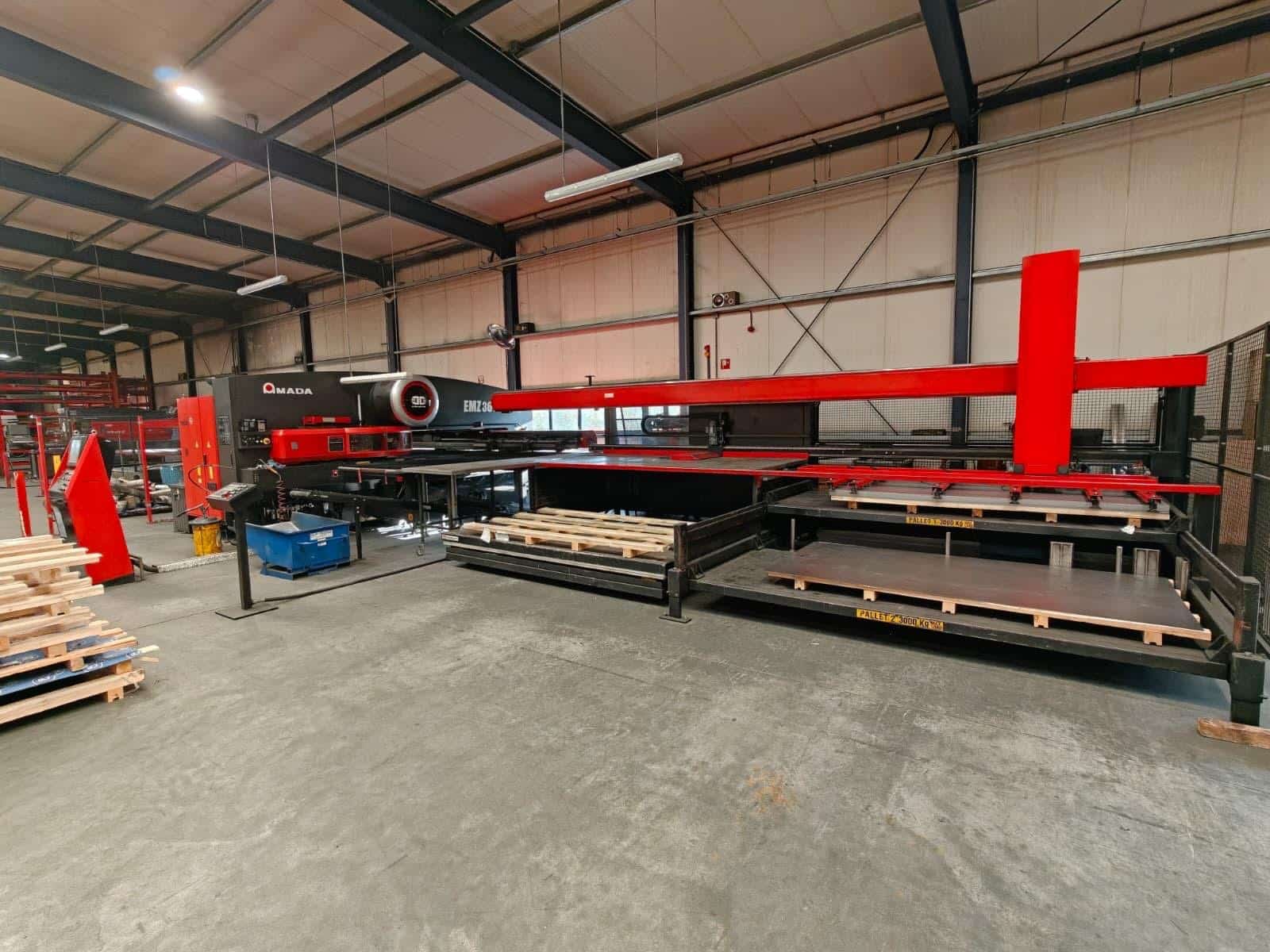

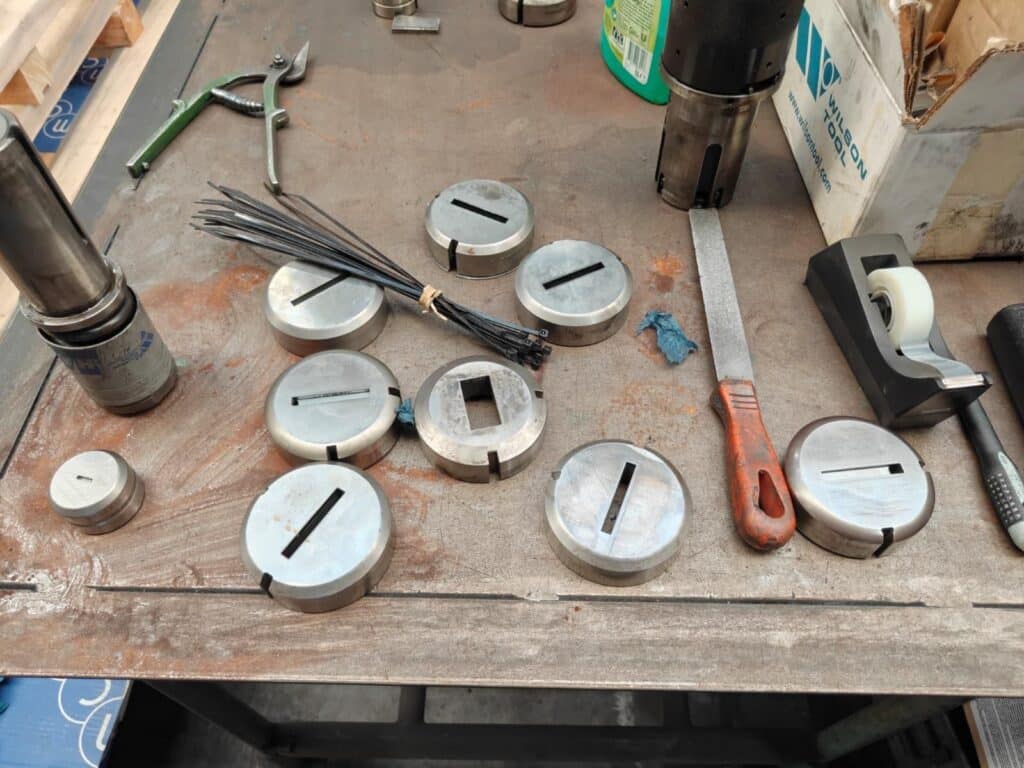

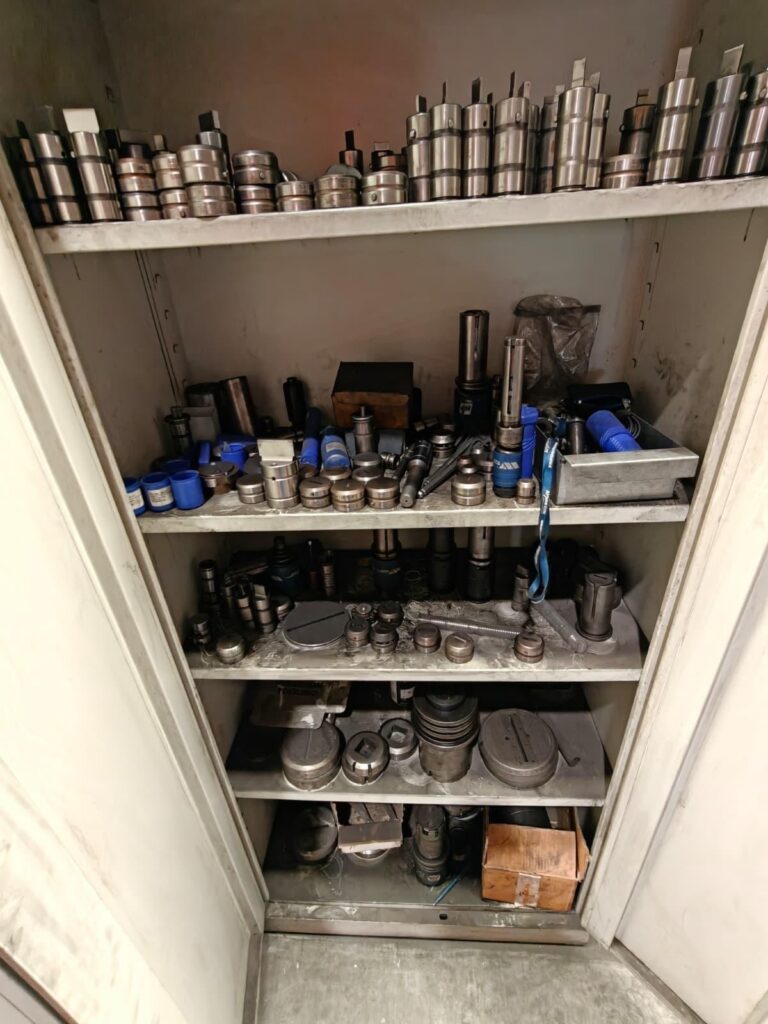

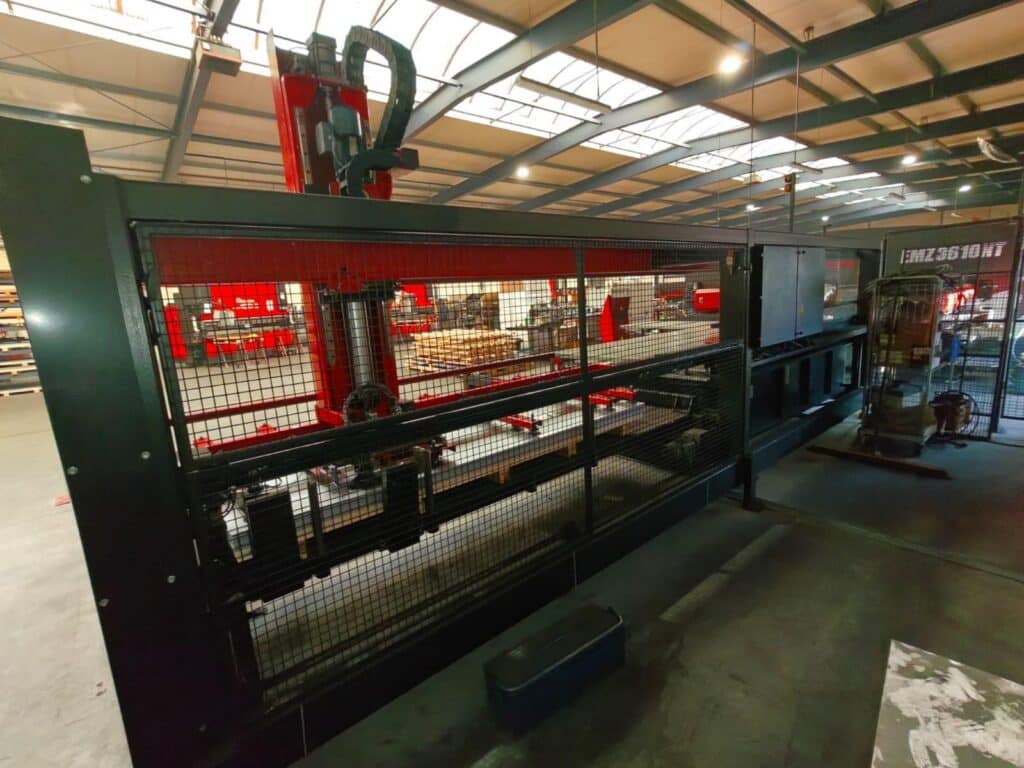

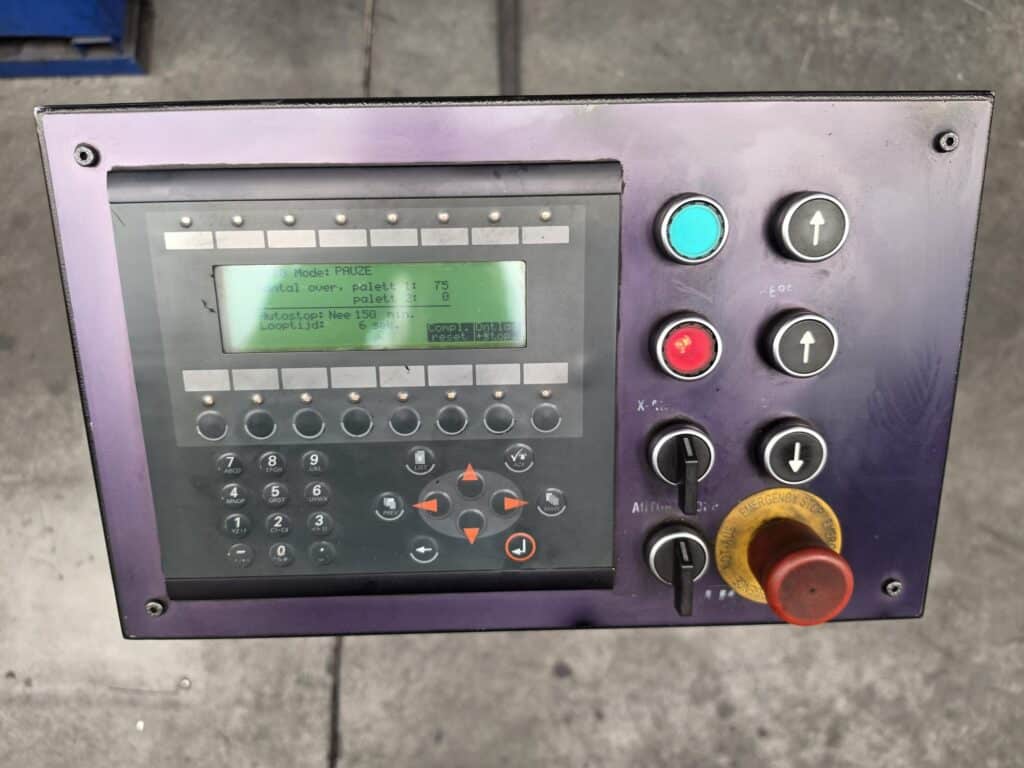

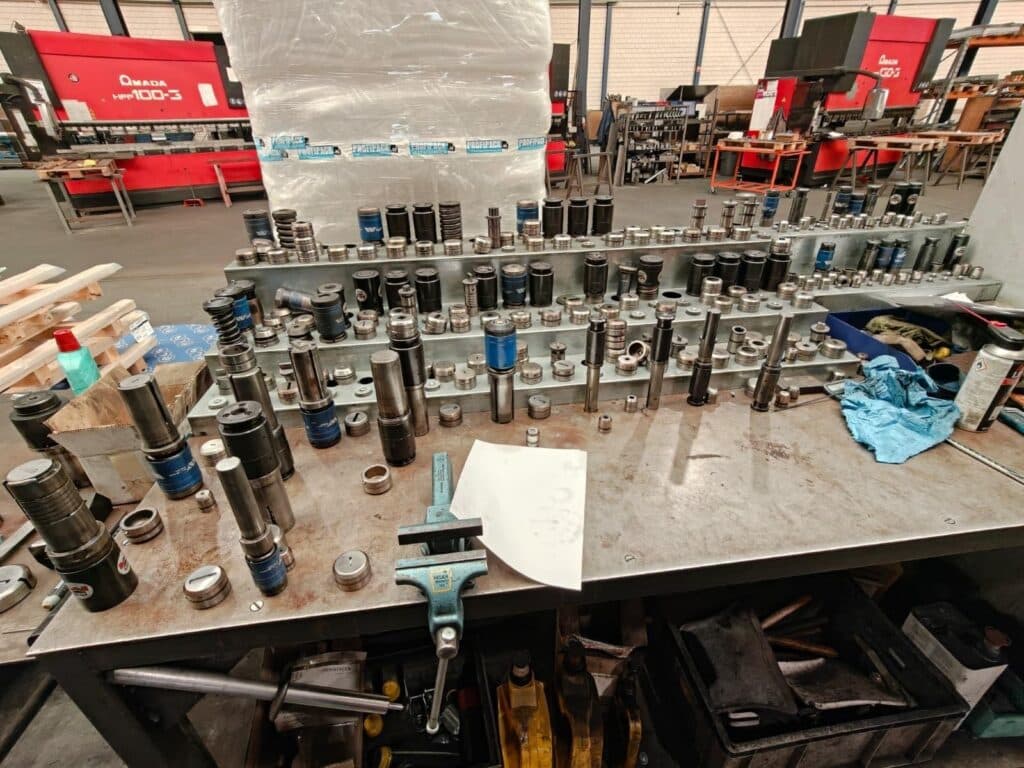

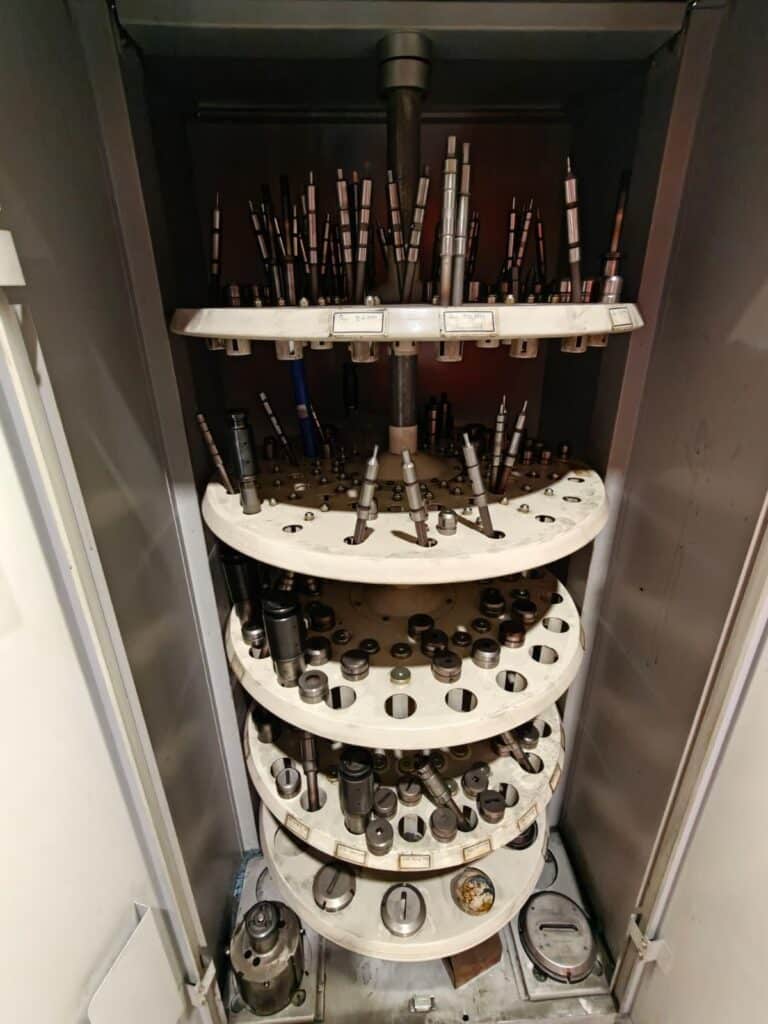

Fanuc AMNC-F Control (180i-PB) , Optional LKI Loading System (1999), Wide Range of Tooling
Additional Info
This machine will be available for shipment end of May 2026. It is currently in plant and can be seen under power.
