Amada EM-3612-ZRT CNC Turret Punch Press w/ 300 Tool Changer
Stock #: 111250028
$195,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 111250028
- Location: GA
- Brand: Amada
- Model: EM-3612-ZRT
- Year: 2014
- Approx. Shipping Weight: 25,000 KG
- Loading Fee: Rigging Required
Specifications
- Tonnage: 33
- Max Travel: 120″ x 60″
- Max Sheet Size (with on reposition): 240″ x 60″
- Throat Depth: 62.6″
- Max Travel Y-Axis Center Track: 0.394″ to 60.4″
- Max Sheet Thickness: .177″ Mild Steel
- Max Material Weight: 110 lbs to 330 lbs (Depending on Table Speed & Acceleration)
- Punching Accuracy: .004″
- Turret Rotation Speed: 30 RPM
- Turret Feed Clearance: .984″
- Rotation Speed: 60 RPM
- Max Hole Diameter: 4″
- Number of Turret Stations: 32
- Number of Tapping Stations: 4
- Power Required: 34 kVA
Equipped With

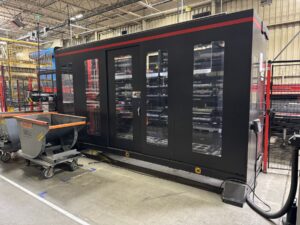

58 Station Turret, 4 Tapping Stations, 300 Tool Automatic Tool Changer, RS 232C Interface, Pneumatic X-Gauge Block, LAN Connection (TCP/IP), Line Spec. Interface, USB PortMP Interface, Sheet Pull Detection, Air Blow, (4) Pneumatic Clamps, Slug Suction System (All Stations), Auto Reposition System, Punch Assembly Jig, Sheet Jam Sensor, Station Alignment Tools (A,B, 1″ Auto-Index Stations only)
Additional Info
System does not include the sheet loading automation system which can be seen in some of the pictures
