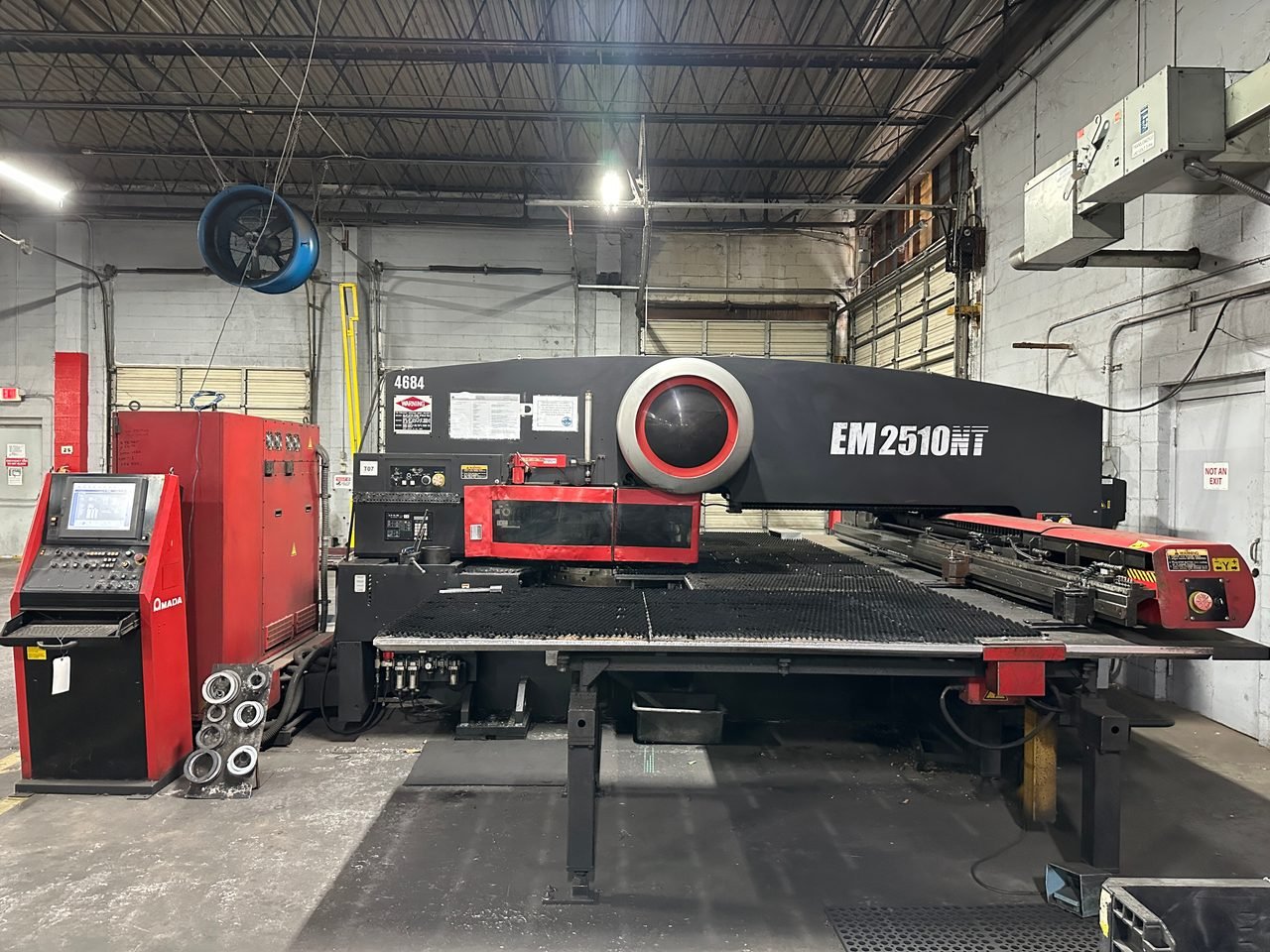

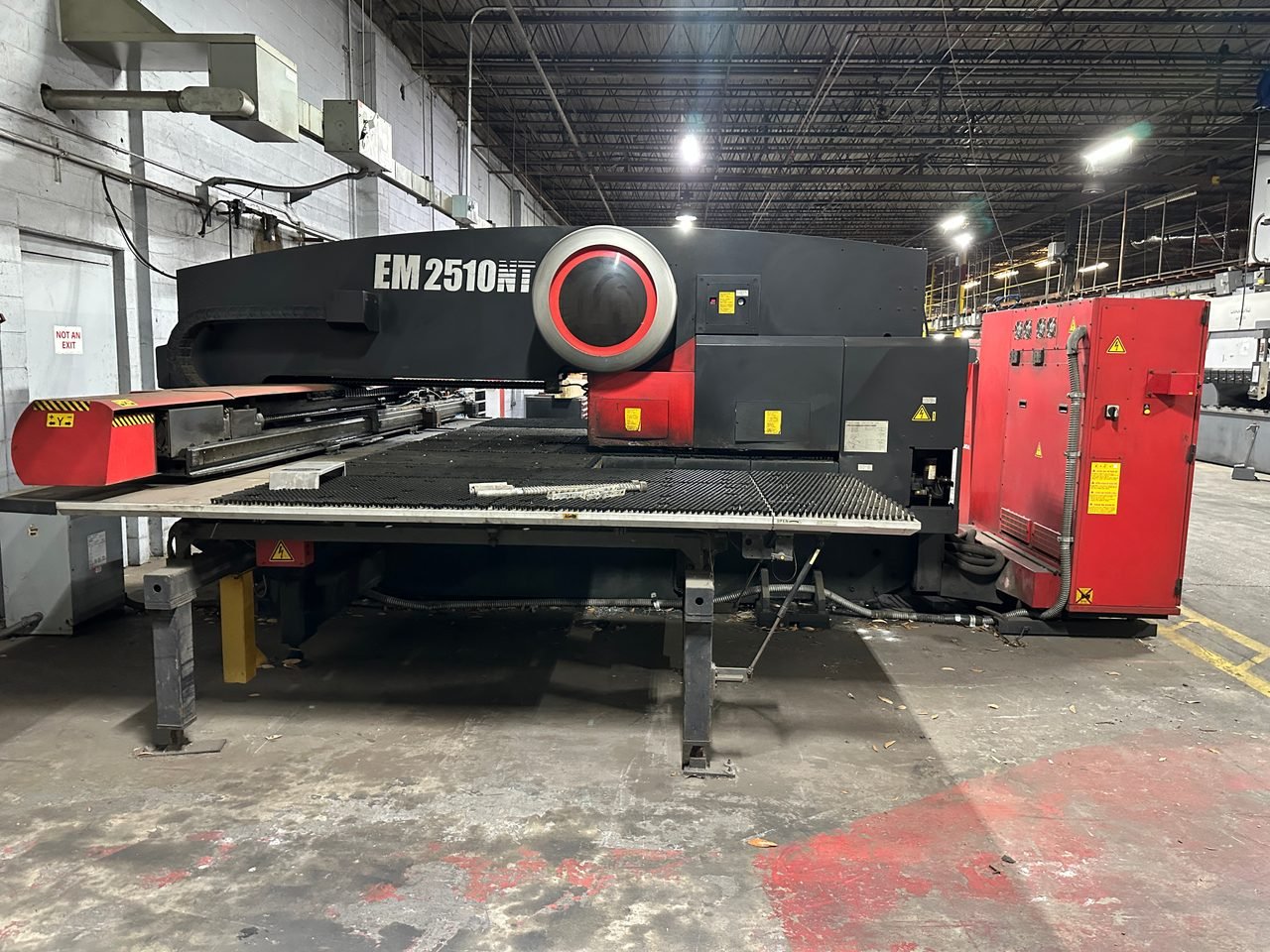

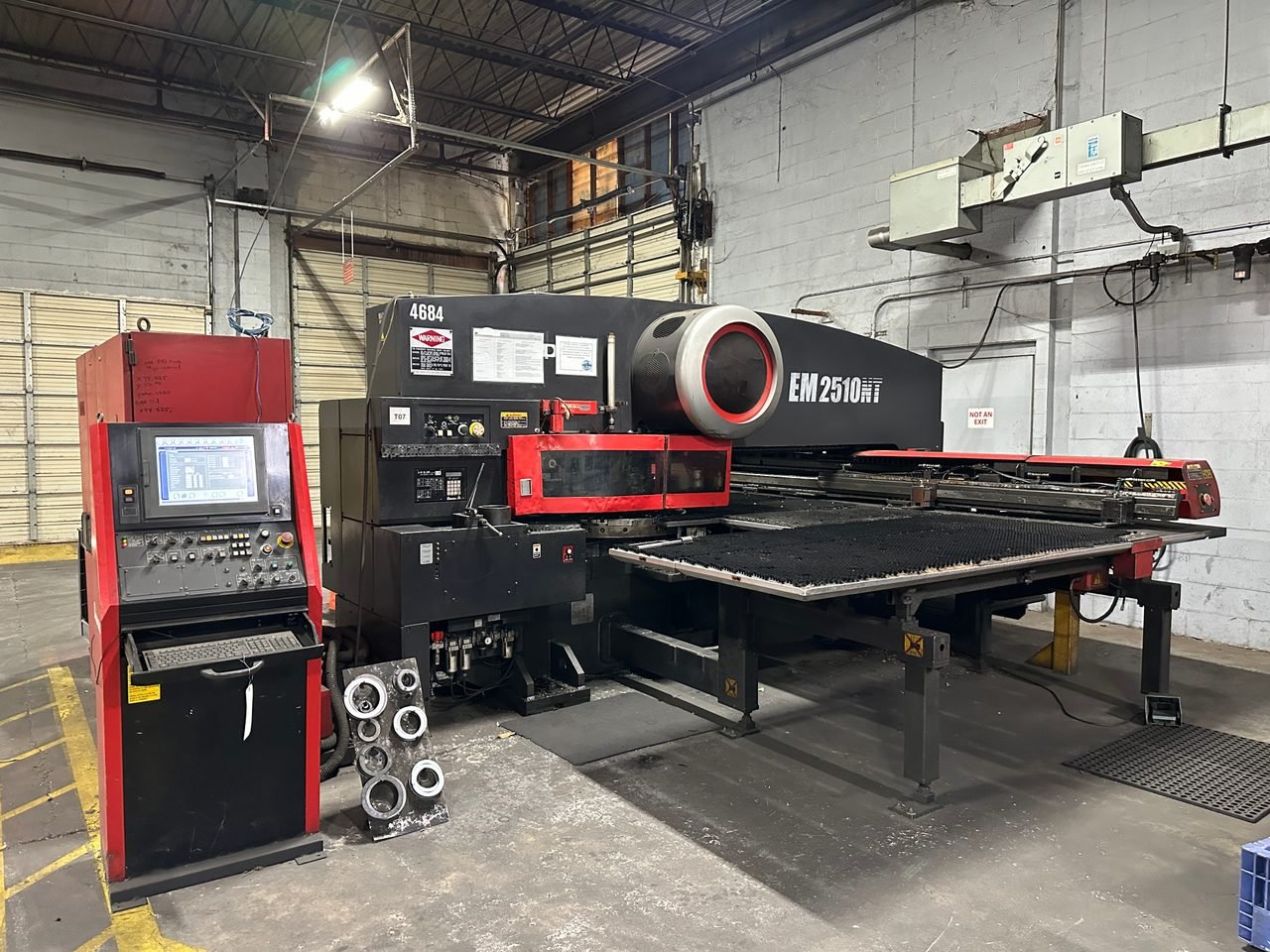

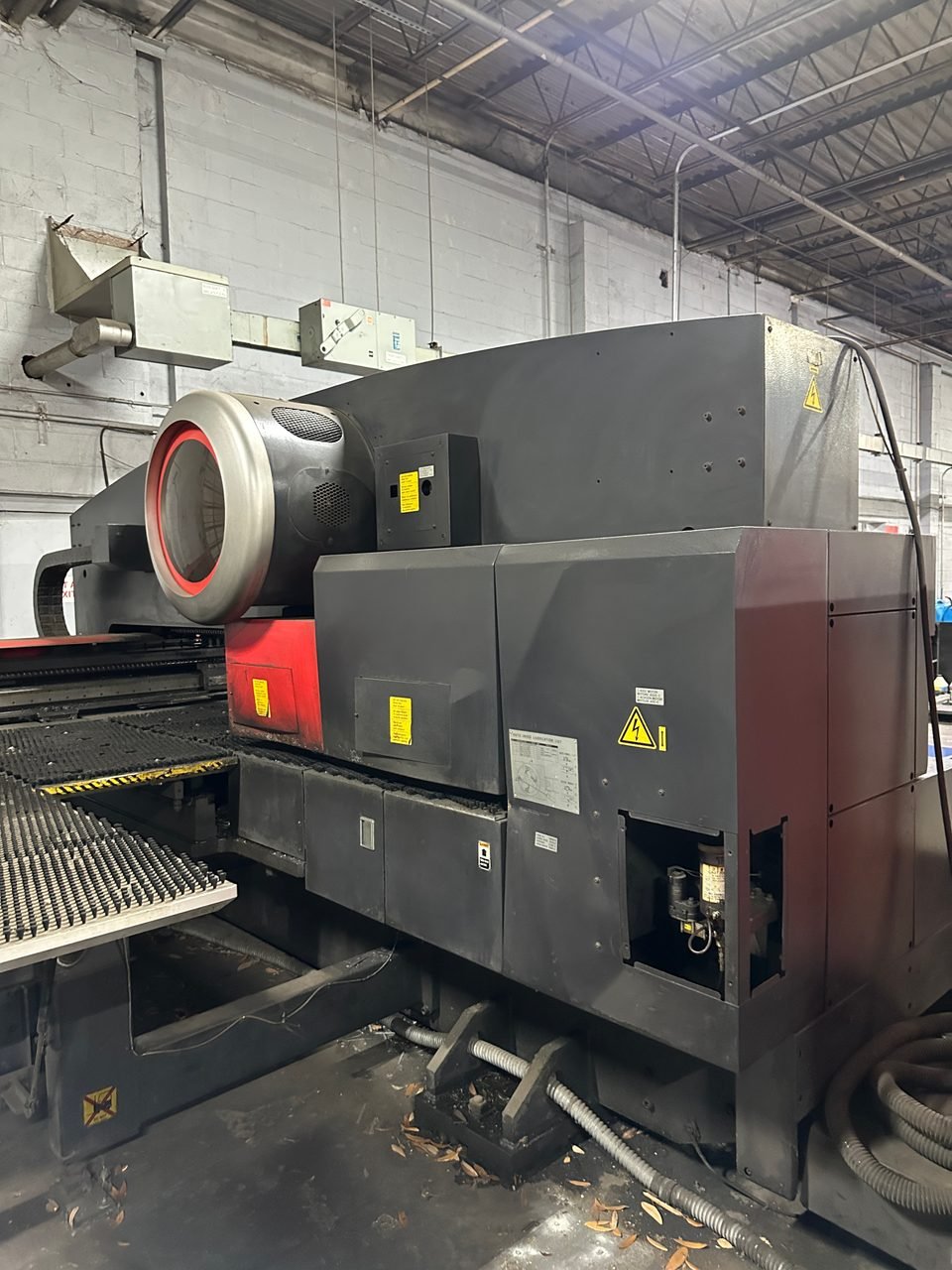

Amada EM 2510NT 22 Ton CNC Turret Punch
Stock #: 122260014
$129,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 122260014
- Location: SC
- Brand: Amada
- Model: EM 2510NT
- Year: 2004
- Approx. Shipping Weight: 39,683 lbs (18,000 kg)
- Approx. Shipping Dimensions: 218″ x 202″ x 92″H (125″H with mirror installed)
Specifications
- Press Capacity: 22 US Tons (200 kN)
- Max Sheet Size: 50″ x 98.4″ (1270 mm x 2500 mm)
- Max Sheet Thickness: 0.126″ (3.2 mm)
- Max Sheet Mass: 110 lbs (50 kg) / 330 lbs (150 kg) on F4
- X-Axis Travel: 98.4″ (2500 mm)
- Y-Axis Travel: 50″ (1270 mm)
- Punching Accuracy: ±0.002″ (±0.07 mm)
- Max Press Stroke Length: 1.456″ (37 mm)
- Max Feed Speed (X-Axis): 328 ft/min (100 m/min)
- Max Feed Speed (Y-Axis): 262 ft/min (80 m/min)
- Turret Speed: 30 RPM
- Power Supply: 27 kVA

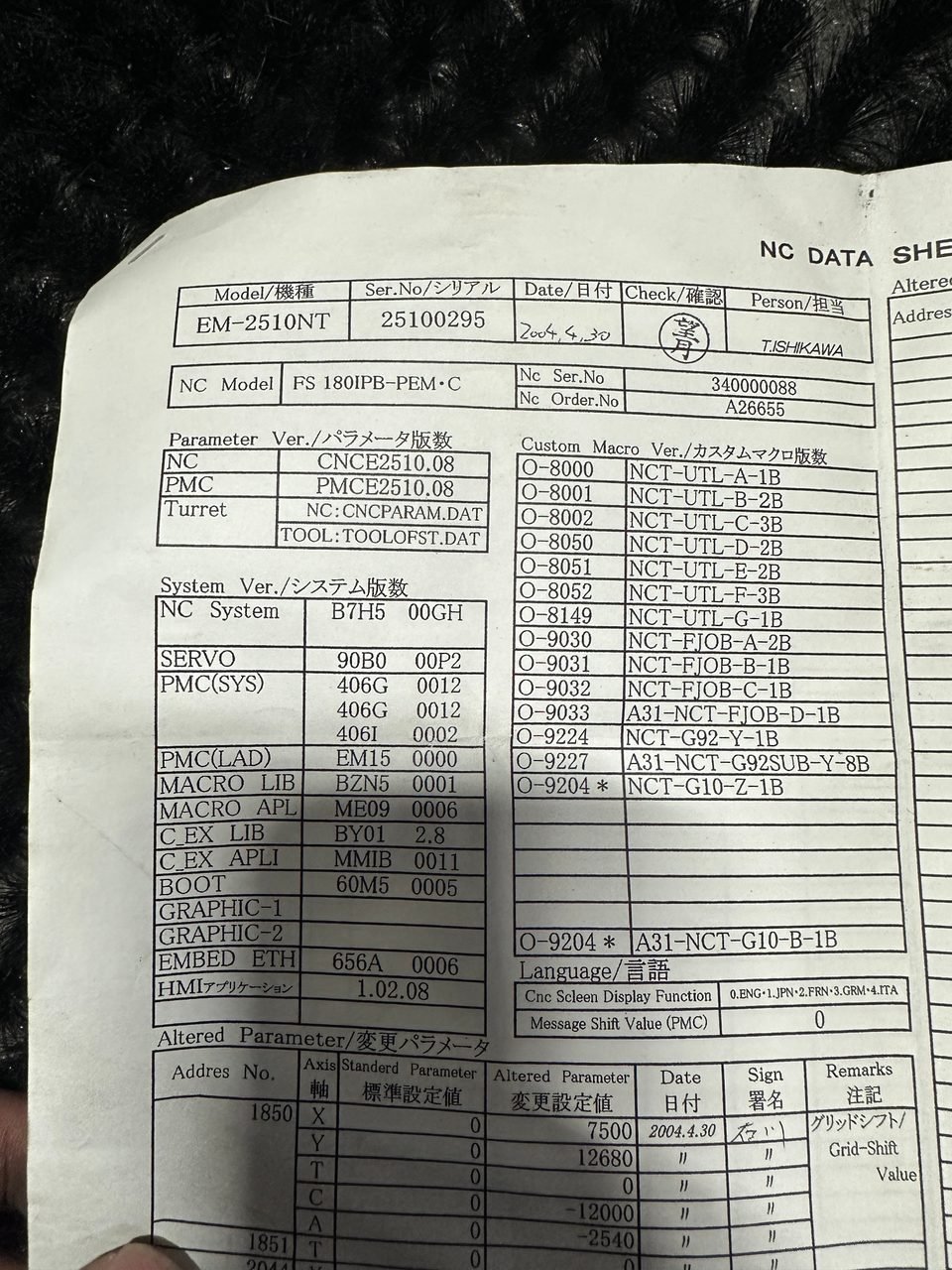

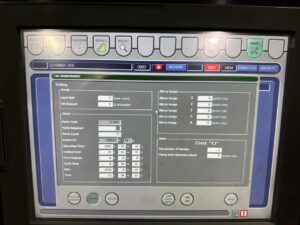

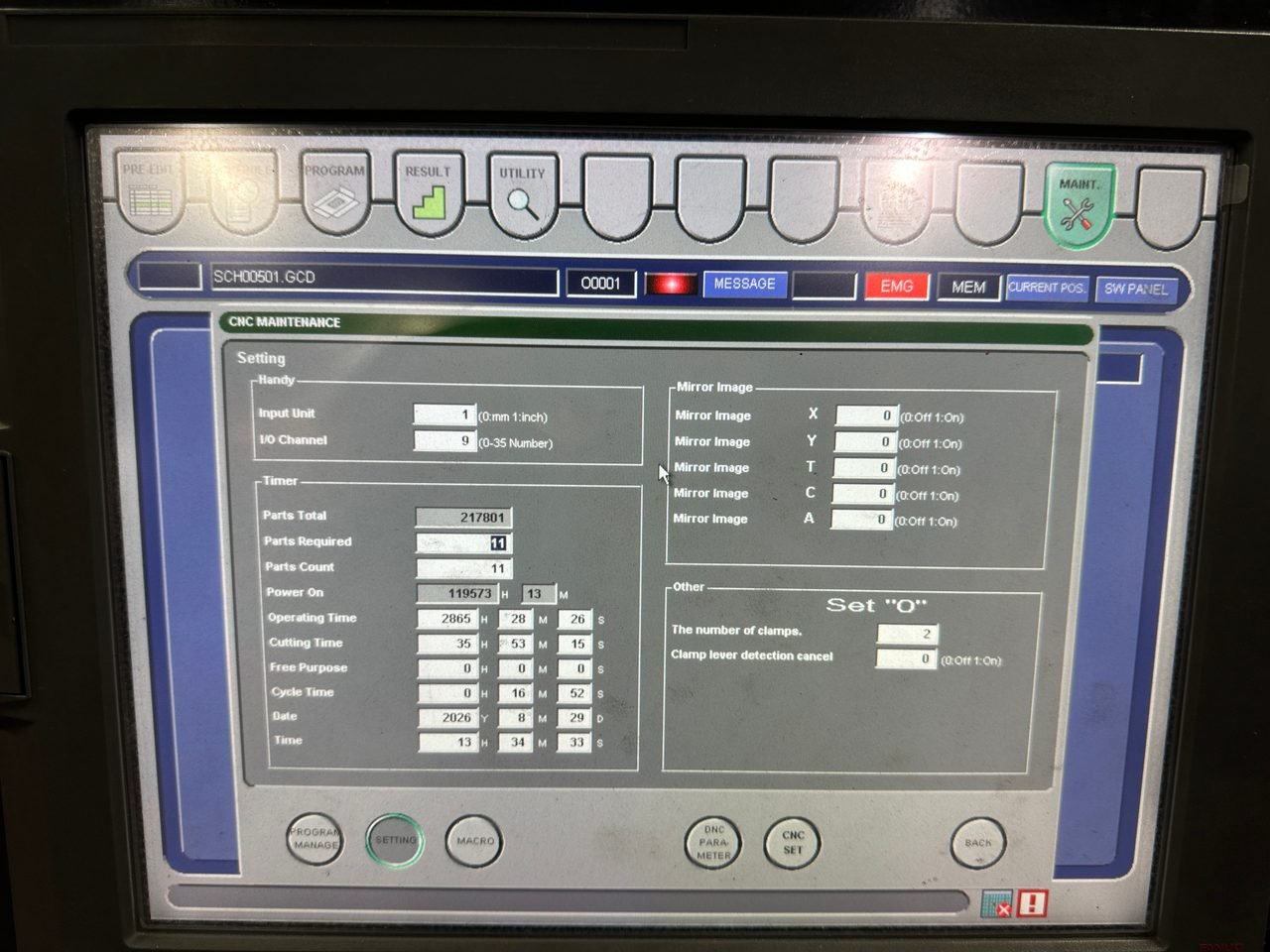

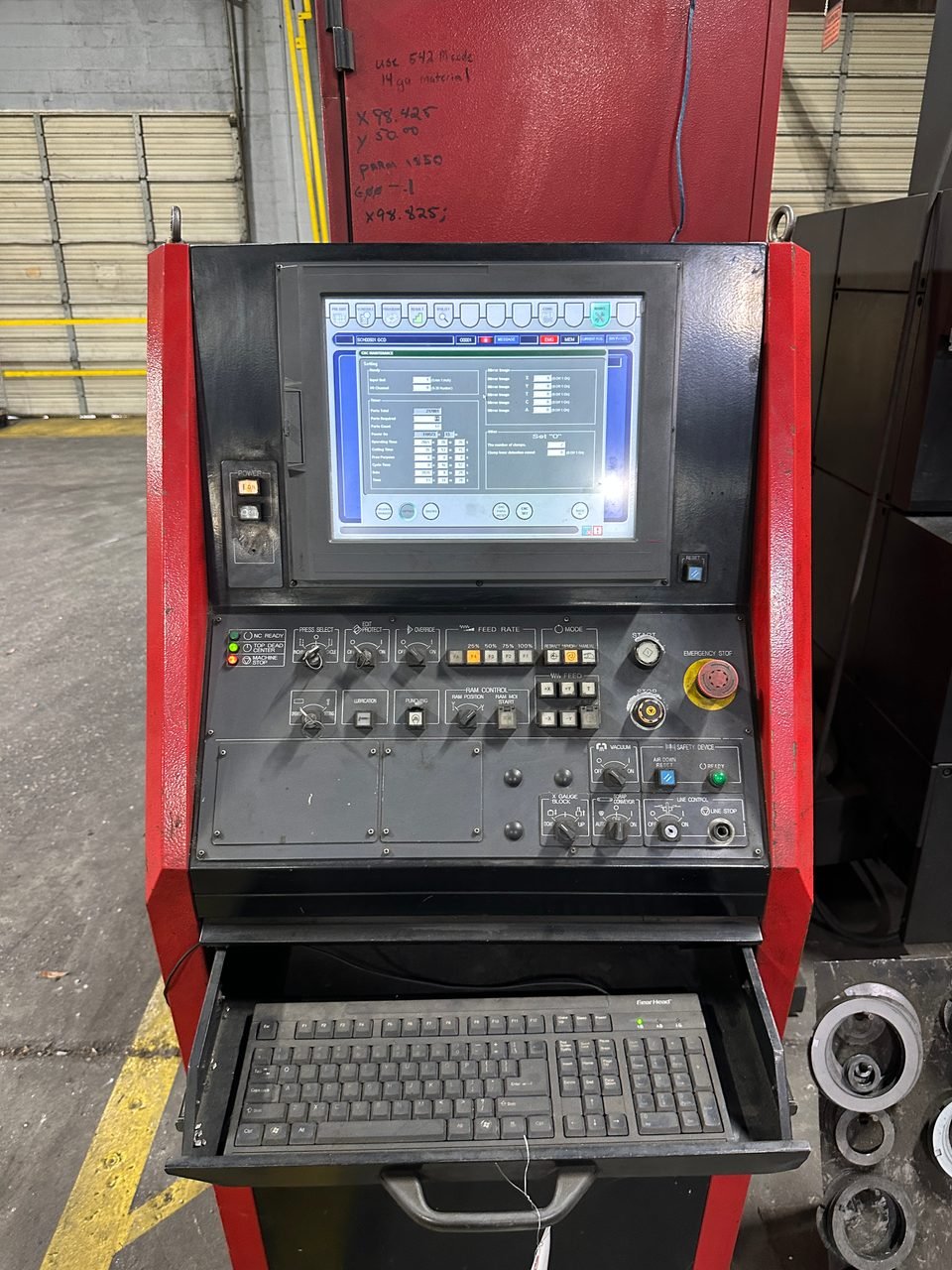

- Control: AMNC-F (FANUC 180iPB)
Equipped With

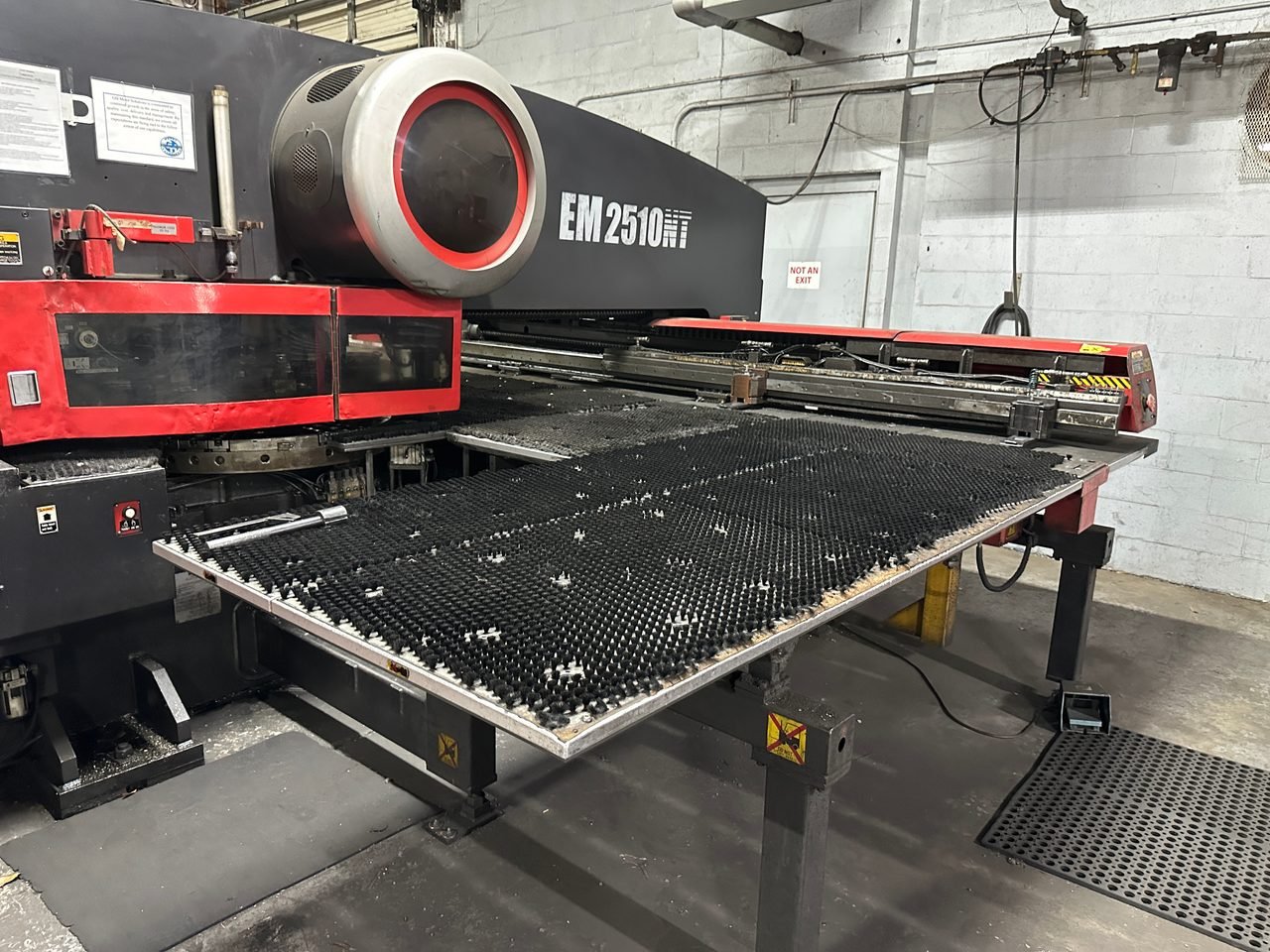

Amada Control, Manuals, Brush Table
Additional Info
Can be inspected upon request
