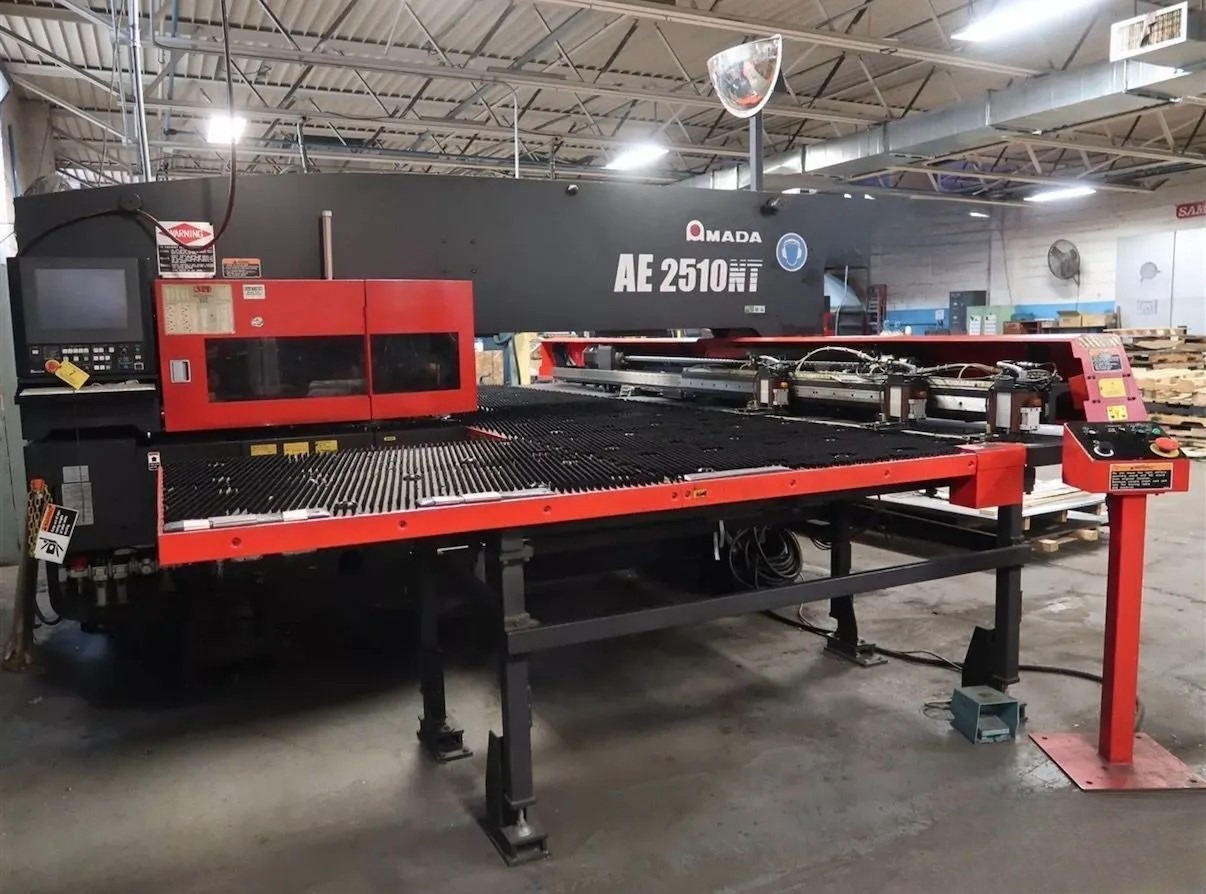

Amada AE 2510 NT CNC Turret Punch Press (2013)
Stock #: 123260004
$189,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 123260004
- Location: United States
- Brand: Amada
- Model: AE 2510 NT
- Year: 2013
- Approx. Shipping Weight: 28,660 Lbs
Specifications
- Tonnage: 22 T
- # Turret Stations: 45 station
- Control: CNC
- Capacity: 22 tons
- Sheet Size: 98.425" x 50"
- Largest Punched Hole: 3 1/2"
- Number Of Turret Stations: 45 Station 4-Auto-Index
- Stroke Length: 1.65" (increased forming cap.)
- X/Y Hits Per Min. 1" Centers .197" Stroke: X=350 HPM, Y=280 HPM
- X/Y Hit Rate Marking: 900 HPM
- Linear Positioning Speed: X=3,150 IPM, Y=2,362 IPM
- Control Model: Fanuc AMNC/PC (NT)
- Drive Motors: AC Servo
- Smallest Programmable Increment: .001"
Equipped With
Single AC Servo Driven Ram, Built-In Microprocessor – Standard Software Included For Programming A Comprehensive Set Of Patterns Used In Punching, Nibbling, And Notching Operations, Diagnostic System – Extensive Diagnostic System Indicates Programming Errors And Pinpoints Machine And Control Malfunctions, On Screen G-Code Simulator – See The Part Before It Is Punched, Intelligent Turret Set Up- Input Tool Locations And Angles, Clamp Positions, Job Scheduler- Specifiy Job Order And Quantities, Stripping Sensor – Automatically Halts Machine Operation If Tool Does Not Strip, Automatic Repositioning – Heavy Duty Work Holders Secure Material During Repositioning, Metric Or Inch Dimensional Programming, Precision Ground Recirculating Ball Lead Screws For X And Y Axis, Crash Proof Clamp Sensors, Hardened And Ground Turret Index Pins And Bushings, Safety Interlocks And Overrun Protectors With All Step Control Prevents Accidents, Air Blow System, 45 Station 4-Auto Index Thick Turret Brush Table
Additional Info
Can be inspected upon request.
