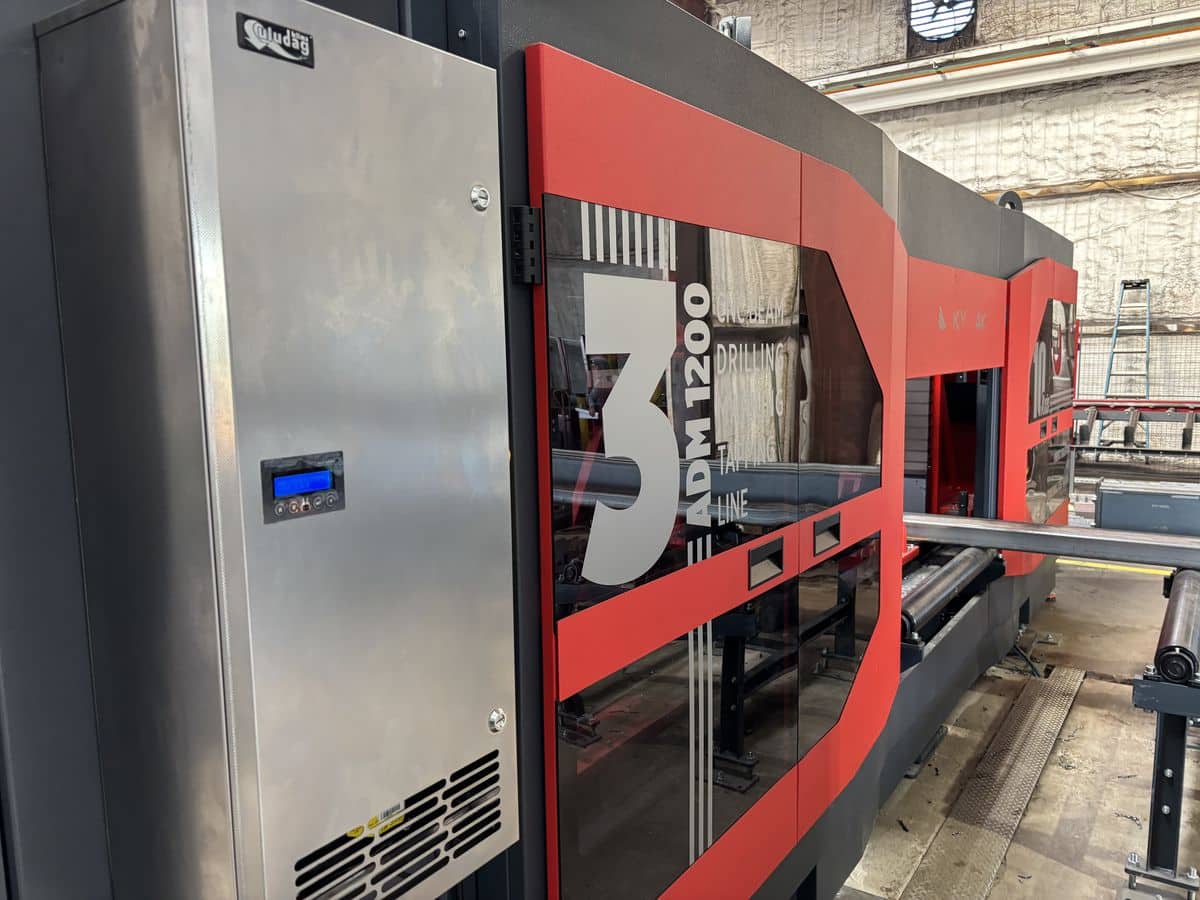

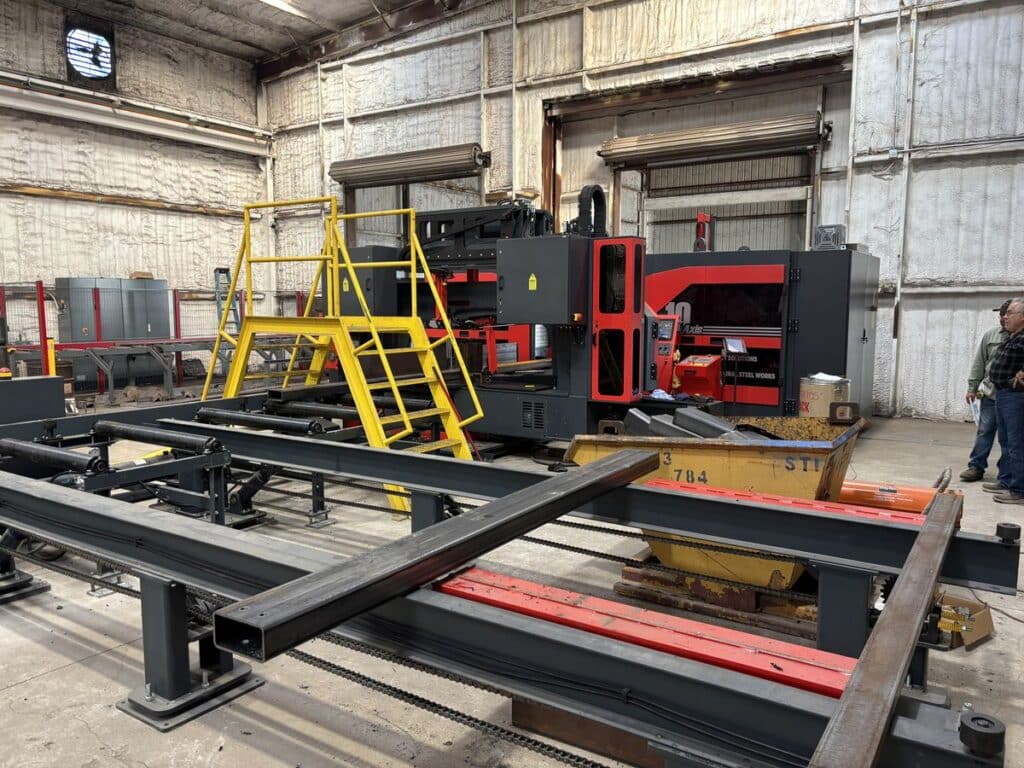

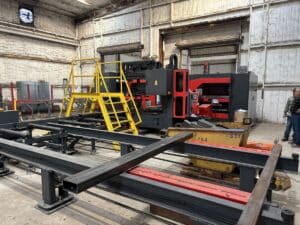

Akyapak 3 ADM 1200 / AST 1300 Three Spindle 10-Axis CNC Beam Drill Line with Miter Bandsaw (2025)

Stock #: 171260016

$425,000.00

See Product Details

Business Financing Available

  • Stock #: 171260016
  • Brand: Akyapak

Business Financing Available

  • Stock #: 171260016
  • Brand: Akyapak

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Provide Shipping Quote
Provide Financing Options
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Product Description

General Info

  • Stock #: 171260016
  • Location: TX
  • Brand: Akyapak
  • Model: 3 ADM 1200 / AST 1300
  • Year: 2025
  • Loading Fee: Rigging Required

Specifications

  • Capabilities: Drilling, Milling, Tapping, Countersinking, Layout Marking
  • Material: Beam, Channel, Tube, Angle, Plate
  • Min Beam Size: 8″ x 3.15″
  • Max Beam Size: 48″ x 20″
  • Number of Drill Heads: 3
  • Automatic Tool Changer (ATC): 3 (4 Station)
  • Drill Diameter: 3/8″ – 1-1/2″
  • Thread Tapping: M10 – M24
  • Drilling Thickness: 0.2″ – 3.94″
  • Tool Holder: BT40
  • Spindle Speed: 50 – 3,000 RPM (Stepless)
  • Vertical Spindle Strokes (X, Y, Z): 57″, 20″, 36″
  • Horizontal Spindle Strokes (X, Y, Z): 20″, 21″, 28″

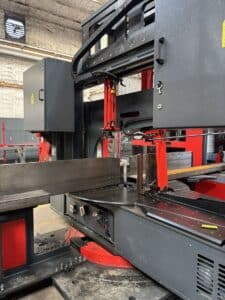

  • Miter Bandsaw Cutting Capacity: 3.15″ – 51.5″
  • Cutting Angle: 60°/60°
  • Upper Pressure Cylinders for Batch Cutting: Yes
  • Blade: 67 x 1,6mm (2.64″ x 16ga)
  • Total Saw Power: 24HP
  • Blade Speed: 65.6 – 377.3 ft/min

Equipped With

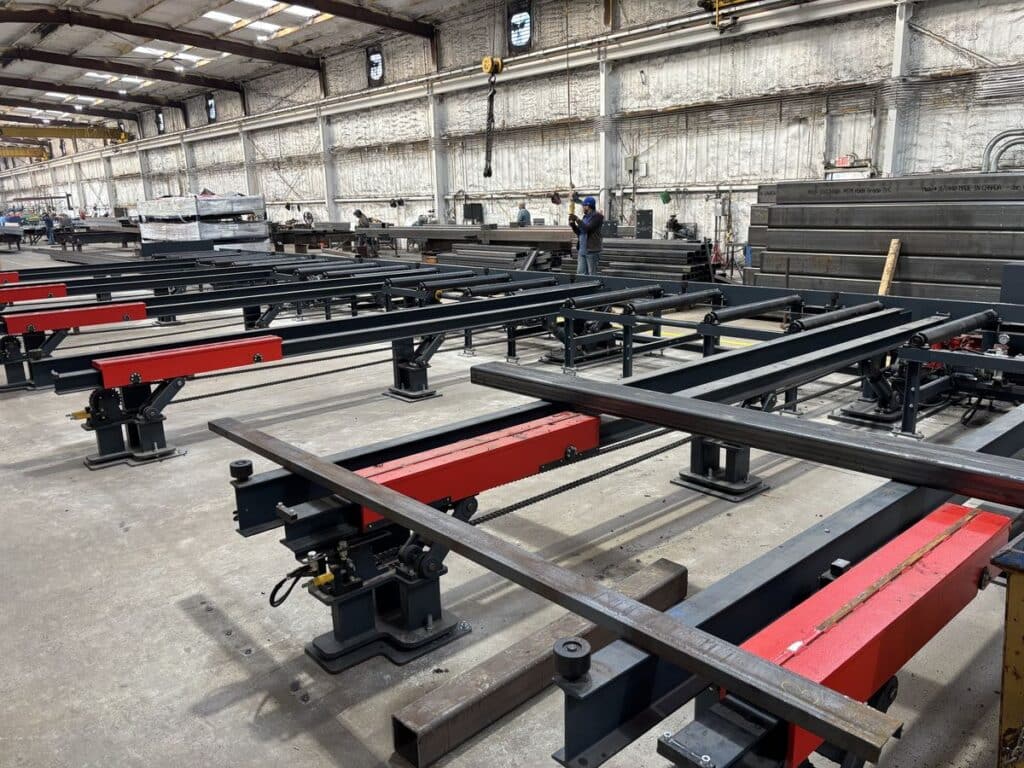

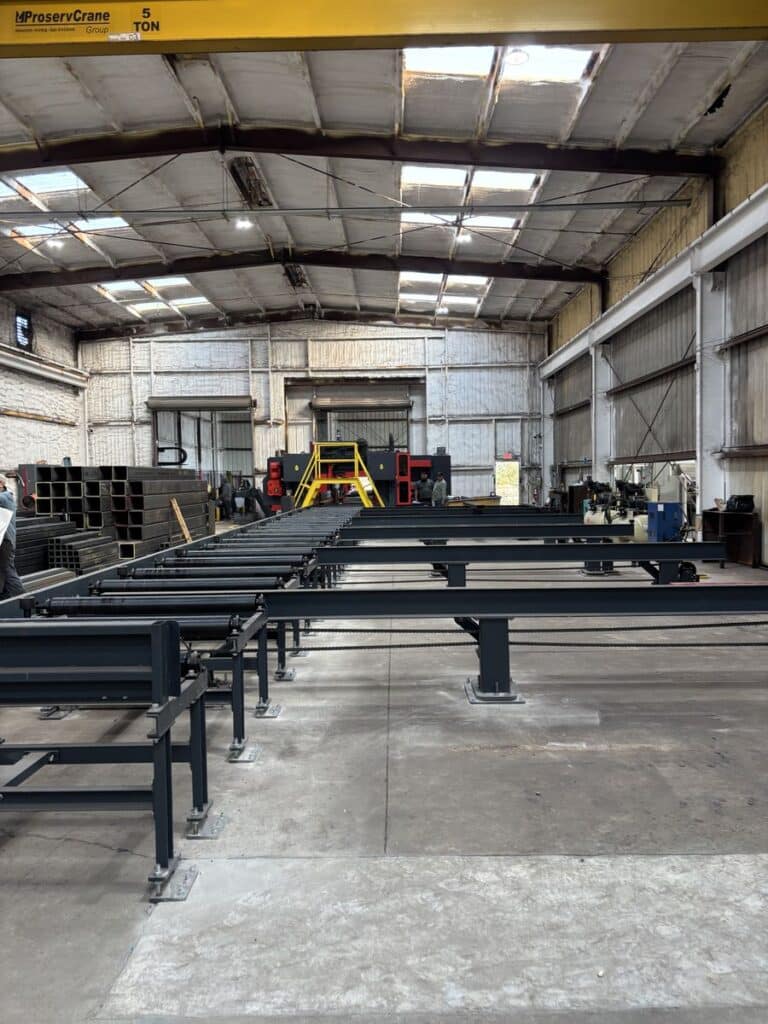

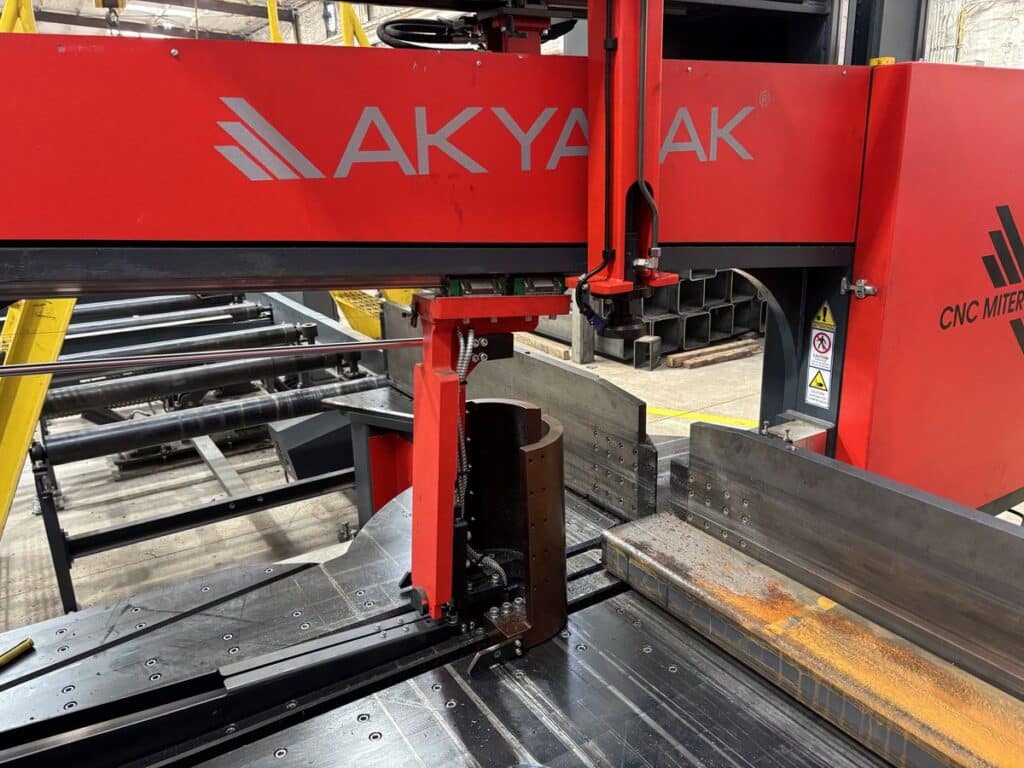

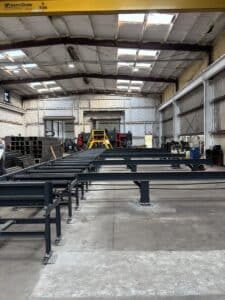

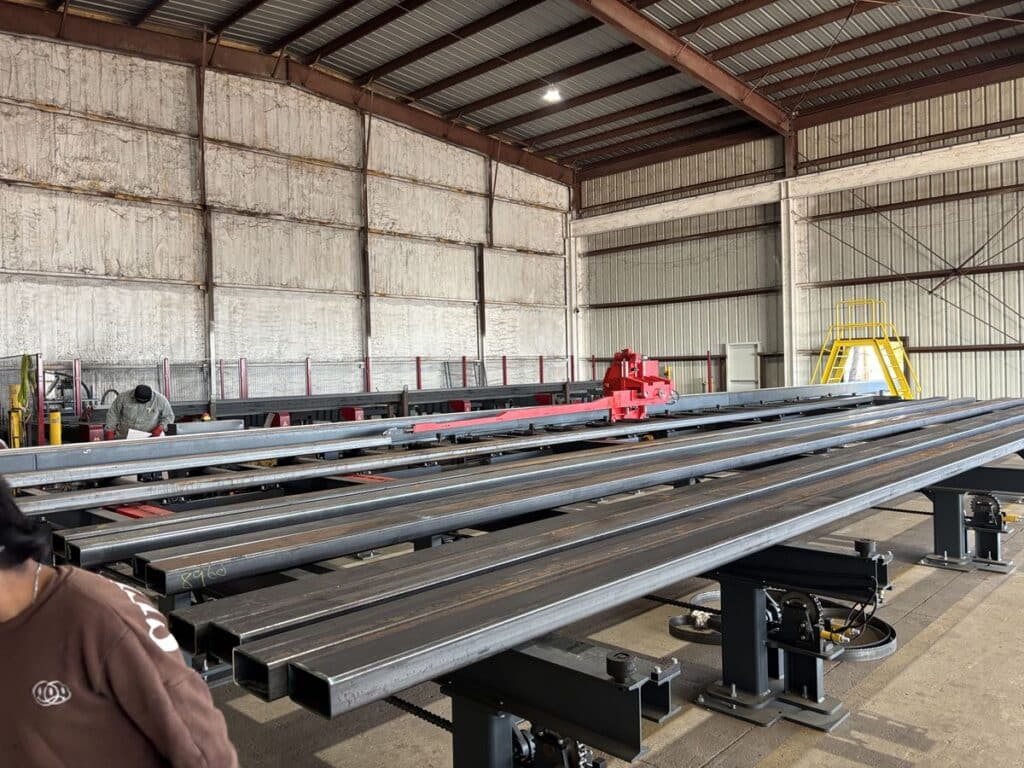

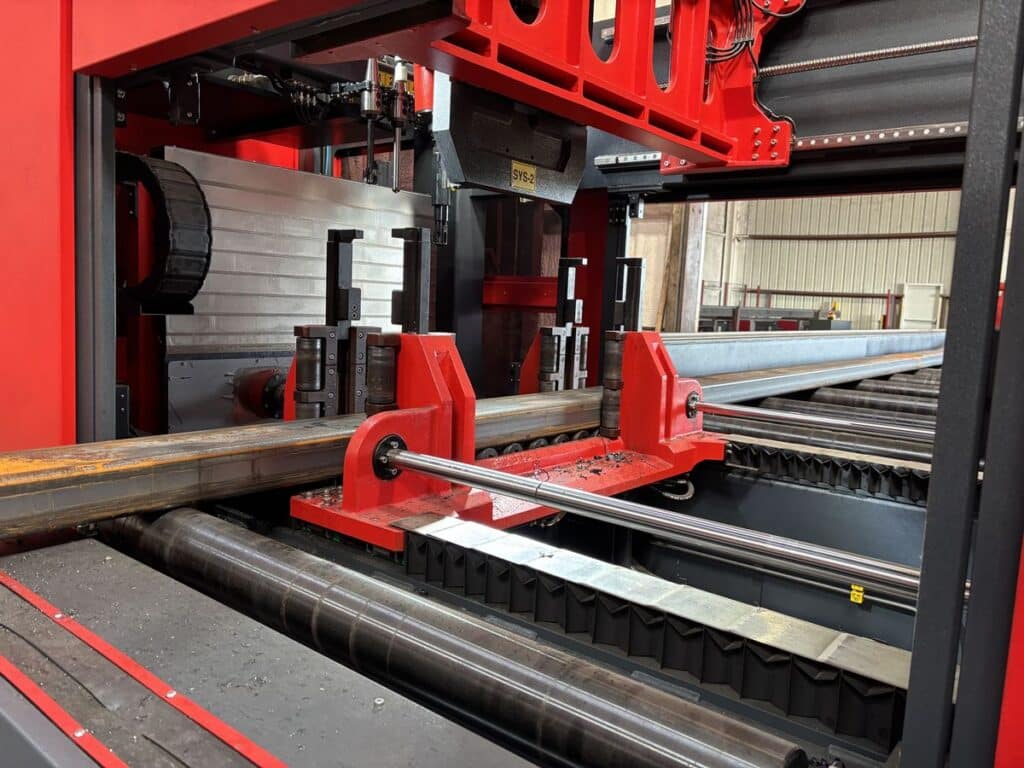

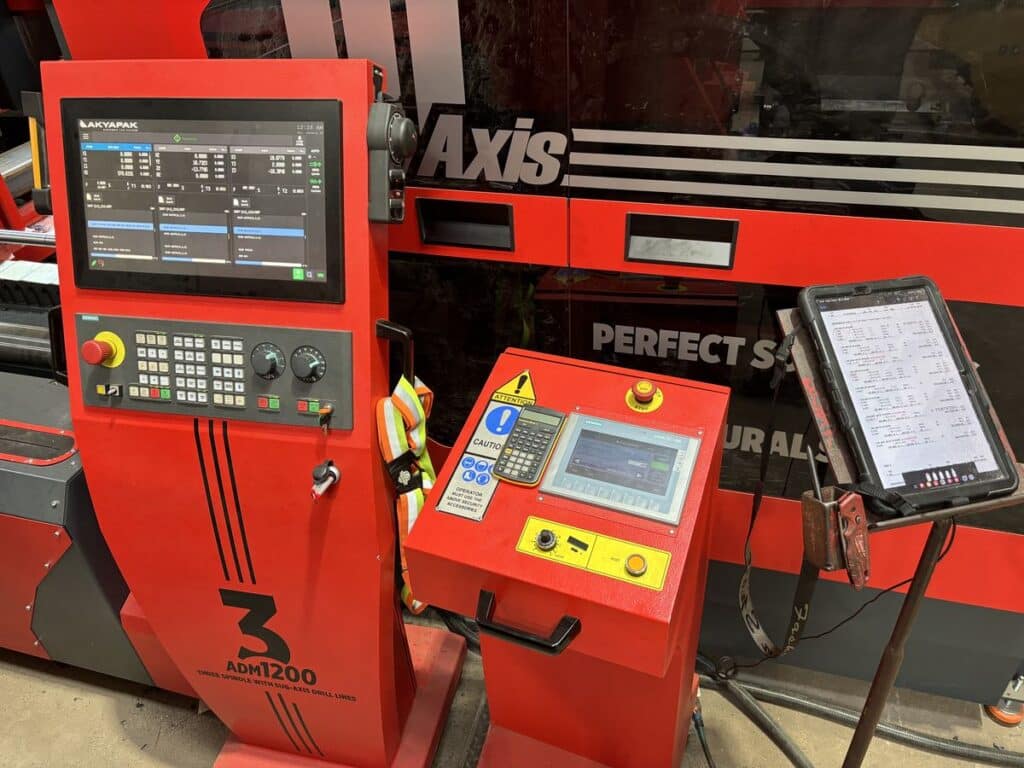

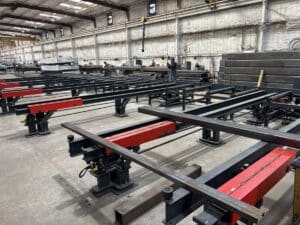

Drilling Unit: 3 ADM Drilling Units w/ 3 Automatic Tool Changer, Part Marking, Bandsaw Integration, Feeding Arm, Material Clamping, Automatic Tool and Material Measurement, 4th Side Layout Marking, Chip Conveyor, High Speed (20,000 RPM) Scribing Tools, Lantek Flex 3D Steel Work SD Plus Software, 60′ Infeed with Transfers, 60′ Outfeed with Transfers Miter Bandsaw Unit: Automatic Blade Tensioning System, Chip Brush for Blade, Integrated Chip Conveyor, Clamping Vice, Magnetic Material Discharge System, Feeding Arm with 60′ Infeed with Transfers, 60′ Outfeed with Transfers, AKYAPAK AST Controller Software

Additional Info

System is under power and available to demo.
