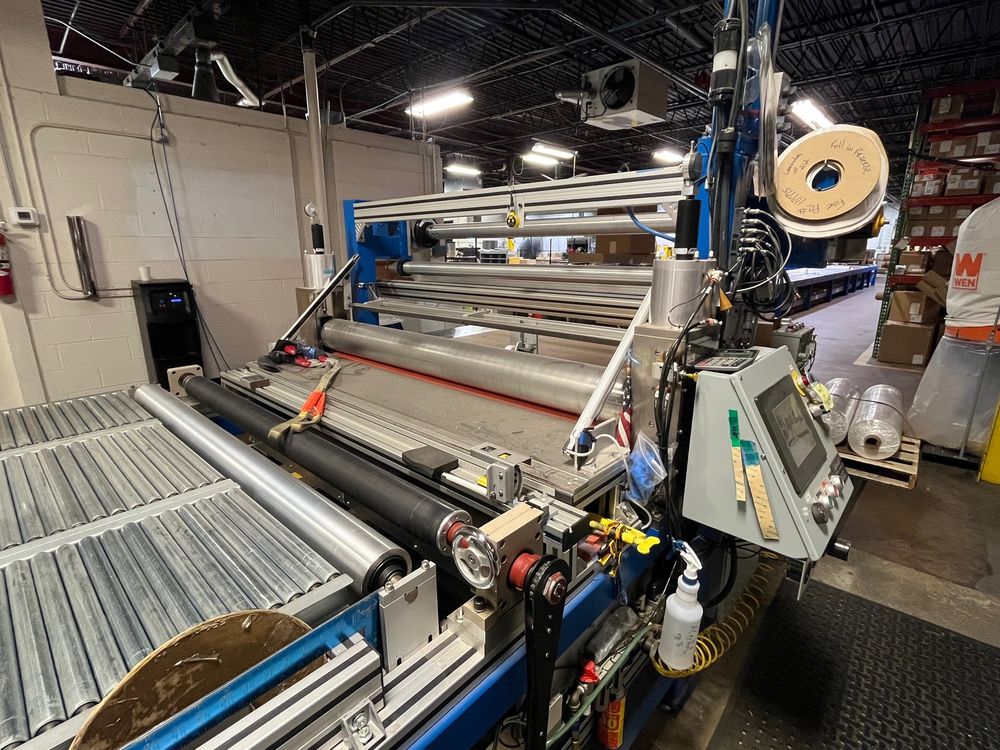

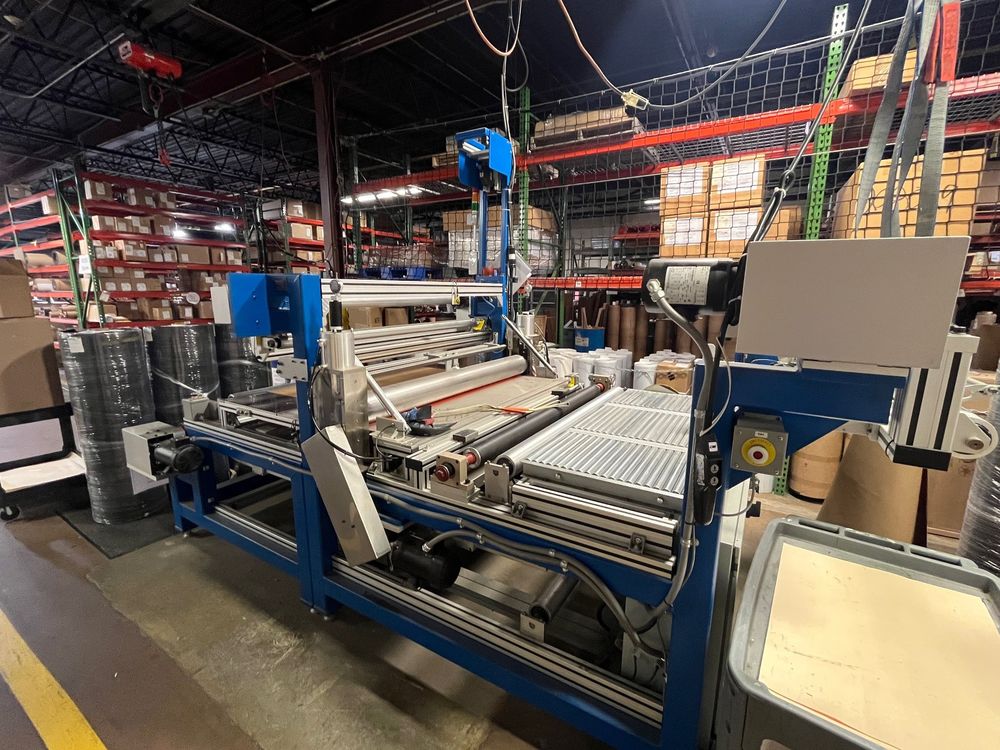

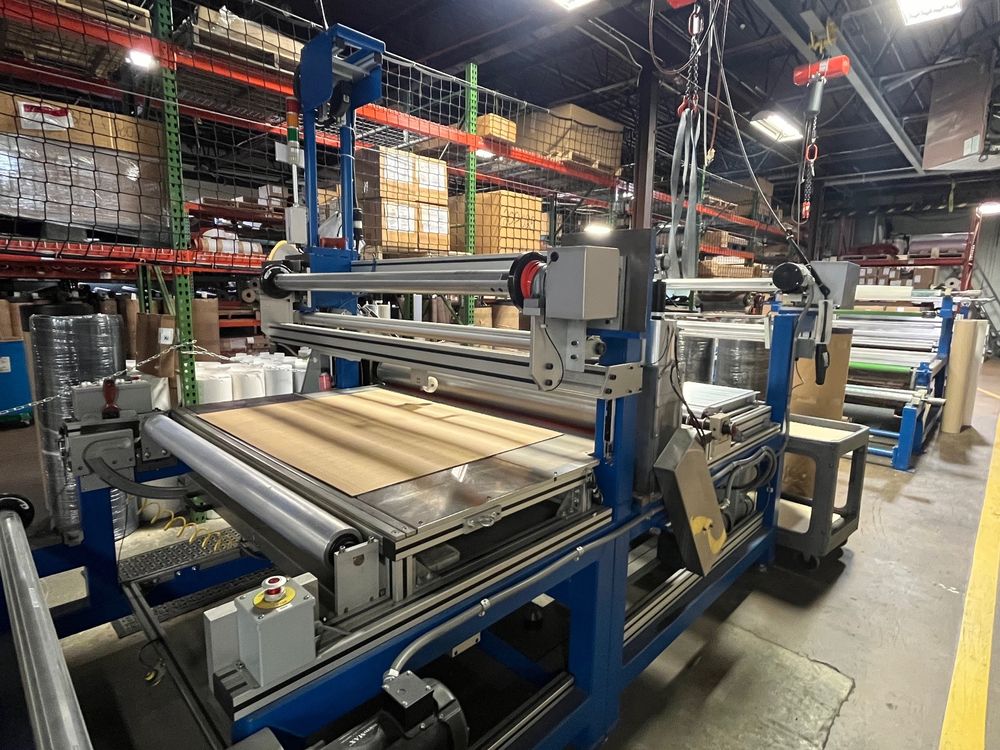

Advent Design Corporation 6294-1 Laminator 60″ Wide
Stock #: 181250025
$43,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 181250025
- Location: Philadelphia, PA
- Brand: Advent Design Corporation
- Model: 6294-1
- Year: 2013
- Approx. Shipping Dimensions: 11′ L x 7′ W x 9′ H
- Loading Fee: Rigging Required
Specifications
- Key Features: Dual unwinds with Adhesive & Substrate Air Shafts
- Key Features: Edge Guide Sensors for both adhesive and substrate for precise alignment
- Key Features: Integrated HMI & Gage Display for real-time process monitoring
- Key Features: Cut guides for both adhesive and substrate
- Specifications:: Can laminate material up to 60″ wide
- Specifications:: Overall dimensions are 11′ L x 7′ W x 9′ H
- Electrical Volts:: 208/120
- Phase:: 3
- Amps:: 30
- Hertz:: 60
- Applications:: Multi-layer lamination of elastomers, foams, and films, PSA application with accurate edge alignment
Equipped With
Raw material and finished product work pieces: Substrates are supplied in rolls wound on 3-inch ID cardboard cores. Rolls are from 24 inches to 54 inches wide with up to 22-inch maximum OD. Thickness ranges from 0.005-inch film up to 0.50-inch foam, and the maximum roll weight is 200 pounds. Adhesive is supplied in rolls wound on 3-inch ID cardboard cores. Rolls are from 24 inches to 54 inches wide with up to 14-inch maximum OD. Thickness is 0.005 inch to 0.020 inch, and the maximum roll weight is 300 pounds.
Additional Info
Inspection Upon Request
