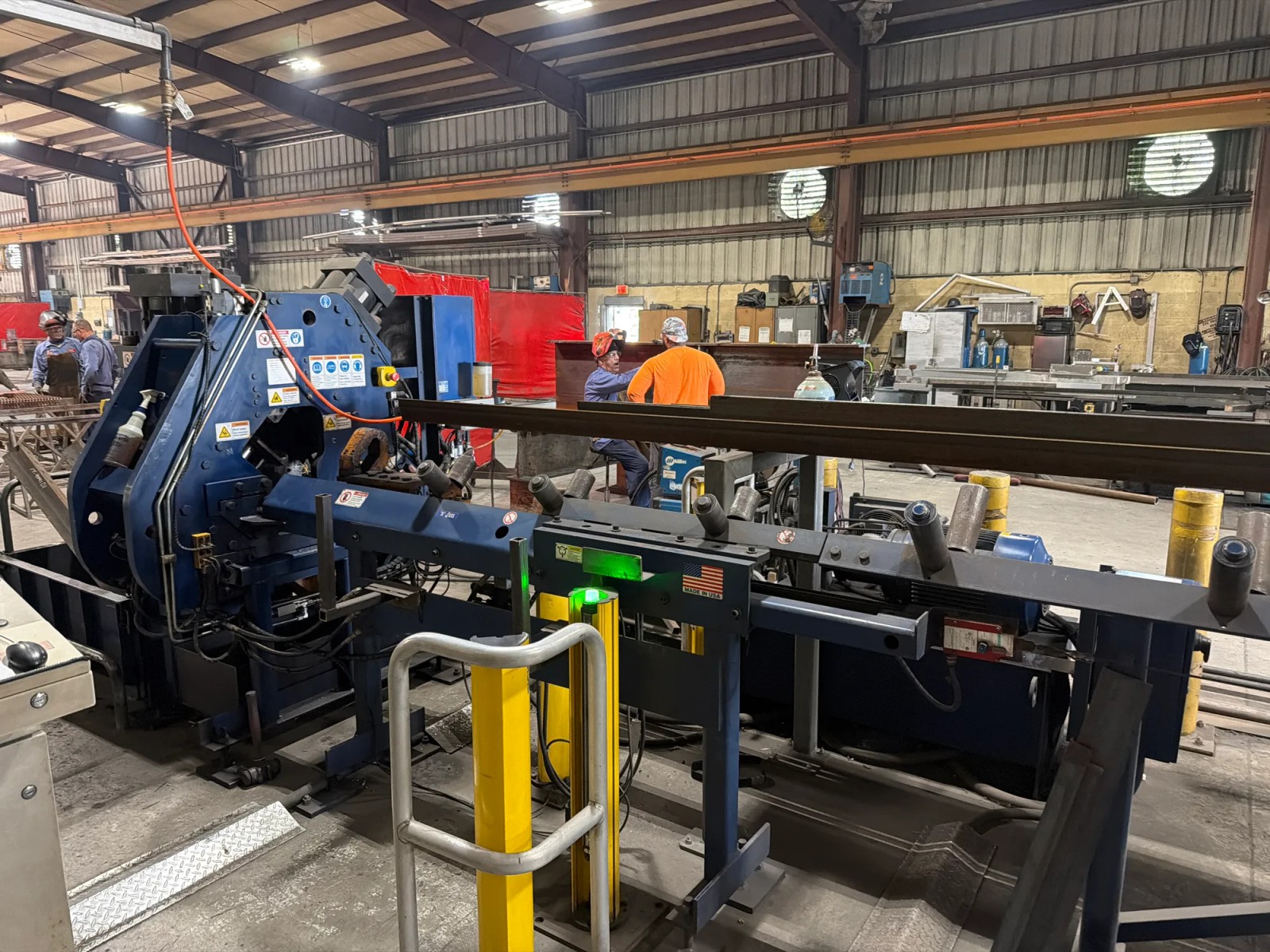

2015 Peddinghaus Ocean Clipper APDS-613/1B

Stock #: 173260016

$57,500.00

See Product Details

Business Financing Available

  • Stock #: 173260016
  • Brand: Peddinghaus

Business Financing Available

  • Stock #: 173260016
  • Brand: Peddinghaus

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Provide Shipping Quote
Provide Financing Options
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Product Description

General Info

  • Stock #: 173260016
  • Year: 2015
  • Brand: Peddinghaus
  • Model: Ocean Clipper APDS-613/1B
  • Description: Angle Line

Specifications

  • Min-Max Angle Size: 1-1/2" × 1-1/2" × 1/8" – 6" × 6" × 5/8"
  • Drilling Hole Diameter: 5/16"–1-9/16"
  • Drill Gauge: 0.5"–5.5"
  • Drilling Feed Rate: 2-10 IPM
  • Punching Tonnage: 75
  • Max Punch Size: 1-1/4" (#272 Standard) – 1-1/16" (#132, Requires PFP Holder)
  • Punch Cycle Time: 2 seconds
  • Shear Tonnage: 100
  • Shear Minimum Drop: 8.125"
  • Shear Cycle Time: 5 seconds
  • Shear Slug Size: 1/2"
  • In-Feed Speed (X-Axis): 61 FPM Max
  • Max X-Axis Stroke: 50"
  • Y-Axis Travel: 12" (starting 1/2" past datum)
  • Z-Axis Travel: 5" (starting 1/2" past datum)
  • Pass Line Height: 45"

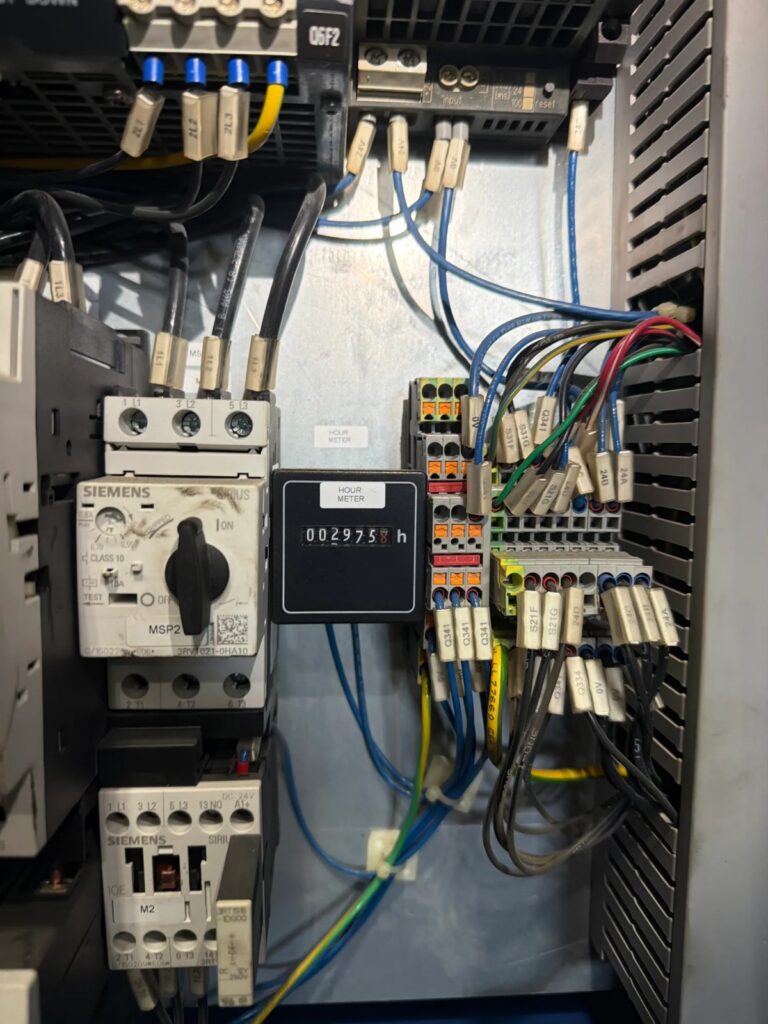

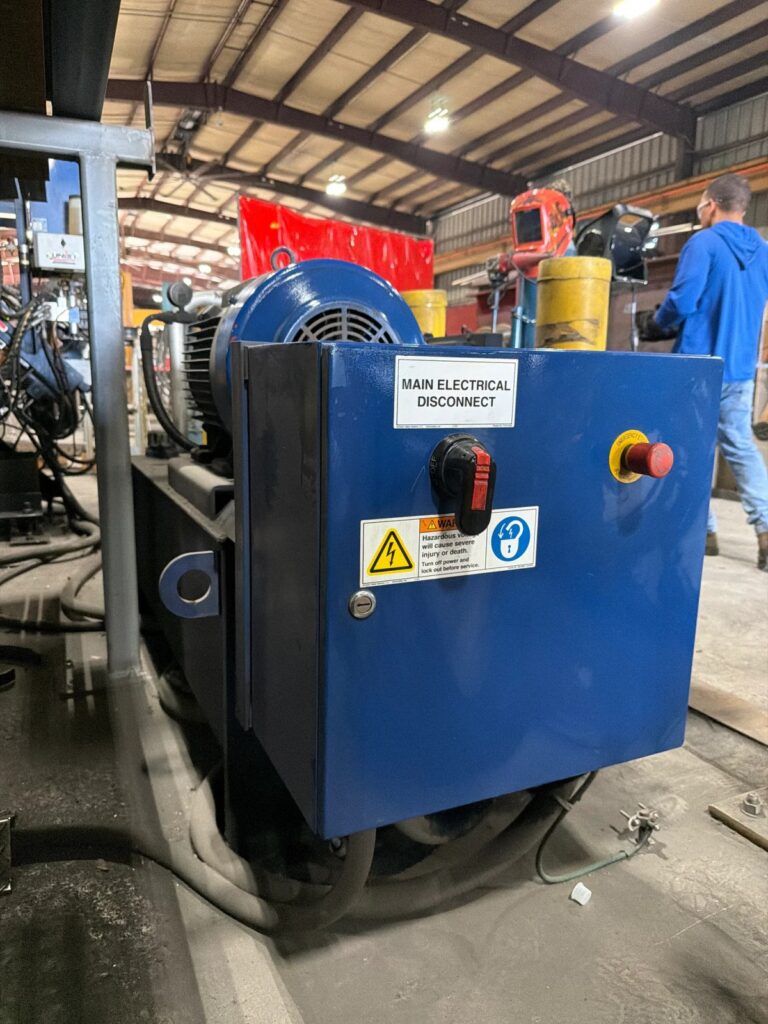

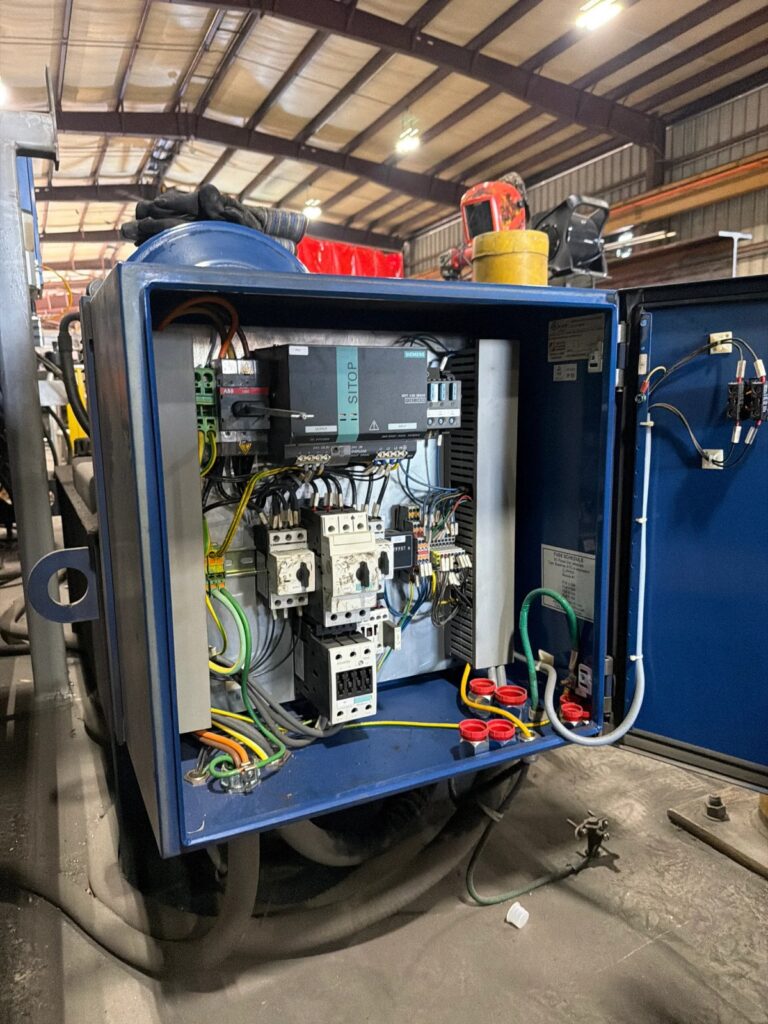

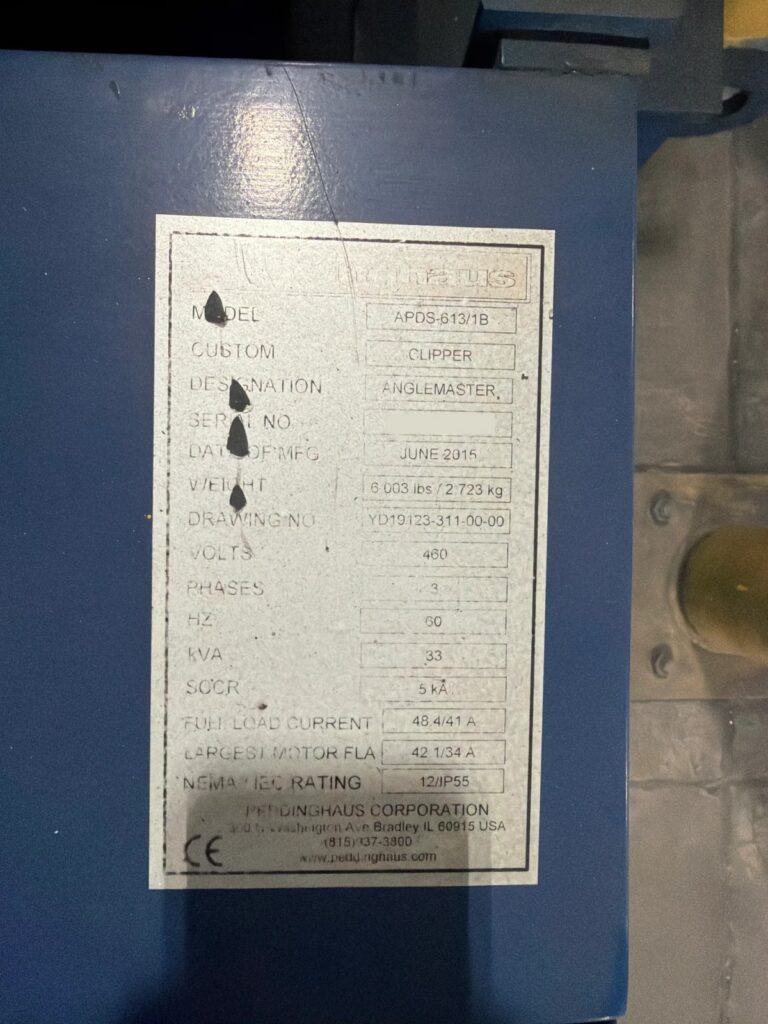

  • Power: 460V, 40 amp, 33 KVA
  • Shop Air: 90–100 PSI
  • Foundation: 6" Concrete
  • Punch/Shear Frame Weight: 5,000 Lbs
  • X-Axis Assembly: 900 Lbs

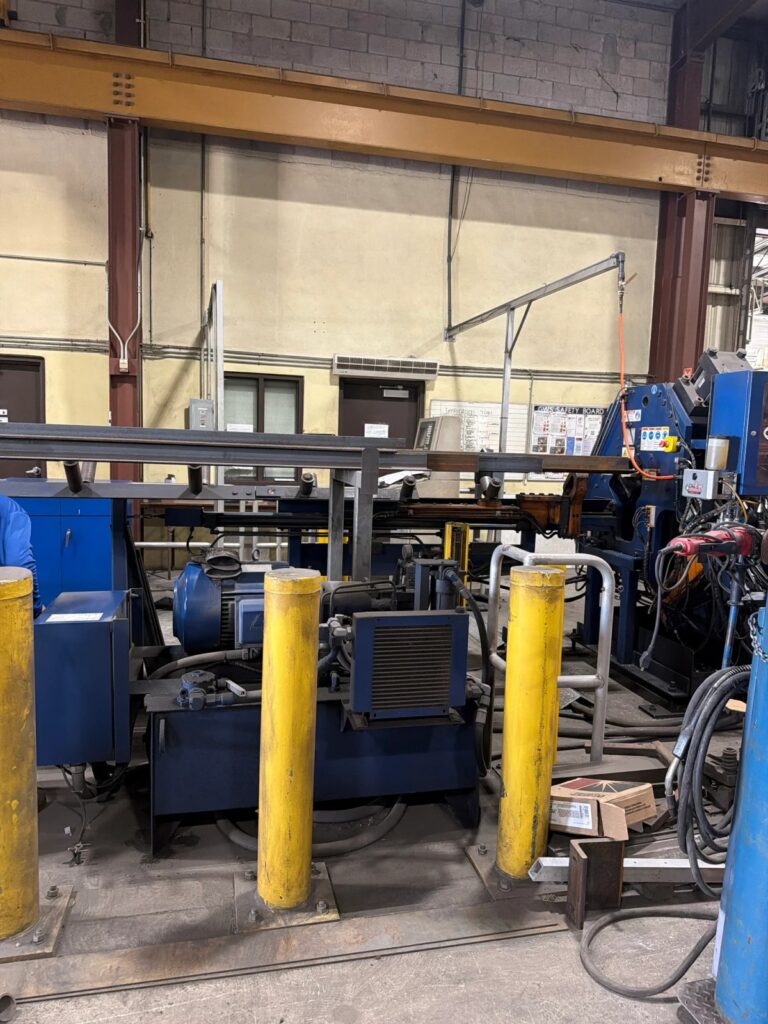

  • In-Feed Power Unit: 300 lbs

Equipped With

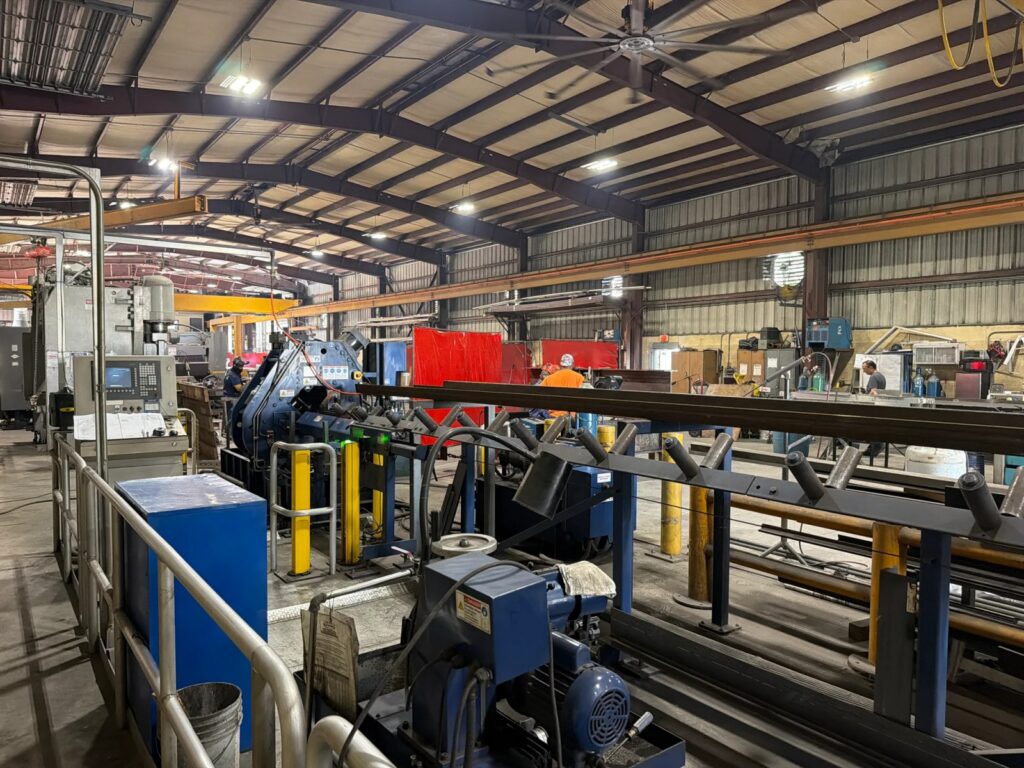

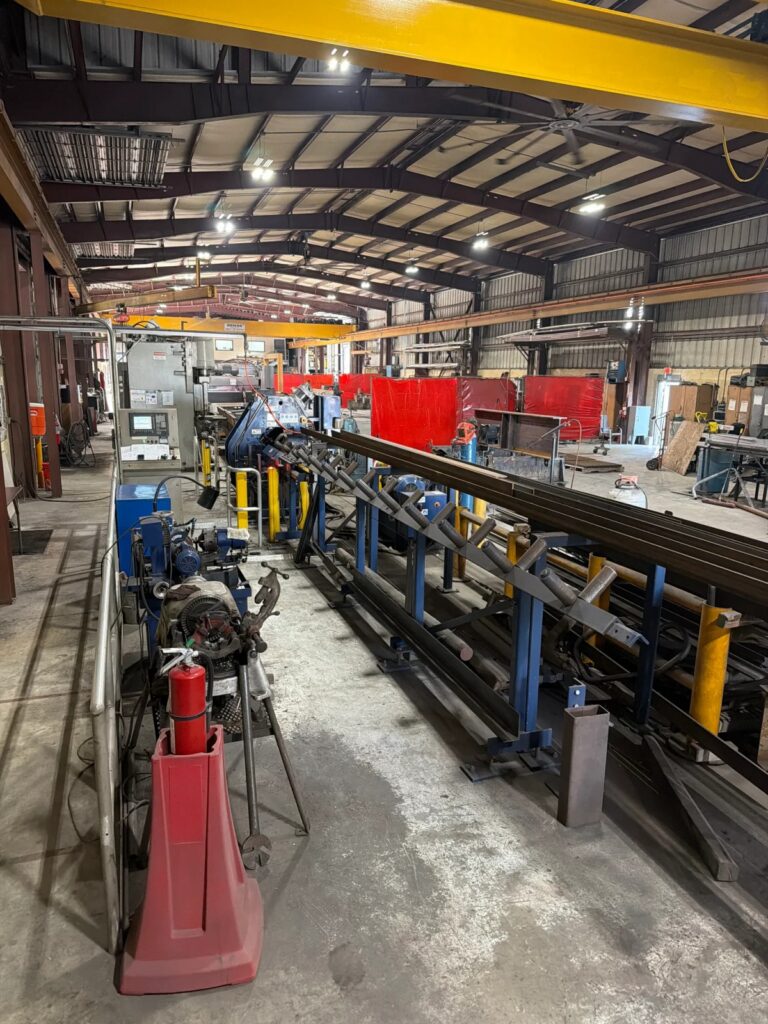

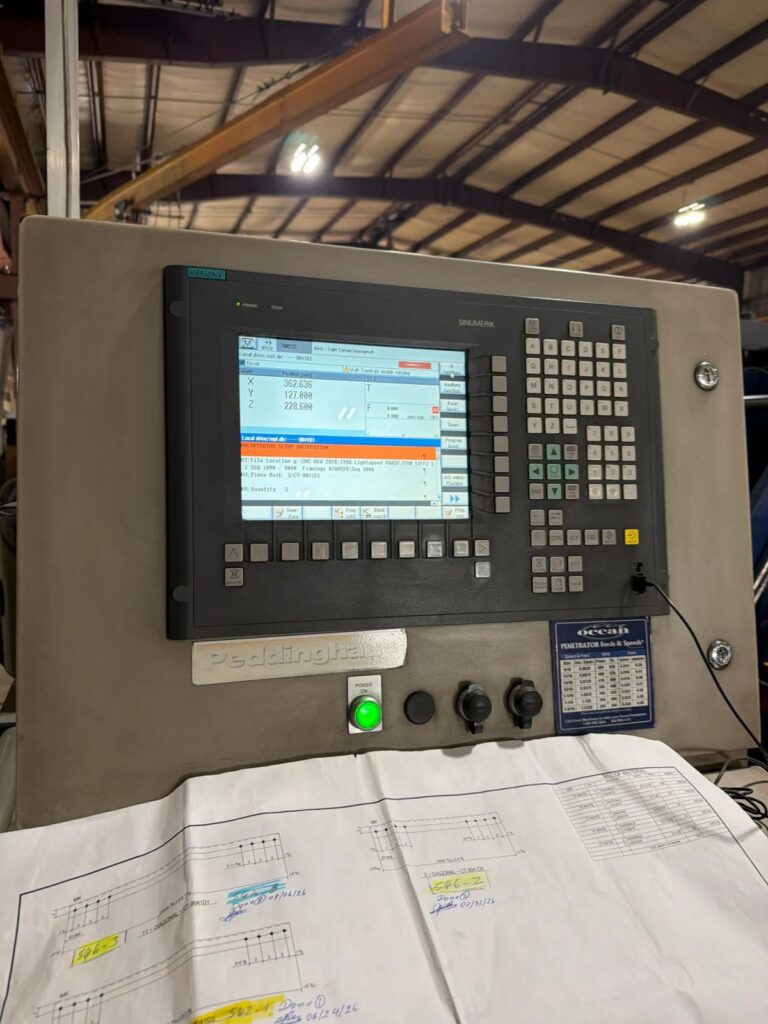

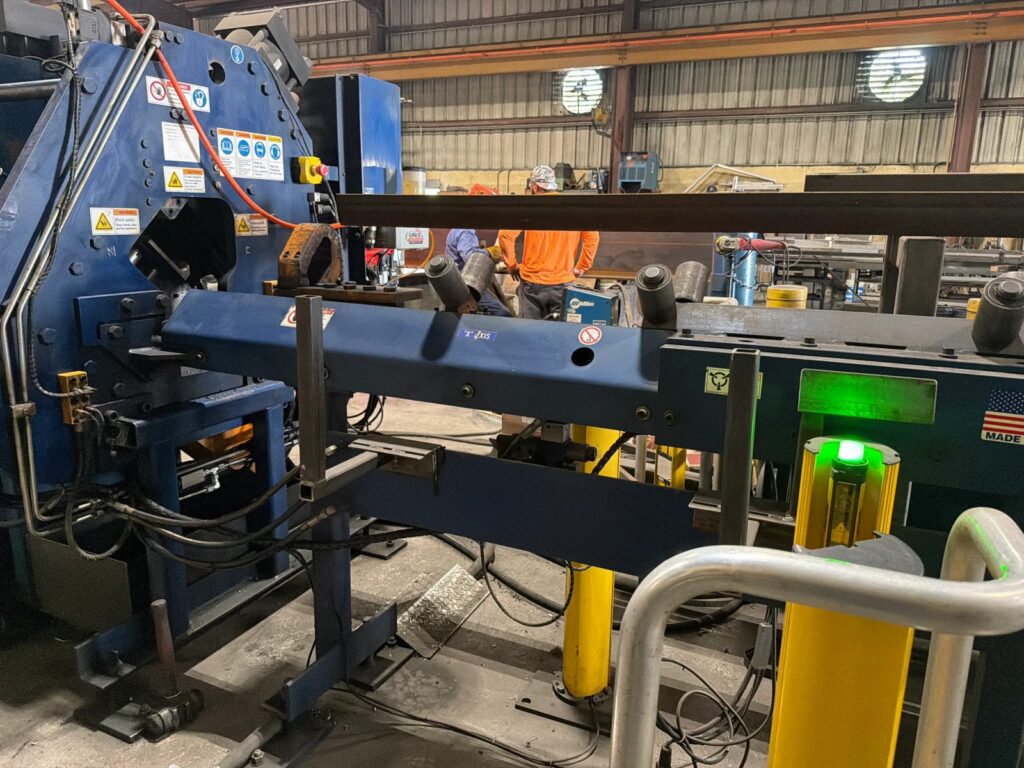

20 Ft In-Feed Roller Support (Extendable), Auto-Zeroing/Backlash Compensation/Axis Calibration, Automatic Angle Sensor Sets Drill Stroke Off The Heel, Fully Automatic Punch/Drill/Shear Cycle, In-Line Hydraulic Punch And Drill – No Repositioning Of Material, Siemens 840Di CNC Control With Conversational Programming/Graphic Display/2-Axis Simultaneous Control

Additional Info

The machine can be seen under power for an inspection.
