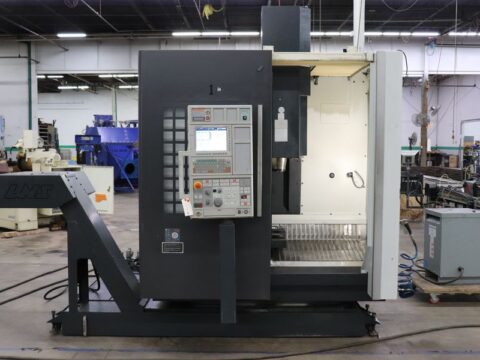

Tsugami VA2 High Speed Vertical Machining Center (2015)
Stock #: 173240001
$44,950.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
Product Description
General Info
- Stock #: 173240001
- Location: TX
- Brand: Tsugami
- Model: VA2
- Year: 2015
- Approx. Shipping Weight: 3,975 Lbs.
- Approx. Shipping Dimensions: 42″ L x 80″ W x 78″ H
- Loading Fee: Rigging Required
Specifications
- Table size: 500 mm x 300 mm
- Distance between spindle face and table face: 110 mm – 360 mm
- Maximum weight on table: 200 kg (uniformed load)
- X-axis stroke: 360 mm
- Y-axis stroke: 260 mm
- Z-axis stroke: 250 mm
- Rapid traverse rate (X, Y, Z axis): 40 m/min
- Cutting feed rate: 1 to 30,000 m /min
- Spindle taper: 7/24 taper S20T
- Spindle speeds: 7/24 taper S20T Spindle speeds 300 to 30,000 min-1 (Normal highest spindle speed 28,000 min-1)
- Tool storage capacity: 14 tools (Maximum mountable tool number: 15 tools)
- Maximum tool size (W x L): 60 mm x 130 mm
Equipped With
Helical Interpolation, Tool Breakage Detection, Rigid Tapping, Tool Setter, Spindle Retention Force Gauge, Renishaw Probe, misc. ER16 & ER20 Holders
Additional Info
Machine can be inspected upon request.
This machine is being sold from our client’s facility and is sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.
