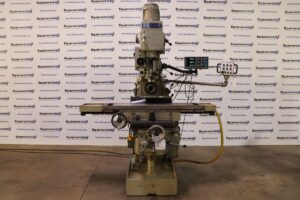

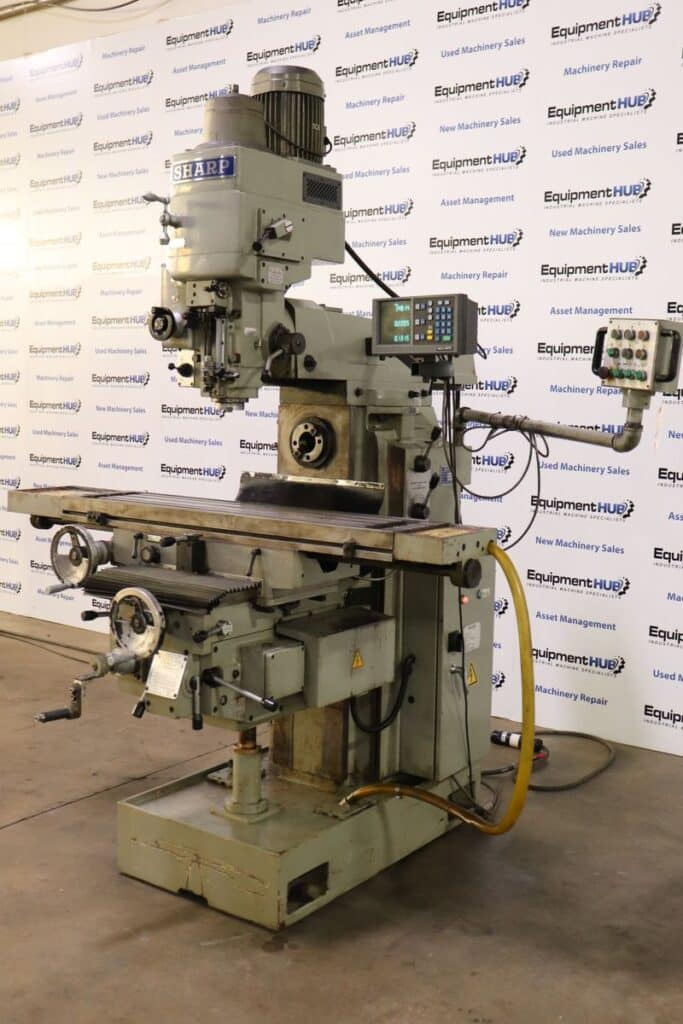

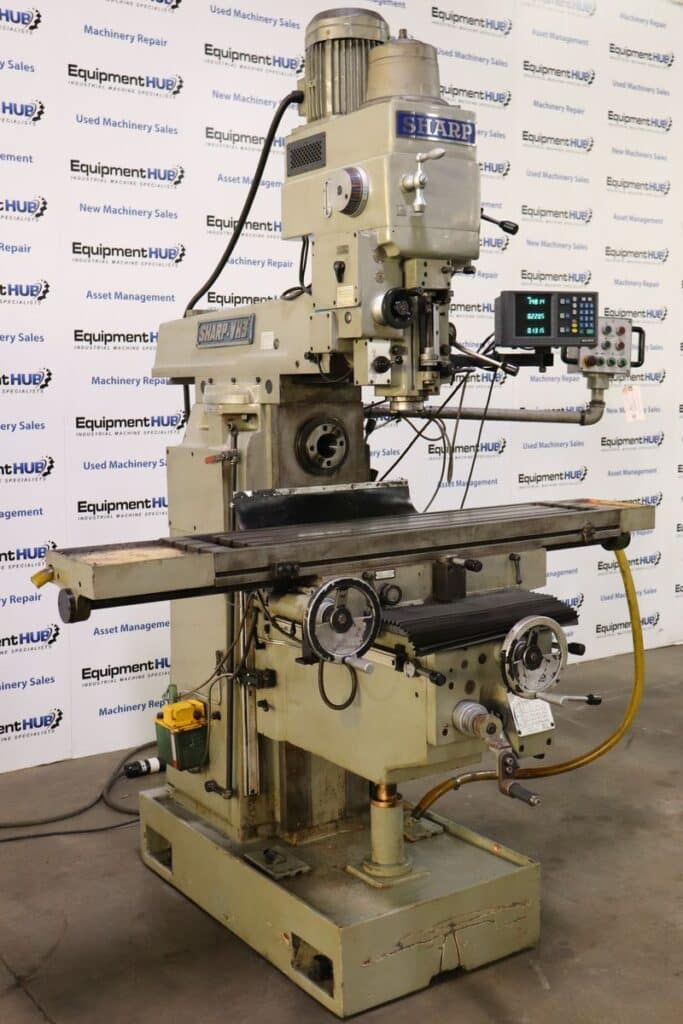

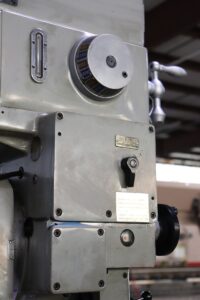

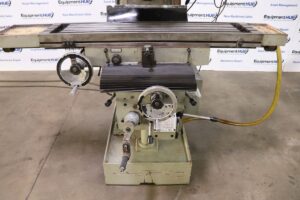

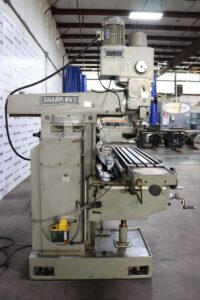

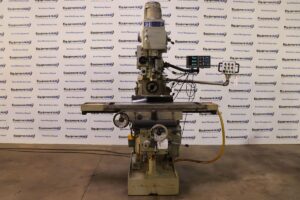

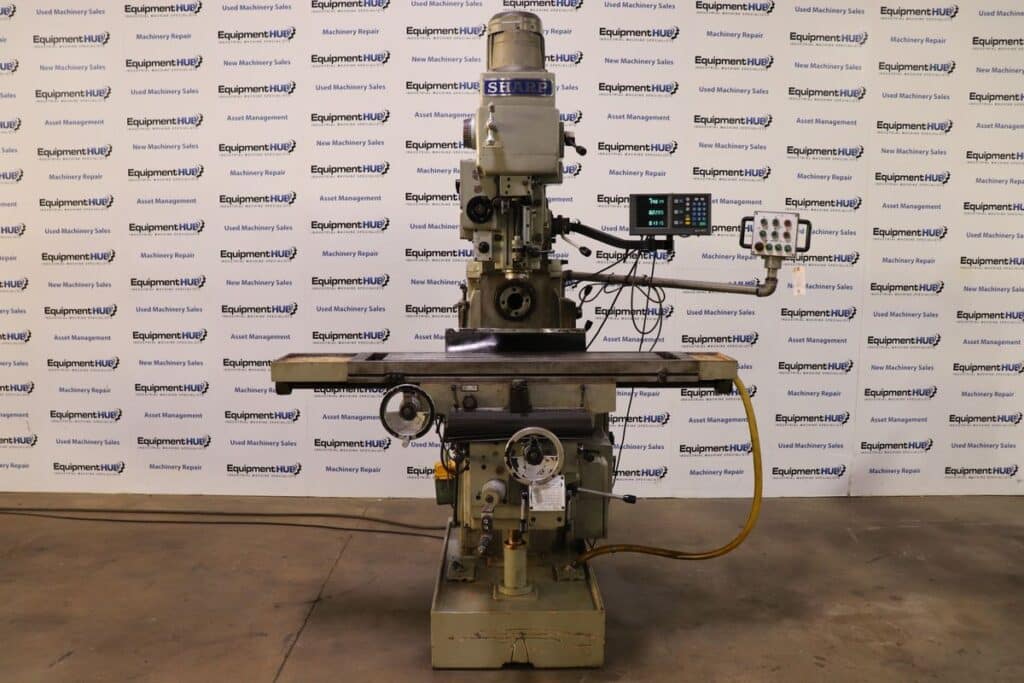

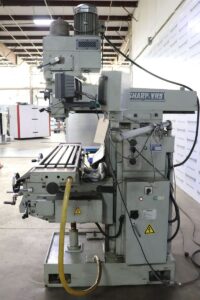

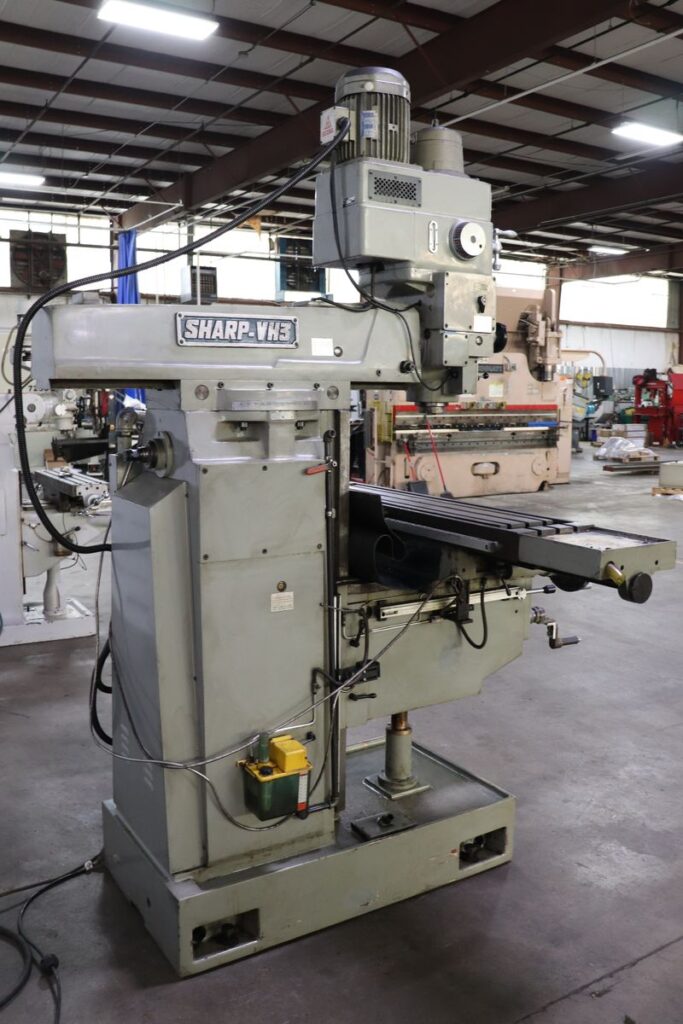

Sharp VH-3 51″ x 12″ Vertical / Horizontal Milling Machine w/ Acu-Rite 3-Axis DRO

Stock #: 190250012

$12,500.00

See Product Details

Business Financing Available

  • Stock #: 190250012
  • Brand: Sharp

Business Financing Available

  • Stock #: 190250012
  • Brand: Sharp

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

  • Hidden
  • Hidden
  • Hidden
  • Hidden
  • Hidden
  • This field is for validation purposes and should be left unchanged.

Product Description

General Info

  • Stock #: 190250012
  • Location: Stone Mountain, Ga
  • Brand: Sharp

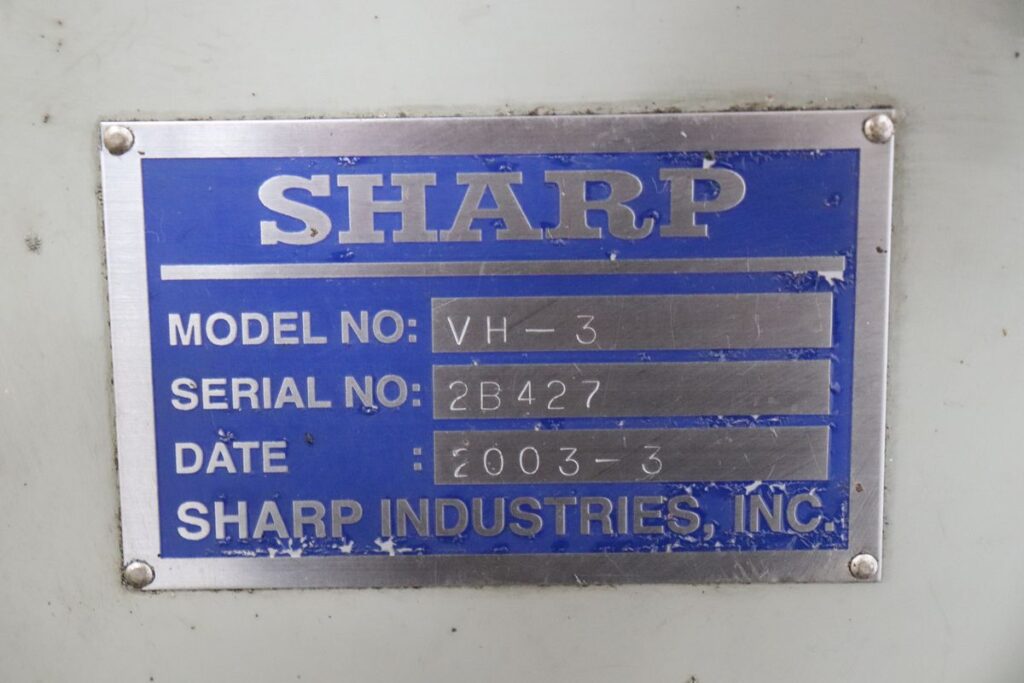

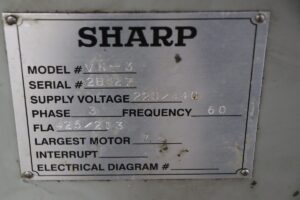

  • Model: VH-3
  • Serial #: 2B427
  • Year: 2003
  • Approx. Shipping Weight: 6000 Lbs.
  • Approx. Shipping Dimensions: 6′ L x 6′ W x 8’6″ H
  • Skidding Fee: Skidding Unavailable

Specifications

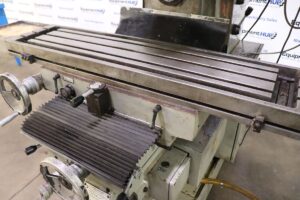

  • Table Size: 51-3/16″ x 11-13/16″
  • Table Travel (Longitudinal x Cross x Vertical): 37-3/8″ x 14-13/16″ x 18-1/2″

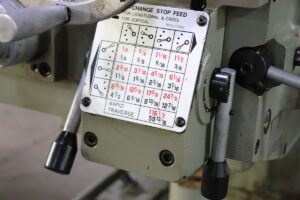

  • Feeds (12 step): Vertical: 1/4 to 12-7/16 IPM, Long & Cross: 1/2 to 24-7/8 IPM
  • Rapid Traverse: Vertical: 59-13/16 IPM, Long & Cross: 116-1/2 IPM

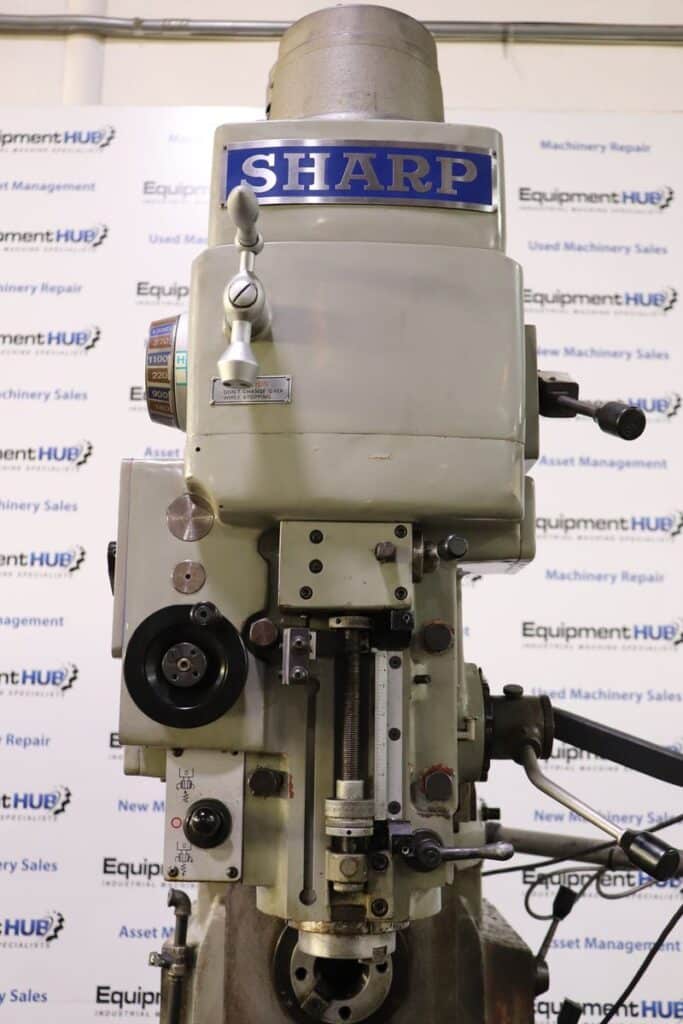

  • Vertical Spindle Taper: NST#40
  • Vertical Spindle Speeds(Infinitely Variable): 120 – 3600 RPM

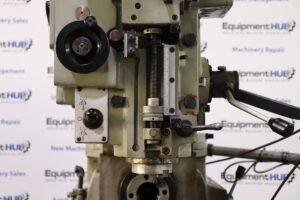

  • Vertical Quill Travel: 5-1/8″
  • Vertical Quill Feeds(3): 0.0019, 0.0038, 0.0076 IPR
  • Horizontal Spindle Taper: NST #50

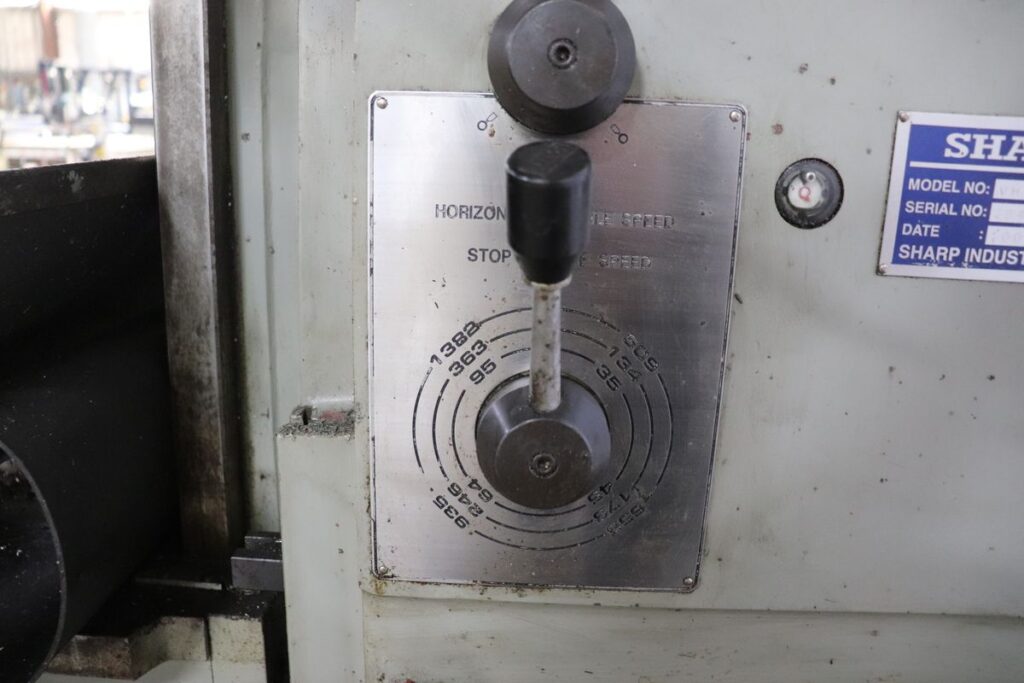

  • Horizontal Spindle Speeds (12 Steps): 30 – 1,382 RPM
  • Vertical Spindle Motor HP: 5
  • Horizontal Spindle HP: 7.5
  • Table Feed & Rapid Traverse Motor hP: 3
  • Electrical: 220V/3PH

Equipped With

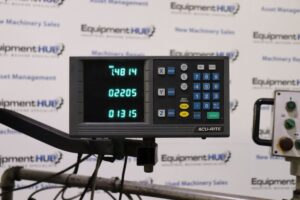

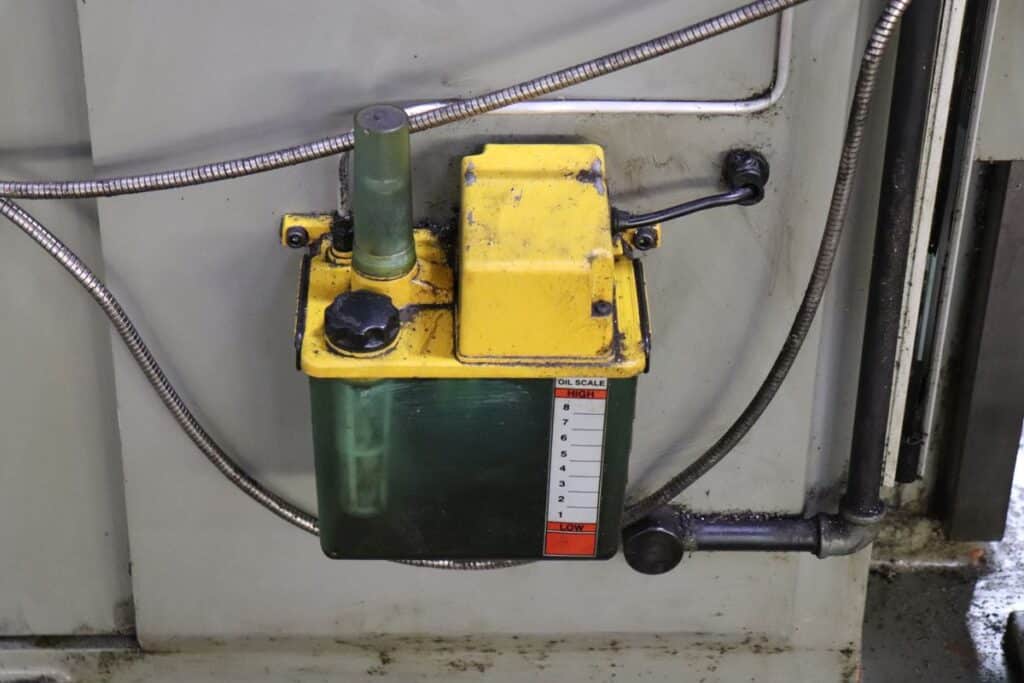

Acu-Rite 3-Axis Digital Readout, Electro-Magnetic Spindle Brake, Coolant System, Pressurized Auto Lube System

Additional Info

The Sharp Milling Machine can be demoed upon request, check out the video on the listing to see it in operation.
