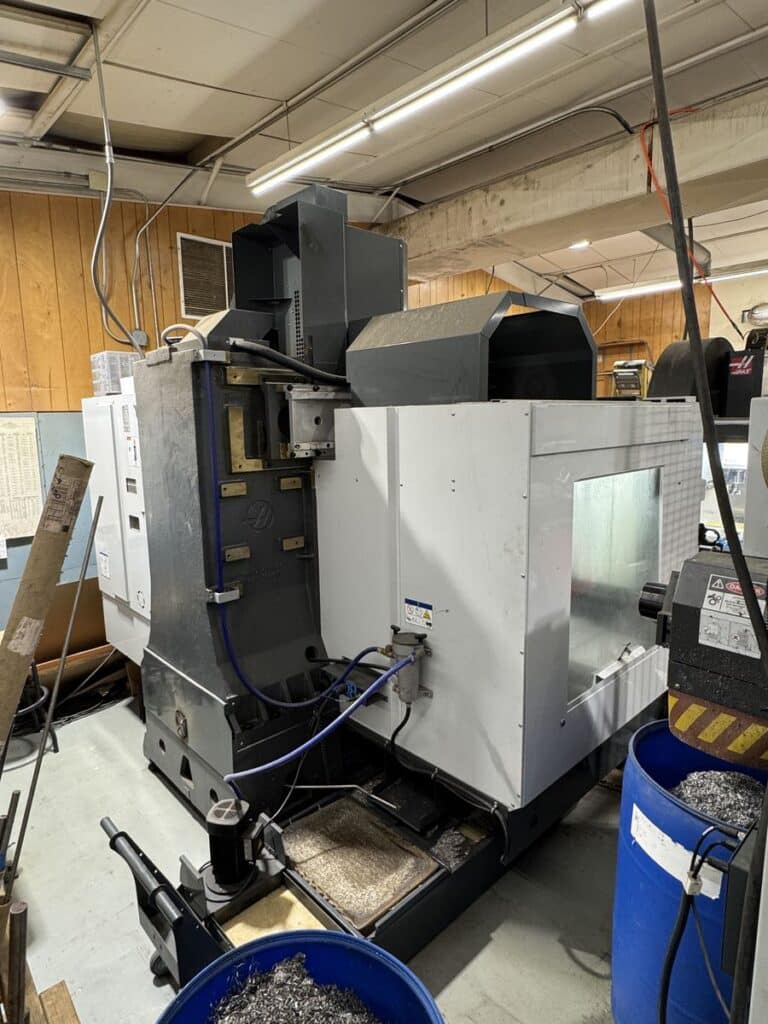

Haas VF-3SSYT CNC Super Speed Vertical Machining Center (2022)
Stock #: 171250013
$77,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
Product Description
General Info
- Stock #: 171250013
- Location: AR
- Brand: Haas
- Model: VF-3SSYT
- Year: 2022
- Approx. Shipping Weight: 15,000 LBS
- Approx. Shipping Dimensions: 156″ L x 102″ W x 109″ H
- Loading Fee: Rigging Required
Specifications
- Table Size: 54″ x 24″
- X-Axis Travel: 40″
- Y-Axis Travel: 26″
- Z-Axis Travel: 25″
- Spindle Nose to Table (Max / Min): 29.2″ / 4.2″
- Rapids (X / Y / Z): 1,400 IPM / 1,400 IPM / 1,400 IPM
- Spindle Taper: CAT 40
- Spindle Motor: 30 HP
- Spindle Speed: 12,000 RPM
- Tool Magazine Capacity: 30+1
- Power Required: 220V / 3 Phase
Equipped With

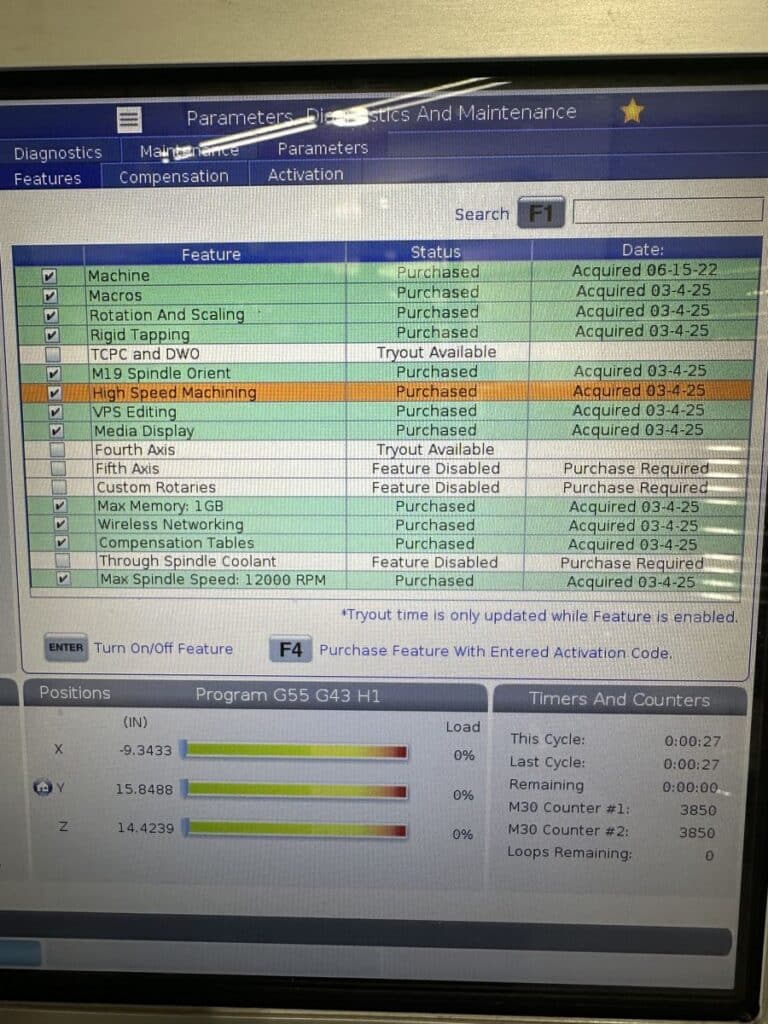

WIPS, 12K RPM Spindle, 30+1 Tool Capacity, Chip Auger, Chip Lift, 55-Gal Coolant Tank, Pulsejet System, High Speed Machining, Ridgid Tapping, High Voltage Transformer, Automatic Air Gun, Programmable Coolant Nozzle, Lift Provision, 1GB Memory, Early Power Failure Detection, HAAS NGC
Additional Info
Machine is under power and available to demo.
